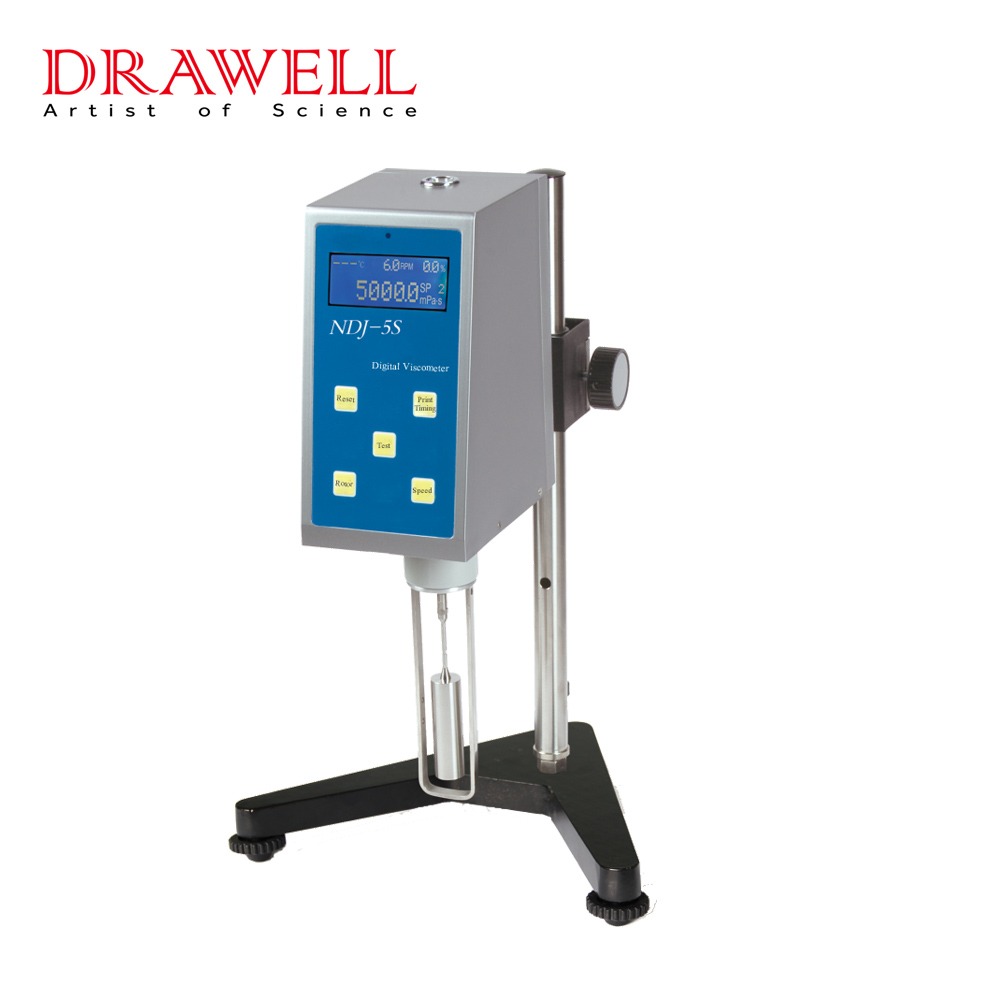

NDJ-5S 20-100000mPa·s Low Viscosity Viscometer
The NDJ-5S rotational viscometer is an instrument used to measure the viscosity of a fluid. It is mainly used to measure the viscosity of medium to high viscosity fluids.
Application areas include:chemical and coating industries, food industry, pharmaceutical and daily chemical industries, and other industrial and scientific research fields, etc.
Key features:
- Measuring Range (mPa-s)
- Standard Spindles (Code L1,L2,L3,L4)
- Accuracy ±1%; Return Capacity: ±0.5%
- Optional: L0, L5 spindle, RTD temperature probe, printer
Options of NDJ-5S Digital Viscometer

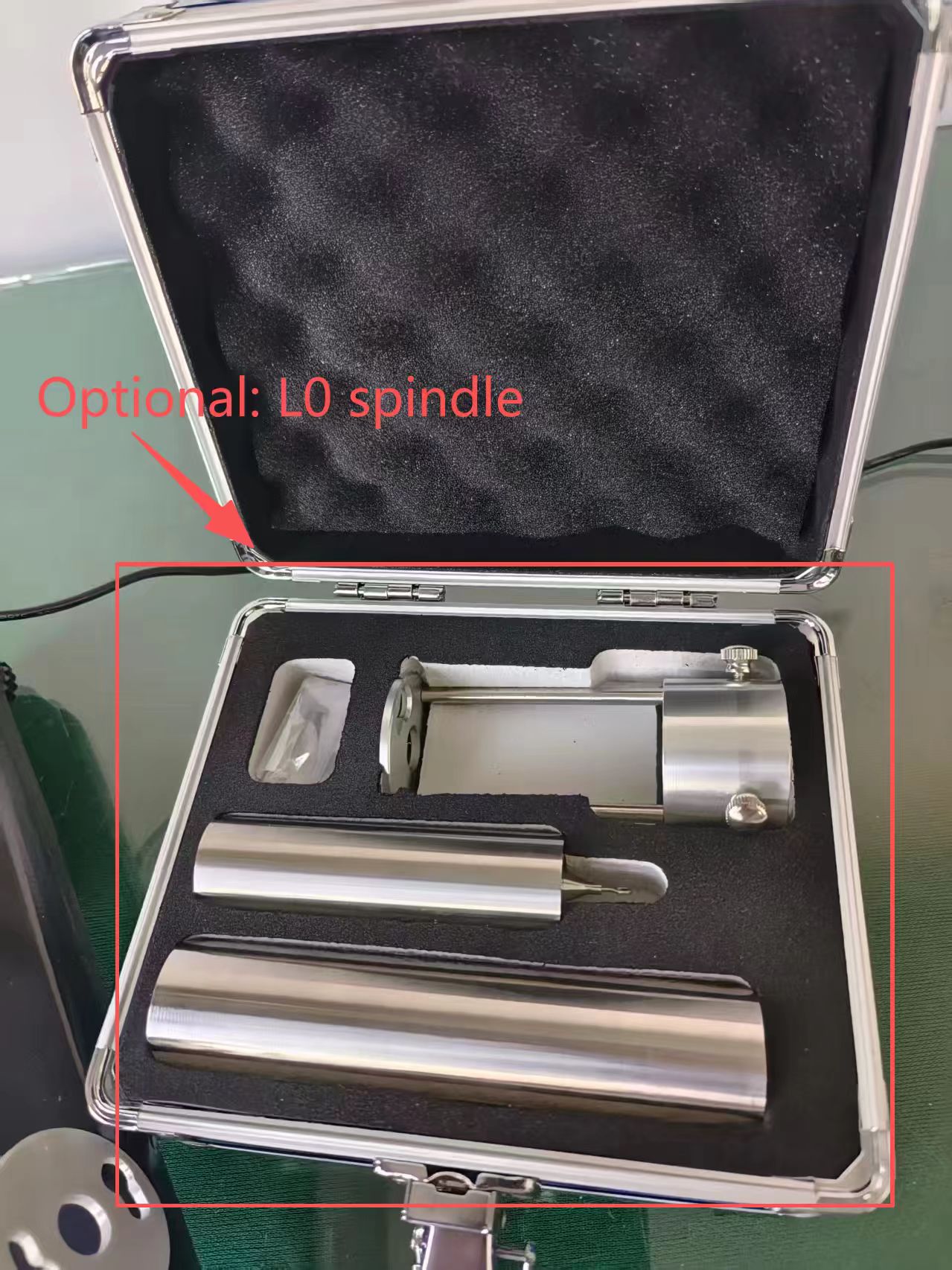

- Extreme low viscometer adapter (with one spindle L0)
- Small sample adapter (with spindle 21, 27, 28, and 29 each)
- Spindle L5
- Temperature-controlled heater (with spindles 21, 27, 28, and 29 each)
- RTD temperature probe
- Specially used printer
Application of NDJ-5S Viscometer

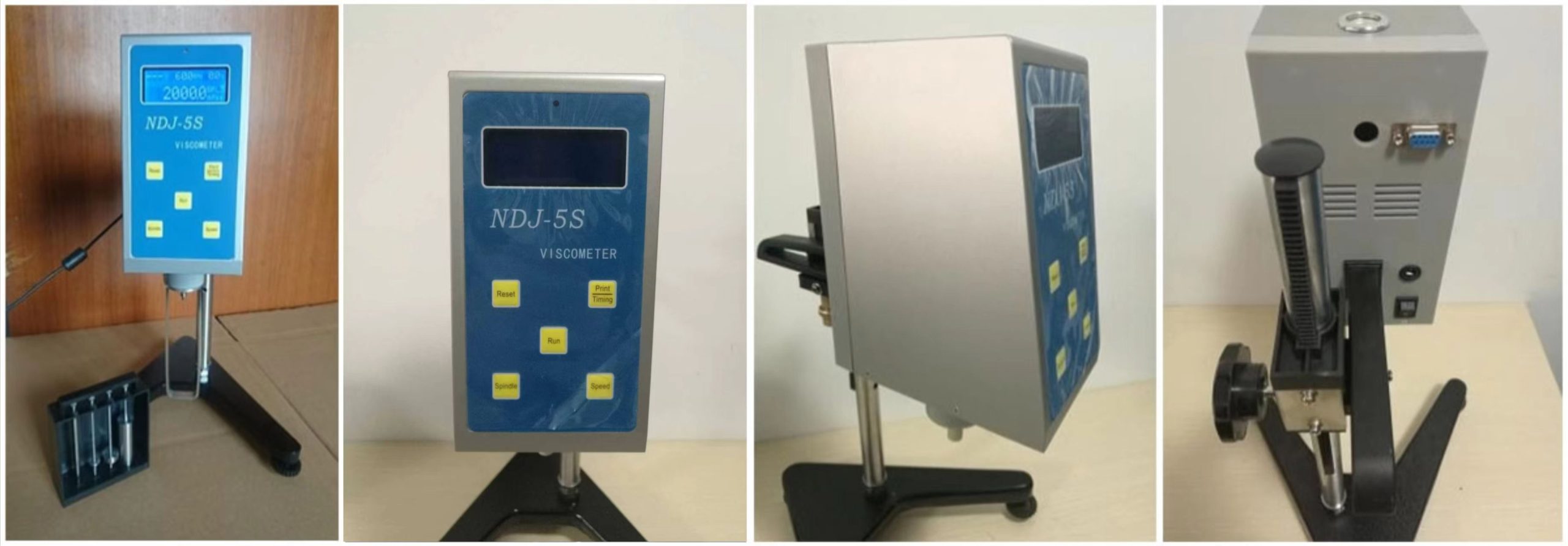

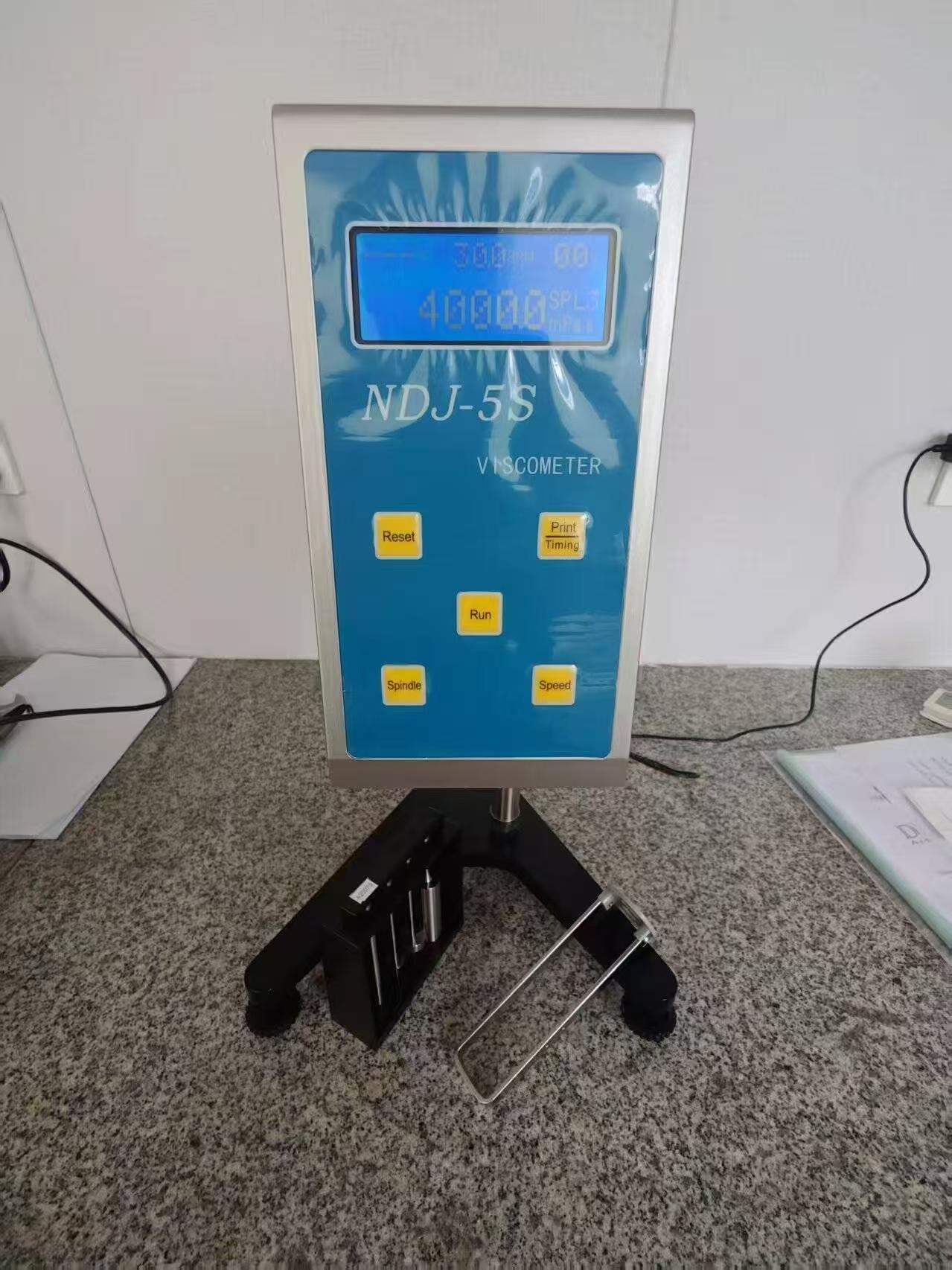

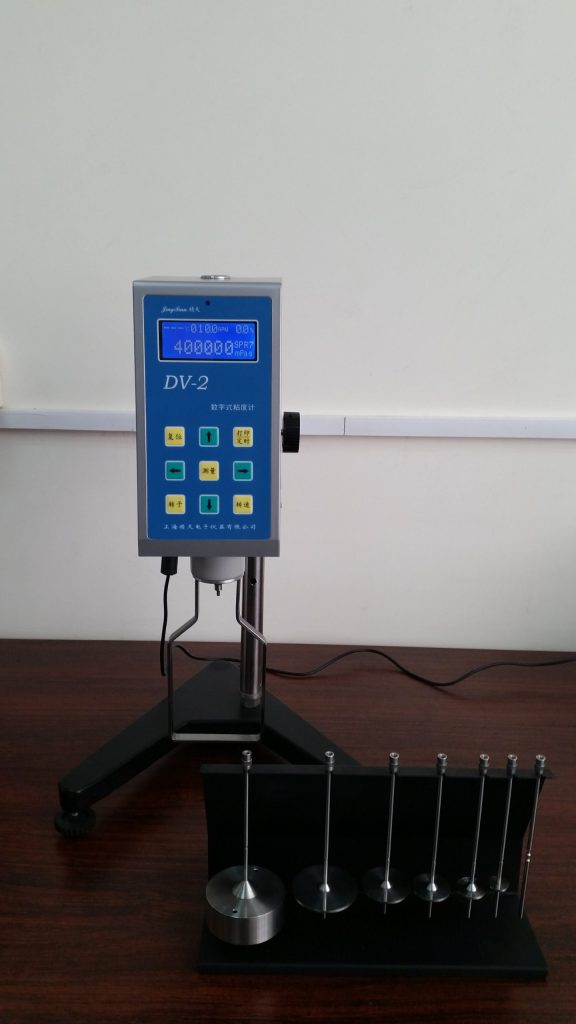

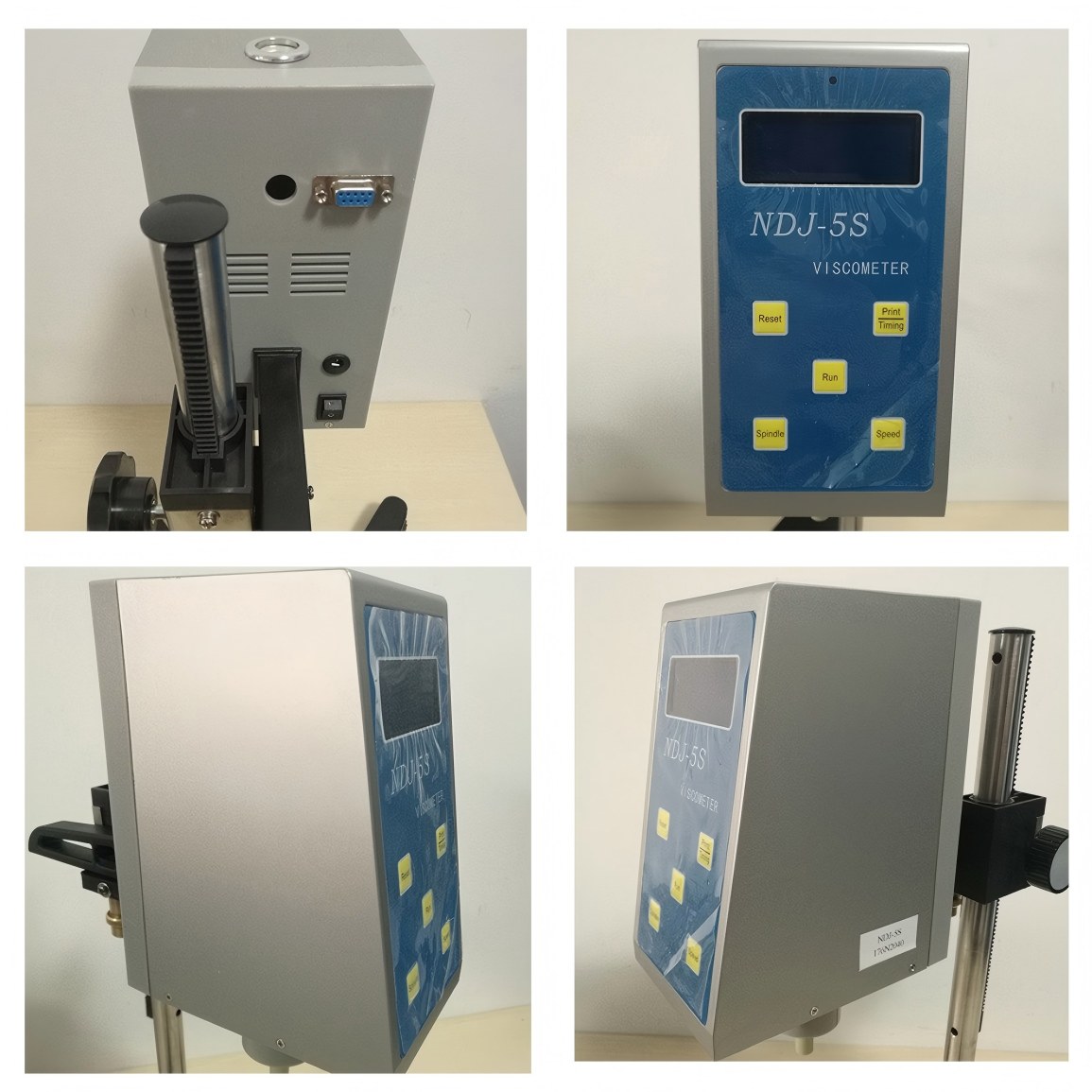

NDJ-5S Viscometer Display
Popular Digital Viscometer Comparison
| Key Parameter | Drawell RVDV-2 | Brookfield DV2Plus RV | Anton Paar ViscoQC 300 R |
| Viscosity Range | 40–40,000,000 mPa·s | 100–40,000,000 mPa·s | 1.3–40,000,000 mPa·s |
| Speed Range | 0.1–200 RPM, stepless | 0.1–200 RPM | 0.01–250 RPM |
| Accuracy | ±1% F.S. | ±1% of range | ±1% F.S. |
| Standard Spindles | 6 × R-Series | 6 × RV | R-Series system |
Drawell provides a practical alternative for laboratories that need wide viscosity coverage, flexible speed control and multiple model options for low-, medium-, high- and high-temperature viscosity testing.
FAQ
Parameters of NDJ-5S Digital Viscometer
| Model | NDJ-5S |
| Measuring Range（mPa·s） | 20 ～ 100,000 |
| Rotating Speed (RPM) | Four adjustable speed:6、12、30、60 |

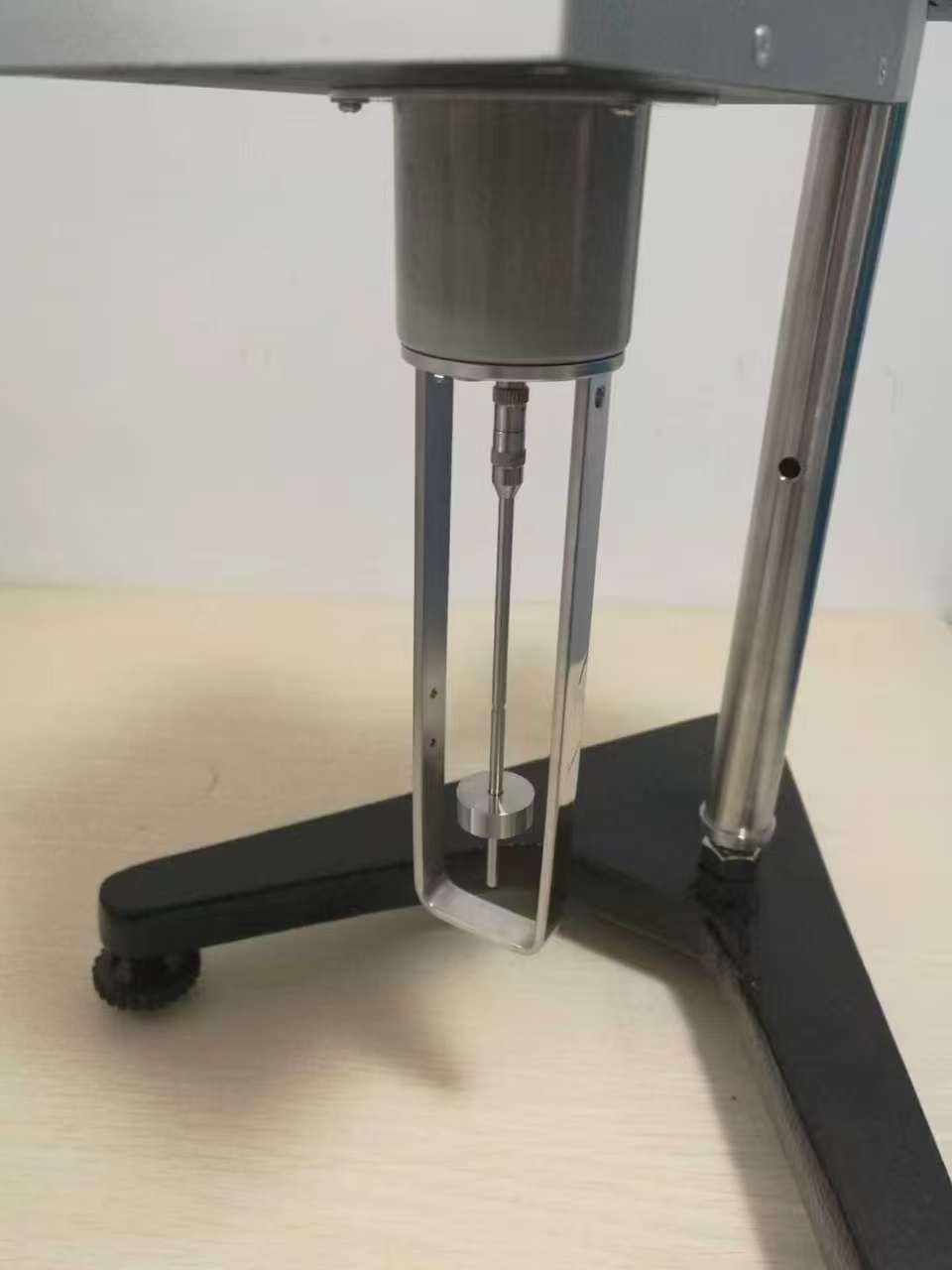

| Number of Spindles | Spindles (Code L1,L2,L3,L4) are equipped with the product |
| Accuracy | ±1% full scale range in use |
| Return Capacity | ±0.5% full scale range in use |
| Power | Power adapter ( input: 100-240V，50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. |
Apparatus to be Equipped

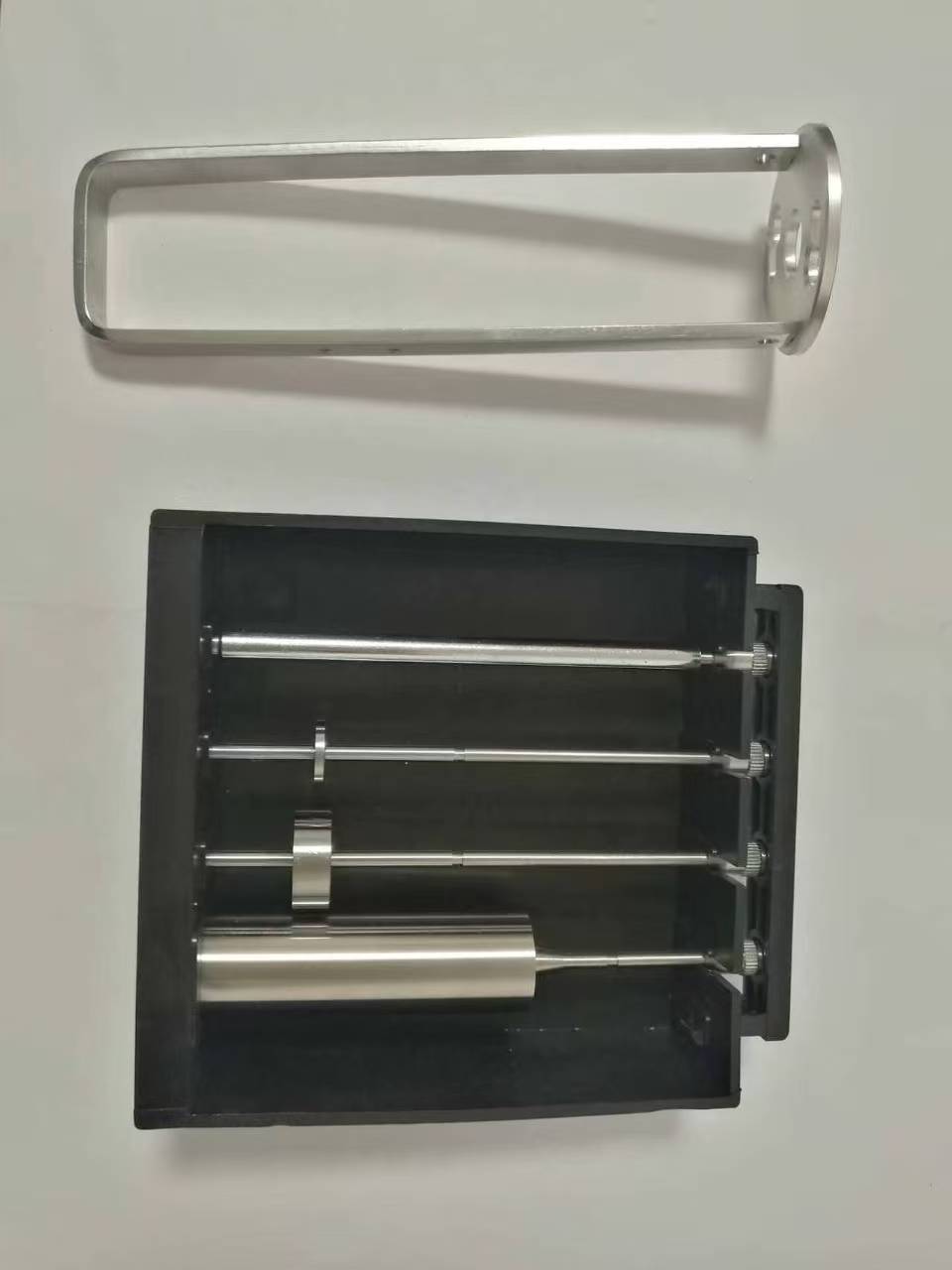

| Digital viscosity meter | 1 pce | Ascending and falling rack | 1 set |
| Standard spindle | 1 set | Power adapter | 1 pce |
| Protective frame of spindle | 1 pce | Spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |

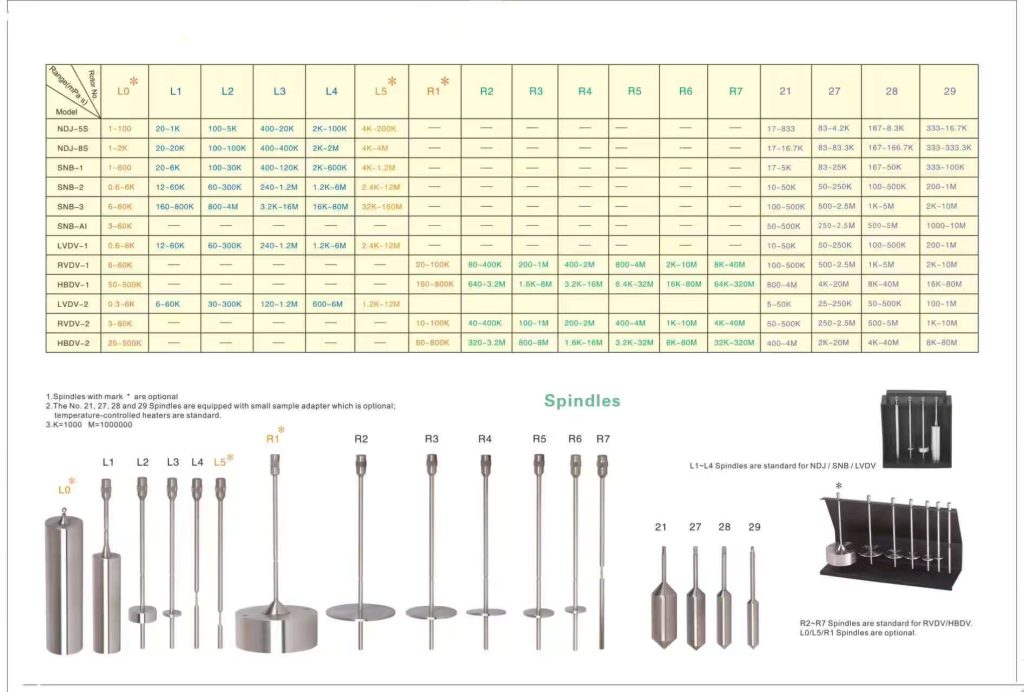

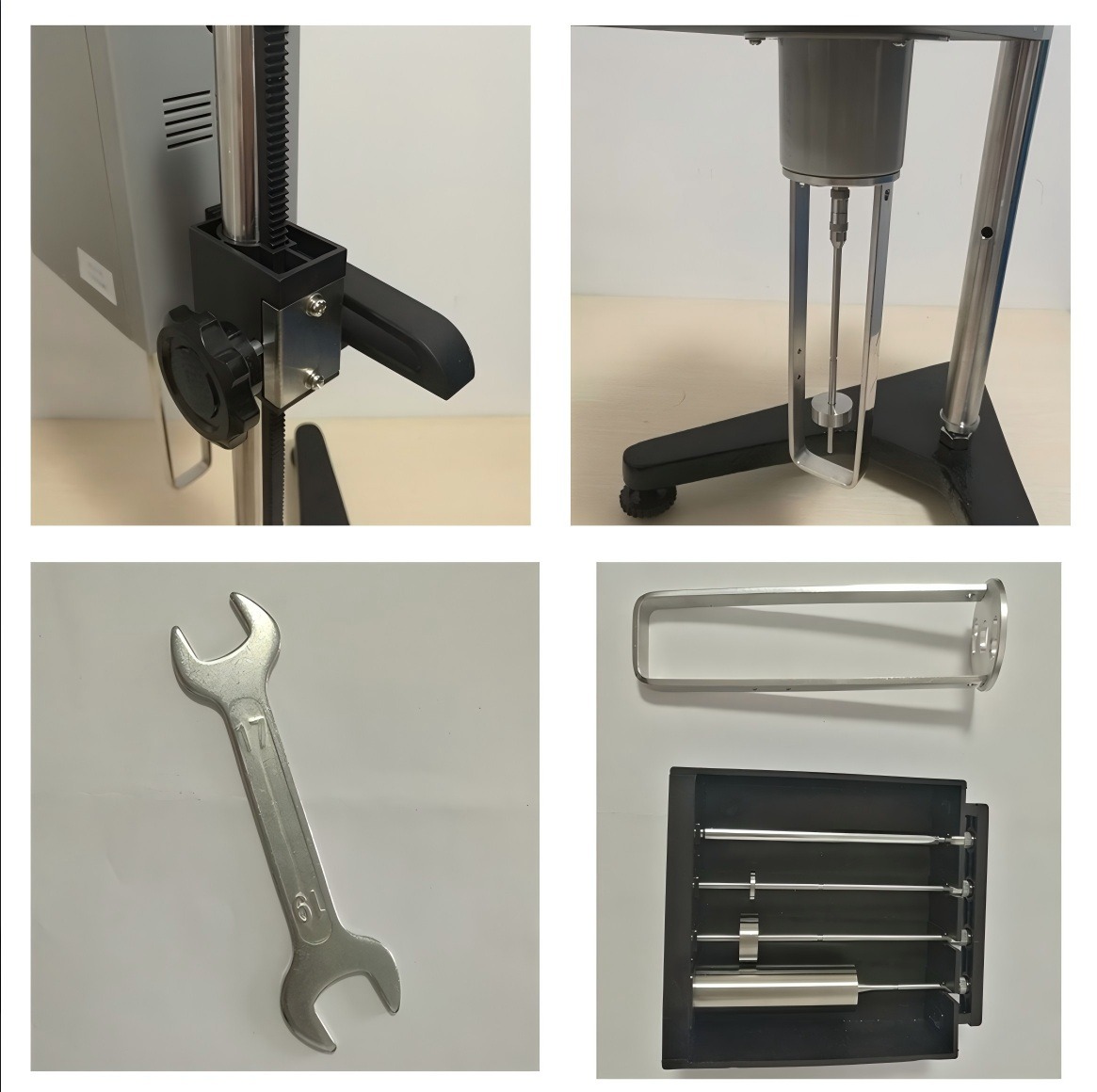

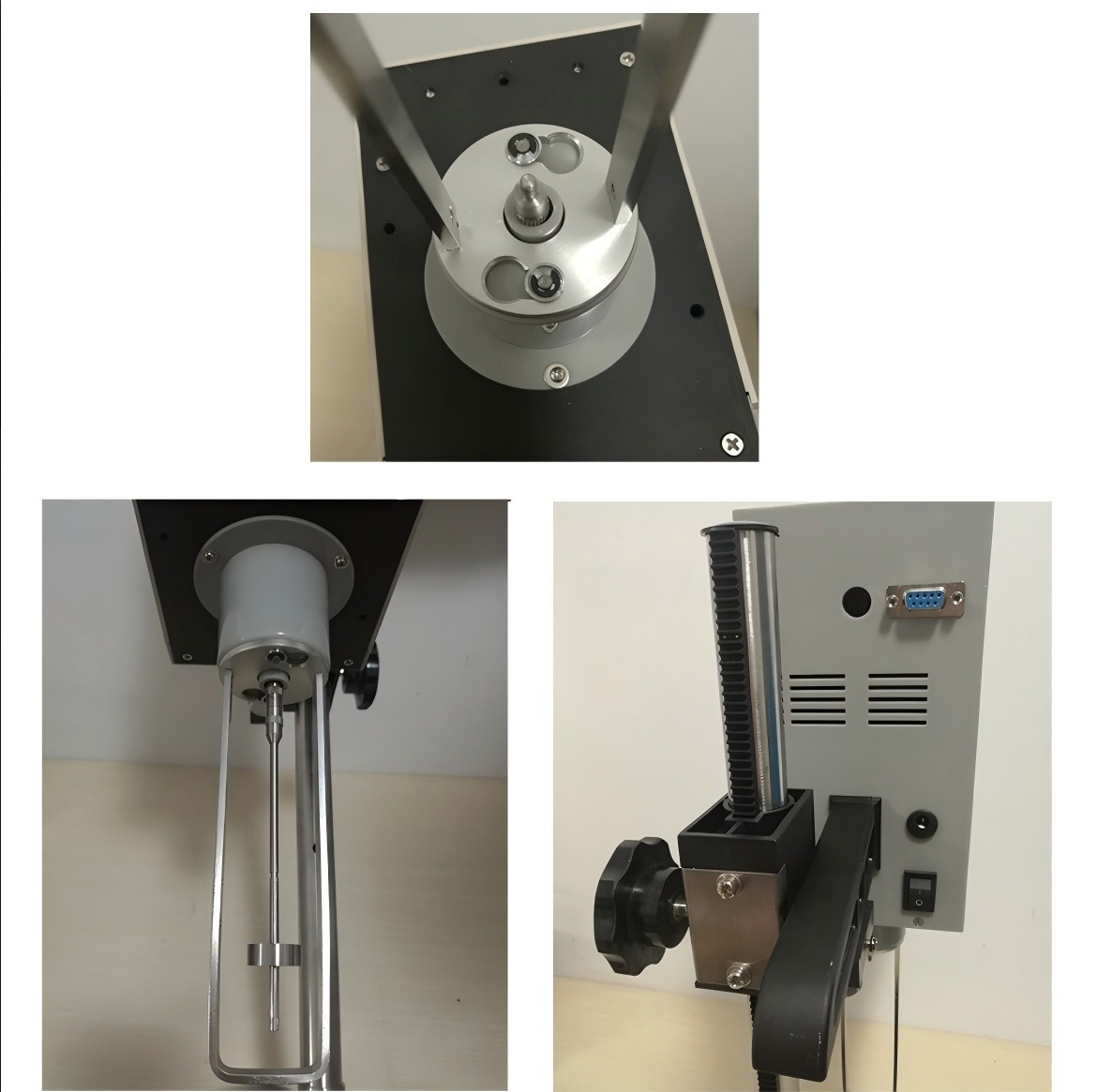

Accessories of NDJ-5S Viscometer
Why Choose Us?
Competitive Price-to-Performance
Get the core viscosity measurement functions you need without paying extra for premium-brand features that may not be required for routine testing.
Wide Measurement Range
Cover 5–80,000,000 mPa·s, from many fluid formulations to higher-viscosity coatings, resins and adhesives.
More Models for Different Samples
Choose from low-, medium-, high-viscosity and high-temperature models up to 300°C, instead of forcing one instrument to cover every application.
Free Warranty and After-Sales
We provide a 1-year free warranty and remote guidance to help you address and resolve any issues. Throughout the after-sales period, we remain available to offer free online technical support.
