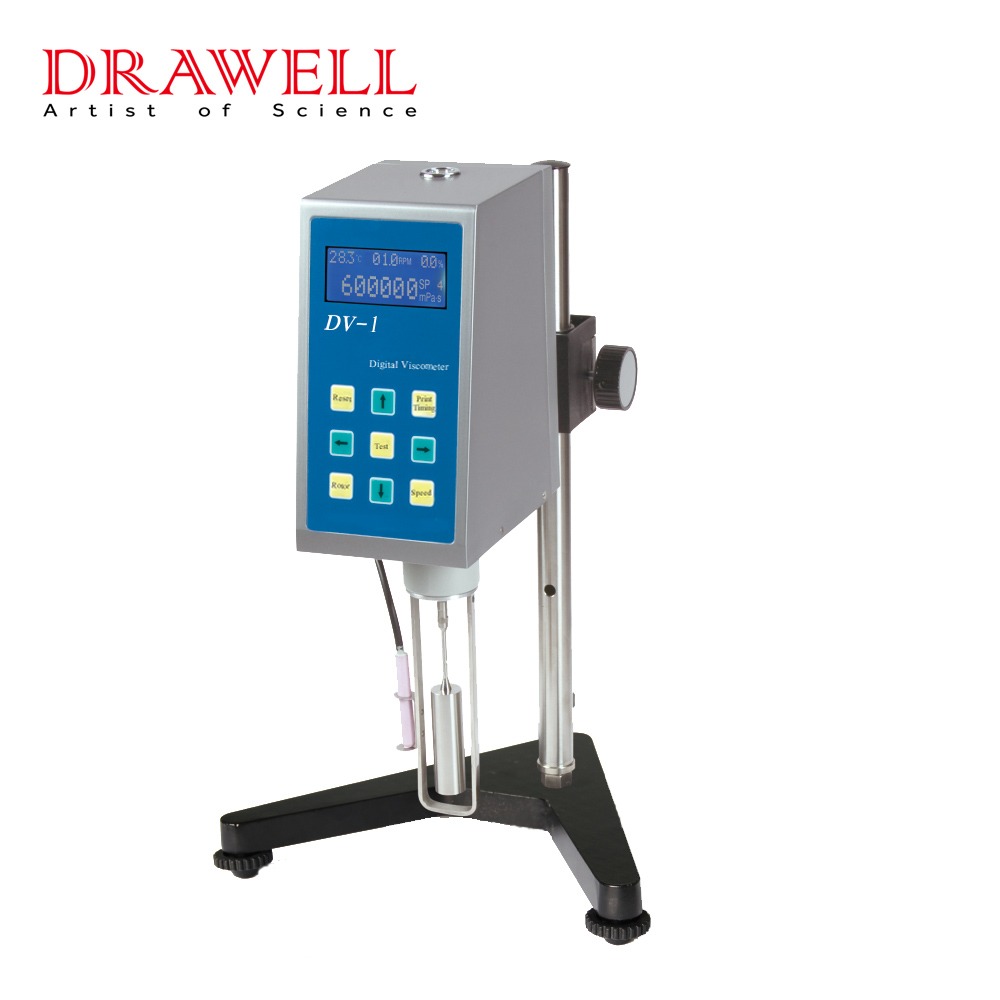

LVDV-1 12-6000000mPa·s Low Viscosity Viscometer
The LVDV-1 low rotational viscometer is an extremely versatile laboratory instrument. It is used in almost every industry that requires quality control or research and development of fluids (from thin liquids to high-viscosity semi-fluids).
Application areas include:chemical and petroleum industry, food and pharmaceutical industry, new materials and special materials, scientific research and quality control, etc.
Key features:
- Measuring Range (mPa-s): 12~6,000,000
- Standard Spindles (Code L1,L2,L3,L4)
- Accuracy ±1%; Return Capacity: ±0.5%
- Optional: L0, L5 spindle, RTD temperature probe, printer
Options of LVDV-1 Digital Viscometer
- Extreme low viscometer adapter (with one spindle L0)
- Small sample adapter (with spindle 21, 27, 28, and 29 each)
- Spindle L5
- Temperature-controlled heater (with spindles 21, 27, 28, and 29 each)
- Special software that can complete the function of collecting the data automatically
- DV program control download software
- Specially used printer
Parameters of the LVDV-1 Digital Viscometer
| Model | LVDV-1 |
| Measuring Range（mPa·s） | 12～6,000,000 |
| Rotating Speed(RPM) | 0.1 ～ 99.9 （Stepless Gear） |
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product |
| Accuracy | ±1% full scale range in use |
| Repeatability | ±0.5% full scale range in use |
| Readability | 1.when viscosity is lower than 10.0 cp : 0.01 |
| 2.when viscosity is lower than 10000 cp: 0.1 | |
| 3.when viscosity is equal or higher than 10000 cp: 1 | |
| 3.when viscosity is equal or higher than 10000 cp: 1 | |
| Power | Power adapter ( Input: 100-240V，50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value. |

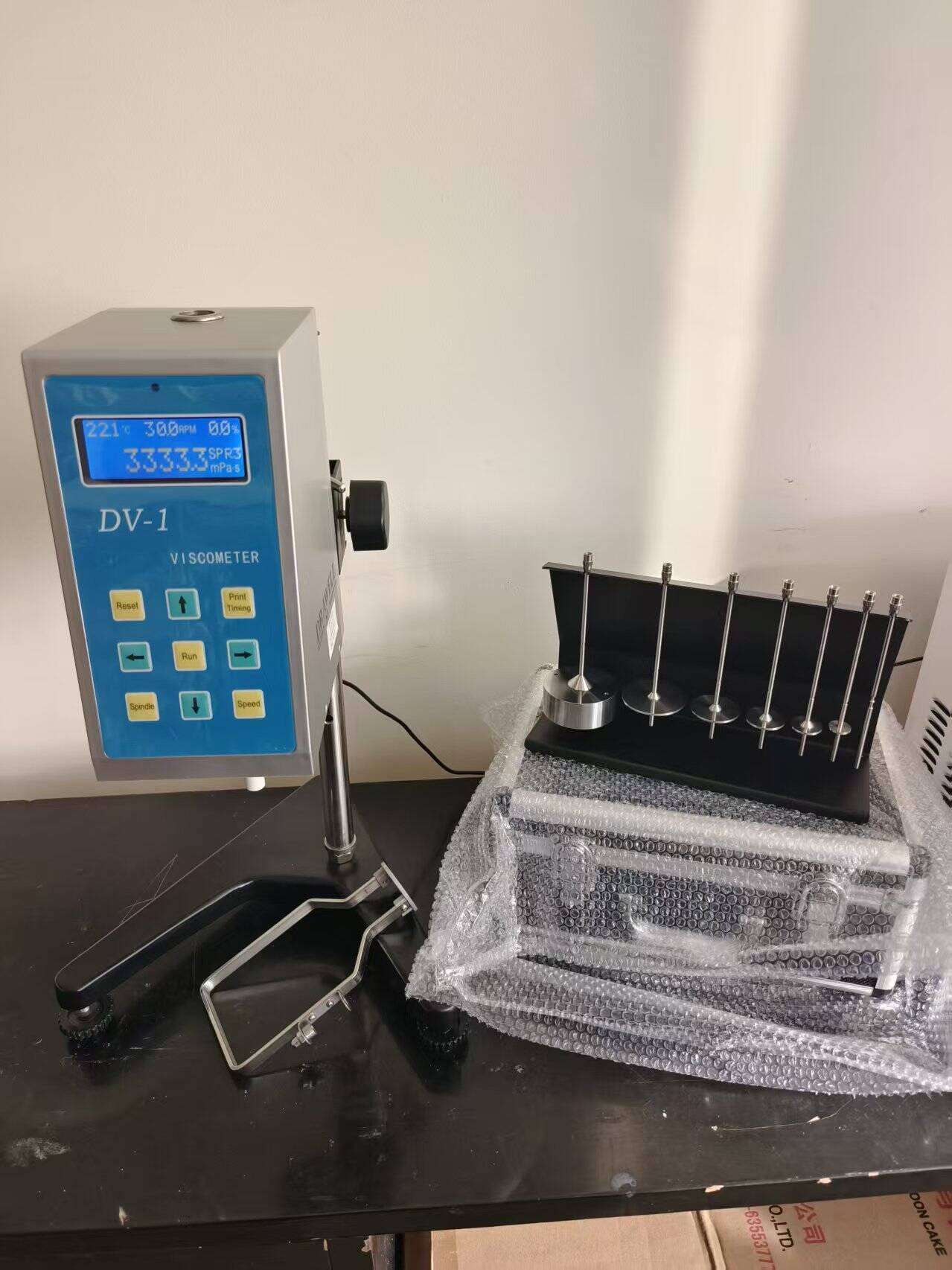

Apparatus to be Equipped
| Digital viscosity meter | 1 pce | Ascending and falling rack | 1 set |
| Standard spindle | 1 set | Power adapter | 1 pce |
| Protective frame of spindle | 1 pce | Spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |
| RTD temperature probe | 1 pce |
Application of LVDV-1 Digital Viscometer
Food and pharmaceutical industry

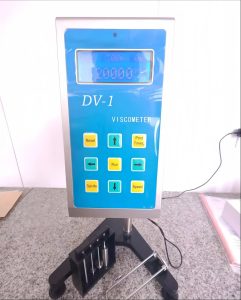

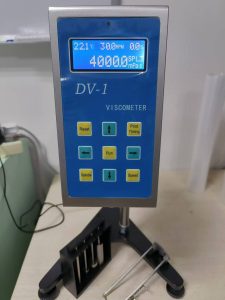

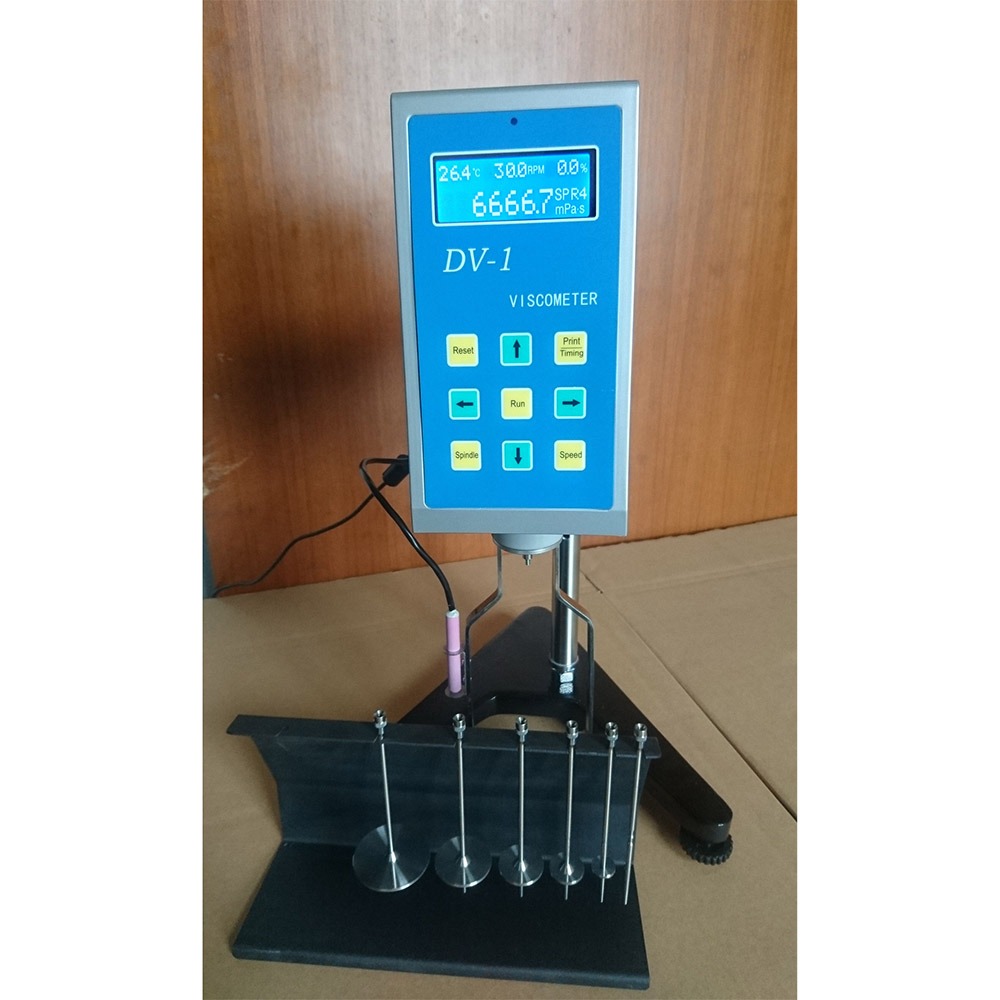

LVDV-1 Digital Viscometer Display
Popular Digital Viscometer Comparison
| Key Parameter | Drawell RVDV-2 | Brookfield DV2Plus RV | Anton Paar ViscoQC 300 R |
| Viscosity Range | 40–40,000,000 mPa·s | 100–40,000,000 mPa·s | 1.3–40,000,000 mPa·s |
| Speed Range | 0.1–200 RPM, stepless | 0.1–200 RPM | 0.01–250 RPM |
| Accuracy | ±1% F.S. | ±1% of range | ±1% F.S. |
| Standard Spindles | 6 × R-Series | 6 × RV | R-Series system |
Drawell provides a practical alternative for laboratories that need wide viscosity coverage, flexible speed control and multiple model options for low-, medium-, high- and high-temperature viscosity testing.
FAQ

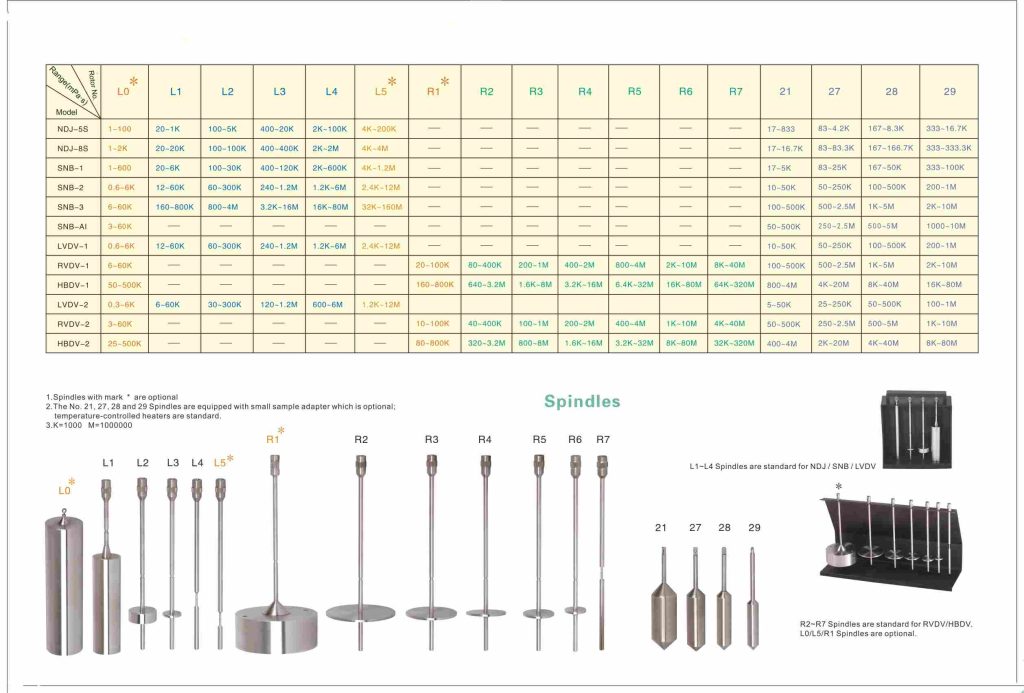

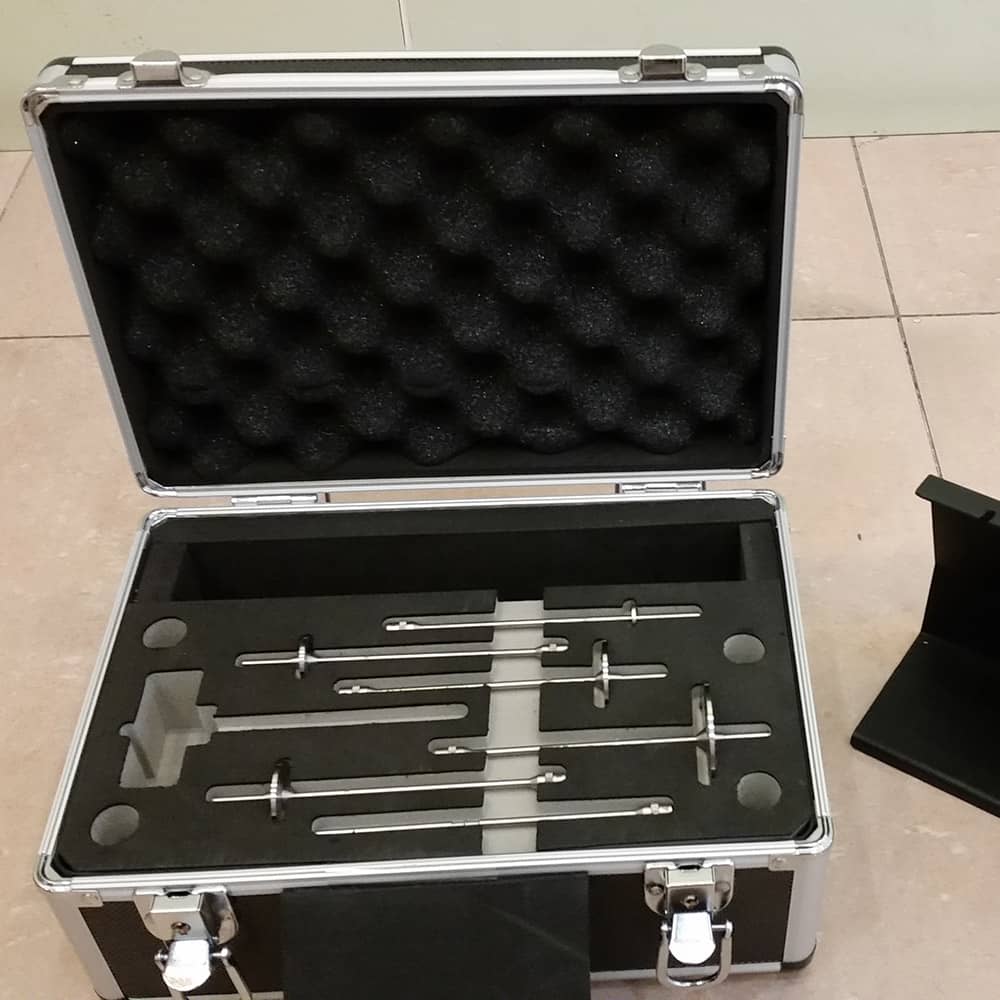

Accessories of LVDV-1 Digital Viscometer

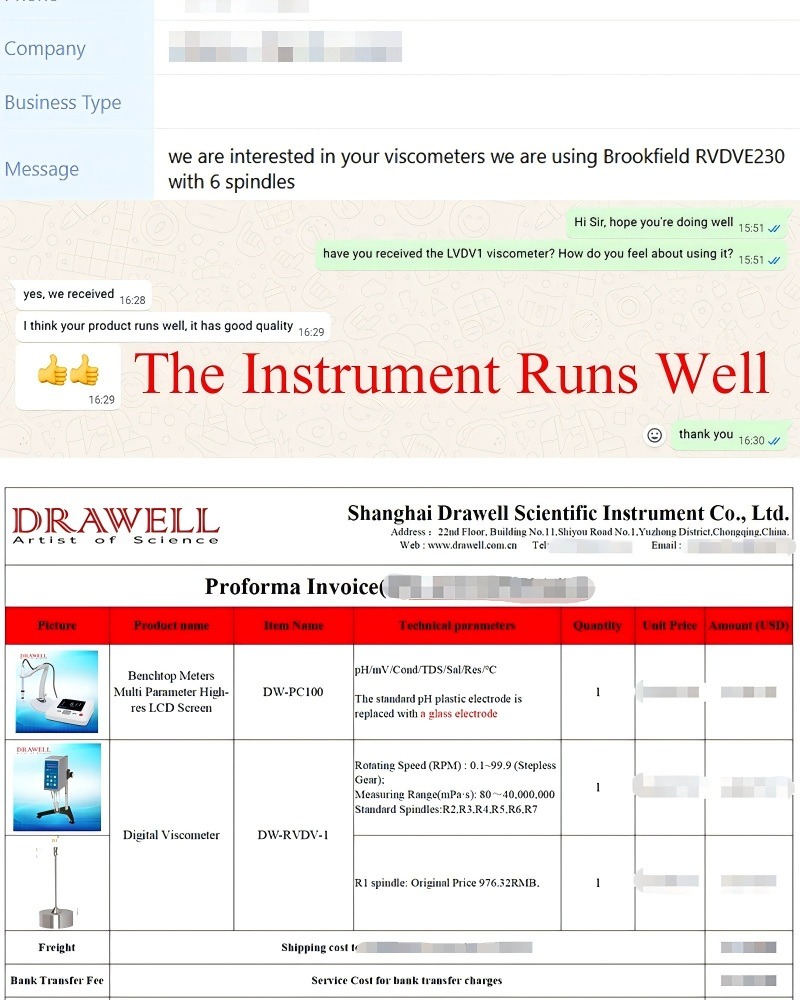

Customer Service of LVDV-1 Digital Viscometer
Why Choose Us?
Competitive Price-to-Performance
Get the core viscosity measurement functions you need without paying extra for premium-brand features that may not be required for routine testing.
Wide Measurement Range
Cover 5–80,000,000 mPa·s, from many fluid formulations to higher-viscosity coatings, resins and adhesives.
More Models for Different Samples
Choose from low-, medium-, high-viscosity and high-temperature models up to 300°C, instead of forcing one instrument to cover every application.
Free Warranty and After-Sales
We provide a 1-year free warranty and remote guidance to help you address and resolve any issues. Throughout the after-sales period, we remain available to offer free online technical support.
