ICP700T PRO Inductively Coupled Plasma Emission Spectrometer

ICP700T Pro Inductively coupled plasma emission spectrometer, has many characteristics such as testing multiple elements, being able to detect up to 70 elements fast testing speed, and low detection limit. Mainly used in rare earth industry, silicon industry, ore analysis, metal smelting, geological research, drug safety, experimental research, environmental testing and other fields.

  1. Upgraded the efficiency of the solid-state RF power supply and the instrument status monitoring function.
  2. Integrated audit tracking, flame video display, and direct display of sample results during sample traceability into the software.
  3. Improved instrument stability and software operation convenience, better aligning with actual user needs and providing a superior user experience.
  4.  High degree of automation and intelligence; the software is simple and easy to learn.
ICP700T PRO Brochure
ICP700T PRO Packing List

Features of ICP700T PRO Inductively Coupled Plasma Emission Spectrometer

  1. Real-Time Plasma Monitoring

High-sensitivity flame detection and video monitoring provide real-time plasma observation. RF power shuts down automatically if the plasma is extinguished.

ICP700T PRO 1
  1. Automatic Argon Protection

Continuously monitors argon supply. The system automatically stops operation and triggers an alarm when gas pressure falls below the safety limit.

ICP700T PRO 2
  1. 5-Channel, 16-Roller Peristaltic Pump

Ensures stable, accurate sample introduction and reduces liquid accumulation. Continuously adjustable speed supports different sample types and methods.

ICP700T PRO 3
  1. 0.01 L/min MFC Accuracy

High-precision mass flow controllers independently regulate plasma, auxiliary, and carrier gases for stable airflow and reliable analytical results.

ICP700T PRO 4
  1. ≤±0.1°C Temperature Control

A precision constant-temperature system stabilizes the complete optical path, reducing environmental temperature effects and improving long-term data repeatability.

ICP700T PRO 5
  1. 1-Second Torch Positioning

Computer-controlled three-dimensional adjustment enables front/back, up/down, and left/right optimization. The integrated quartz torch can be positioned in 1 second and replaced within 10 seconds.

ICP700T PRO 6

Applications ICP700T PRO Inductively Coupled Plasma Emission Spectrometer

1. Environmental Monitoring: Detects heavy metal pollutants such as Pb, Cd, Cr, and arsenic in surface water, groundwater, soil, and solid waste for pollution control assessment and ecological environment monitoring.

2. Geology and Metallurgy: Analyzes the elemental composition of ores, alloys, and metallic materials, such as Cr, Ni, and Mo in steel samples, for geological exploration research and to guide production processes.

3. Industrial Manufacturing: Performs quality control on raw materials and products in the rare earth industry, silicon industry, electronics/electrical industry, and building materials industry, detecting the content of up to 70 elements.

Application Environmental Monitoring
Application Geology
Application Metallurgy

FAQ

It is a professional laboratory elemental analysis instrument, mainly used for the rapid detection of up to 70 elements in samples. Applications cover environmental protection (heavy metals in wastewater), industry (metallic material composition), food safety, geology and minerals, and chemical products.

a. Real-time flame monitoring: A built-in high-definition camera and sensor system allow for real-time observation of the flame status. In case of abnormal flameout, the RF power supply will automatically shut off to protect the instrument.

b. Argon gas protection function: When the argon gas pressure falls below the safe operating limit, the instrument will automatically cut off the power supply and sound an alarm to prevent damage to the equipment due to insufficient argon gas.

In terms of stability, the RSD (relative standard deviation) of the instrument during a 2-hour long-term test is ≤ 2.0%. In terms of accuracy, for a 2 ppm mixed multi-element solution, the RSD is < 1.0%, which meets the requirements for precise analysis.

The entire optical path is equipped with a high-precision temperature control system, with a temperature control accuracy of ≤ ±0.1℃. This effectively eliminates the influence of ambient temperature changes on optical components, ensuring stable and reliable test data over long periods.

Yes. The instrument’s nebulizer is standard, but it can be customized and replaced for special samples, such as equipping it with a dedicated sample introduction system resistant to high salt, hydrofluoric acid, or organic substances.

Very accurate. The instrument’s plasma gas, auxiliary gas, and carrier gas are all controlled by an integrated high-precision mass flow controller (MFC), with a flow control accuracy of up to 0.01 L/min, which is continuously adjustable, ensuring the accuracy of the test data.

The software integrates an “audit trail” function, which can completely record the instrument operation and data processing process, meeting the compliance requirements for data integrity and traceability in industries such as pharmaceuticals and food.

Very easy. The instrument uses patented technology for torch tools and mounting platforms, allowing for quick torch positioning and replacement. Positioning takes only 1 second, and the entire replacement process can be completed within 10 seconds. The sample introduction system also supports rapid replacement.

It adopts a self-developed all-solid-state RF power supply with continuously adjustable output power within the range of 500-1600W, an adjustment accuracy of up to 1W, and power stability of <0.01%. It also features reverse power protection (patented technology) to effectively prevent damage to the power supply due to mismatch issues.

Not complicated. The instrument supports fully automatic one-button ignition and can automatically complete the matching process, making operation stable and convenient. In terms of consumption, the total argon gas consumption is less than 14 L/min, which is relatively economical.

Specifications of ICP700T PRO Inductively Coupled Plasma Emission Spectrometer

Input power supplyvoltage AC 220V,  current 20A
Optical path typeCzerny Turner type optical path with a focal length of 1000mm
GratingIon etched holographic grating,  with a scratch area of (80 x 110) mm
Resolution ratio (Mn257.610nm)<0.005nm(4320rlinggrating);<0.008nm(3600ruling grating);<0.0l5nm(2400ruling grating)
Wavelength range190-460nm(4320muing grating);190-500nm(3600ruling grating);190-800nm(2400mling grating);
AtomizerHigh precision and efficient concentric nebulizer 2ml/min,  can be equipped with various injection systems such as high salt resistance, hydrofluoric acid resistance,  and organic resistance.
Atomization chamberThe patented extended double tube atomization chamber has a better solvent removal effect.
Total argon consumptionless than l4 L/min
Stability2 hours RSD ≤ 2.0%
Replacement of toolingQuickly replace the infection system,  using patented technology for torch tube tooling and torch tube installation platform.
Power characteristicsEquipped with reverse power protection for RF power supply (patented technology)
Precision2ppm mixed multi-element solution,  RSD< 1.0%
Detection limitmeets the A-level requirements of the national standard
Flexibility of spectral linesTest spectral lines can be added arbitrarily according to usage requirements
Frequency27.12MHz,  coupling efficiency greater than 80%,  frequency stability:<0.01%
Adopting a concentric atomizer with patented technology chamber,  with a strength of 1ppmMn>1000000cps
Independently developed all solid-state RF power supply with output power of 500-1600W,  continuously adjustable,  adjustable accuracy of 1W,  power stability:<0.01%
Fully automatic one button ignition,  automatic matching,  stable and convenient ignition

Standard configuration

SerialNumberAccessory NameQuantityUnitSpecification And ModelNotes
IStandard Configuration
1Host
1.1Inductively coupled plasma emission spectrometer1Set
2Software
2.1ICP spectrometer analysis software1SetFree upgrade
3Accessory
3.1Network cable1SingleCategory 5 twisted paircables
3.2Plastic bucket1PieceVolume 5L
3.3Argon pressure reducing valve2PieceAR-8
3.4PU hose30MeterOutside diameter 10mm
3.5PU hose10MeterOutside diameter 6mm
3.6PVC transparent hose1MeterTransparent hose
3.7Power cord1Single10A
3.8USB extension cable1SingleLength 3m
3.9Grounding copper wire15Meter4mm²
3.10Ground rod1Piece18*800
3.11Torch tube2Piece1.2 quartz torch tube
3.12Atomizer1PieceQuartz atomizer
3.13Double tube fog chamber1PieceScott fog chamber
3.14Cylindrical fog chamber cover1PiecePolytetrafluoroethylene
3.15High-frequency coil component1PieceThree turns silver plating
3.16Capillary sample tube1MeterD=2.38mm，d=0.8mm
3.17Peristaltic pump head hose3SingleLength 45cm，Two clamps
3.18Tubular fuse2Piece10A
3.19Tubular fuse2Piece6.3A
3.20Silicone tube4MeterInside diameter 2mm，Outside diameter 4mm
3.21Hose adapter4PieceInside diameter 6-2
3.22Hose adapter4PieceInside diameter 1.6-2.4
3.23Spherical interface clamp1PieceStainless steel
3.24Quick coupling3PieceΦ6
3.25Teflon tape1Roll26mm×20m，Thickness:0.1～0.2mm
3.26O-ring seal4Piece32.5×3.55
3.27O-ring seal8Piece5.6×1.8
3.28Torch pipe tooling1PieceCylinder
3.29Ribbon50Single4×200
3.30Screw5PieceM5，Cross dischead
3.31Screw5PieceM4，Cross dischead
3.32T-shaped tee2Piece10-10-10
4Standard Configuration
4.1Computer1SetBrand
4.2Monitor1SetBrand
4.3Printer1SetBrand
4.4Cooling water tank1Set
4.5Regulated power supply1Set
5Delivery Attached Documentation
5.1U disk1Piece
5.2Product quality certificate 1PartEnglish
5.3Warranty card1PartEnglish

Consumables

No.NameSpecificationReplacement cycle
1TorchQuartz torchClean and maintain once every 3 months.Service life 2 years
2NebulizerImport GE nebulizerNon-human damage over 3 years
3Spray chamberDouble-tube spray chamberNon-human damage over 3 years
4Peristaltic Pump Head HoseInjection and Drain Tubing3 Months
5High- frequency coilSilver-plated, three-turn coilOne year
6Filter elementPP cotton materialHalf a year

Optional Autosampler

AS Control II Disc Automatic Sampler-43cup

  1. Sample tray: 43 cup sample tray, corrosion-resistant material, lightweight.
  2. Sample Cup: Sample cup capacity 45ml，Reagent cup capacity 45ml
  3. Syringe: High quality carbon fiber tube φ4× φ2.5; Polytetrafluoroethylene tube φ2×0.5mm
  4. Automatic fluid replacement and cleaning: Automatically provide cleaning solution without manual addition
  • Accessories of ICP700T Petrochemical Version
Autosampler 272 cup

AS Control II Disc Automatic Sampler-272cup

  1. Sample tray: 272 cup sample tray，corrosion-resistant material，lightweight
  2. Sample Cup: Sample cup capacity 15ml
  3. Syringe: High quality carbon fiber tube φ4×φ2.5; Polytetrafluoroethylene tube φ2×0.5mm
  4. Automatic fluid replacement and cleaning: Automatically provide cleaning solution without manual addition

Customer Service of ICP700T PRO Inductively Coupled Plasma Emission Spectrometer

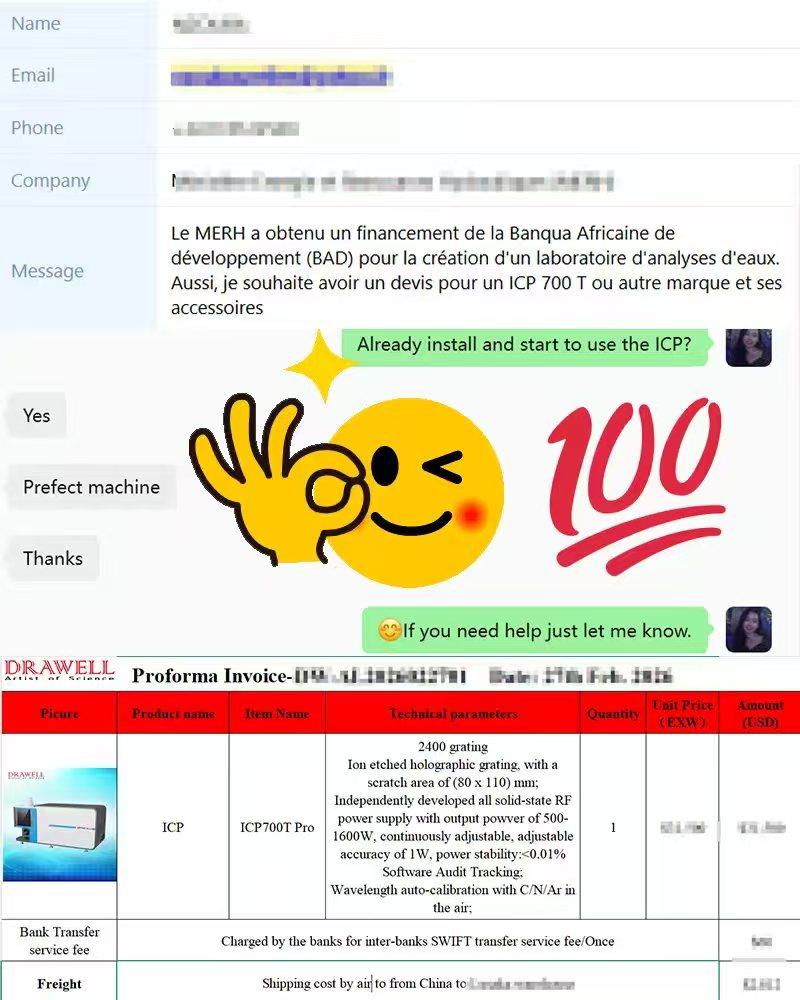

CP700T PRO Inductively Coupled Plasma Emission Spectrometer 1

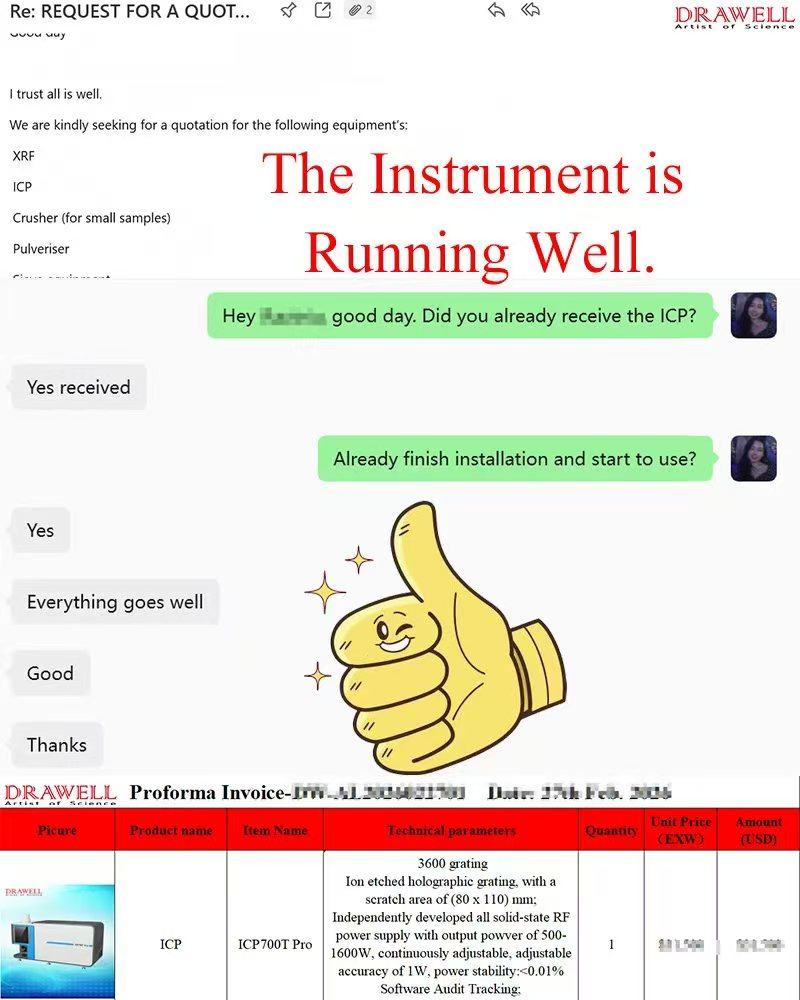

CP700T PRO Inductively Coupled Plasma Emission Spectrometer 2
