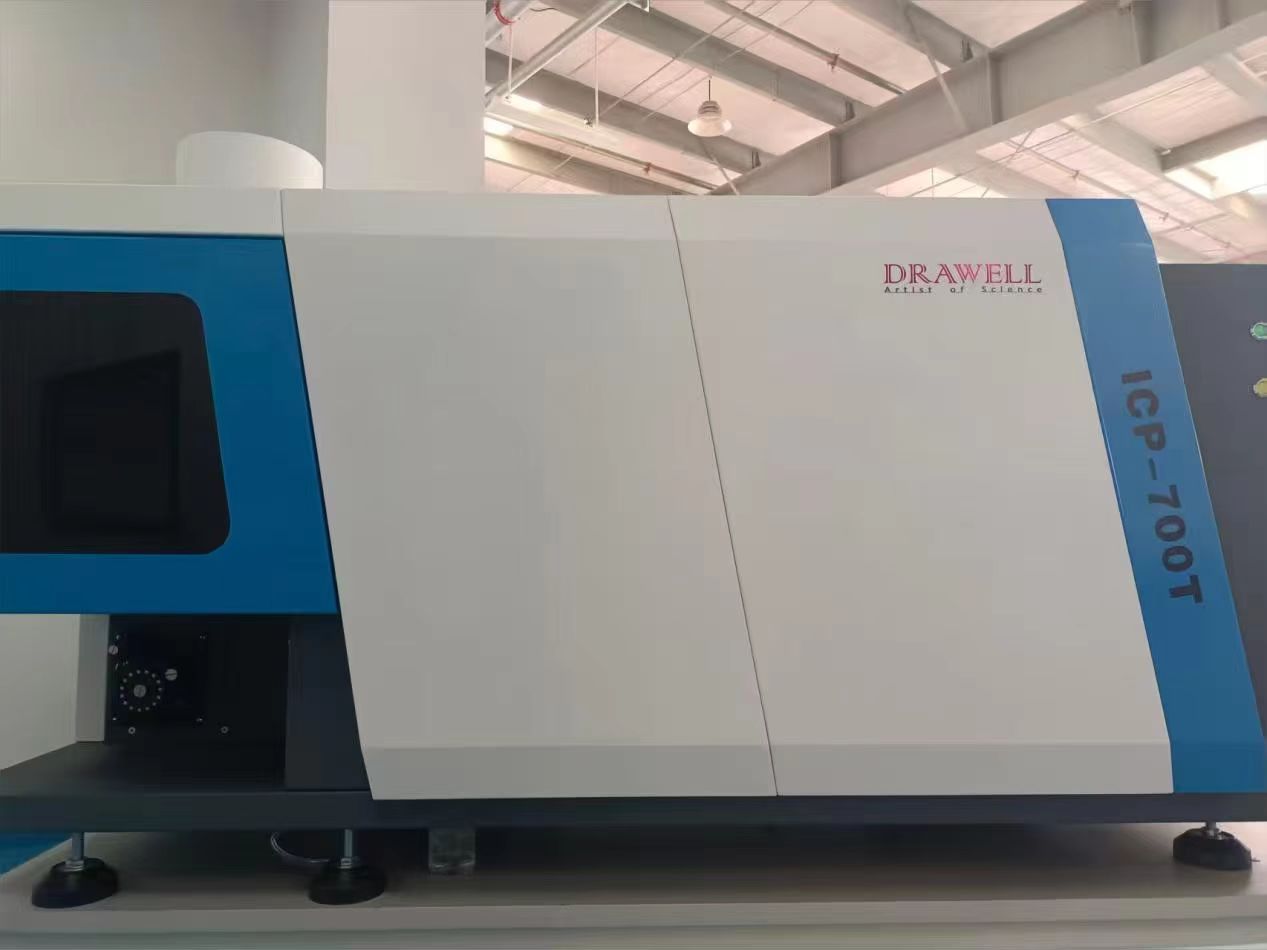

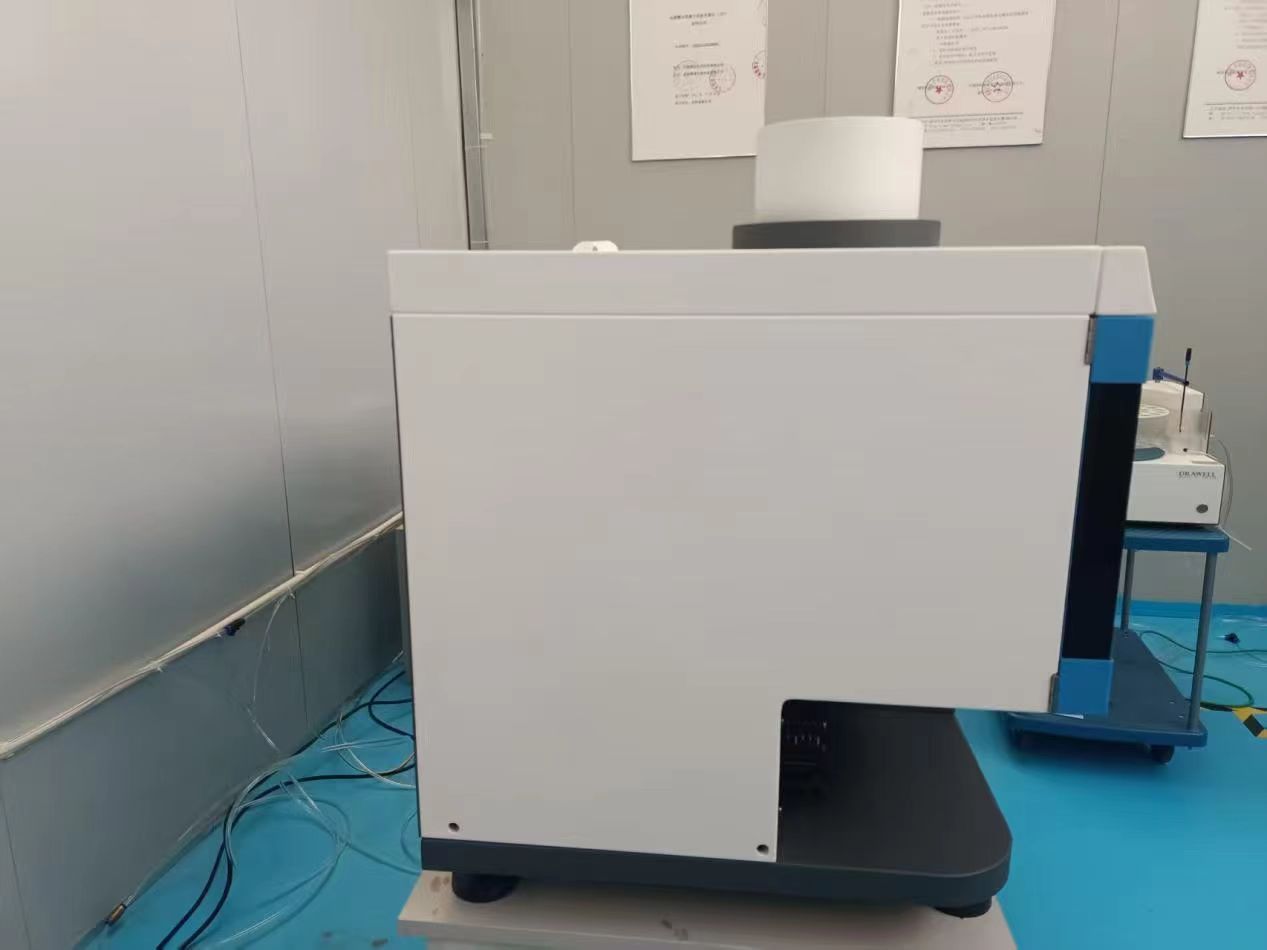

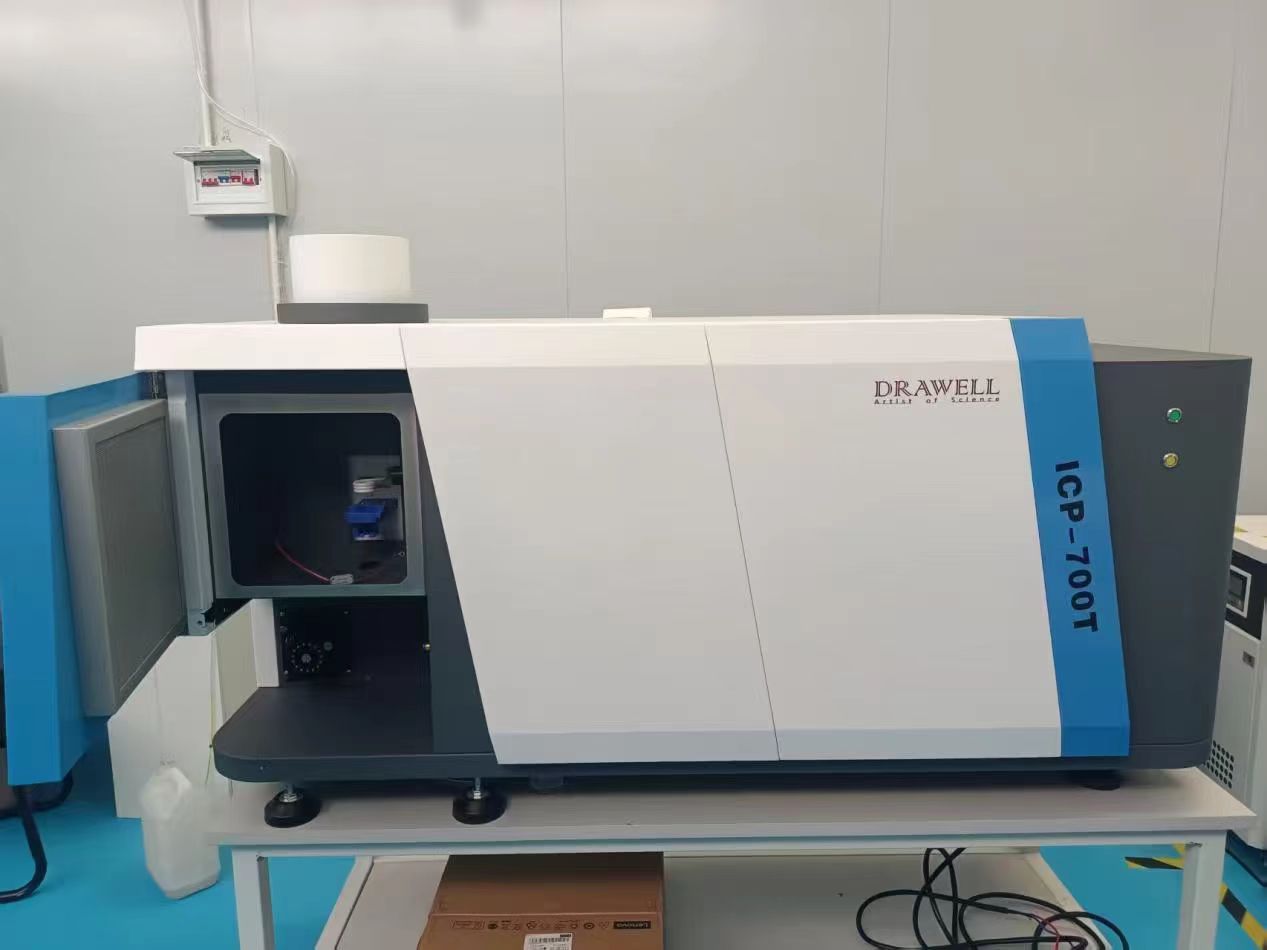

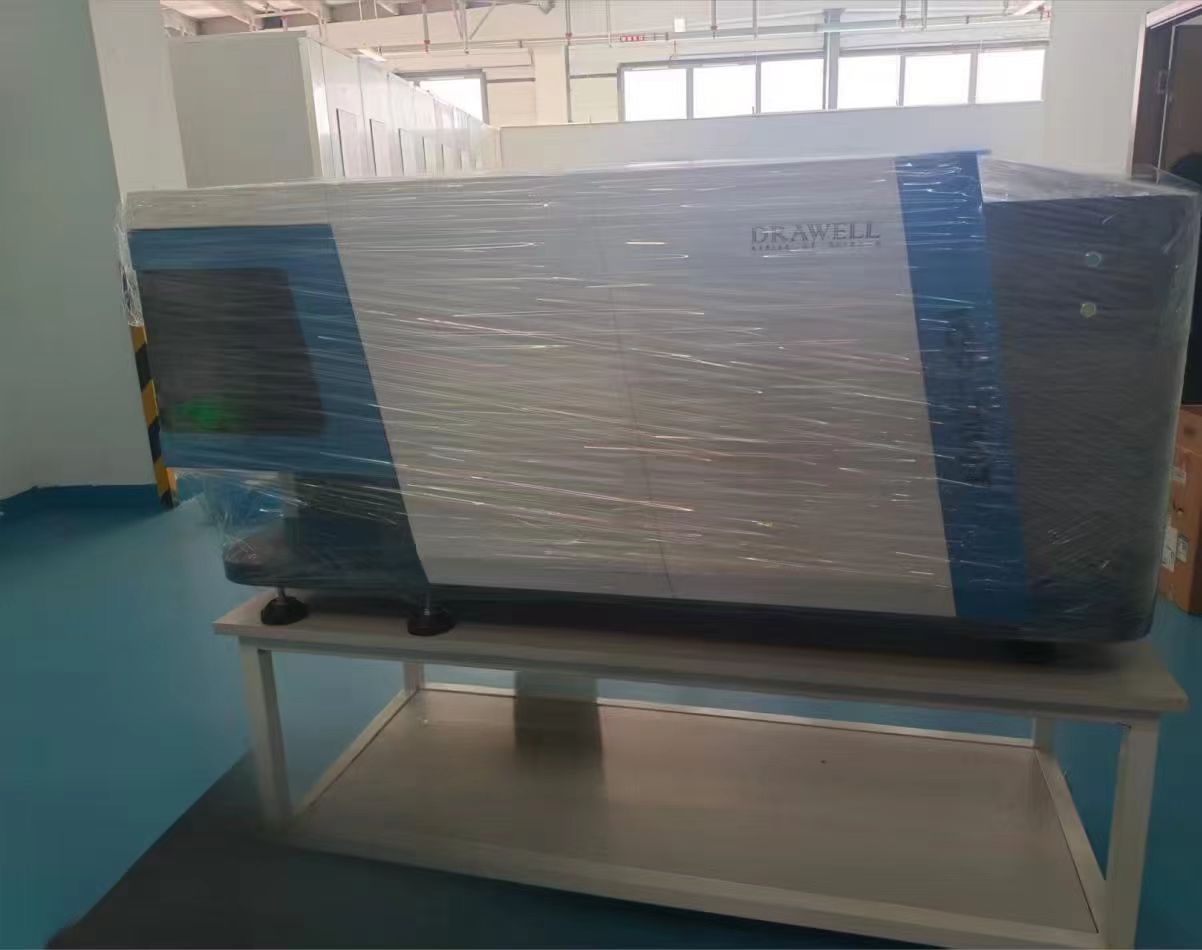

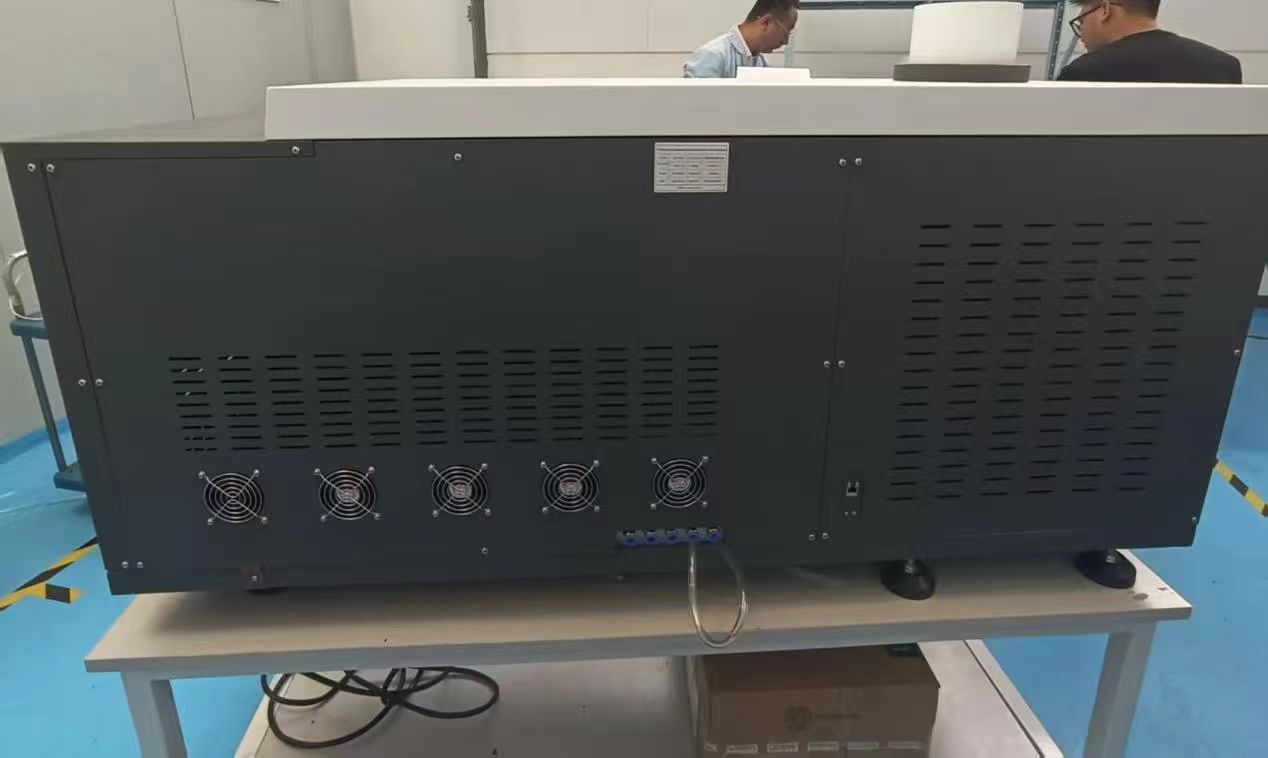

ICP700T Petrochemical Version Inductively Coupled Plasma Emission Spectrometer

The petrochemical version Inductively Coupled Plasma atomic Emission spectroscopy (ICP-AES) is a chemical analysis instrument specifically designed for the testing requirements of the petrochemical industry.Mainly used to determine the content of various elements in various oil products and related products.

For oil samples, no digestion or cumbersome sample pretreatment is required; direct injection and testing are possible.
A complete elemental analysis can be achieved within ten to twenty minutes from sampling to testing.
The detection limit can be below one ppm. Scanning wavelength range: 190-460nm (4320L/mm grating); 3600 line grating: (190-500) nm; 2400 line grating: (190-800) nm
Resolution: 0.008nm (3600 line grating) ≤ 0.015nm (2400 line grating)
Frequency stability: <0.05%

ICP700T Petrochemical Version Brochure

ICP700T packing list

Description
Specification
Accessories
Why Drawell?

Features of ICP700T Petrochemical Version

1. 70+ Elements testing

There are many testing elements, and more than 70 elements can be tested.

2. Simultaneous testing of multiple elements

One injection, and simultaneous testing of multiple elements.

3. Fast analysis speed

Approximately 5 elements per minute, scalable to 10elements per minute.

4. PPB level detection limit

The detection limit is low,and the majority of elements can reach ppb level.

5. Wide linear range

Up to 5-6 orders of magnitude,it can achieve simultaneous testing of high and low content without the need to replace standard curves.

6. Direct Oil Sample Testing

Oil samples do not require digestion and can be directly tested on the machine after simple processing.

Application of ICP700T Petrochemical Version

Determination of Rare Earth Elements in Oilfield Tracers.
Can determine the content of over thirty elements in crude oil and its related products.
It can achieve direct injection determiation of gasoline and diesel without complex digestion operations, and can determine elements such as Si, P, Fe Mn, Pb etc..
It can measure the content of more than 20 wear elements in lubricating oil and its additives, and can be tested on the machine with simple dilution. Optional high salt atomizer can be used to directly determine the content of wear elements in the lubricating oil after use.
Elements such as Na, K, Ca, Mg, Al, Fe, Ni, Cu, Zn, Cr etc. in automotive urea.

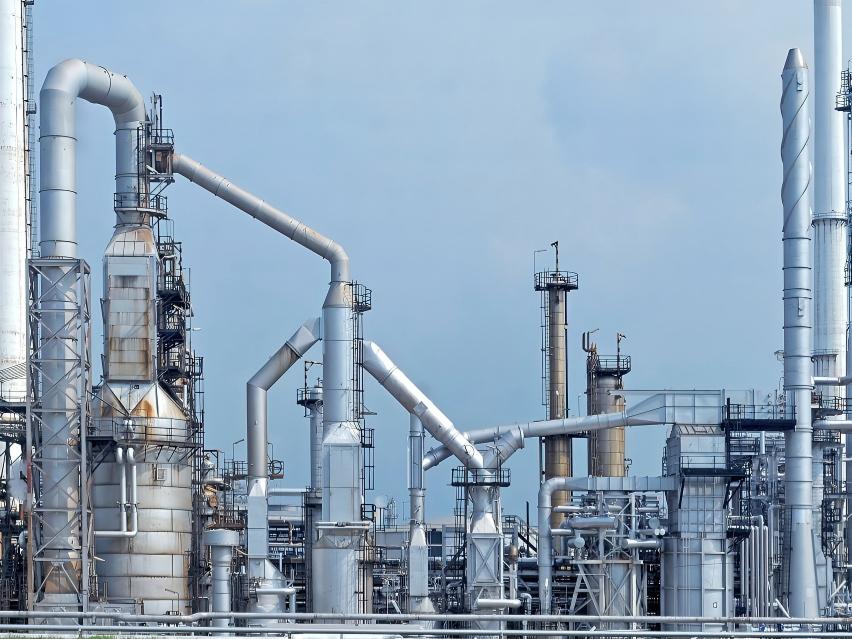

Element content in petrochemical raw materials such as methanol and ethanol.

FAQ

Oil samples can be directly injected for testing; after simple processing, they can be directly tested on the instrument, avoiding complex digestion operations.

The instrument is highly automated; the software can complete automatic ignition and parameter matching with a single click.

If need test one of Li Na K then need choose 2400 grating. If not only choose 3600 grating.

Key difference: “Direct injection” for oil products.

Dedicated Sample injection System: The core of the petrochemical version is specifically designed for the high volatility and high organic content of oils. It features a semiconductor-cooled ultra-low temperature fog chamber system, solving the problem of carbon buildup in organic samples during plasma and enabling direct oil sample introduction.

Standard Version: This version typically uses a conventional sample introduction system, primarily for processing digested aqueous solutions or inorganic samples. If used for oils, it generally requires complex sample pretreatment (such as digestion), a cumbersome process that is prone to introducing contamination.

The instrument analyzes about 5 elements per minute and can be expanded up to 10 elements per minute.

Most elements can reach ppb-level detection, suitable for trace element analysis in petrochemical samples.

ICP700T can test elements such as Si, P, Fe, Mn, Pb, and other trace metal elements in gasoline and diesel.

Yes. It can analyze more than 20 wear elements in lubricating oil and additives, helping monitor equipment wear and oil condition.

Yes. It can measure elements such as Na, K, Ca, Mg, Al, Fe, Ni, Cu, Zn, and Cr in automotive urea.

It is suitable for oil refineries, petrochemical plants, lubricant manufacturers, fuel testing labs, third-party testing centers, and research laboratories.

Specifications of ICP700T Petrochemical Version

Solid state power supply
Working frequency	27.12MHz
Frequency stability	<0.05%
Matching method	automatic matching
Output power	800W~1600W, continuously adjustable, power efficiency greater than 65%
Output power stability	≤ 0.05%

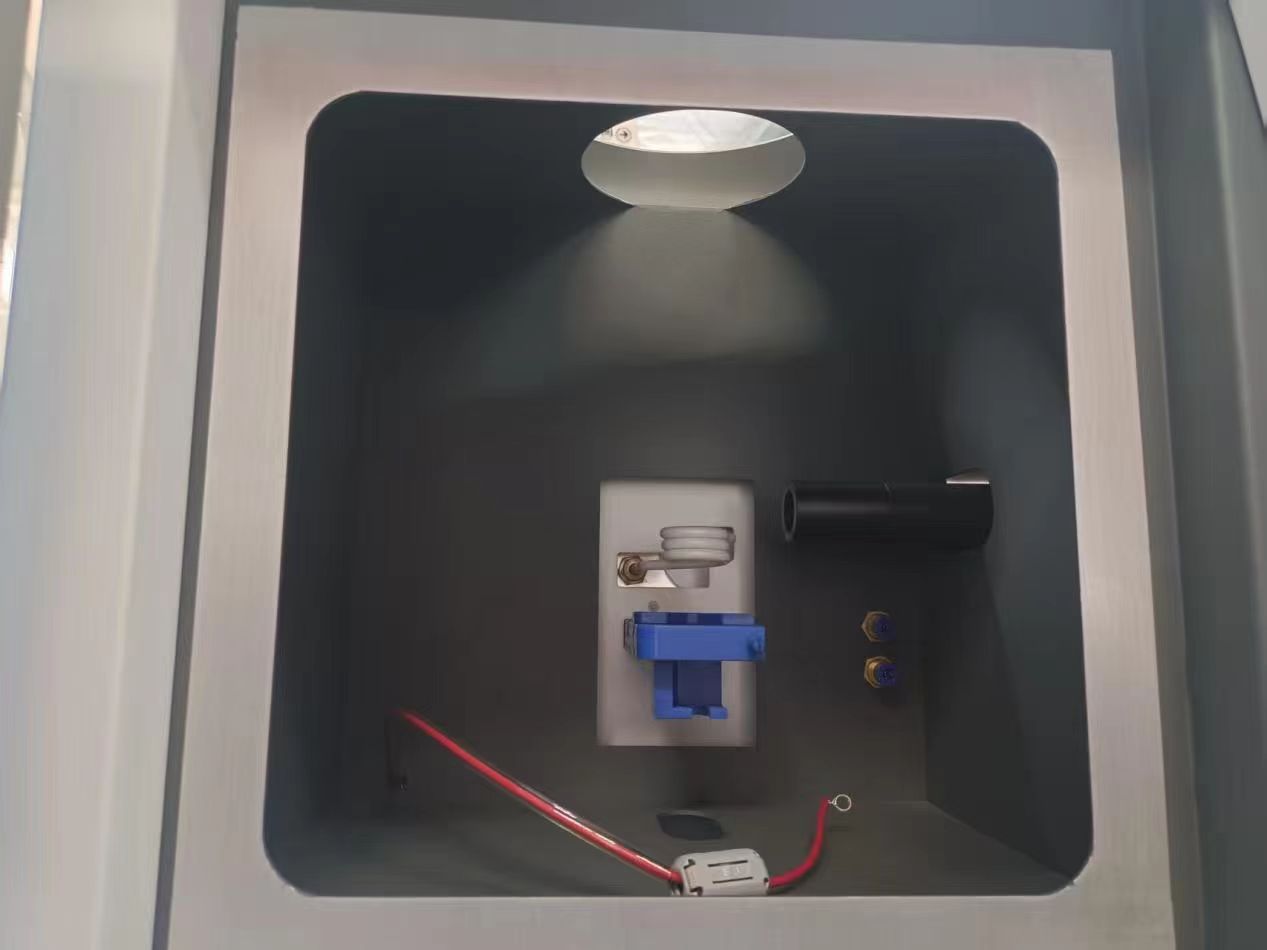

Output working coil inner diameter 25mm, 3 turns, equipped with three concentric outer diameter 20mm quartz torch tubes
The outer diameter of coaxial spray is 6mm; Swirl atomization chamber The organic sample can be directly injected into the sampling system, and the cooling temperature can reach -20 ℃.
Scanning spectrophotometer
Optical path	Czerny turner type
Focal length	1000mm
Grating specifications	Ion etched holographic grating with a linedensity of 3600 L/mm or 2400 L/mm; Scribed area (80 × 110) mm
Resolution	0.008nm (3600 line grating) ≤ 0.015nm (2400 line grating)
Scanning wavelength range	190-460nm (4320L/mm grating); 3600 line grating: (190-500) nm; 2400 line grating: (190-800) nm
Electronic measurement and control circuits
Specification of photomultiplier tube	R212/R928
Negative high voltage of photomultiplier tube	(-50~-1000) V
Measurement range of photomultiplier tube current	(10-12-10-4) A
Signal acquisition	VF conversion

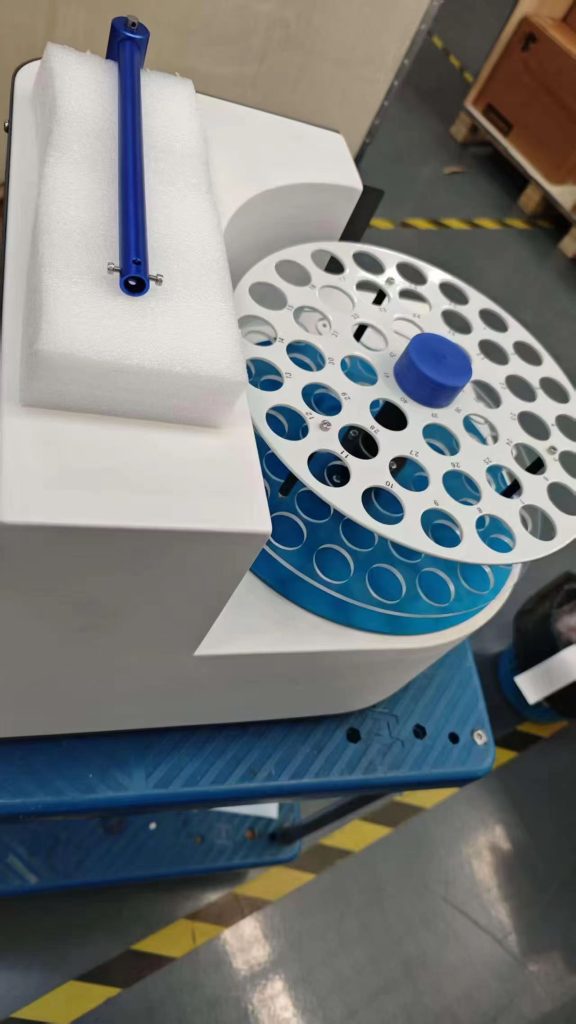

Accessories of ICP700T Petrochemical Version

Optional autosampler

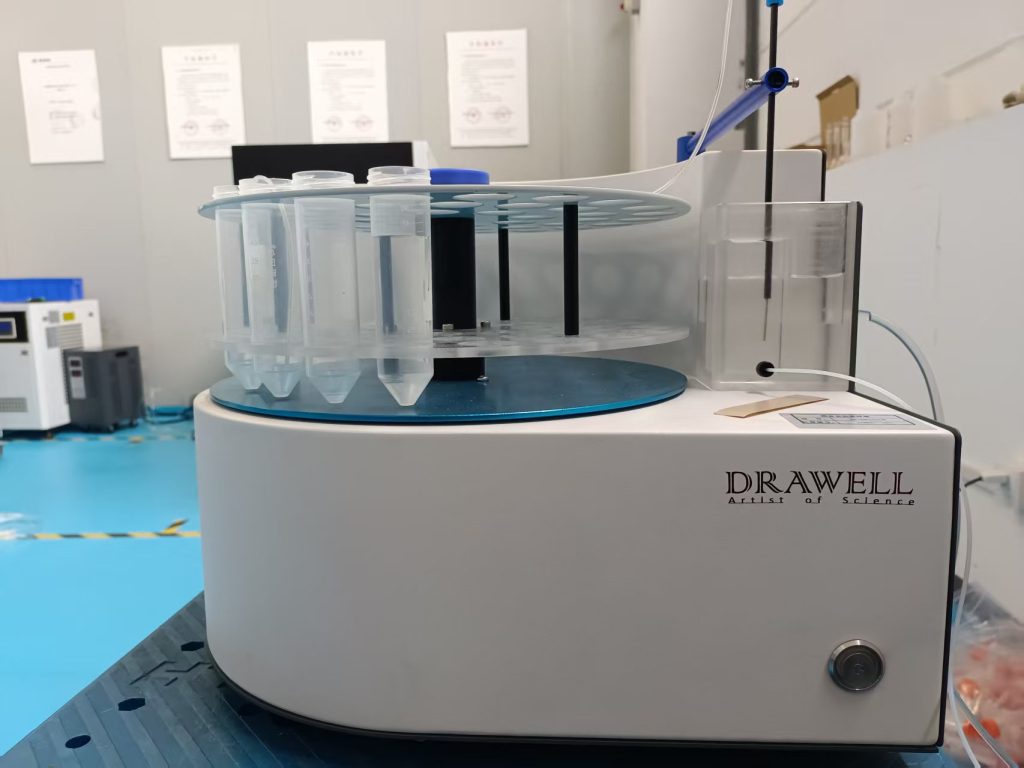

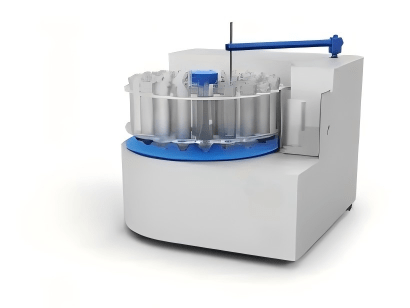

AS Control II Disc Automatic Sampler-43cup

Sample tray: 43 cup sample tray, corrosion-resistant material, lightweight.
Sample Cup: Sample cup capacity 45ml，Reagent cup capacity 45ml
Syringe: High quality carbon fiber tube φ4× φ2.5; Polytetrafluoroethylene tube φ2×0.5mm
Automatic fluid replacement and cleaning: Automatically provide cleaning solution without manual addition

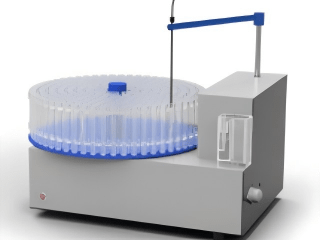

AS Control II Disc Automatic Sampler-272cup

Sample tray: 272 cup sample tray，corrosion-resistant material，lightweight
Sample Cup: Sample cup capacity 15ml
Syringe: High quality carbon fiber tube φ4×φ2.5; Polytetrafluoroethylene tube φ2×0.5mm
Automatic fluid replacement and cleaning: Automatically provide cleaning solution without manual addition

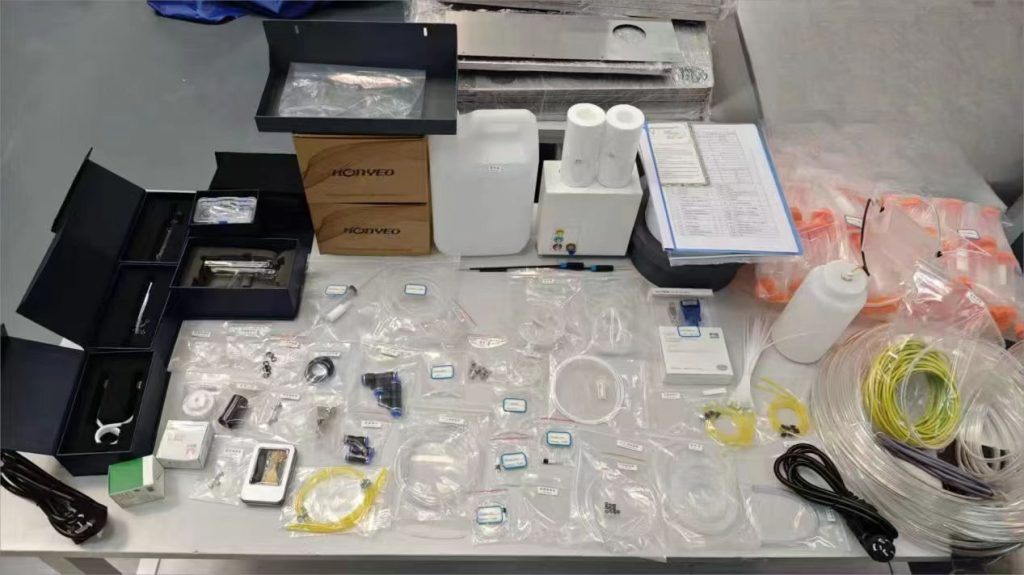

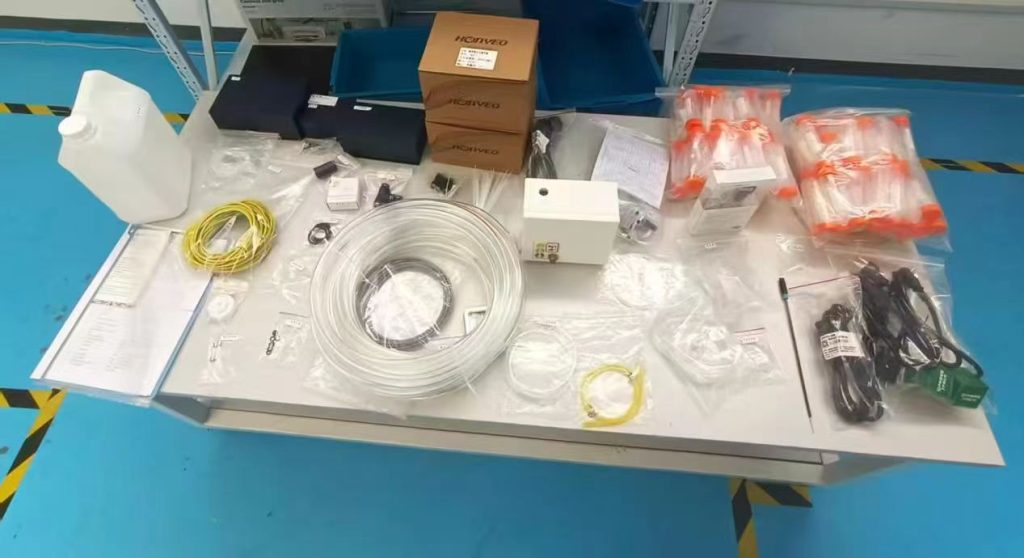

Number	Item name	Quantity	Unit	Remark	Confirm
Host
1.1	ICP 700T Host	1	pc
software
2.1	ICP Spectrometer analysis software pieces	1	set	Lifetime free upgrades
2.2	Product quality certificate	1	set	English
2.3	U plate	1	pc
2.4	Warranty card	1	pc

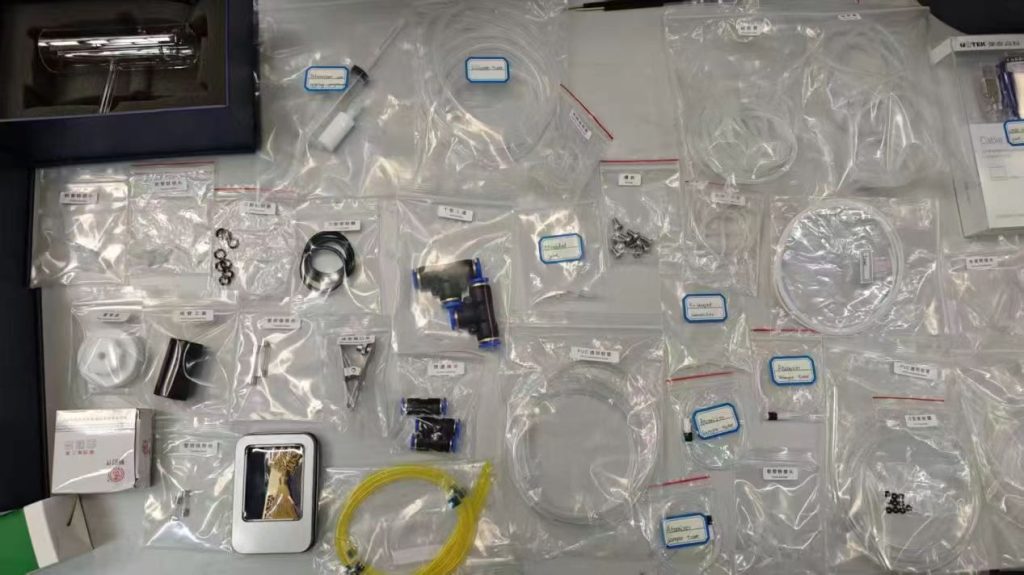

Accessories
3.1	Network cable	1	pc	Category 5 twisted pair 3 rice
3.2	plastic bucket	1	pcs	volume 5L
3.3	Argon pressure reducing valve	2	pcs	Jierui RHM 152 IN -40
3.4	PU hose	30	meter	10×6.5×1.75 mm
3.5	PU hose	5	meter	6×4×1 mm
3.6	PVC Transparent hose	0.5	meter	8 mm ×6 mm Transparent hose
3.7	Plug power cord	1	pc	10A, 250V
3.8	Grounding copper braided wire	15	meter	Cross-sectional area 4 mm 2
3.9	brass tube	1	pc	long 500 mm , outer diameter 48 mm , wall thickness 3 mm
3.10	filter cartridges	4	pcs	Outer diameter: 60 mm , inner diameter: 28 mm , length :125 mm
3.11	Torch	2	pcs	Quartz torch
3.12	Double-tube spray chamber	2	pcs	Scott Spray chamber
3.13	atomizer	1	pc	Imported atomizer
3.14	High-frequency coil	1	pc
3.15	Capillary injection tube	0.5	meter	D=2.38 mm , d=0.8 mm
3.16	Peristaltic pump head hose	3	pcs	Ф 1.65, long 45 cm , two cards
3.17	Cartridge fuse	2	pcs	10A, 250V, 6×30 mm
3.18	Cartridge fuse	2	pcs	6.3A, 250V, 5×20 mm
3.19	Cylindrical spray chamber cover	2	pcs	polytetrafluoroethylene
3.20	Silicone tube	2	meter	inner diameter 2 mm , outer diameter 4 mm , hardness 55
3.21	Hose adapter	4	pcs	ZCJH -2*6 Straight through, inner diameter 6-2
3.22	Hose adapter	4	pcs	ZC -1/16*3/32, inner diameter 1.6-2.4
3.23	Ball joint clamp	1	pc	L00091181,Ø=10

No.	Name	Specification	Replacement cycle
1	Torch	Quartz torch	Clean and maintain once every 3 months.Service life 2 years
2	Nebulizer	Import GE nebulizer	Non-human damage over 3 years
3	Spray chamber	Double-tube spray chamber	Non-human damage over 3 years
4	Peristaltic Pump Head Hose	Injection and Drain Tubing	3 Months
5	High- frequency coil	Silver-plated, three-turn coil	One year
6	Filter element	PP cotton material	Half a year
