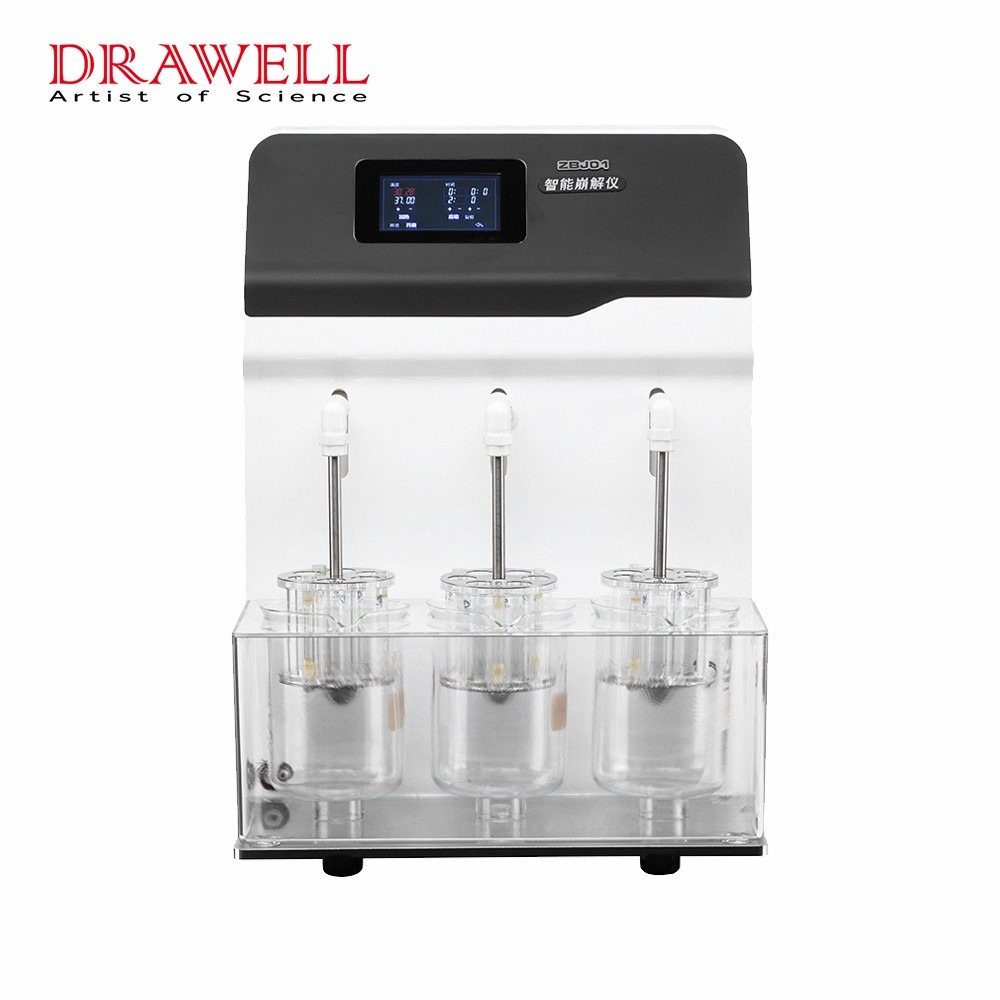

DW-ZBJ01 Intelligent Disintegrator

  • With a 3-cup design, 3 sets of disintegration time limit tests can be performed simultaneously.
  • The overall water bath design is adopted, and the temperature of the water bath is more stable and uniform.
  • Using high-precision platinum resistance pt1000 sensor, the temperature is more accurate.
  • The use of a quick-disassemble gondola card can quickly disassemble and assemble the gondola.
  • Color touch screen operation, automatic positioning of sandblasting bottom plate.
  • 3 cups independent lighting system for easy observation.
  • It has the functions of audit trail and authority management.
  • The instrument is equipped with a built-in printer.

Features of Intelligent Disintegrator

  • Color touch screen
  • One-piece paint injection shell
  • With positioning sandblasting base plate
  • Integrated water bath
  • Dc brush-less circulating pump
  • Temperature protection switch
  • Audit trail
  • Authority management
  • Quick disassembly and assembly of gondola cards
  • Independent lighting system
  • High-precision platinum resistance Pt1000 sensor

Technical Parameter

Number of Gondolas3
Lifting Distance55mm±1mm
Upgrade Frequency31times/min
Water Bath TemperatureRT~45℃
Temperature Resolution0.01℃
Temperature control Accuracy37℃±0.3℃
screen ApertureStandard 2mm optional:1mm,0.71mm,0.42mm
Authority ManagementThree-levels,seven  users
Audit Trail96 pcs ×366 days
Login MethodUser name+password,Finger print
Print onlineSupport (optional)
