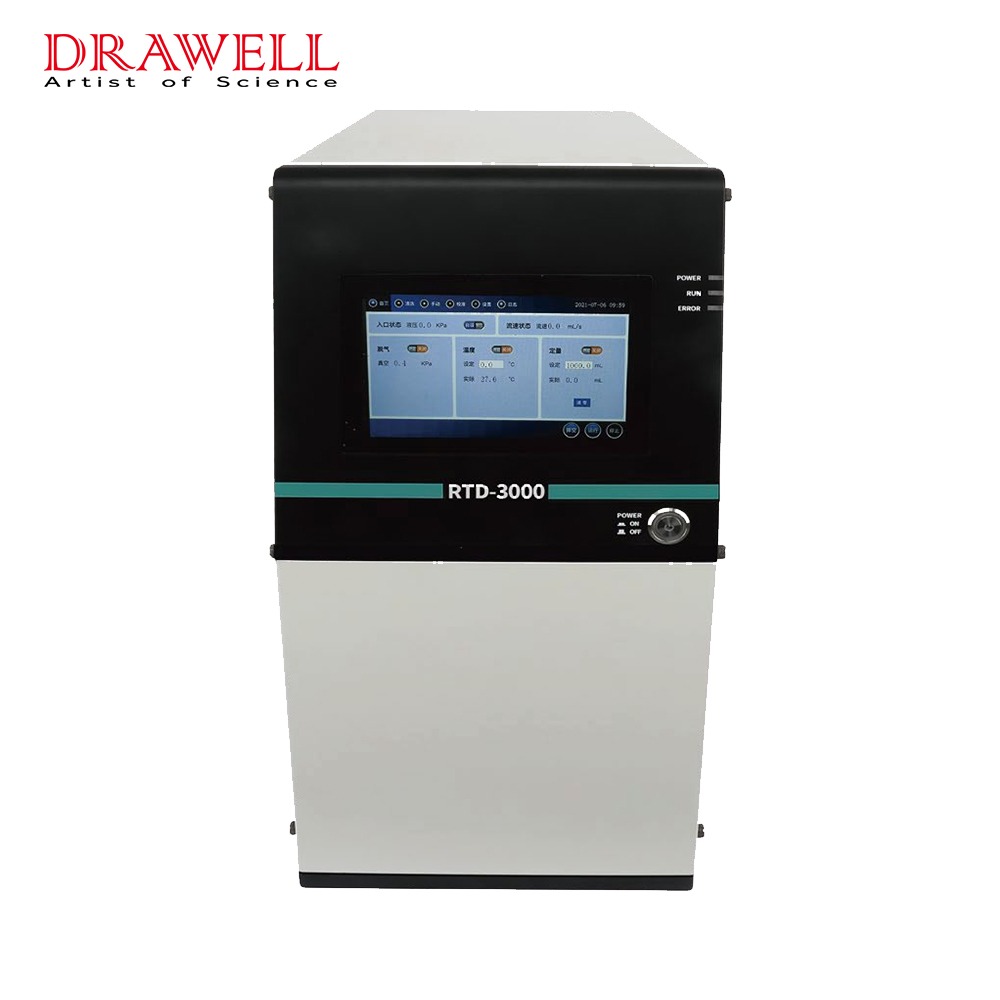

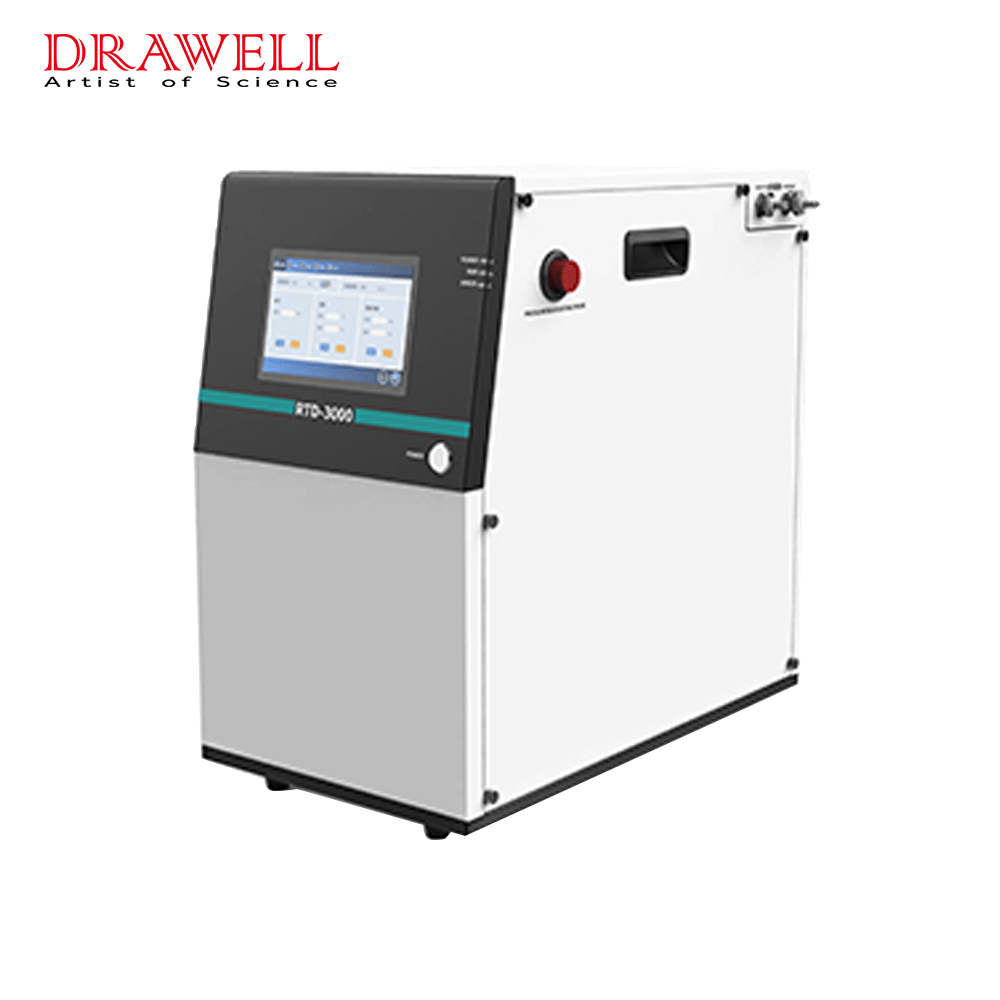

DW-RTD-3000 Thermostatic Degasser

The thermostatic degasser is a new generation of vacuum membrane degassing device developed and produced to meet the demand for a short time. large quantity and continuous degassing treatment. It can effectively degas all kinds of solvent media to ensure the accuracy of downstream experimental results.

DW-RTD-3000 Brochure

Features

  • Logging Function

Logging with audit trail.

  • Impurity Filtration

Internal self-filtering device.

  • Efficiently

Heating, vacuum and circulation in one.

  • High precision

Automatically complete the quantitative liquid inlet, preheating,
degassing and quantitative liquid discharge, single liquid discharge accuracy up to ±1%.

  • Human–Computer Interaction

Colour touch screen, clear parameters, easy to operate.

  • Higher Degassing Efficiently

1500ml/min.

  • Hydraulic Inspection

Equipped with hydraulic pressure detection, automatic switching between self-priming type and external pressure type can be realized.

  • Wide range of application

It can directly handle solvents, pure water, distilled water, etc., which are commonly used in dissolution experiments, and is more efficient and widely applicable than the traditional method

  • Temperature Range

Maximum single temperature increase of 30℃ .

  • Higher Temperature control precision

Adopting the unique two-stage heating temperature control system, the temperature control accuracy can reach ±0.5℃.

Specifications

ModelDW-RTD-3000
     Performance ParametersHeating rangeRT ~ 45℃
Temperature unit0.1℃
Temperature control accuracy±0.5℃ up
volume unit0.1mL
Dispensing precision≤±1℃@1000ML
Degassing rate1500ml/min up
vacuum unit0.1Kpa
vacuum degree≤0.01MPa
Logging function with audit trail
Input power220vac±10% 16A 50/60Hz 3600W up
Size590*370*580mm
Weight33kg
EMCIEC6100-4-2, IEC6100-4-4, IEC6100-4-5, IEC6100-4-11
Operating Temperature(5~40) ℃
Storage Temperature(-20~60) ℃
Operating Humidity(20~80)% RH
Storage Humidity(5~95) % RH
