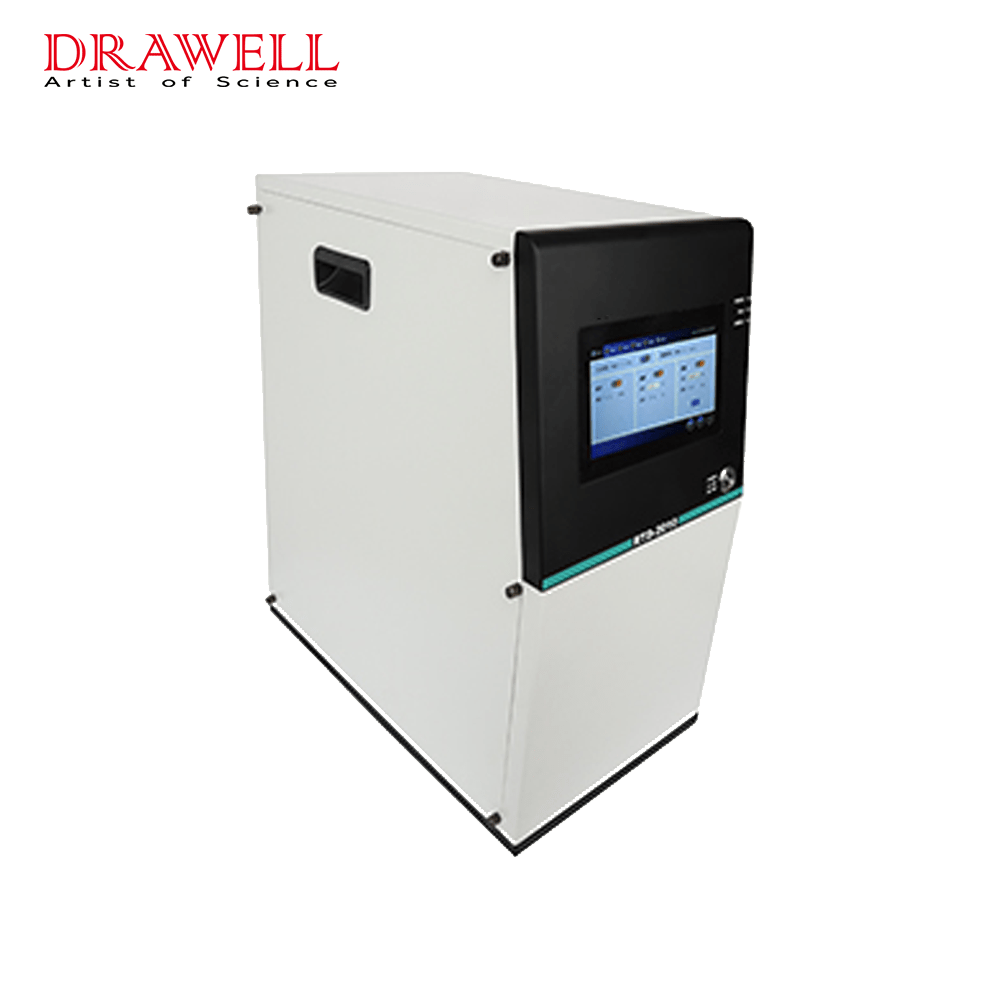

DW-RTD-2010 Thermostatic Degasser
Thermostatic degasser is a new generation of vacuum membrane degassing device developed and produced to meet the demand for short time, large quantity and continuous degassing treatment. it can effectively degas all kinds of solvent media to ensure the accuracy of down-stream experimental results.
Features
Standards Compliance
Conforms to the standards of Chinese pharmacopoeia for the preparation of dissolution media.
Logging Function
Logging with audit trail.
Efficiently
Heating, vacuum and circulation in one.
Human–Computer Interaction
Colour touch screen, clear parameters, easy to operate.
Hydraulic Inspection
Equipped with hydraulic pressure detection, automatic switching
between self-priming type and external pressure type can be realized
High precision
Automatically complete the quantitative liquid inlet,
preheating, degassing and quantitative liquid discharge, single liquid discharge accuracy up to ±1%.
Wide range of application
It can directly handle solvents, pure water, distilled water, etc., which are commonly used in dissolution experiments, and is more efficient and widely applicable than the traditional method.
Specifications
| Model | DW-RTD-2010 | |
| Performance Parameters | Heating range | room temperature ~ 45℃ |
| Temperature unit | 0.1℃ | |
| Temperature control accuracy | ±2℃ | |
| Volumeunit | 0.1mL | |
| Dispensing precision | ≤±1℃@1000ml | |
| Degassing rate | 1000ml/min | |
| Vacuum unit | 0.1Kpa | |
| Vacuum degree | ≤0.01MPa | |
| Logging function with audit trail | ||
| Input power | 220vac±10% 1700W | |
| Size | 530x300x560mm | |
| Weight | 23kg | |
| EMC | IEC6100-4-2, IEC6100-4-4, IEC6100-4-5, IEC6100-4-11 | |
| Operating Temperature | (5~40) ℃ | |
| Storage Temperature | (-20~60) ℃ | |
| Operating Humidity | (20~80)% RH | |
| Storage Humidity | (5~95) % RH | |
