DW-TEK5000P Automatic Hematology Analyzer

Hematology analyzers are used to count and identify blood cells in patients. Automatic hematology analyzer provides quantitative analysis of a patient’s blood components at high speed with accuracy to protect their health.

Features of DW-TEK5000P Automatic Hematology Analyzer

  • 3-part differentiation of WBC
  • Double Chambers for WBC and RBC/PLT
  • Throughout: 60 samples per hour
  • Intelligent reagent management function: Reagent information and residual display、
  • Strong data management system
  • Multilingual for option
  • LCD with high resolution
  • Bar code scanner ( optional)
  • Reagent alarm system ( optional )

Technical Specifications of DW-TEK5000P Automatic Hematology Analyzer

21Parameter + 3Histogram WBC, LYM#, MID#, GRA#, LY%, MID%, GR%, RBC, HGB,HCT,
MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT,
P-LCR, P-LCC and Histogram for WBC, RBC, PLT
Method Coulter Principle (Electrical impedance)
Colorimetry hemoglobin determination
Throughout 60 samples per hour
Menu Review, Test, Maintenance, QC, Setup, Shutdown, Prime reagents, System diagnosis, Aperture rinse, Soak and Rinse, Calibration, instrument config
Display 8’’ color touch screen display
Sample volume Predilute:     20µL
Whole blood:  10µL
Aperture Diameter WBC:80µM
RBC/PLT:70µM
Carryover WBC≤1.5%,RBC,HGB<1.0%, PLT≤2%
Input / Output 1 RS232, 1 keyboard , Mouse;4 USB, LAN
Printout Built-in thermal printer
Operating Environment Temperature: 10-35℃
Humidity: ≤90%

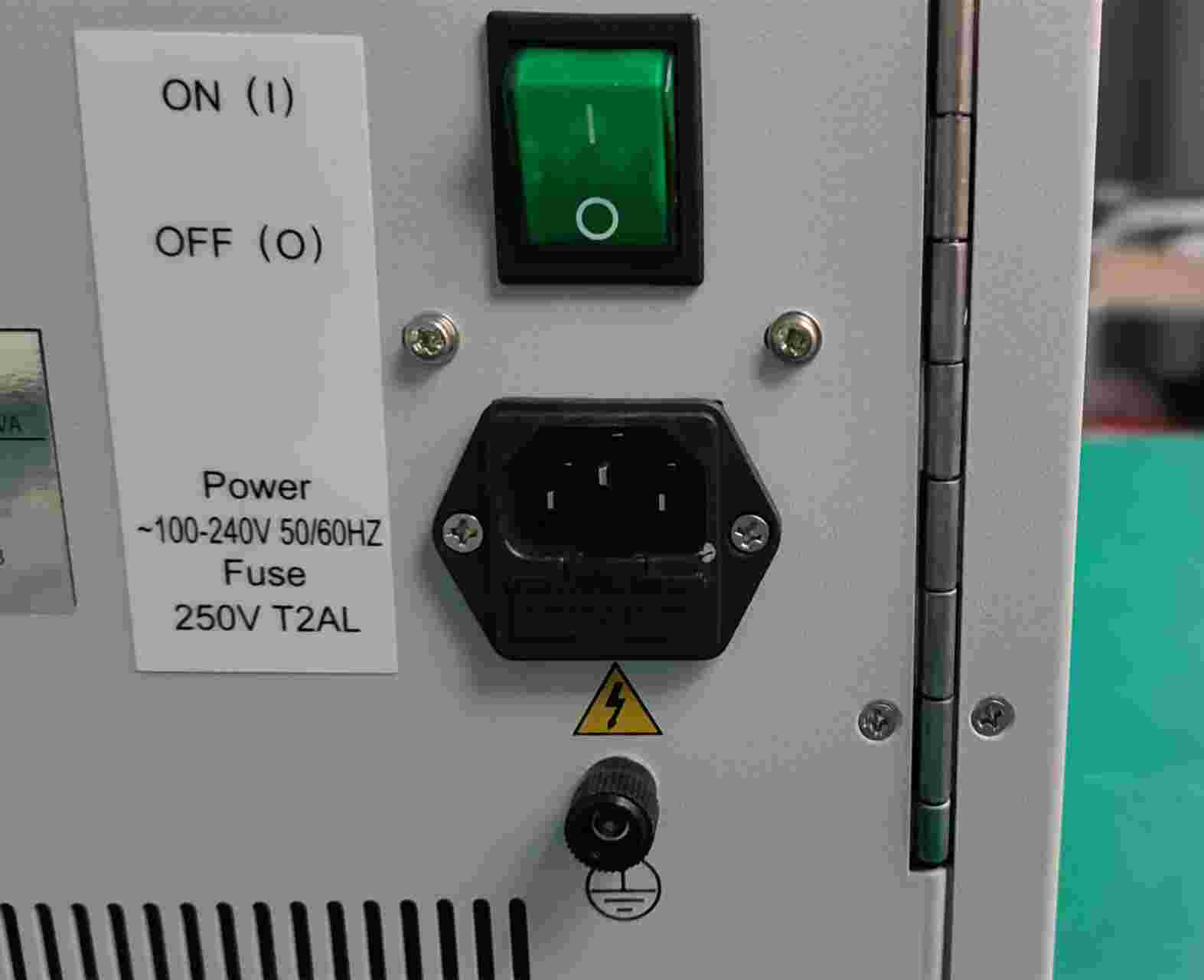

Power Requirement AC 100-240V 50/60Hz
Dimension Instrument:440mm(H) x 350mm(W) x 440mm(D)   Net:17kg
Package: 570mm(H) x 520mm(W) x 600mm(D)   Gross:21.8kg
