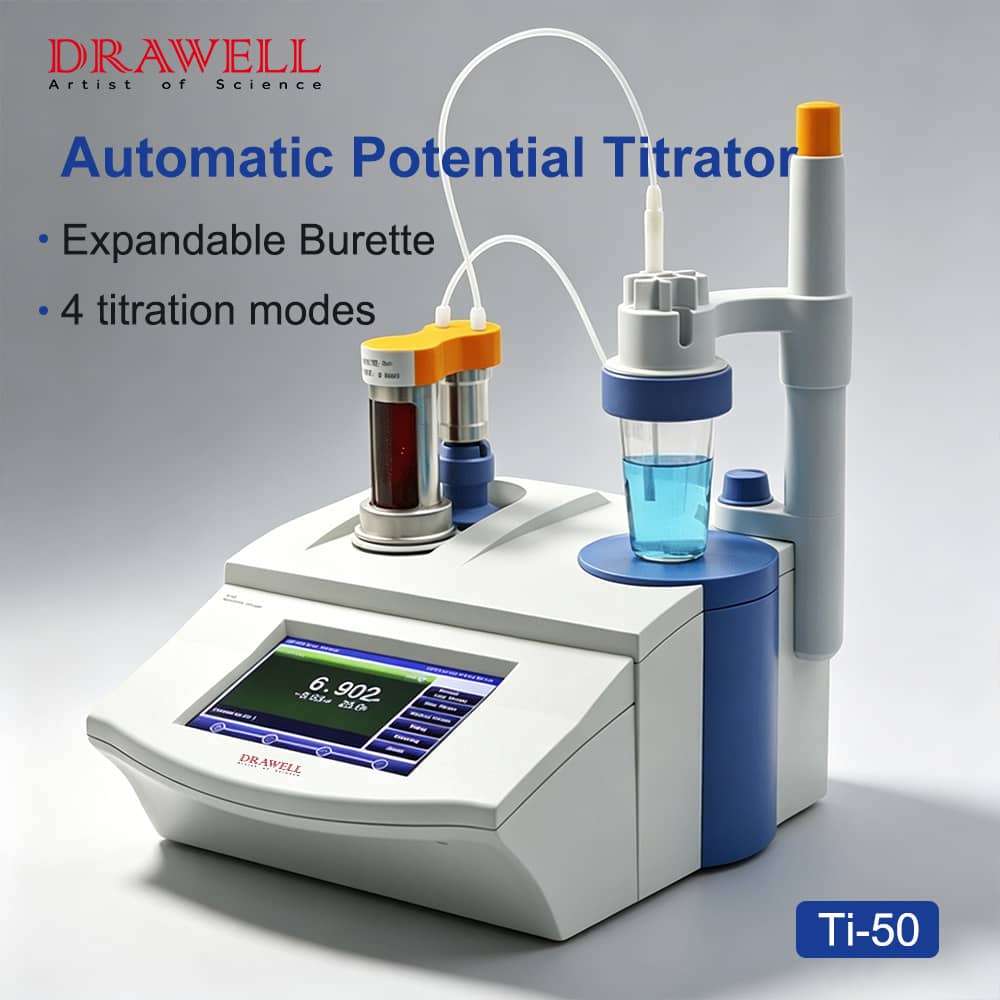

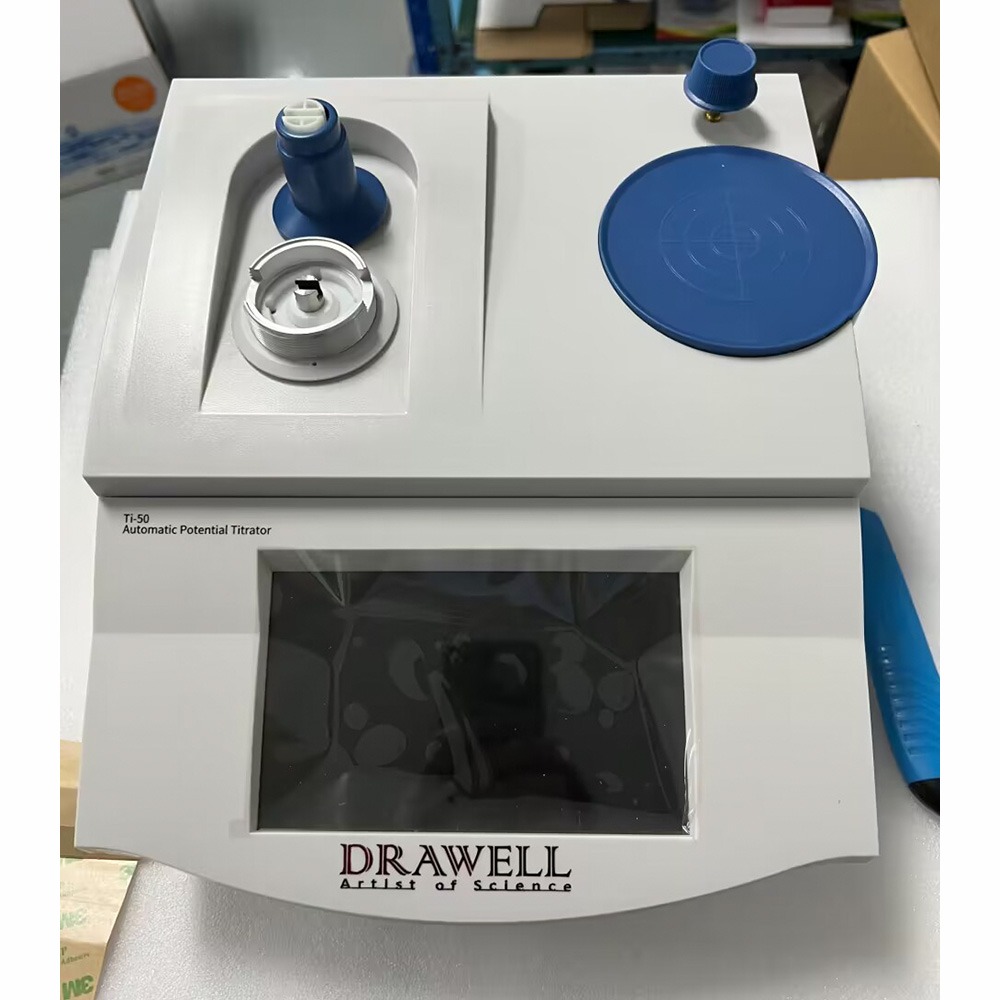

Automatic Potential Titrator Ti-50

Features

  • 7” colorful touchscreen and smart guide system.
  • Titration methods, curves and results are displayed in detail.
  • 1 extra burette driver can be installed (optional).
  • Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
  • Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
  • Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
  • pH calibration and measurement are supported.
  • Up to 100 user-defined methods and 10 user-defined shortcuts.
  • Auto calculation with pre-defined formula.
  • Store up to 200 titration data sets (GLP-compliant).
  • Data analysis feature helps user review, compare and recalculate results.

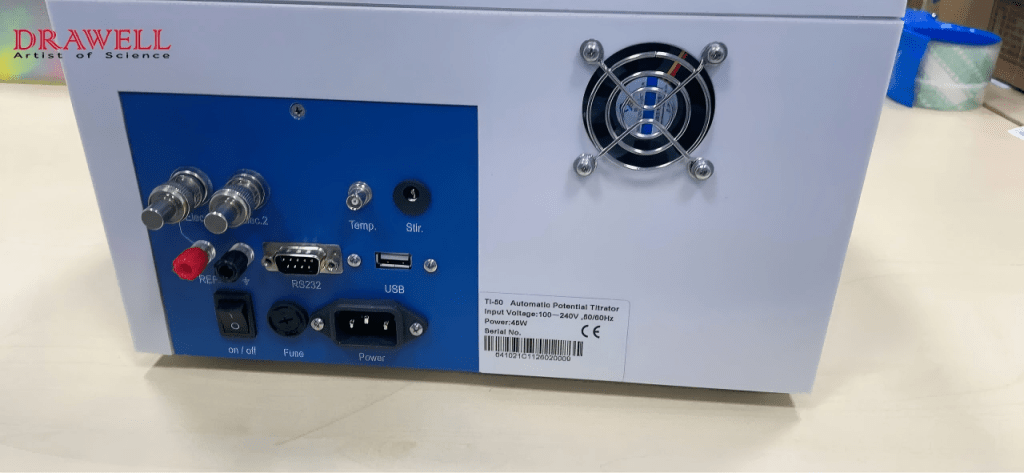

  • Data can be easily transferred to printer via RS-232 communication interface..
  • Titrator can be controlled by computer via USB or RS-232 communication interface.
  • Automatic sampler is supported.

Includes of Ti-50 Potential Titrator

  • 10ml burette
  • 232-01 reference electrode
  • 213-01 platinum electrode
  • 216-01 silver electrode
  • 217-01 reference electrode
  • 231-01 pH indicator electrode
  • T-818-B-6 Temperature probe
  • NIST pH standard solution(4.01, 7.00, 10.01) , 50ml/vial

Specifications of Ti-50 Potential Titrator

ModelDW-Ti-50
BuretteRepeatability≤0.2%
Accuracy10ml Burette: ±0.020ml;
20ml Burette: ±0.030ml
Mechanical UnitResolution1/30000
Measuring UnitRange(-2000.00~2000.00) mV, (0.000~20.000)pH
Resolutions0.01mV,
0.001pH
AccuracypH: ±0.002pH
mV: ±0.03% or ±0.2mV
Fluctuation±0.3mV/3h
Temp. CompensationRange(-5.0~105.0) ℃
Resolutions0.1 ℃
Accuracy±0.2 ℃
GeneralPower SupplyAC Adapter, 100-240V AC input, DC24V output
Dimensions340×400×400 mm
Weight10 kg
Dimensions (Carton)540×490×480 mm
Weight (Gross)12 kg
