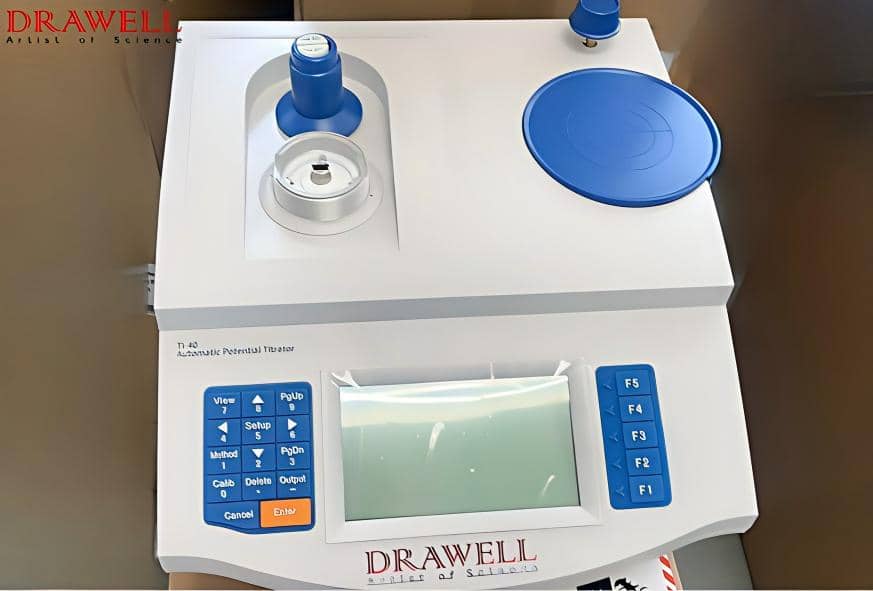

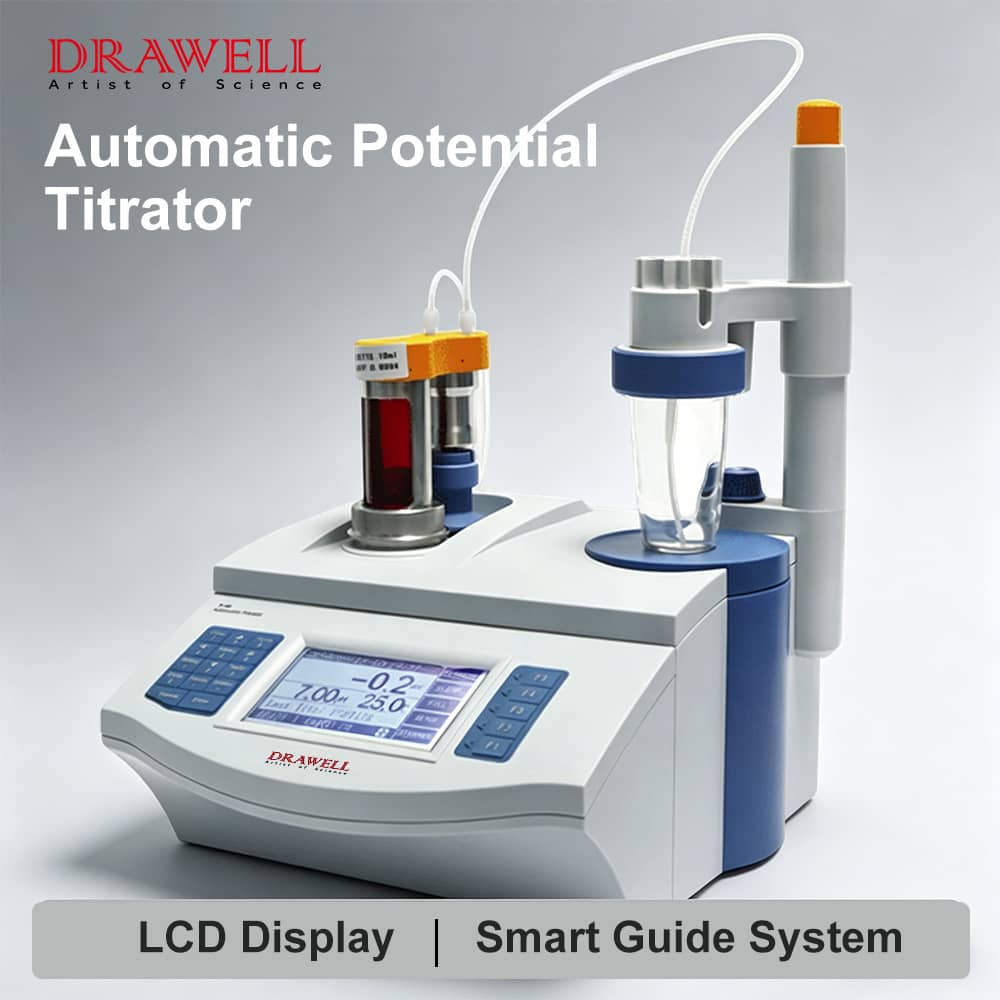

Automatic Potential Titrator Ti-40
Features
- LCD display screen and smart guide system.
- Titration methods, curves and results are displayed in detail.
- Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
- Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
- pH calibration and measurement are supported.
- Store up to 50 titration data sets (GLP-compliant) and 1 latest set of titration curve.
- Data can be easily transferred to printer via RS-232 communication interface..
- Titrator can be controlled by computer via USB or RS-232 communication interface.

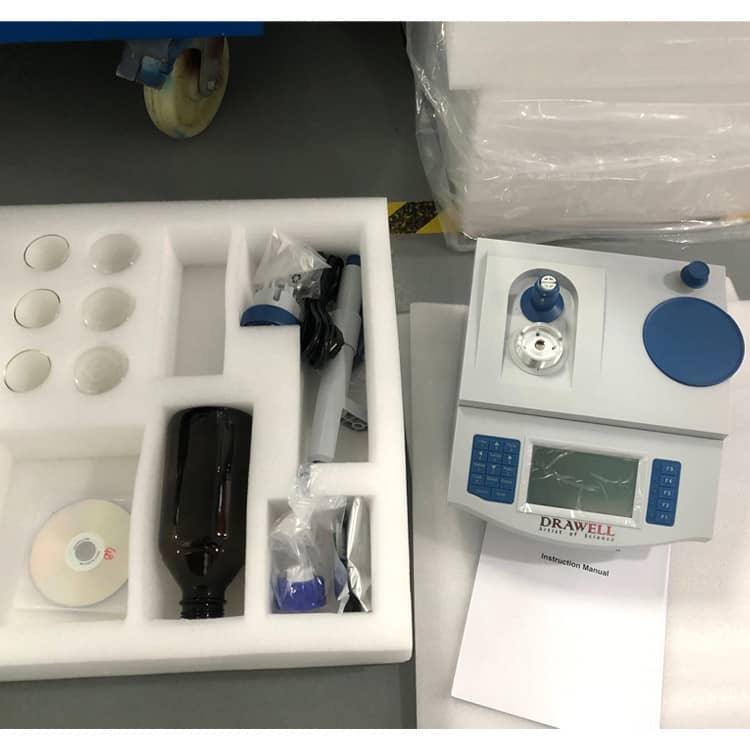

Includes of Ti-40 Potential Titrator
- 10ml burette
- 232-01 reference electrode
- 213-01 platinum electrode
- 216-01 silver electrode
- 217-01 reference electrode
- 231-01 pH indicator electrode
- T-818-B-6 Temperature probe
- NIST pH standard solution(4.01, 7.00, 10.01) , 50ml/vial
Specifications of Ti-40 Potential Titrator
| Model | DW-Ti-40 | |
| Burette | Repeatability | ≤0.2% |
| Accuracy | 10ml Burette: ±0.025ml, | |
| 20ml Burette: ±0.035ml | ||
| Mechanical Unit | Resolution | 1/14000 |
| Measuring Unit | Range | (-1800.0~1800.0) mV, |
| (0.00~14.00)pH | ||
| Resolutions | 0.1mV, | |
| 0.01pH | ||
| Accuracy | pH: ±0.01pH, | |
| mV: ±0.05%FS | ||
| Fluctuation | ±0.3mV/3h | |
| Temp. Compensation | Range | (-5.0~105.0) ℃ |
| Resolutions | 0.1 ℃ | |
| Accuracy | ±0.3 ℃ | |
| General | Power Supply | AC Adapter, 100-240V AC input, DC24V output |
| Dimensions | 340×400×400 mm | |
| Weight | 10 kg | |
| Dimensions (Carton) | 540×490×480 mm | |
| Weight (Gross) | 12 kg | |
