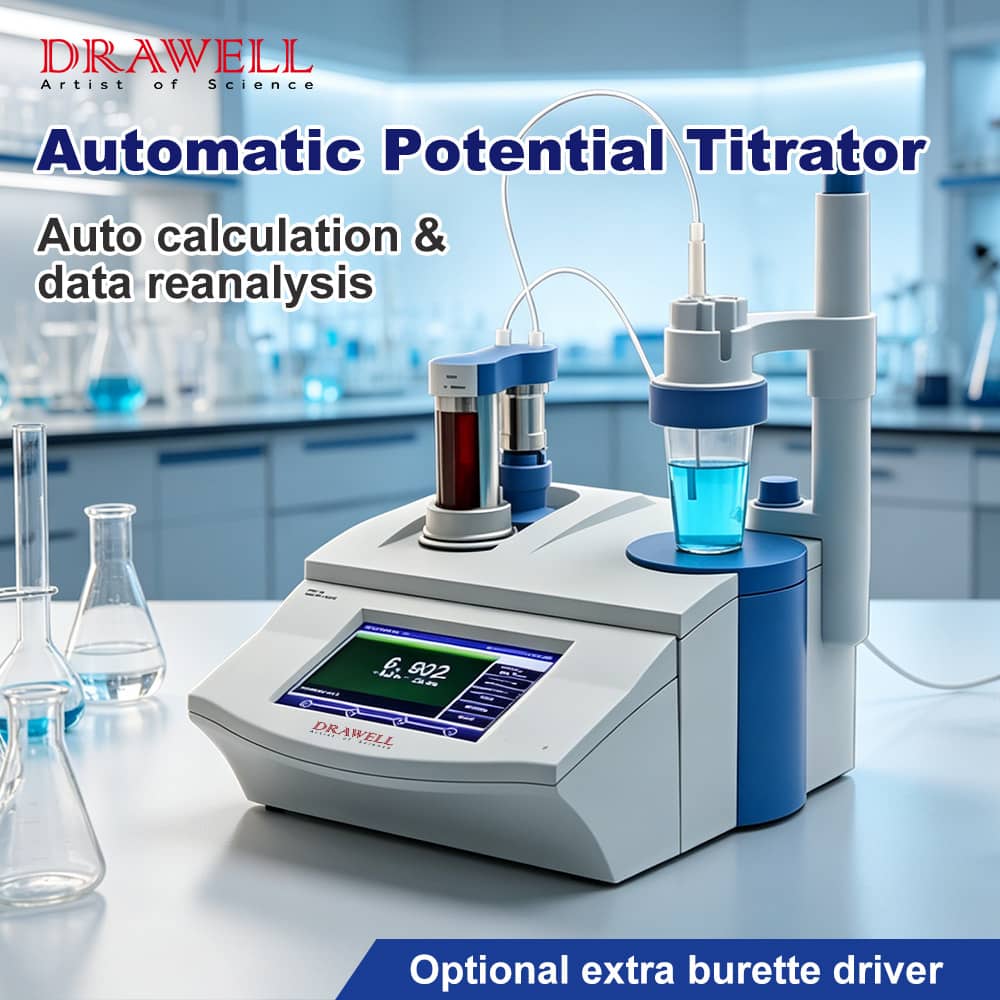

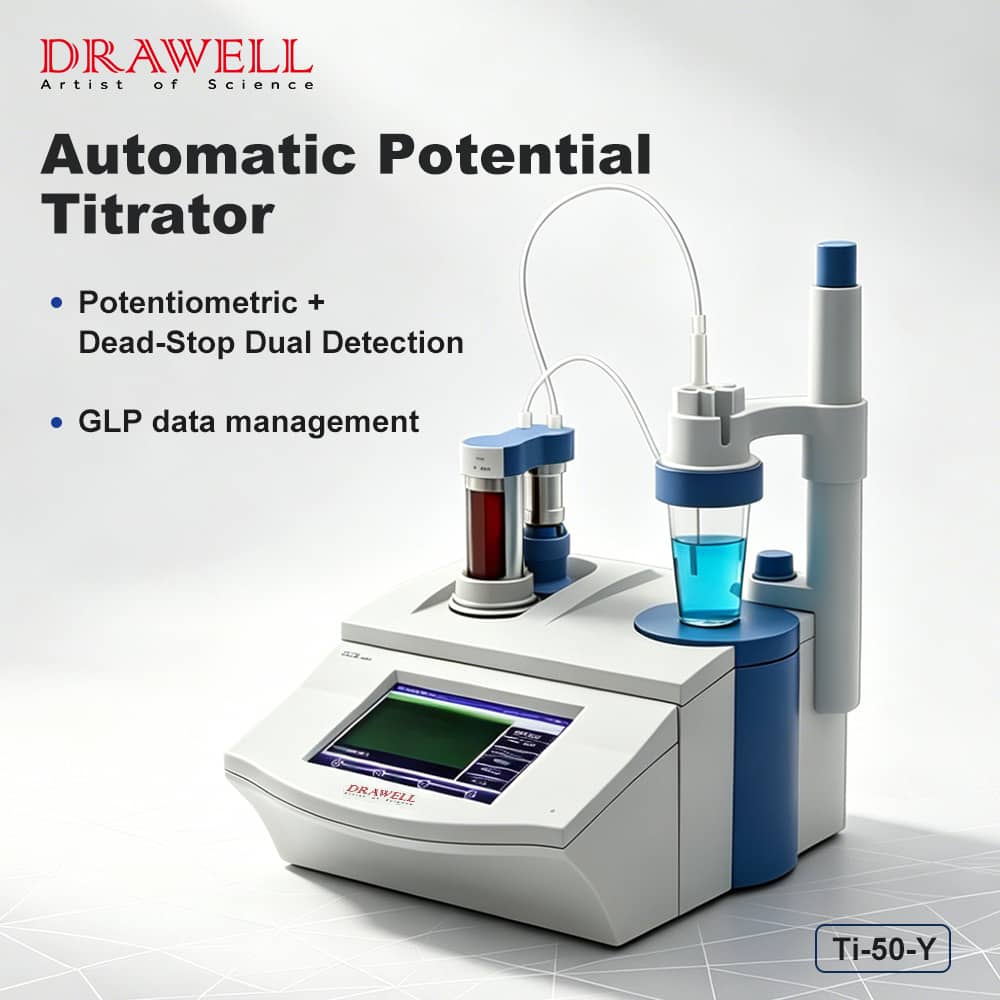

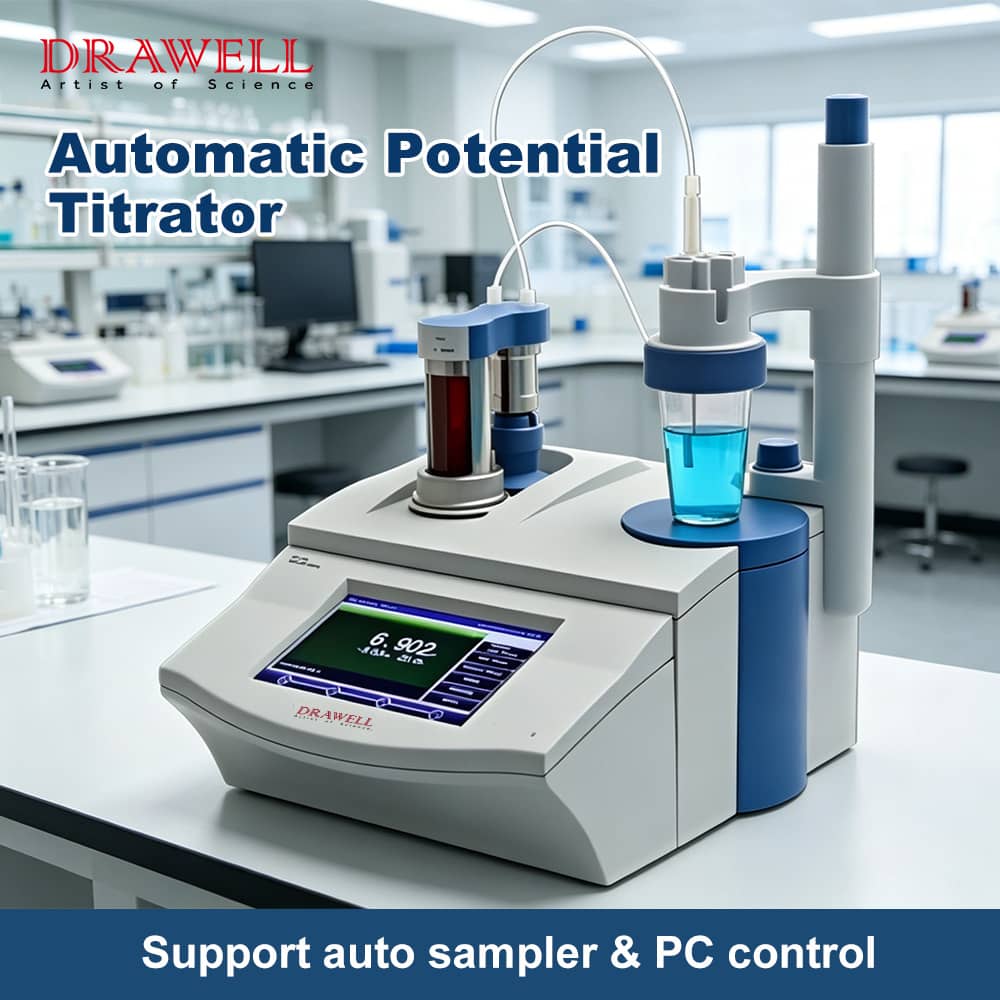

Potentiometric/Dead-Stop Titrator Ti-50-Y

Features

  • 7″colorful touchscreen and smart guide system.
  • Titration methods,curves and results are displayed in detail.
  • 1 extra burette driver can be installed(optional).
  • Replaceable burtte with high-accuracy (10 ml or 20 ml selectable).
  • Intelligent operation system provides features ncluding user management, method management, electrode management, titrant management, data management, etc.
  • Support the following titration modes: DET(dynamic equivalence point titration), MET (monotone equivalence point fitration), SET (Preset Endpoint Titration) and MAT (manual titration).
  • pH calibration and measurement are supported.
  • Up to 100 user-defined methods and 10 user-defined shortcuts.
  • Auto calculation with pre-defined formula.
  • Store up to 200 titration data sets(GLP-compliant).
  • Data analysis feature helps user review,compare and recalculate results.
  • Data can be easily transferred to printer via RS-232 communication interface..
  • Titrator can be controlled by computer via USB or RS-232 communication interface.
  • Automatic sampler is supported.

Instrument Includes of Ti-50-Y Potential Titrator

10ml Burette, Platinum Electrode, Silver Electrode, pH Electrode (indicator), Single Bridge Reference Electrode, Double Bridge Reference Electrode, ATC Probe, pH Buffer Powders (4.01, 7.00, 10.01)

Optional Accessories

20ml Burette, Auxiliary Burette Driver, Anti-diffusion Capillary

Specifications of Ti-50-Y Potential Titrator

ModelTI-50-Y
BuretteRepeatability0.20%
Accuracy10ml Burette: ±0.025ml; 20ml Burette: ±0.035ml
Resolution10ml Burette: 1/20000; 20ml Burette: 1/10000
Mechanical UnitResolution1/30000
Charging speed(55±10)s (Fullburette)
Measuring UnitRange(-1999.0~1999.0)mv, (0.00~14.00)pH
Resolutions0.1mV,0.01pH
AccuracypH: ±0.01pH mv: ±0.03%FS
Fluctuation(±0.3mV±1bit) /3h
Temp.CompensationRange(-5.0~105.0)℃
Resolutions0.1℃
Accuracy±0.3℃
Dead-Stop MeasurementPolarization Voltage:100mV, 50mV, 30mV
Polarization current range:(0-199.9)μA, (0-19.99)μA, (0-1.999)μA, (0-0.199)μA
Polarization current detection accuracy:±2.5%FS
Polarization voltage accuracy±10mV
GeneralPower SupplyAC (220±22)V; (50±1)Hz
Dimension(mm)&Weight (kg)340*400*400; 10
