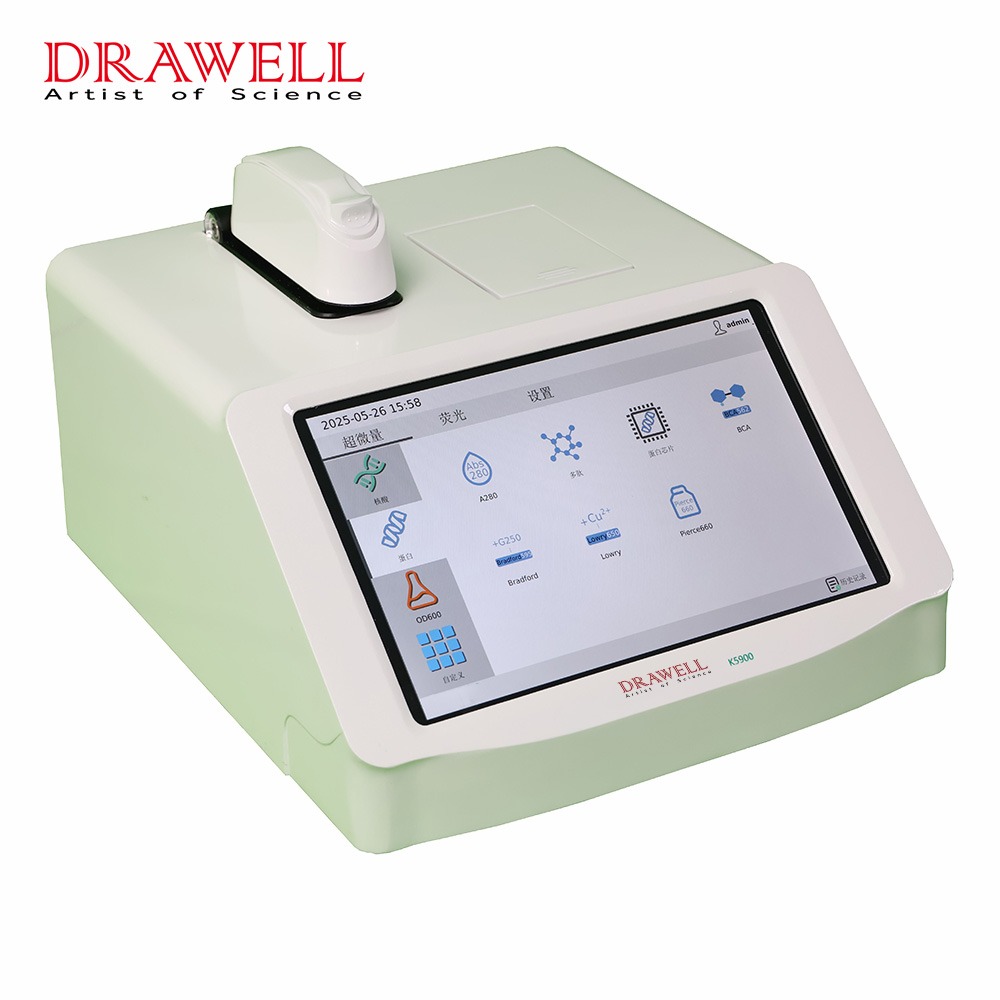

Nano Spectrophotometer DW-K5900F
Models: DW-K5900F
The microvolume Spectrophotometer has become a routine instrument in modern molecular biology laboratories. It is an instrument that conducts quantitative and qualitative analysis of substances using the spectrophotometric method, and is commonly used for nucleic acid and protein quantification, microarray, full-wavelength scanning, and quantitative determination of bacterial concentration, etc. By adding a fluorescence module to the micro spectrophotometer, it is often used for the detection of low-concentration nucleic acids and proteins, greatly expanding the detection range.
Advantages of Nano Spectrophotometer DW-K5900F
- Five automatic wavelength conversions, automatically matching the optimal wavelength based on sample concentration, without the need for manual setting;
- Long-life scintillation xenon lamp, with a maximum of 109 flashes;
- Internal display: 10.1-inch touch display, multi-point capacitive touchscreen;
- Has pollutant identification function;
- Operating system: LINUX system;
- Supports languages: 9 languages including Chinese, English, French, German, Arabic, Spanish, Russian, Japanese, and Korean.
- Supports USB data output, can be linked to Ethernet, Bluetooth, and Wi-Fi.
Features of Nano Spectrophotometer DW-K5900F
- Output port: It has 2 USB-A interfaces, 1 Type C interface, 1 HDMI interface, and 1 Ethernet port, enabling connection and use with various devices such as mice, keyboards, desktop computers, etc.
- It has a one-click export function for the spectral graph of the scanning and detection results.
- Fluorescence detection has a customizable standard curve module, allowing for more flexible compatibility with more reagent kits and experimental methods.
- Fluorescence detection has a kinetic module, enabling fluorescence kinetic detection and drawing kinetic curves.
- Nano Gold mode,Judging Peak,auto search wavelength of different particles
- STD Curve have mord Fitting method,satisfy diversified experiments requirement.
Specifications
| ★Optical path | Microvolume module:1、0.4、0.1、0.04、0.02mm(Auto ranging)Cuvette module:10、5、2、1mm; |
| Volume requirements | Microvolume module: 0.3~2μL;Cuvette module:≥1000μL(10mm Optical Path),Or the liquid height is ≥ 8.5mm |
| Light source | Xenon lamp(10⁹ flashes) |
| Detector | 2048(cmos)linear imaging sensor |
| Test wavelength range | Microvolume module:200～850nm;Cuvette module:220～800 nm |
| Wavelength accuracy | ±1nm; |
| Resolution Spectrum Bandwidth | 2nm(FWHM at Hg 254nm); |
| Absorbance Accuracy | 0.002 Abs; |
| Photometric Accuracy | 1%(0.988 Absorbance at 257 nm); |
| ★Abs range | Microvolume module:0～900 Abs(=10mm Optical path)Cuvette module:0~16 Abs(at 1mm Optical path) |
| ★Concentration range | Microvolume module: 2～45000 ng/µL（dsDNA）；0.06～1343 mg/mL（BSA）Cuvette module(10mm):0.2～80 ng/µL（dsDNA）；0.006～2.38mg/mL（BSA） |
| Test time | ＜3s |
| Test repeatability | 0.002A (1mm Optical path) or 1% CV |
| Dimensions of the instrument(L*W*H)mm | 290*340*220 |
| Weight | 6.8kg |
| Operating conditions | Temperature: 10 – 45℃; Humidity: Below 85% |
| Output | 24V 2.5A 60W |
| Auto test and zero adjustment,after padetal arm down | |
| ★It has the function of intelligent sample detection. It can identify pollutants and provide information prompts as well as the type of pollutants. The types of pollutants that can be identified include: protein, nucleic acid, phenol, isothiocyanate guanidine, and hydrochloric guanidine. Moreover, it has the function of result correction, which can provide the original concentration of the sample, the corrected concentration, and the type of pollutants. This ensures the accurate concentration of the sample and the quality of the sample, as well as the accuracy and best experimental results of the experiment. | |
| Nucleic acid testing module | dSDNA, ssDNA, RNA, User settings, oligoDNA, oligoRNA, Gene chip module |
| Protein detection module | A280、Polypeptide, protein chip, BCA, Bradford, Lowry, Pierce 660 module |
| OD600 module | Cell Fluid Module |
| Custom module | UV-Vis,STD,Nano Gold,Dynamics |
| STD curve fitting | Linear,Interpolation,2nd/3rd-order polynomial |
| UV-Vis Cuvette Absorbance | |
| Fluore dynamics mode,can customzise 5 stages’ delay time,interval time,Number of tests | |
Fluorescence
| Optical source | Long life Xenon flash lamp(109 flashes); |
| Excitation wavelength range | 190nm-1000nm; |
| Emission wavelength range | 280nm-850nm; |
| Excitation filter | Standard configuration:355nm、485nm、544nm、646nm; |
| Shutter filter | Standard configuration:460nm、538nm、590nm、678nm; |
| Detector | Photodiode (320 – 1100nm) |
| Sample Channel | 1 |
| sample volume | 1-20 μL; |
| Tube type | 0.5mL pcr tube |
| Sample volume of tube | ≥100 μL |
| Preheating time | No need for preheating |
| Measuring speed | 3s / tube |
| Linear | R2≥0.995; |
| Linear range | 5 order of magnitude |
| Built in reagent calculator to calculate the required amount of dye and buffer for the working solution | |
| Equipped within fluorescence meter mode,can directly measure the fluorescence intensity of the sample | |
| lon Sphere | |
| Within Fluore STD curve mode,can free choose Ex light source,curve type,STD volume and reagent volume. | |
| Within Fluore dynamics mode,can customzise 5 stages’ delay time,interval time,Number of tests | |
| Cuvette stirring | 10 speed,time adjustable |
| Printer | Built-in thermal printer |
| Liquid column monitoring | which can detect any bubbles or other abnormalities to ensure accuracy |
| Audit trial | Once enabled,it cannot be disabled.It features hierarchical permissions,with different user groups having different permissions.It can record and query user operation information,meeting customer requirements for electronic record traceability. |
