Nano Spectrophotometer DW-K5600N CN F

Models: DW-K5600N DW-K5600CN DW-K5600F

The microvolume Spectrophotometer has become a routine instrument in modern molecular biology laboratories. It is an instrument that conducts quantitative and qualitative analysis of substances using the spectrophotometric method, and is commonly used for nucleic acid and protein quantification, microarray, full-wavelength scanning, and quantitative determination of bacterial concentration, etc. By adding a fluorescence module to the micro spectrophotometer, it is often used for the detection of low-concentration nucleic acids and proteins, greatly expanding the detection range.

DW-K5600N CN F Brochure

Advantages of Nano Spectrophotometer DW-K5600N CN F

  1. 5 path auto ranging,(1、0.4、0.1、0.04、0.02mm)fit test sample concentration,no  need manual setting
  2. Xenon lamp 10⁹ flashes
  3. Spetrum range 190-910nm
  4. LINUX, 8′ touch screen
  5. 3864-element linear silicified CCD array for higher stability
  6. Absorbance range up to 600Abs, double the detection range
  7. Detection range: dsDNA up to 30,000 ng/μL
  8. Rich interfaces: USB/Type-C/HDMI/Ethernet/Bluetooth/WiFi
  9. New fluorescence detection module for low-concentration samples（DW-K5600F）
  10. Professional functions: standard curve, kinetics, reagent calculator

Features of Nano Spectrophotometer DW-K5600N CN F

  1. Display: 8-inch touch screen, multi-point capacitive touch;
  2. Operating System: LINUX;
  3. Supported Languages: 9 languages including Chinese, English, French, German, Arabic, Spanish, Russian, Japanese, and Korean;
  4. Support U-disk、Ethernet 、Bluetooth、Wifi
  5. Data Output Ports: 2 USB-A ports, 1 Type-C port, 1 HDMI port, and 1 Ethernet port, enabling connection with various devices such as mice, keyboards, and desktop computers;
  6. Data Storage: Measurement results are automatically saved in spreadsheet format and can be exported via USB.

Pictures of Nano Spectrophotometer DW-K5600N CN F

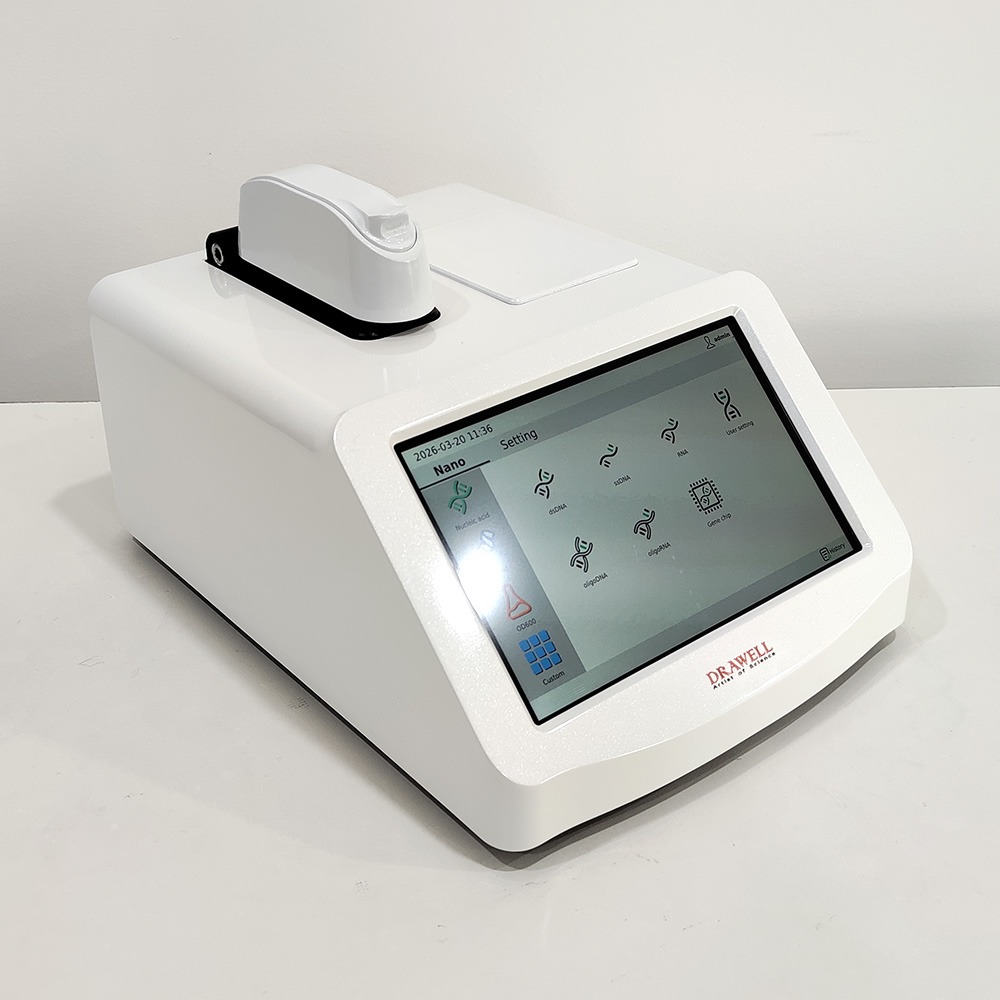

  • Nano Spectrophotometer DW K5600N CN F 1 1

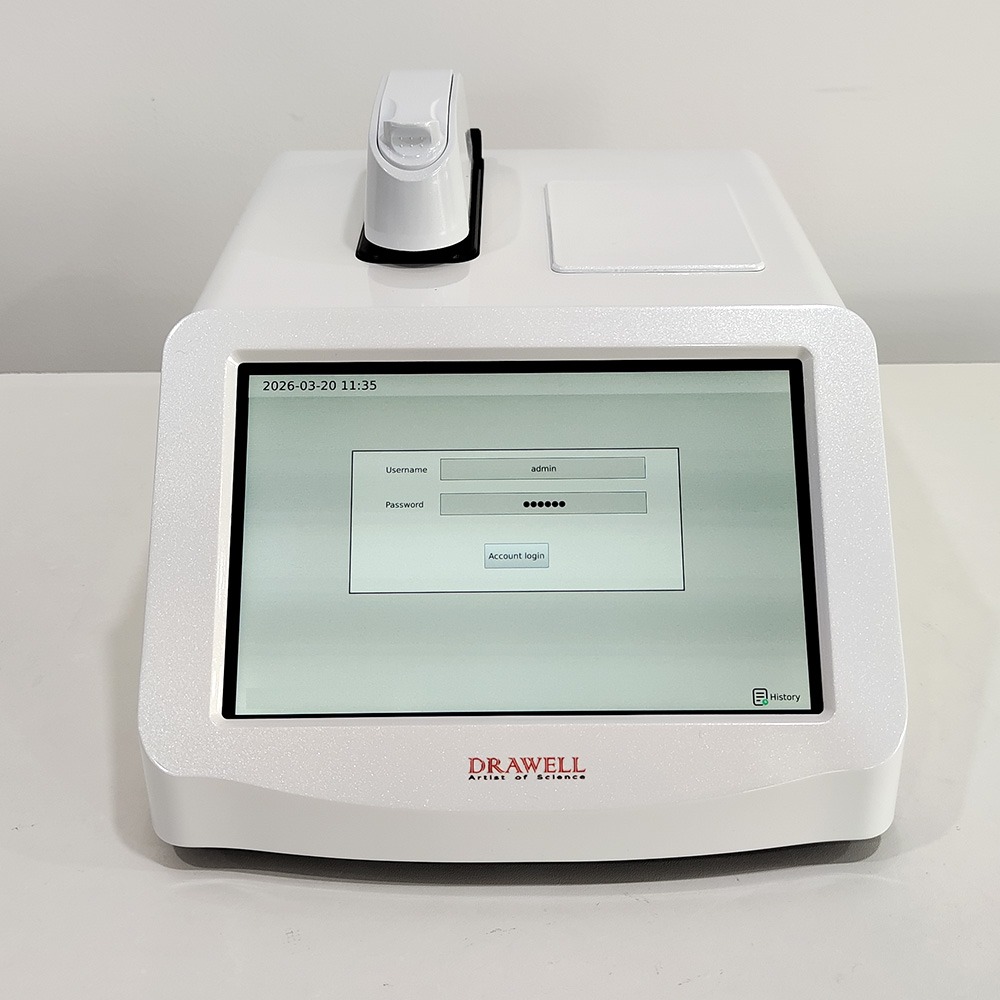

  • Nano Spectrophotometer DW K5600N CN F 2 1

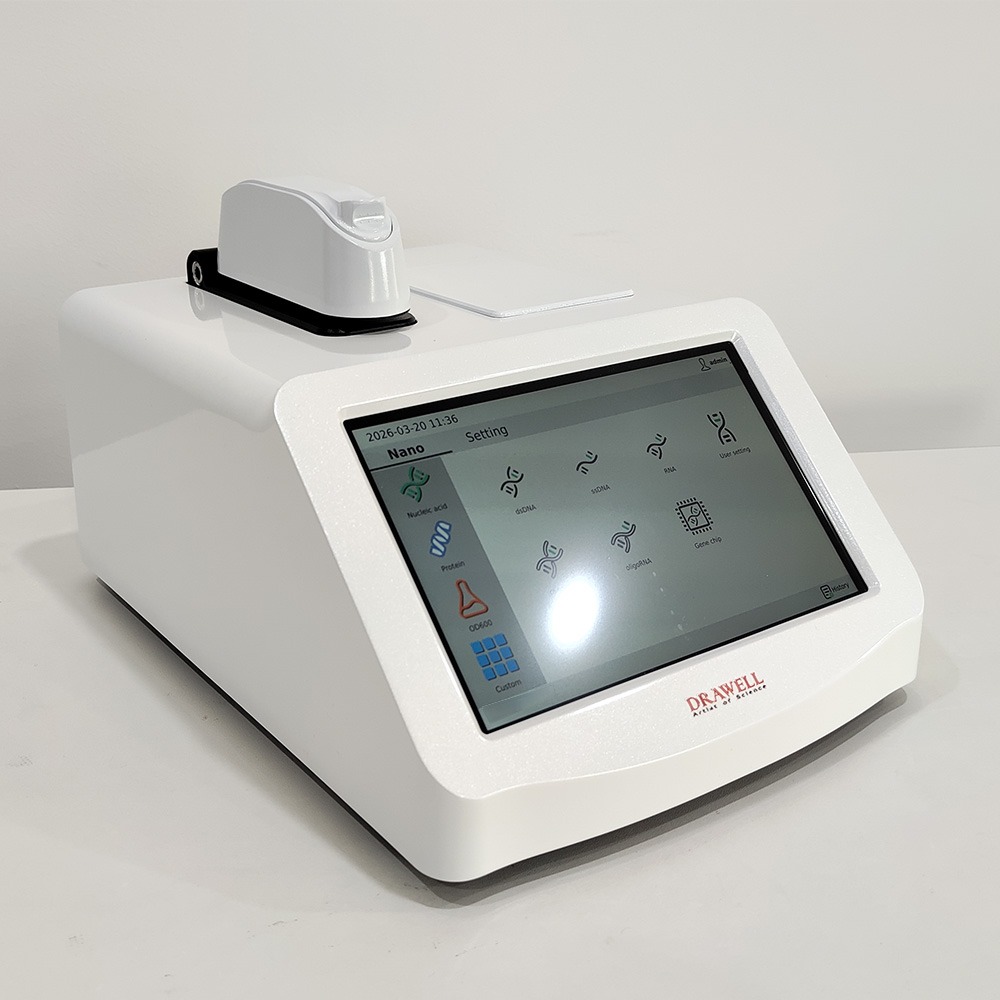

  • Nano Spectrophotometer DW K5600N CN F 3 1

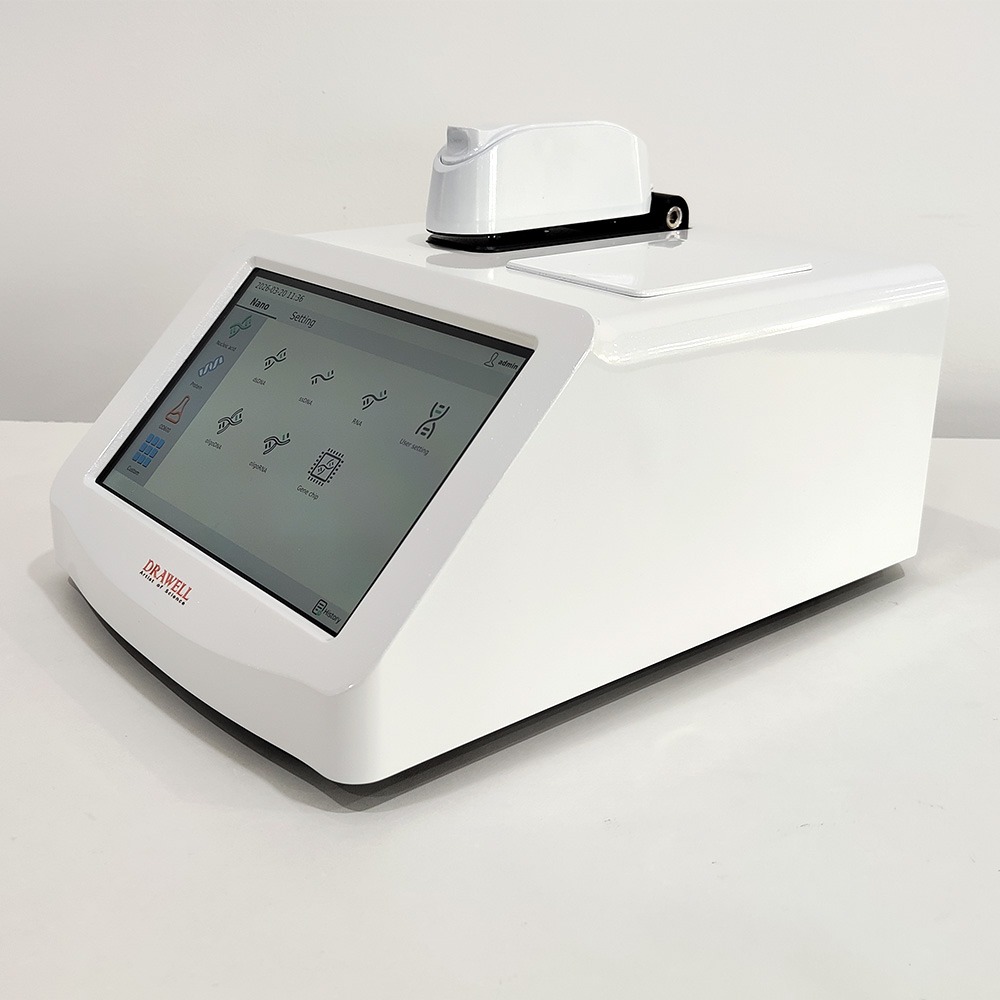

  • Nano Spectrophotometer DW K5600N CN F 4

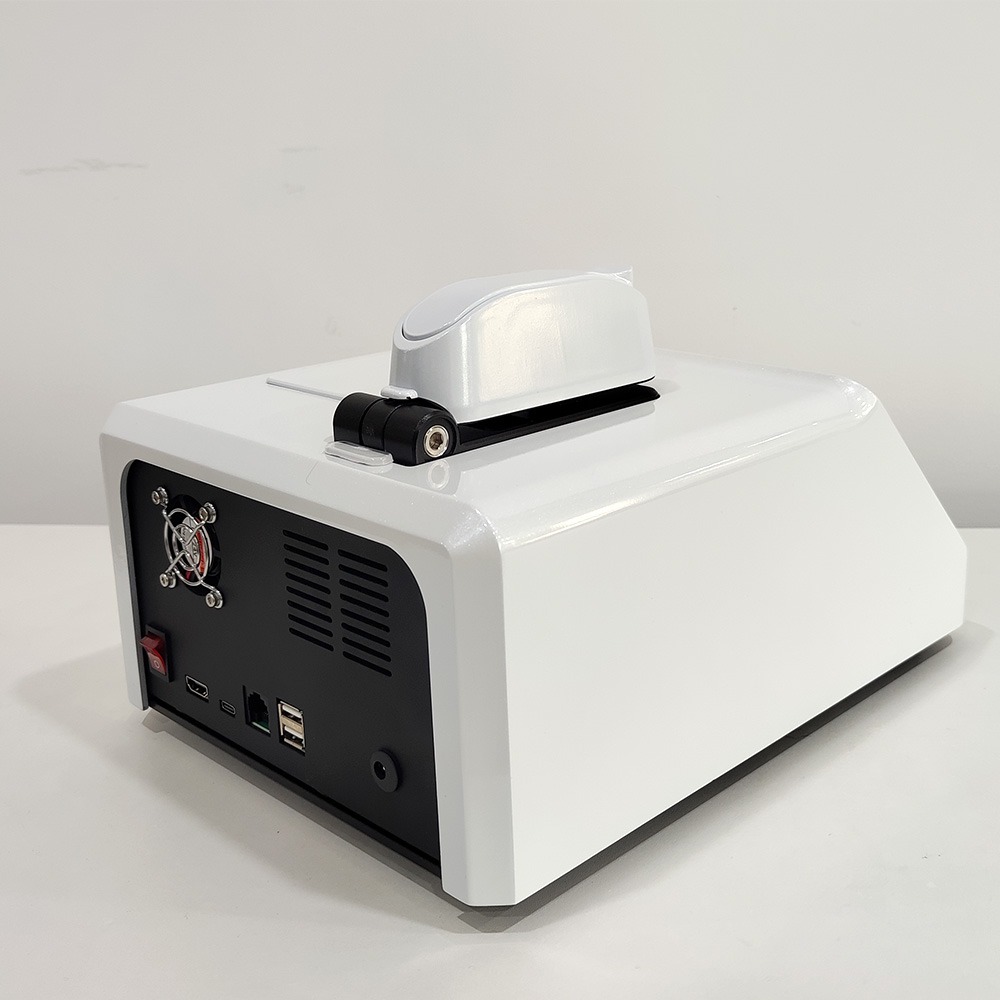

  • Nano Spectrophotometer DW K5600N CN F 5

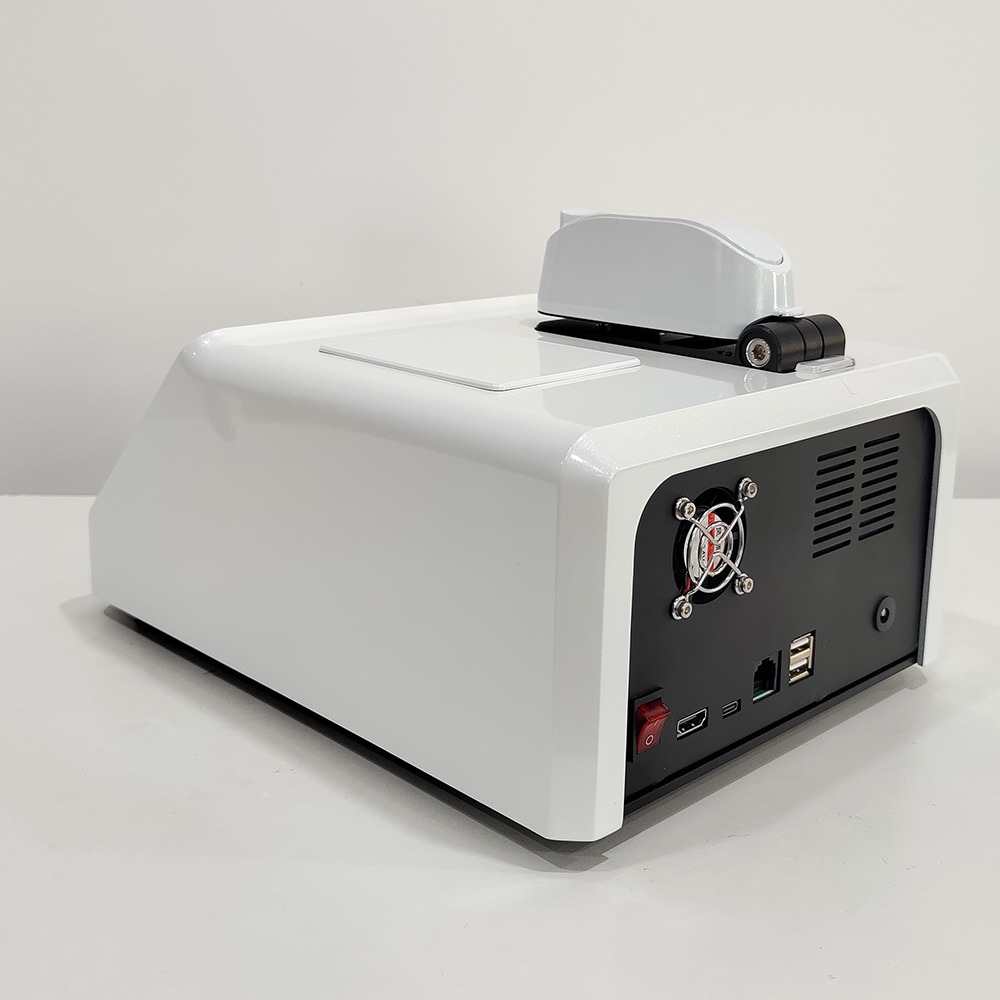

  • Nano Spectrophotometer DW K5600N CN F 6

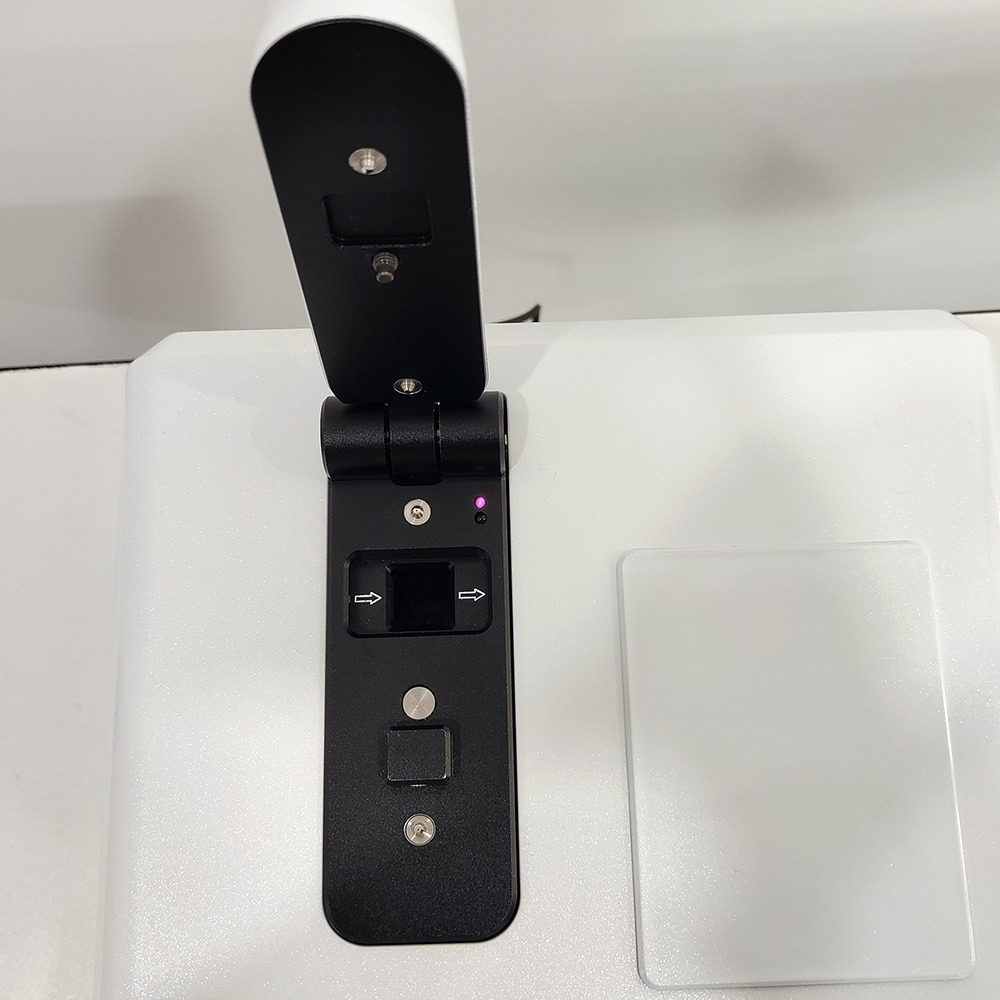

  • Nano Spectrophotometer DW K5600N CN F 7

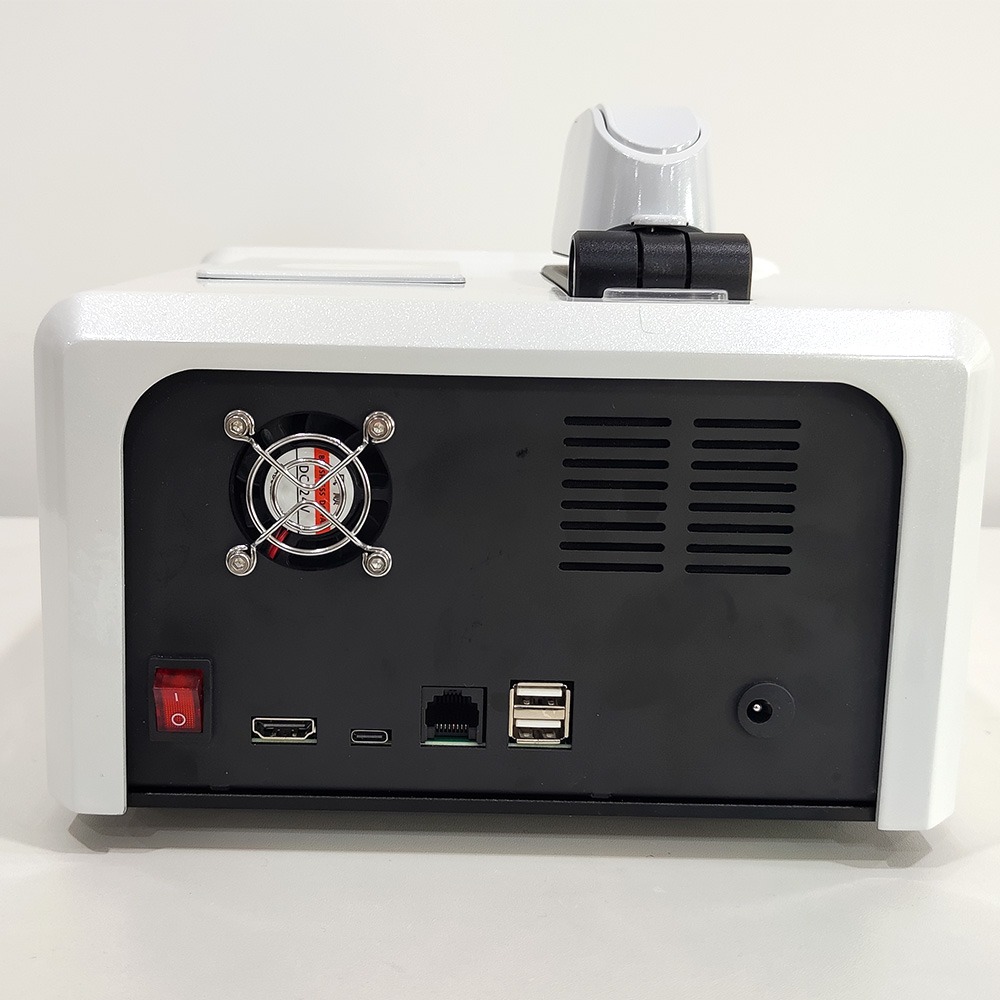

  • Nano Spectrophotometer DW K5600N CN F 8

Specifications

★Optical pathMicrovolume module:1、0.2、0.1、0.03、0.02mm(Auto ranging)Cuvette module:10mm、5mm、2mm、1mm
Sample volumeMicrovolume module:0.3~2L；Cuvette module:≥1000uL(10mm Optical path);Or the liquid height is ≥ 8.5mm
Optical sourceLong life Xenon lamp(10⁹flashes)
Detector3864-Elemental linear silicification CCD array
Test wavelength range220～800nm;
Wavelength accuracy±1nm;
Resolution Spectrum Bandwidth2nm(FWHM at Hg 254nm);
Absorbance Accuracy 0.002 Abs;
Photometric Accuracy 1%(0.988 Absorbance at 257 nm);
★Abs rangeMicrovolume module:0～600Abs(=10mm Optical path)Cuvette module:0～12 Abs(at 1mm optical path)
★Test rangeMicrovolume module:2～30000 ng/μl(dsDNA);0.06～895mg/mL(BSA);Cuvette module:0.2～60ng/μl(dsDNA);0.006~1.79mg/mL(BSA);
Test time＜3s
Test repeatability0.002A (1mm optical path) or 1% CV
Dimensions of the instrument(L*W*H)mm230*320*190
Weight4kg
Operating conditionsTemperature: 10 – 45℃; Humidity: Below 85%
Output24V  2.5A   60W

Fluorescence

Light sourceBlue LED、 Red LED
Ex filterBlue Ex 430~495nm,Red Ex590~640nm
Em filterGreen Em 510~580nm,   Red Em 660~725nm
DetectorPhotodiode (320~1100nm)
Sample Channel1
Sample volume 1-20μL
Tube type0.5mL pcr tube
Tube need volume≥100μL
Preheat timeNo need
Test speed3s/tube
LinearR²≥0.995
Linear range5 order of magnitude
Built-in reagent calculator, which calculates the amounts of dyes and buffers required for the working solution;
With the fluorescence measurement mode, the fluorescence intensity of the sample can be directly measured.
Including the lon Sphere mode
Contains a fluorescence standard curve module, allowing for free selection of excitation and emission light sources, selection of curve types, standard sample volume and total reagent volume.
It features a fluorescence dynamics module, allowing for the customization of the delay time, interval time, and detection frequency for up to 5 stages.

Model typeDW-K5600NDW-K5600CNDW-K5600F
Optical pathMicrovolume 0.02、0.03、0.1、0.2、1mm
Detector3864-Elemental linear silicification CCD array
Display8’touch screen
Cuvette/√√
Fluorescence//√
Auto test√√√
Stir/OptlOptl
PrinterOptlOptlOptl
