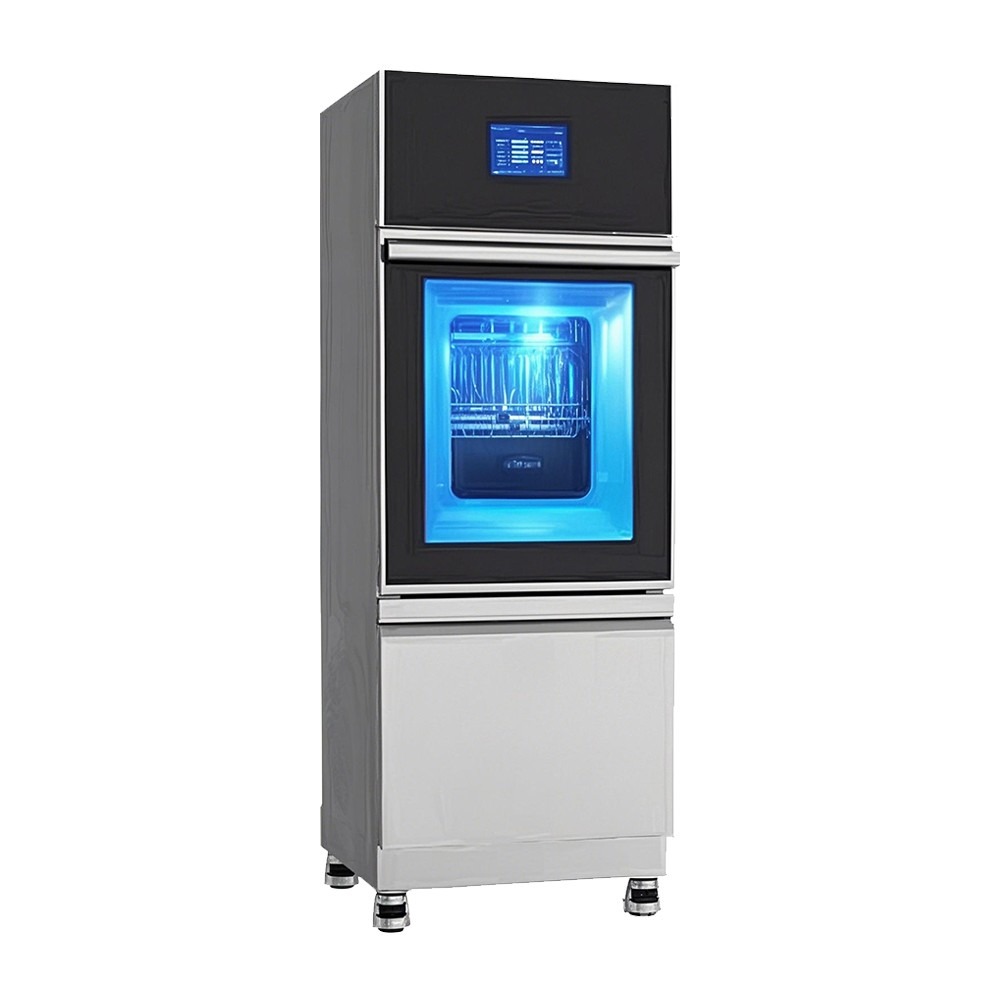

LW8548 AD Laboratory Glassware Washer
The LW8548AD laboratory glassware washer and dryer is capable of washing glassware with 3-tier racks and has a small footprint. It is a highly cost-effective option for high throughput or mixed loading processing. It is suitable for cleaning and disinfecting laboratory vessels made of various materials, including glass, ceramics, metals, plastics, etc. Examples of these vessels include test tubes, beakers, volumetric flasks, measuring cylinders, flat bottom flasks, burettes, filter funnels, centrifuge tubes, reagent bottles, pipettes, capillary tubes, and so on. It provides strong cleaning and glassware drying functions, and needs to be installed independently.
- Washing and forced hot air drying system on four independent levels. The two upper levels can be placed at either one of three different water/air connections depending on the height of the loaded glassware.
- High visibility hinged full glass door
- Sliding drawer for storage of chemical containers (up to three 5 L)
Key Features
Flexible Solutions
Up to three different levels with four possible rack locations for maximum flexibility. Removing the upper levels the unit can be used to clean large bottles and carboys of volume up to 60 L.
Steam Condenser
As standard, the LAB 500 series is equipped with an integrated steam condenser to prevent vapors from entering into the washing area at a set temperature – programmable from 0°C to 93°C.
User-Friendly Control Panel
High safety and easy to use soft touch control system on glass panel with LCD color display to visualize cycle status, allowing for 40 programming options.
Drying Efficacy
Built-In HEPA 14 filtered forced air drying system providing even and fast drying of surgical instruments. Adjustable time and temperature settings for the optimization of cycle duration and energy consumption.
Easy Access to Chemicals
A frontal sliding drawer for easy access and storage of chemical containers – up to three 5 L.
Conductivity Sensor
Conductivity sensor for measuring of the conductivity value during the final rinse phase are available upon request.
LW8548AD Technical Data
| Washer Model | |
| Washer Model | LW8548AD |
| Door Opening | 1 Vertical Sliding Door |
| Door With Glass Window | 1 |
| Chamber Levels | 4 Levels |
| Chamber Material | AISI 316L |
| Externa Material | AISI 304 |
| Size and Weight | |
| Externa | 672 ×660×1835mm |
| Chamber | 26 0 L |
| Weight（kg） | 30 0 KG |
| Performance Data | |
| Circulation Pump | 8 00 L/Min |
| Max.Temperature | 93 ℃ |
| Min.Temperature | 20 ℃ |
| Water Consumption | 20L/Step |
| Detergent Capacity | 6 L |
| Minimum Run Time | 40Min |
| Control System | |
| Electronic Control | PL C( Programmable logic controller ） |
| Display Screen | 7 Inch LCD Display |
| Standard Program | 20 |
| User Program | 20 |
| Login Password | 3 levels,6 Accounts |
| Operating Language | Chinese, English, Russian, Spanish |
| Drying Device | |
| Hepa H14 Air Flter | Hepa H14 Air Flter |
| Filter Efficiency | 99.999% |
| Fan Power | 0.9KW |
| Electrical Power | 3KW |
| Power Supply | |
| Electrical connections | AC 380V 50HZ |
| Electrical Power | 9 KW |
| Total power | 10 KW |
| Water Connection/Drainage | |
| Cold Water Pressure | 200-500 KPa |
| DI Water Pressure | 0-500 KPa |
| DI Water Quality | 5.0μs/cm |
| Drain Wemperature (max.) | 75 ℃ |
| Drain Drate(max.) | 20L/Min |
| Noise | |
| Noise | 75Bel |
