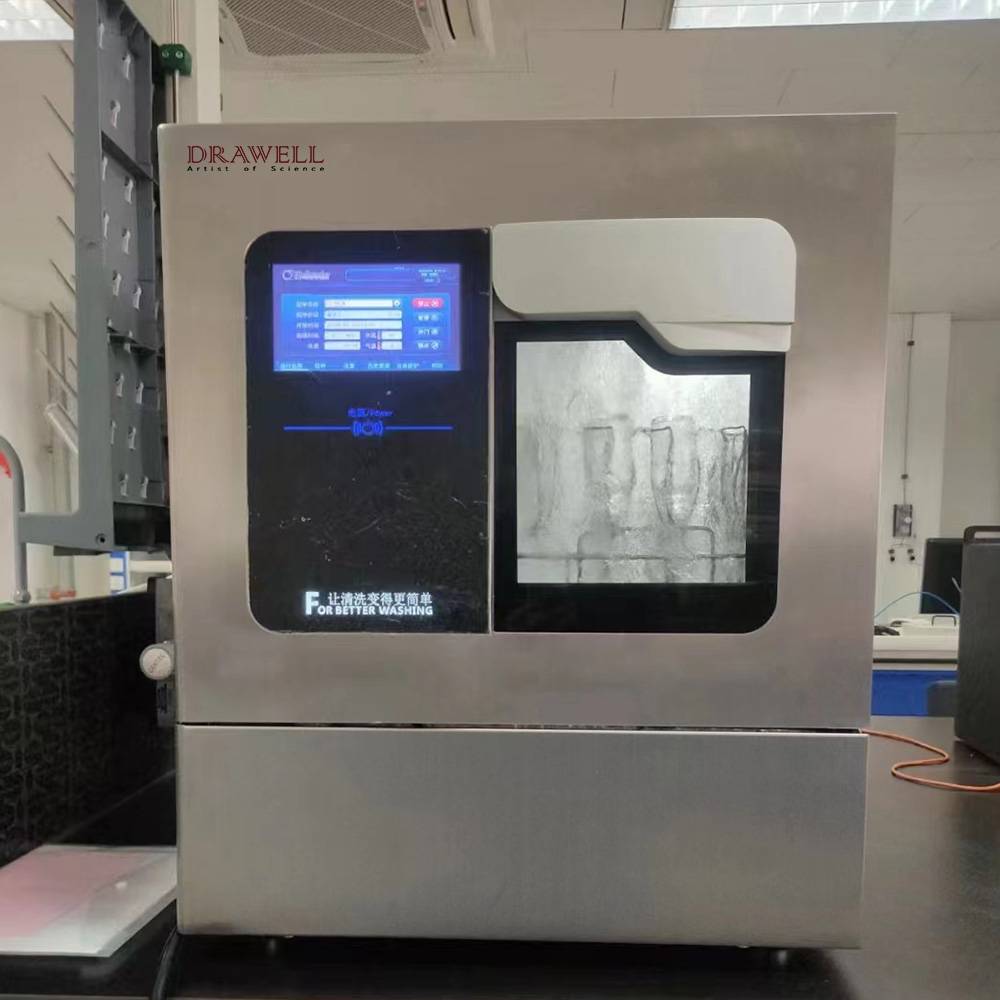

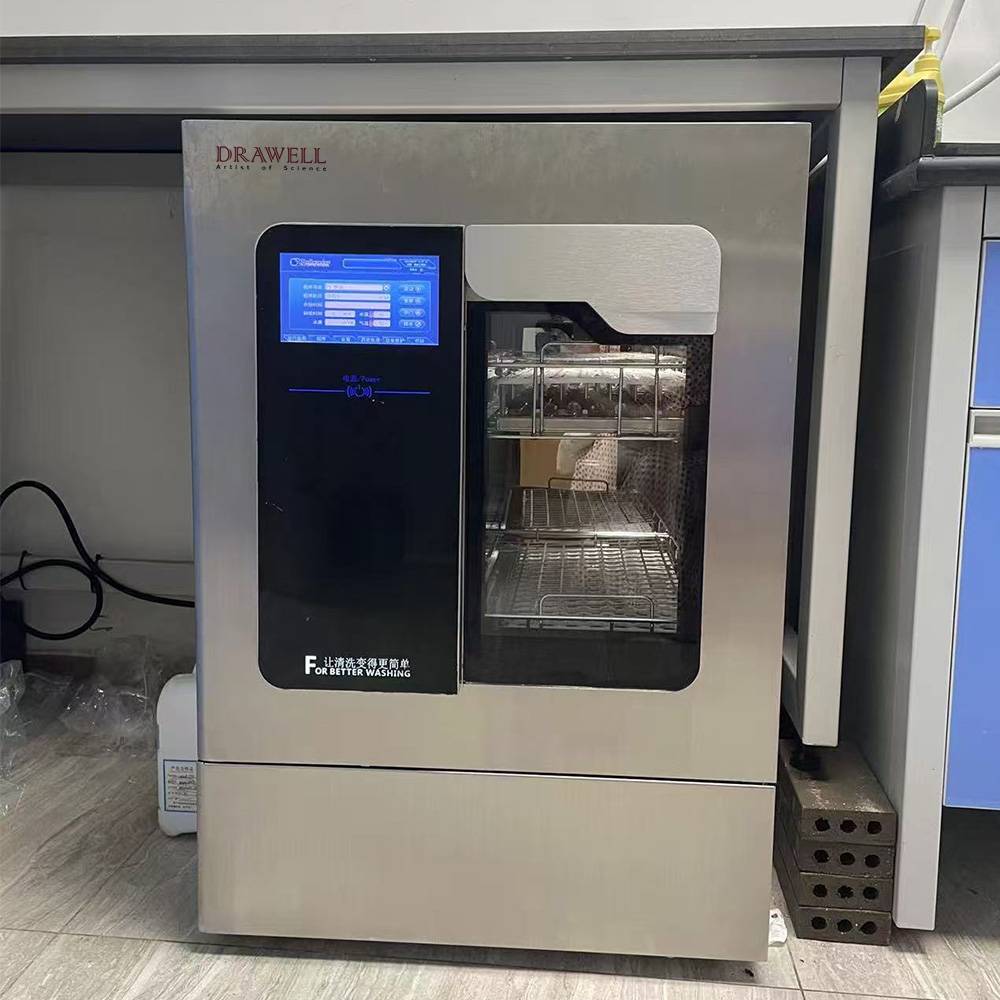

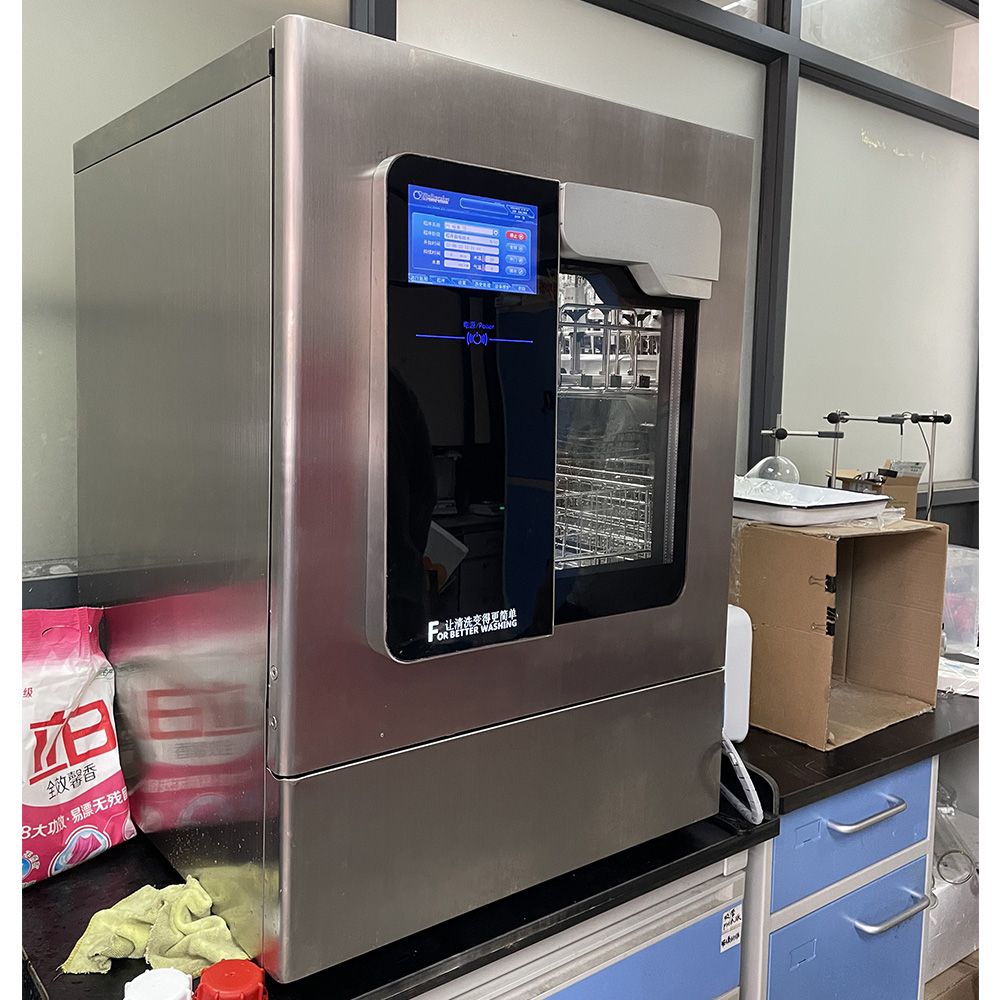

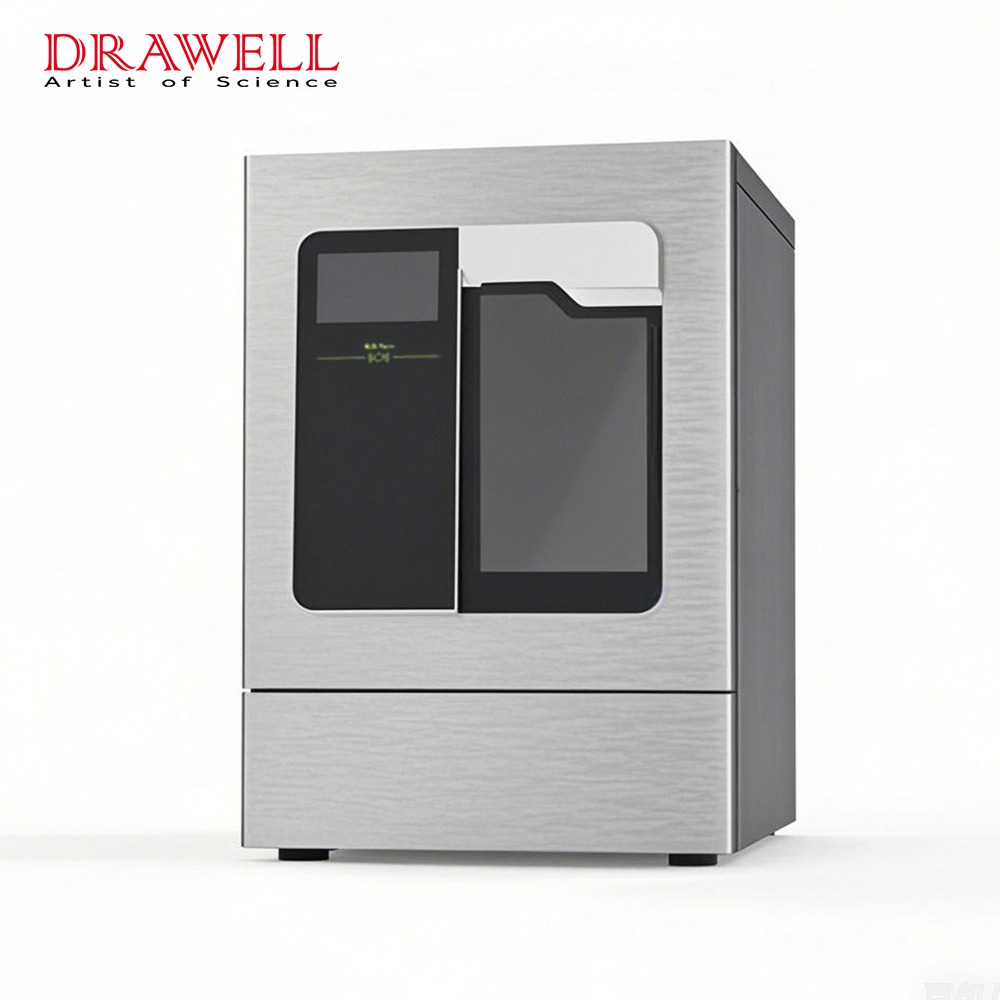

LW8518 Laboratory Glassware Washer
The LW8518 laboratory glassware washer is suitable for washing and disinfecting laboratory glassware made of various materials, including glass, ceramics, metals, plastics, etc. Examples of these vessels include test tubes, beakers, volumetric flasks, measuring cylinders, flat bottom flasks, burettes, filter funnels, centrifuge tubes, reagent bottles, pipettes, capillary tubes, and so on.
- Washing system on two independent levels
- Stainless steel or high visibility full glass door
Key Features
Optimal Cleaning
Powerfull washing pump with high flow rate combined with effective spray pressure, optimizing water flow and pressure.
Steam Condenser
As standard, the LAB 500 series is equipped with an integrated steam condenser to prevent vapors from
Chemical Dosing
Two standard peristaltic pumps provide precise addition of liquid chemical agents. An additional dosing pump to meet specific wash requirements is available up on request.
Traceability
ubs Port for printer connection to monitor and validate washing cycle.
LW8518 Technical Data
| Washer Model | |
| Washer Model | LW8518 |
| Door Opening | 1 Vertical Sliding Door |
| Door With Glass Window | 1 |
| Chamber Levels | 2 Levels |
| Chamber Material | AISI 316L |
| Externa Material | AISI 304 |
| Size and Weight | |
| Externa | 602×650×860mm |
| Chamber | 18 0 L |
| Weight（kg） | 15 0 KG |
| Performance Data | |
| Circulation Pump | 400 L/Min |
| Max.Temperature | 93 ℃ |
| Min.Temperature | 20 ℃ |
| Water Consumption | 12L/Step |
| Detergent Capacity | 6 L |
| Minimum Run Time | 32Min |
| Control System | |
| Electronic Control | PC B( Printed circuit board） |
| Display Screen | 7 Inch LCD Display |
| Standard Program | 20 |
| User Program | 20 |
| Login Password | 3 levels,6 Accounts |
| Operating Language | Chinese, English, Russian, Spanish |
| Drying Device | |
| Hepa H14 Air Flter | |
| Filter Efficiency | |
| Fan Power | |
| Electrical Power | |
| Power Supply | |
| Electrical connections | AC 220V 50HZ |
| Electrical Power | 4 KW |
| Total power | 5 KW |
| Water Connection/Drainage | |
| Cold Water Pressure | 200-500 KPa |
| DI Water Pressure | 0-500 KPa |
| DI Water Quality | 5.0μs/cm |
| Drain Wemperature (max.) | 75 ℃ |
| Drain Drate(max.) | 12L/Min |
| Noise | |
| Noise | 75Bel |
