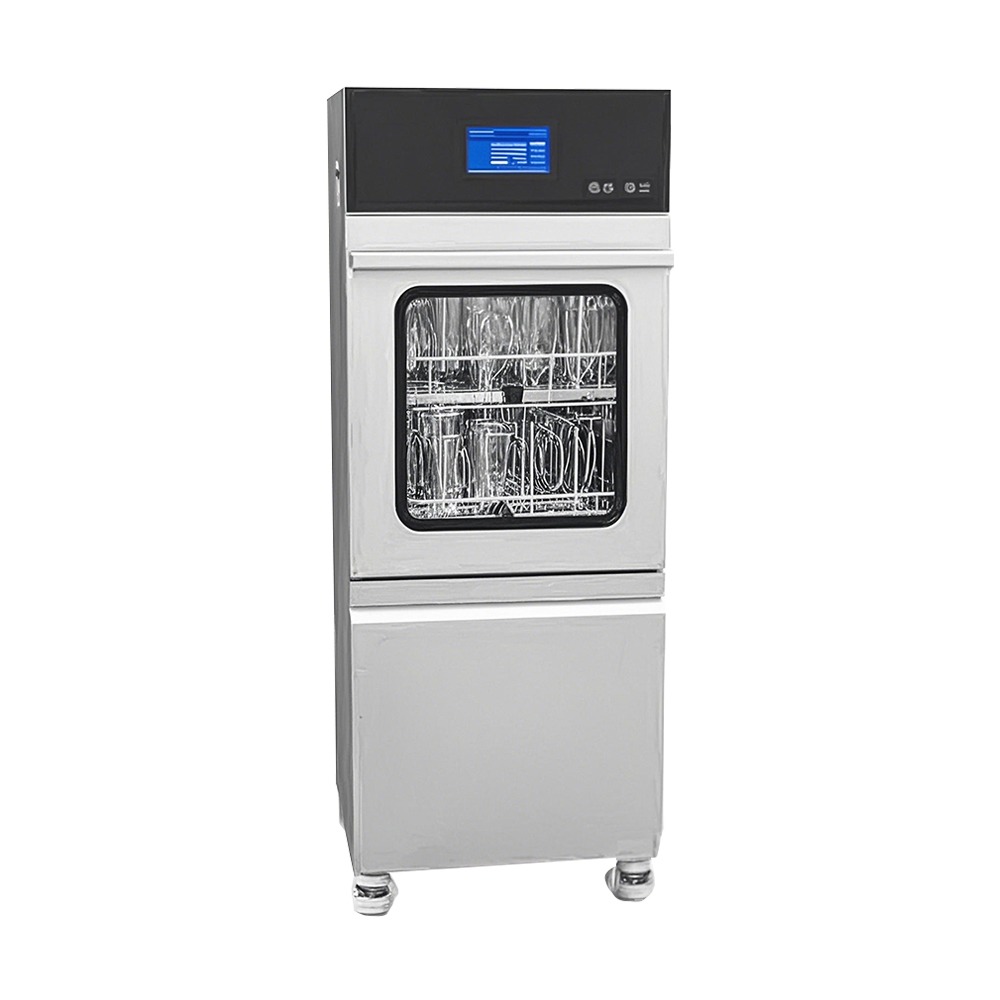

LW8538PIUS Laboratory Glassware Washer
The LW8538PLUSAD is an enlarged version of the LW8538 laboratory glassware washer and dryer, featuring optimized door height design for convenient loading that complies with ergonomic principles and reduces shoulder and back fatigue. Despite its small footprint, this type of washing machine has a remarkable large capacity. It is suitable for cleaning and disinfecting laboratory vessels made of various materials, including glass, ceramics, metals, plastics, etc. Examples of these vessels include test tubes, beakers, volumetric flasks, measuring cylinders, flat bottom flasks, burettes, filter funnels, centrifuge tubes, reagent bottles, pipettes, capillary tubes, and so on. It provides strong cleaning and glassware drying functions, and needs to be installed independently.
- Washing and forced hot air drying systemon three independent levels. The upper level can be connected at two different water/air connections depending on the height of the loaded glassware.
- Highvisibility hinged full glass door
- Sliding drawer for storage of chemical containers
Key Features
Optimal Cleaning
Powerfull washing pump with high flow rate combined with effective spray pressure, optimizing water flow and pressure.
Steam Condenser
As standard, the LAB 500 series is equipped with an integrated steam condenser to prevent vapors from entering into the washing area at a set temperature – programmable from 0°C to 93°C.
Chemical Dosing
Two standard peristaltic pumps provide precise addition of liquid chemical agents. An additional dosing pump to meet specific wash requirements is available up on request.
Traceability
ubs Port for printer connection to monitor and validate washing cycle.
LW8538PIUS Technical Data
| Washer Model | |
| Washer Model | LW8538 PLUS |
| Door Opening | 1 Vertical Sliding Door |
| Door With Glass Window | 1 |
| Chamber Levels | 2 Levels |
| Chamber Material | AISI 316L |
| Externa Material | AISI 304 |
| Size and Weight | |
| Externa | 772×634×1580mm |
| Chamber | 23 0 L |
| Weight（kg） | 20 0 KG |
| Performance Data | |
| Circulation Pump | 600 L/Min |
| Max.Temperature | 93 ℃ |
| Min.Temperature | 20 ℃ |
| Water Consumption | 15L/Step |
| Detergent Capacity | 6 L |
| Minimum Run Time | 40Min |
| Control System | |
| Electronic Control | PL C( Programmable logic controller ） |
| Display Screen | 7 Inch LCD Display |
| Standard Program | 20 |
| User Program | 20 |
| Login Password | 3 levels,6 Accounts |
| Operating Language | Chinese, English, Russian, Spanish |
| Drying Device | |
| Hepa H14 Air Flter | Hepa H14 Air Flter |
| Filter Efficiency | 99.999% |
| Fan Power | 0.3KW |
| Electrical Power | 3KW |
| Power Supply | |
| Electrical connections | AC 380V 50HZ |
| Electrical Power | 6 KW |
| Total power | 7 KW |
| Water Connection/Drainage | |
| Cold Water Pressure | 200-500 KPa |
| DI Water Pressure | 0-500 KPa |
| DI Water Quality | 5.0μs/cm |
| Drain Wemperature (max.) | 75 ℃ |
| Drain Drate(max.) | 15L/Min |
| Noise | |
| Noise | 75Bel |
