DW-AFS310 Atomic Fluorescence Spectrometer AFS

Arsenic and mercury detection experts

The DW-AFS310 is a dual-channel atomic fluorescence spectrometer designed for trace and ultra-trace determination of Hg, As, Sb, Bi, Se, Te, Cd, Ge, Pb, Sn and Zn.

With simultaneous two-element analysis, detection limits down to 0.001 μg/L, precision of RSD ≤1%, automatic gas-flow control and intelligent sample introduction, the DW-AFS310 provides a reliable solution for environmental, food, agricultural, pharmaceutical, geological and research laboratories.

DW-AFS310 Brochure

Advantages of DW-AFS310 AAS

  1. Stable Injection System: Dual peristaltic-pump intermittent flow injection ensures stable sample delivery, simple operation, easy maintenance and long service life.
  2. Real-Time Flame Monitoring: Automatically monitors the flame status in real time without manual observation, reducing external interference during measurement.
  3. Automatic Gas Flow Control: Dual mass flow controllers provide fast, stable gas regulation with accuracy up to 1 mL/min, plus abnormal-condition diagnosis and automatic gas shut-off when idle.
  4. Intelligent Hollow Cathode Lamp: Automatically identifies the element lamp type and factory number, records lamp operating life and provides working-status information.
  5. Dual-Channel Detection: Supports simultaneous analysis of two elements, with single-channel enhancement for improved sensitivity and lower detection limits.
  6. Simplified Calibration & Automation: Only the highest-concentration standard solution is required to generate the calibration curve, with automatic high-concentration sample dilution and pipeline cleaning.
  7. Efficient Gas-Liquid Separation: Secondary gas-liquid separation minimizes the influence of water vapor on analytical results, improving measurement reliability.
  8. Intelligent Operating Software: Chinese/English Windows software supports automatic qualitative and quantitative analysis, sample-content calculation and report generation.

Application Fields of DW-AFS310 AAS

Atomic fluorescence spectrometer has a wide range of applications,including environmental testing,hygiene and epidemic prevention,drug testing,urban drainage testing,cosmetic testing,soil,feed and fertilizer testing,clinical medical sample testing,agricultural product testing,geological survey,metallurgical sample testing,food hygiene testing, teaching and research,etc.

DW-AFS310 APPLICATION

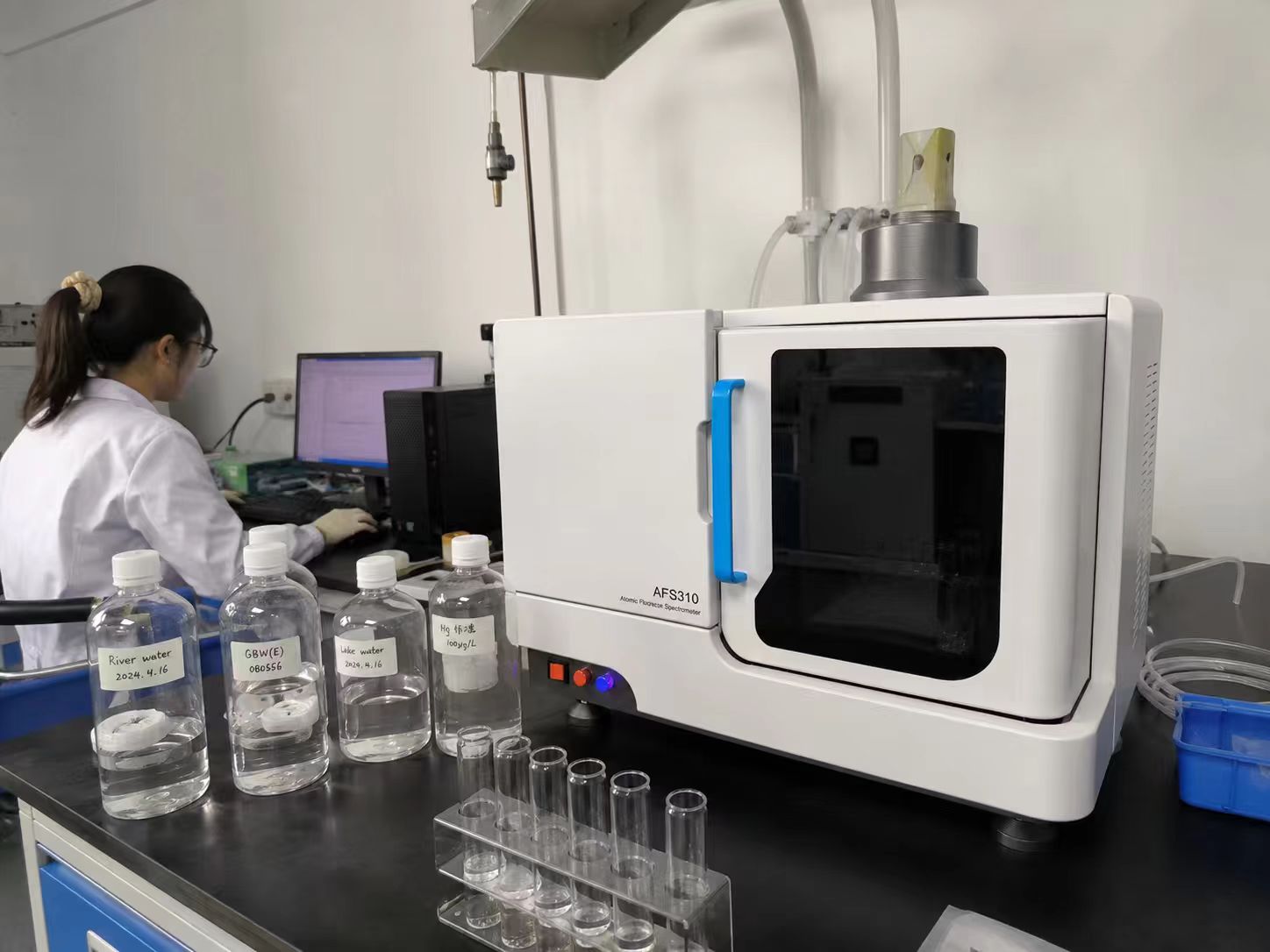

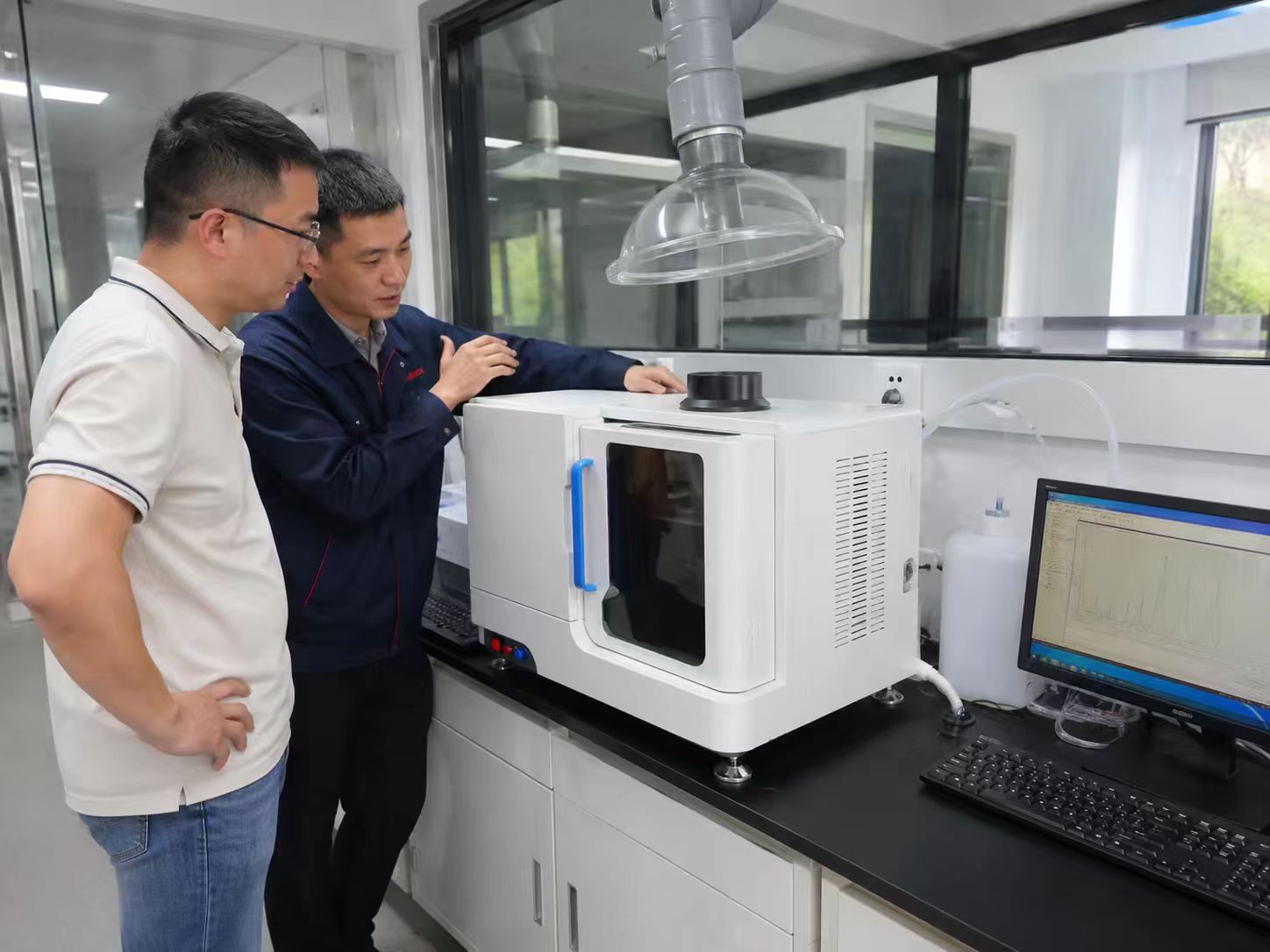

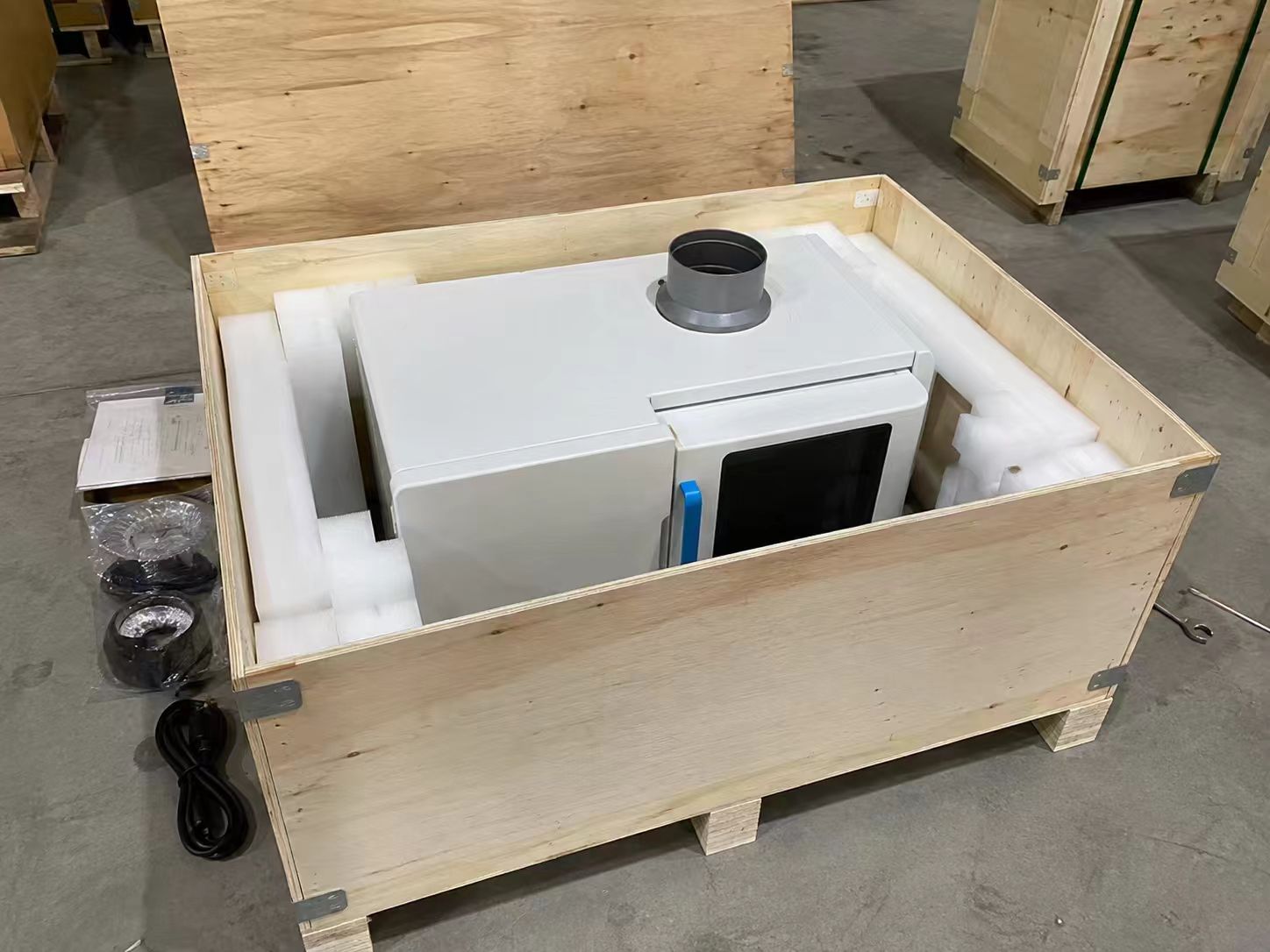

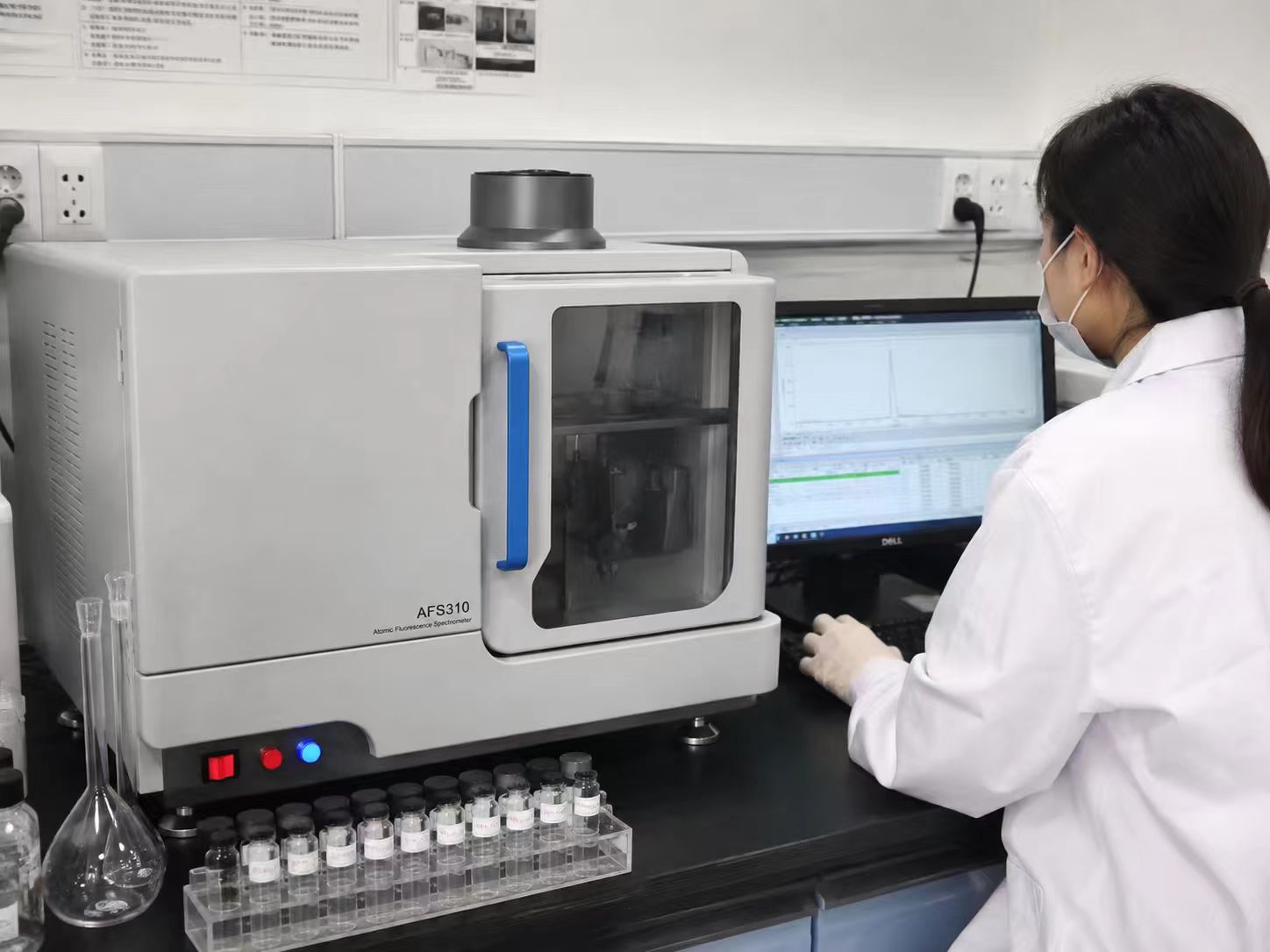

Product Display

  • DW-AFS310
  • DW-AFS310
  • DW-AFS310
  • DW-AFS310

FAQ

The DW-AFS310 supports Hg, As, Sb, Bi, Se, Te, Cd, Ge, Pb, Sn and Zn, covering 11 trace-element applications.

Typical samples include water, wastewater, food, grains, agricultural products, soil, fertilizers, feed, pharmaceutical materials, cosmetics, ores, minerals and other properly prepared laboratory samples.

Yes. Most solid and complex samples require suitable pretreatment or digestion before analysis. The appropriate procedure depends on the sample matrix, target element and analytical standard.

Yes. The system supports automatic dilution of high-concentration samples.

Yes. Automatic pipeline cleaning is available to simplify routine operation and help reduce sample carryover.

The instrument uses dual mass flow controllers with gas-flow control accuracy up to 1 mL/min. It also provides abnormal-condition diagnosis and automatic gas shut-off when the system is not working.

Send Drawell your sample type, target element, expected concentration range and required analytical standard. The technical team can then recommend the appropriate analytical configuration and sample-preparation solution.

Specifications of DW-AFS310 AAS

Detection element range Hg、As、Sb、Bi、Se、Te、Cd、Ge、Pb、Sn、Zn Eleven chemical elements,etc
 Element detection limit (D.L) Hg、As、Sb、Bi、Se、Te、Pb、Sn≤0.01μg/L;Hg(Cold mercury)、Cd≤0.001μg/L;Zn≤1.0μg/L;Ge≤0.05μg/L。
Precision(RSD) RSD≤1%linear range Greater than three orders of magnitude

Why Choose Us?

One-Station Shopping

“Multiple suppliers” have always been an issue in the procurement process. Drawell as a one-stop laboratory equipment and scientific instruments supplier, can perfectly solve this problem. In addition to manufacturing our own equipment, we also represent other laboratory equipment. Our product lines are rich and diverse at competitive prices. Provide one-stop service to customers.

Customer-centric Services

User Training – Training by Drawell skilled engineers about installation, debug tests, technical services, etc. It can happen in our factory in China, or at the site in the customers’ country. Cost depends on where and when the training happens.

Online Support

To discuss the problem and get it resolved, online chats, real-time video calls, and remote guidance. For the after-sales stage, our online technical guidance is free and ready forever.

100% Quality Guarantee Policy

1 year free official warranty, including repairing quality-damaged parts, and offering replacements of selected parts (shipping cost is extra). 5% of the product price is charged for extending the warranty before the end of the official warranty.
