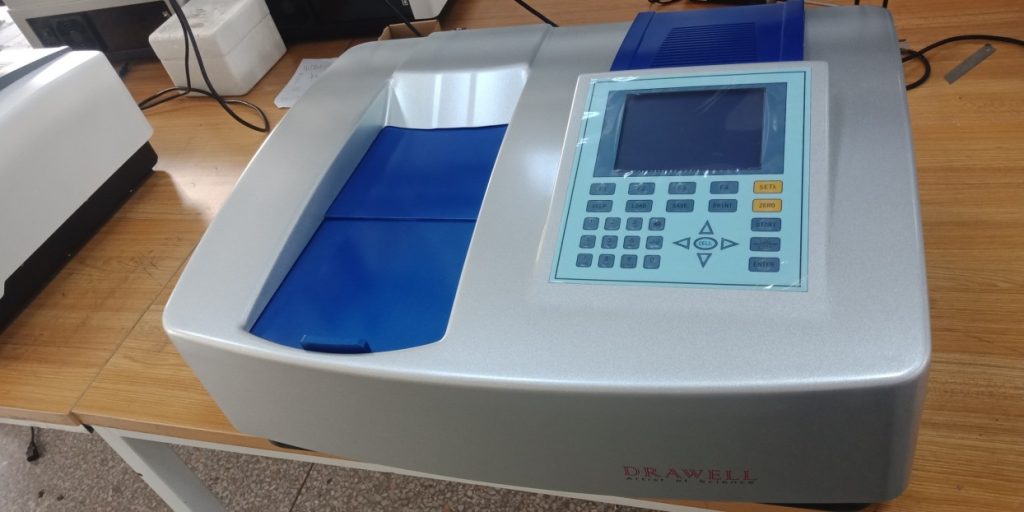

DU-8800DS Double Beam UV/VIS Spectrophotometer

DU-8800DS Spectrophotometer is an advanced double beam optical system.

Double beam optical structure can inhibit the drift, Suitable for long time tests. DU-8800D with 1.8nm fixed bandwidth. They are suitable for research, biochemical, and pharmaceutical lab applications.

Optional Accessories:

  • PC scanning software
  • Tungsten Lamp
  • Deuterium lamp
  • Micro cuvette cell holder (one-position)
  • Manual 4-positions cell holder
  • Automatic 4/8 positions cell holder
Features of DU-8800DS:
1.  Double beam ensure low drift, low noise and Low stray light
2. High-speed MCU, high precision AD, large storage capacity
3. Large LCD display (320*240 Dots)
4. 8 nm Bandwidth meet Pharmacopoeia
5. Data and Curve can be stored in real-time
6. Online software upgrade capability
7. Lamps can be turned on/off individually
8. Easy to change Pri-aligned lamps
Function of DU-8800DS:
1. Photometric
2. Quantitative(Standard Curve)
3. WL Scan(Spectrum Scan)
4. Time Scan(Kinetics)
5. DNA/Protein Test
6. Multi-WL Test
7. System Utility

Specifications of the Split Beam UV/VIS Spectrophotometer

Model DU-8800DS
Wavelength Range 190-1100nm
Spectral Bandwidth 0.5/1/1.5/2/4/5nm adjustable
Optical System Double Beam , Blazed Holographic Grating (1200 lines/mm)
Wavelength Accuracy ±0.3nm
Wavelength Repeatability ≤0.2nm
Wavelength Setting Auto, Resolution 0.1nm
Photometric Range 0~200%T, -0.3­~3A, 0~9999C
Photometric Accuracy ±0.002A (0~0.5A), ±0.003A (0.5~1A), ±0.3%T (0~100%T)
Photometric Repeatability ≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)
Stray Light ≤0.05%T(220/360nm)
Scan Speed High, Medium, Low.  Max.2000nm/minute
Baseline Flatness ±0.001A
Stability ±0.001A/h (500nm,0A)
Noise ≤0.2%T/3min (250/500nm,0%T); ≤0.3%T/3min (250/500nm,100%T)
Sample Compartment Accommodate 5-100mm Pathlength Cuvette
Detector Silicon Photodiode
Lamps Tungsten Lamp & Deuterium Lamp (Pre-aligned)
Display Graphic LCD (128×64 Dots)
Keypad 30-key Alphanumeric Membrance Keypad
Output Port USB Port & RS232 Port
Printer Mini Serial Printer; PC Printer
PC Software PC Scanning Software

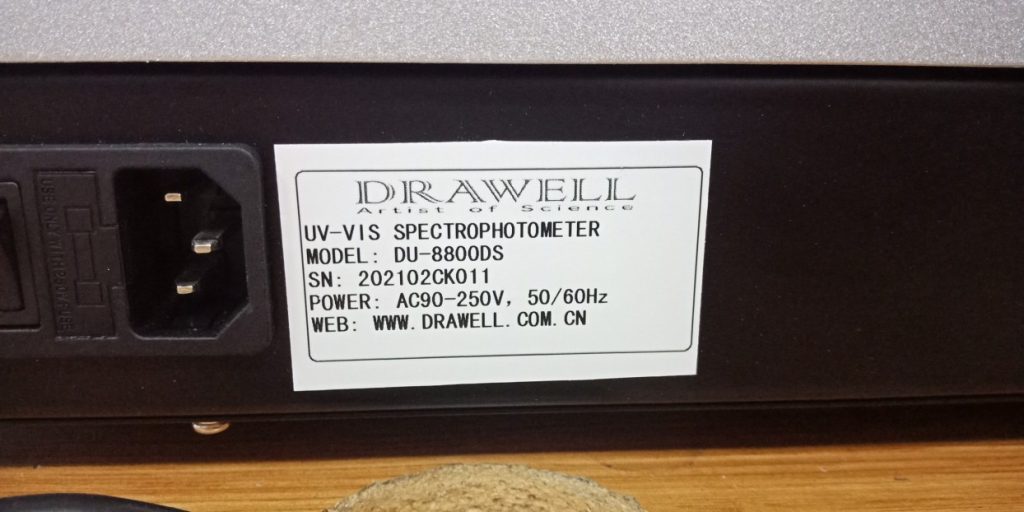

Power Requirements AC 90-250V,50/60Hz
Dimension 545x468x245mm
Net Weight / Gross Weight 21kgs / 25kg

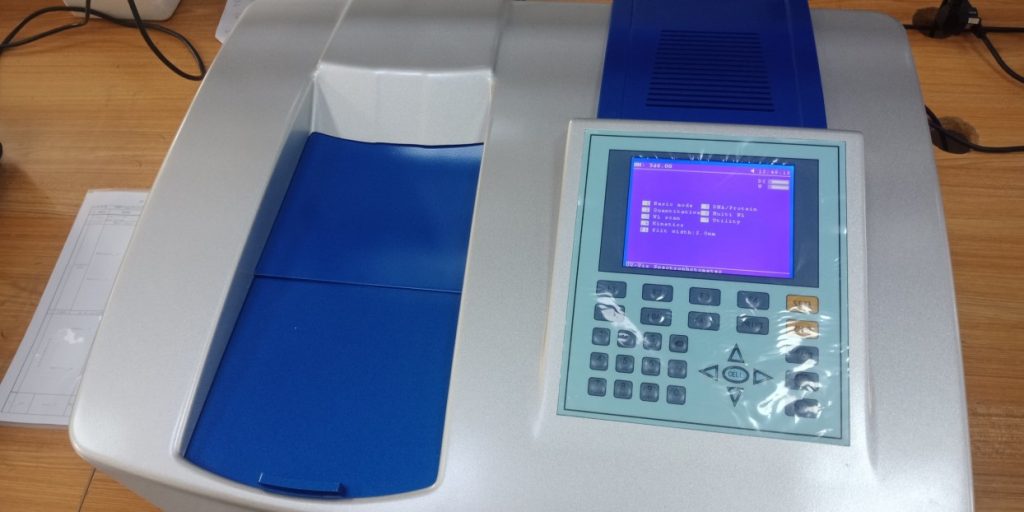

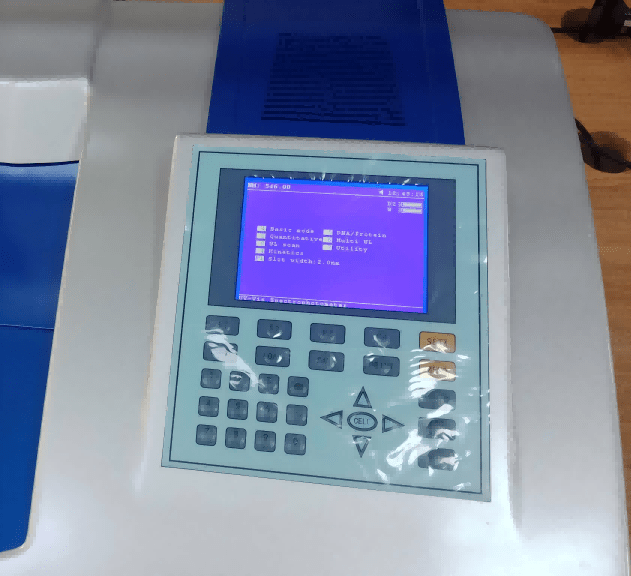

DU-8800DS Spectrophotometer Display

DU-8800DS Double Beam UV/VIS Spectrophotometer
