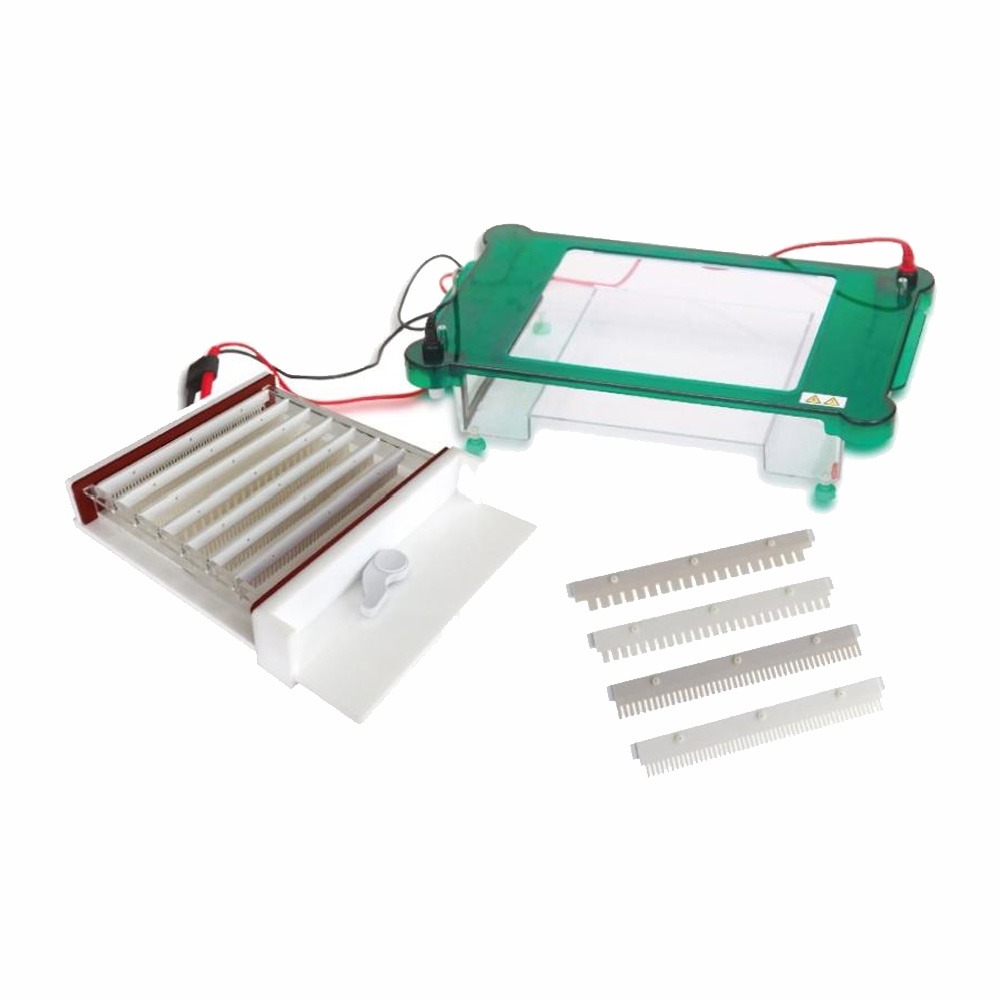

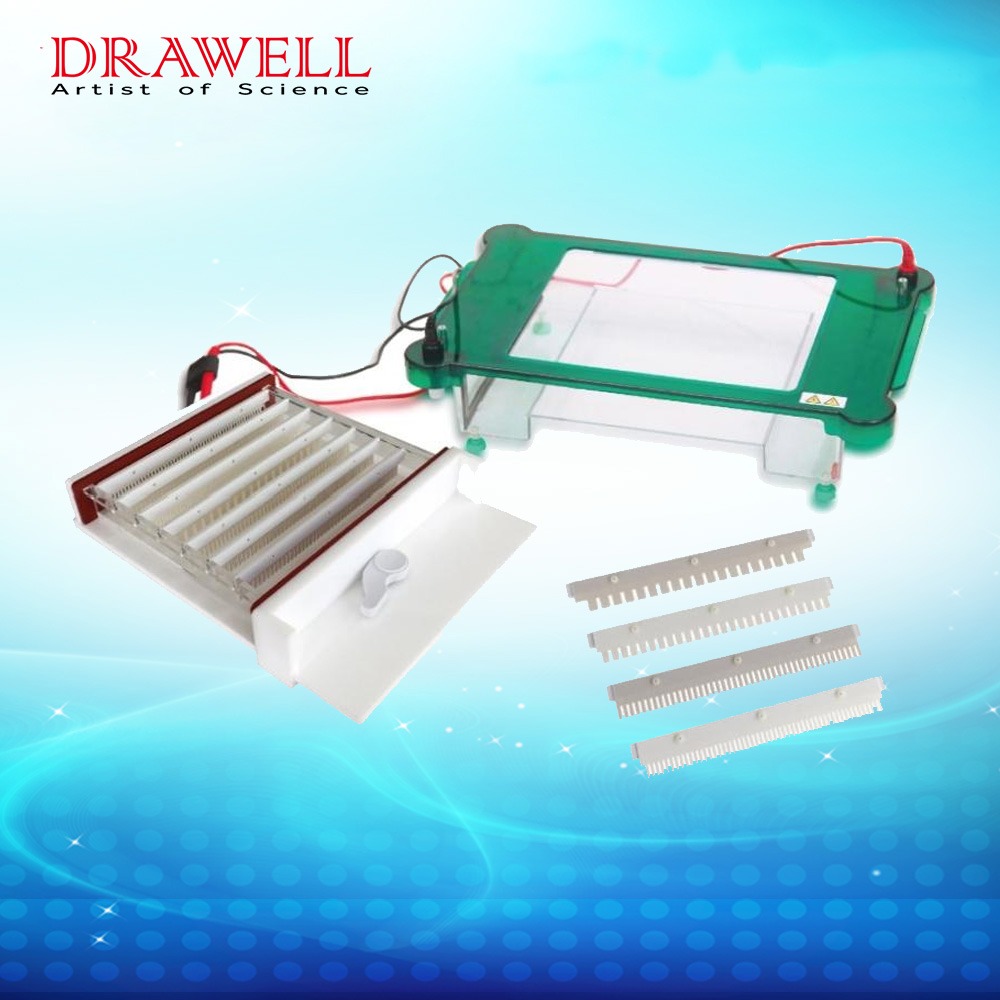

DW-SPHT Horizontal Electrophoresis Tank

Horizontal gel electrophoresis remains a fundamental technique for nucleic acid separation, offering numerous advantages in molecular biology. DRAWELL provides a highly versatile and comprehensive range of horizontal gel electrophoresis units, suitable for both low- and high-throughput DNA and RNA applications.

Brochure of DW-SPGT Horizontal Electrophoresis Tank

Features of DW-SPHT Horizontal Electrophoresis Tank

  • A generous buffer volume ensures effective cooling and maintains stable pH throughout the experiment.
  • Removable electrodes allow for easy and quick maintenance and replacement.
  • Sample loading is faster and more compatible with multi-channel pipettes.
  • The special gel casting system prevents gel leakage and offers simple, convenient operation.
  • Easy-open buttons make lid removal more convenient.
  • The transparent lid prevents buffer evaporation and electrical leakage.
  • The system features an automatic power-off function when the lid is removed.

Parameters of DW-SPHT Horizontal Electrophoresis Tank

ModelDW-SPHT
Gel size (W×L)245×250(mm)
Rows of combs1~6
No. of samples19~364
Total buffer volume2000 (ml)
Gel making modeGel casting
Dimension(L×W×H)487×300×93(mm)
Weight3.8(kg)

Packing List of DW-SPHT Horizontal Electrophoresis Tank

Parts nameQuantity
Lid with cables1
Body tank with electrodes1
245×250mm Gel tray1
Gel casting stand1
1.0mm thickness 19-well comb2
1.8mm thickness 19-well comb2
1.0mm thickness 26-well comb2
1.8mm thickness 26-well comb2
1.0mm thickness 44-well comb2
1.8mm thickness 44-well comb2
1.0mm thickness 52-well comb2
11.8mm thickness 52-well comb2
level adjusting button4
