DW-EDX2800B RoHS Testing XRF
With the widespread of EDX2800B over different fields, we design this type to meet the need of optimizing the product performance and improve the safety protection grade.
The reliability of the product is improved by using the high voltage source and copper tube of the new generation and the testing efficiency is improved by the adopting the high power.
- Testing 75 kinds of elements,
- 1ppm limit of detection,
- Repeatability 0.1%,
- Stability 0.1%
Performance Advantages of DW-EDX2800B RoHS Testing XRF
- The automatic function of door sensor and high voltage lock gives you protection from all directions.
- Streamlined man-machine design, promising your operation security Operation indicator makes you operate comfortably.
- Down-side copper Source: meet the test requirements of samples of different kinds and shapes.
- Collimator and filter: the Auto-switch between various collimators and filters to meet the application of different testing methods.
- Movable platform: sophisticated manual movable platform is convenient for locating test point.
- High-resolution detector: improve the analyzing accuracy.
- High voltage source and copper tube of the new generation: the performance is stable and reliable, achieving higher test efficiency.

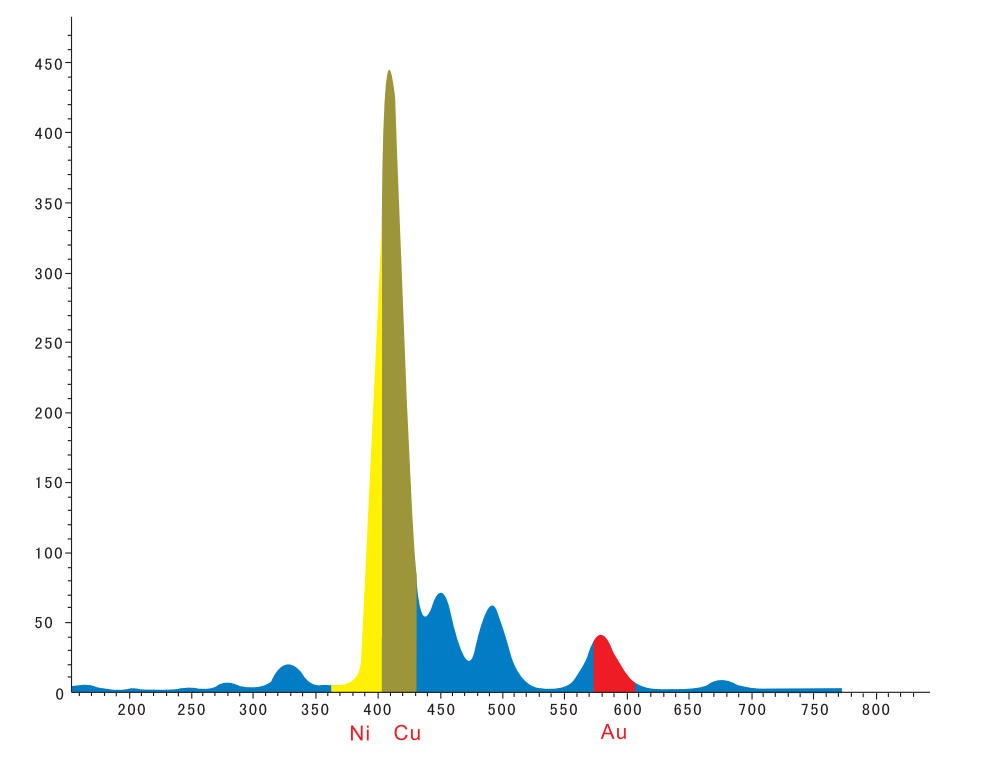

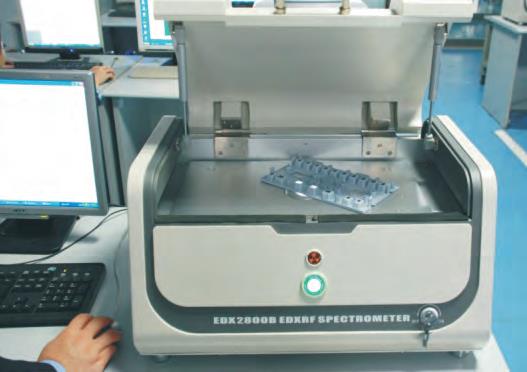

Test cases
Technical Specifications:
- Measurable elements: S to U.
- Limit of detection (LOD)reaches 1ppm.
- Element content: ppm to 99.99%
- Arbitrary optional analysis and identification models
- Independent matrix effect correction models
- Multi-variable non-linear regression procedure
- Ambient temperature: 15℃ to 30℃
- Power supply: AC 220V±5V, AC purified stabilized voltage power supply.
- Energy resolution:160±5eV
- Sample chamber size: 439mm×300mm×50mm
- Instrument size: 550mm×410mm×320mm
- Instrument weight: 45kg
Standard configurations:
- Movable sample platform
- Signal-to-Noise Enhancer (SNE) Electric-cooling Si-PIN detector Signal detection electronic circuit
- High and low voltage power
What are RoHS and WEEE Directives?
The European Union has adopted Directive 2002/95/EC on the restriction of certain hazardous substances (RoHS) and Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) with their publication in the Official Journal of the European Union on February 13, 2003. WEEE comes into effect on August 13, 2005, and RoHS requires the substitution of various heavy metals (lead, mercury, cadmium, and hexavalent chromium) and brominated flame retardants (polybrominated biphenyls [PBB] or polybrominated diphenyl ethers [PBDE]) in new electrical and electronic equipment put on the market from July 1, 2006.
Testing standard of substances restricted by RoHS Directive
| Hazardous substances | Standards (mg/kg) |
| Cd | 100 |
| Pb | 1000 |
| Hg | 1000 |
| Cr⁶⁺ | 1000 |
| PBBs | 1000 |
| PBDEs | 1000 |
Restricted substances and their typical uses
| Category | Details |
| Pb | |
| Solders | |
| Paints | Pigments and driers |
| Glass materials | Pb is allowed in fluorescent lamp |
| Ceramic materials | Pb is allowed in certain electronic ceramic materials |
| Iron, aluminum and copper materials | A certain amount of Pb is allowed |
| Plastics | PVC stabilizer and pigments |
| Batteries | Pb is allowed in acidic batteries for vehicles |
| Cd | |
| Plastics | Stabilizer and pigments |
| Solders | Seldom used |
| Ceramics | Seldom used |
| Connectors | Relays and switches |
| Batteries | Cd is allowed in Ni-Cd batteries |
| Semiconductors | Optical sensors and solar cell panels |
| Hg | |
| Batteries | Prohibited (see battery directive) |
| Connectors | Relays and sensitive switches |
| Fluorescent lamps | A certain amount of Hg is allowed |
| Cr⁶⁺ | |
| Passivation layers | Commonly used for naked metal surfaces to enhance adhesion of plating layers |
| Anti-corrosive plating layers | Painting and plating layers |
| Chrome plating layers | Plating layer of chromium metal is not under control |
| Plasticizer | Commonly used to plastics plating process but not final products |
| PBBs & PBDEs | |
| Plastics | Brominated flame retardants |

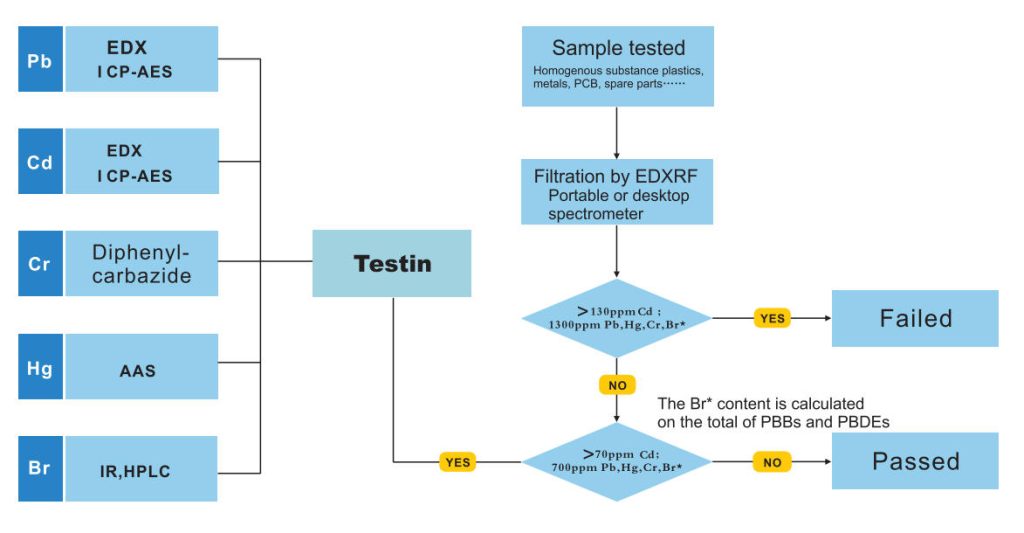

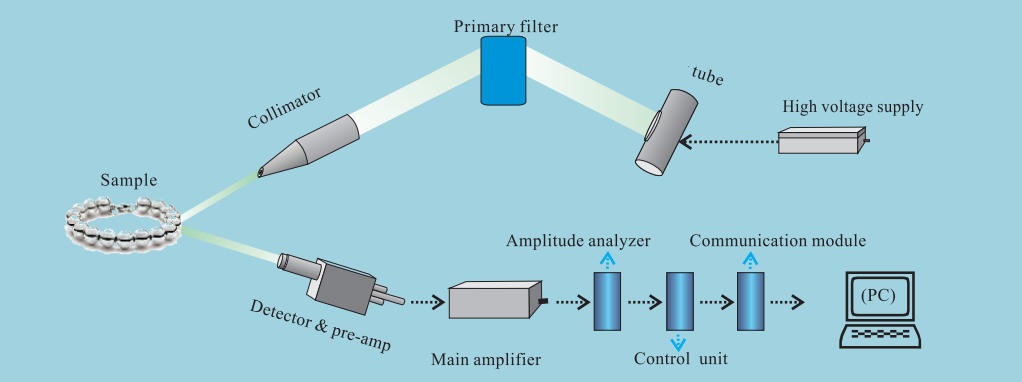

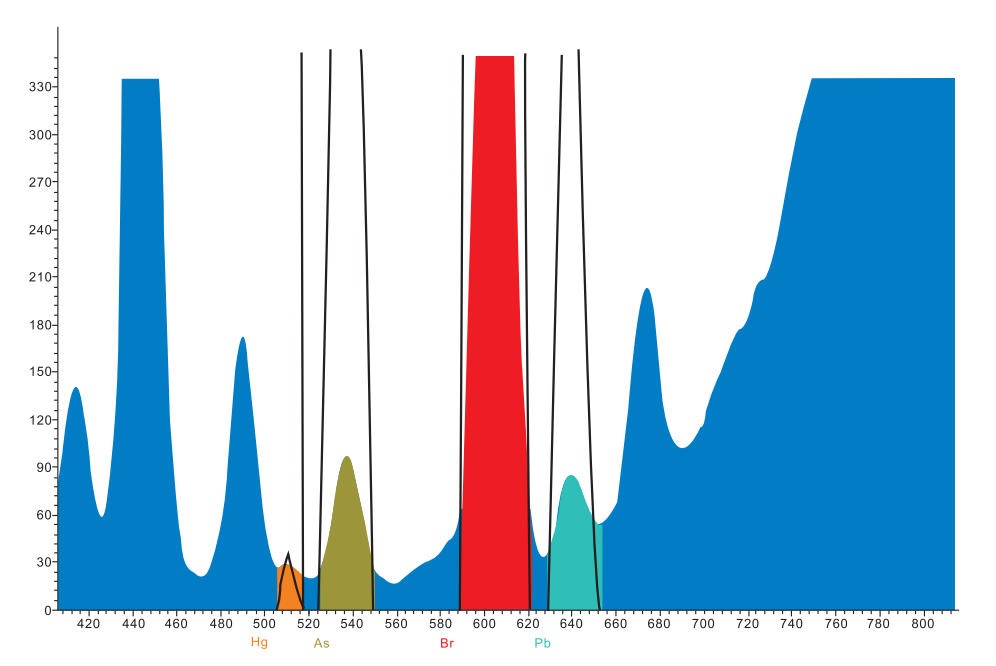

The analytical method of filtration for XRF to test RoHS substances

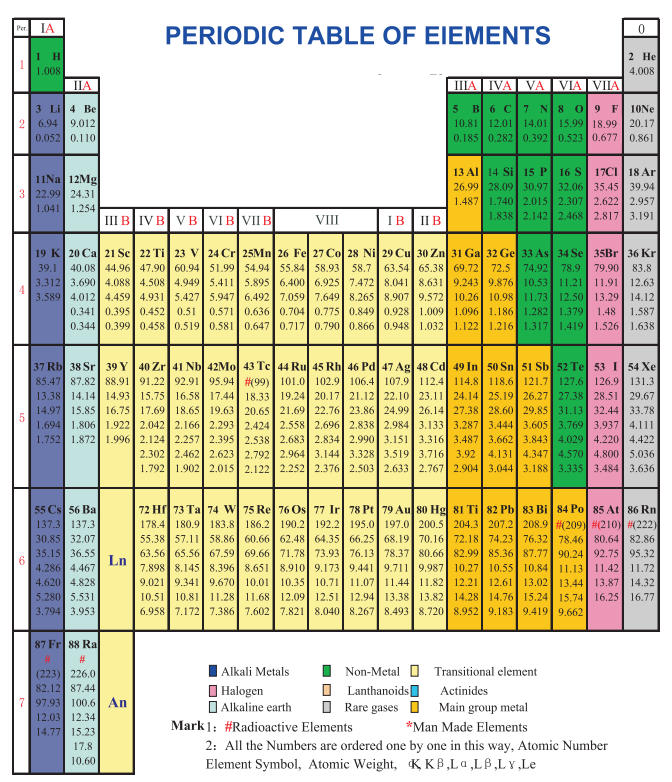

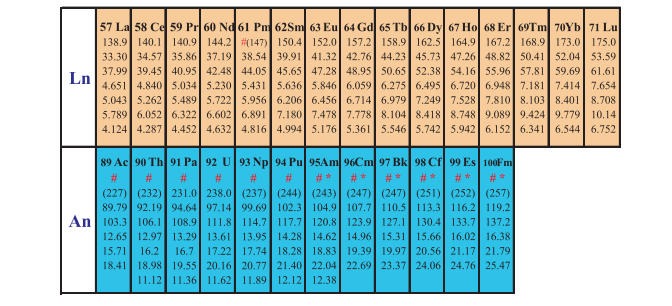

Periodic Table of Elements
