Vertical and Horizontal Laminar Flow Cabinet SW-CJ-1FB / SW-CJ-2FB
The user-friendly design takes into full account the actual needs of users. The counterweight balance structure allows the glass sliding door of the operating window to be positioned arbitrarily, making experiments more convenient and simple.
Working Principle of Vertical and Horizontal Laminar Flow Cabinet SW-CJ-1FB / SW-CJ-2FB
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.

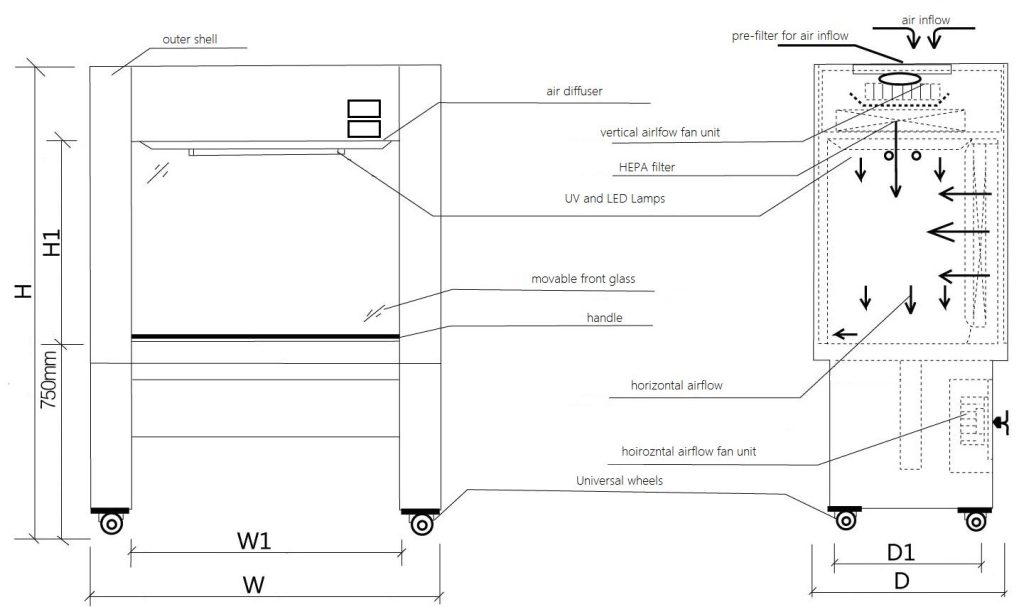

Structure of Vertical and Horizontal Laminar Flow Cabinet SW-CJ-1FB / SW-CJ-2FB
Characteristics of Vertical and Horizontal Laminar Flow Cabinet SW-CJ-1FB / SW-CJ-2FB
- Adopt an arbitrary positioning sliding door system.
- The outer shell is made of one-piece corrugated steel sheet, and the work surface is made of SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
- The lighting and sterilization systems are interlocked for safety.
- Digital display control interface with three speed settings (fast, medium, and slow) for a more user-friendly design.
- Optional vertical or horizontal airflow to meet different user needs.
- Equipped with a HEPA filter and a pre-filter for preliminary filtration, effectively extending the lifespan of the HEPA filter.
Technical Parameters of Vertical and Horizontal Laminar Flow Cabinet SW-CJ-1FB / SW-CJ-2FB
| Model Spec. | Vertical airflow and horizontal airflow | |
| SW-CJ-1FB | SW-CJ-2FB | |
| Cleanliness | Class 100 @ ≥0.5μM (US Federal Standard 209E) | |
| Colony count | ≤0.5 cells/plate·hour (Φ90mm culture plate) | |
| Average wind speed | 0.25～0.45m/s (three speeds adjustable) | |
| Noise | ≤62dB（A） | |
| Illuminance | ≥300Lx | |
| Power supply | AC single phase 220V/50Hz | |
| Max. Power consumption | 500W | 600W |
| Work area size W*D*H mm | 870*520*620 | 1325*520*620 |
| External dimensionW*D*H mm | 1030*740*1800 | 1485*740*1800 |
| Application | One person use single operational side | Two persons use Double operational side |
| HEPA filter | 855*450*50*① 820*565*50*① | 1310*450*50*① 1275*565*50*① |
| LED/UV Lamps | 8W*①/8W*① | 20W*①/20W*① |
