Test Sieve Shaker DW-S200 S300 S400
Models: DW-S200 DW-S300 DW-S400
Function and principle
Standard vibrating screen machine uses vibrating motor as the vibration source. The vibration of vibrating motor drives the vibration of the screen machine base, and then passes through the base to the standard test screen installed on the base, the material particles smaller than the mesh of the test screen are screened into the lower test screen, so that only the same size material is left in each test screen. Achieve the separation of different particle size and determine the particle size composition of the material. So that the materials in the test screen can effectively screen, classification, filtration purposes.
Features of Test Sieve Shaker DW-S200 S300 S400
- High efficiency, exquisite and durable design, any kind of powder, liquid can be sifted
- Small size, do not occupy space to move easily.
- Screen machine can be placed up to eight test sieves (including bottom sieves) , can be a particle at the same time accurate separation of 2-7 particle segment.

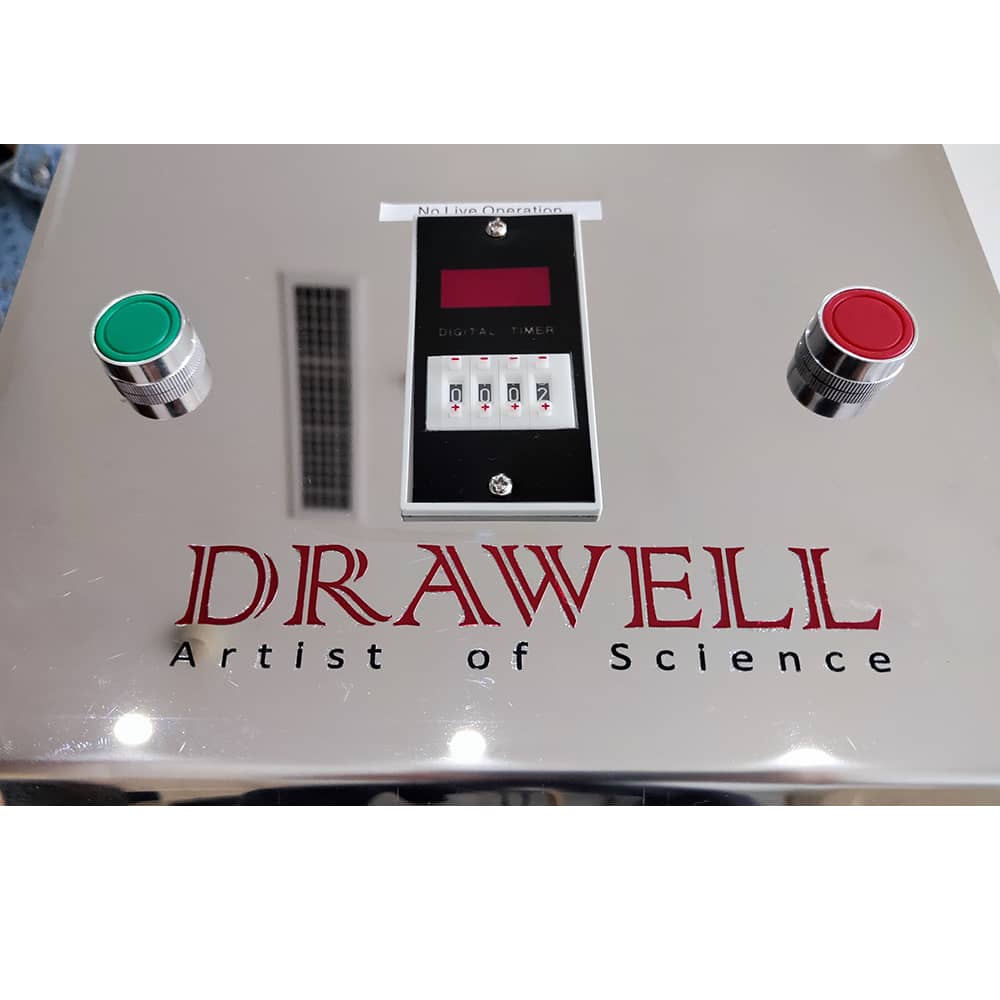

- Automatic shutdown time.
- To ensure experimental repeatability.
- Full function and easier operation.
- Noise, light weight.
- Platform operation, no need to be fixed.
- Adjustable amplitude.
Applications
Widely used in food, medicine, chemical industry, abrasive, pigment, mining, metallurgy, geology, ceramics, national defense and other industries, scientific research units, laboratories, laboratories, production control of solid, powder, slurry materials such as the inspection, screening, grading, particle size analysis, impurities content analysis.

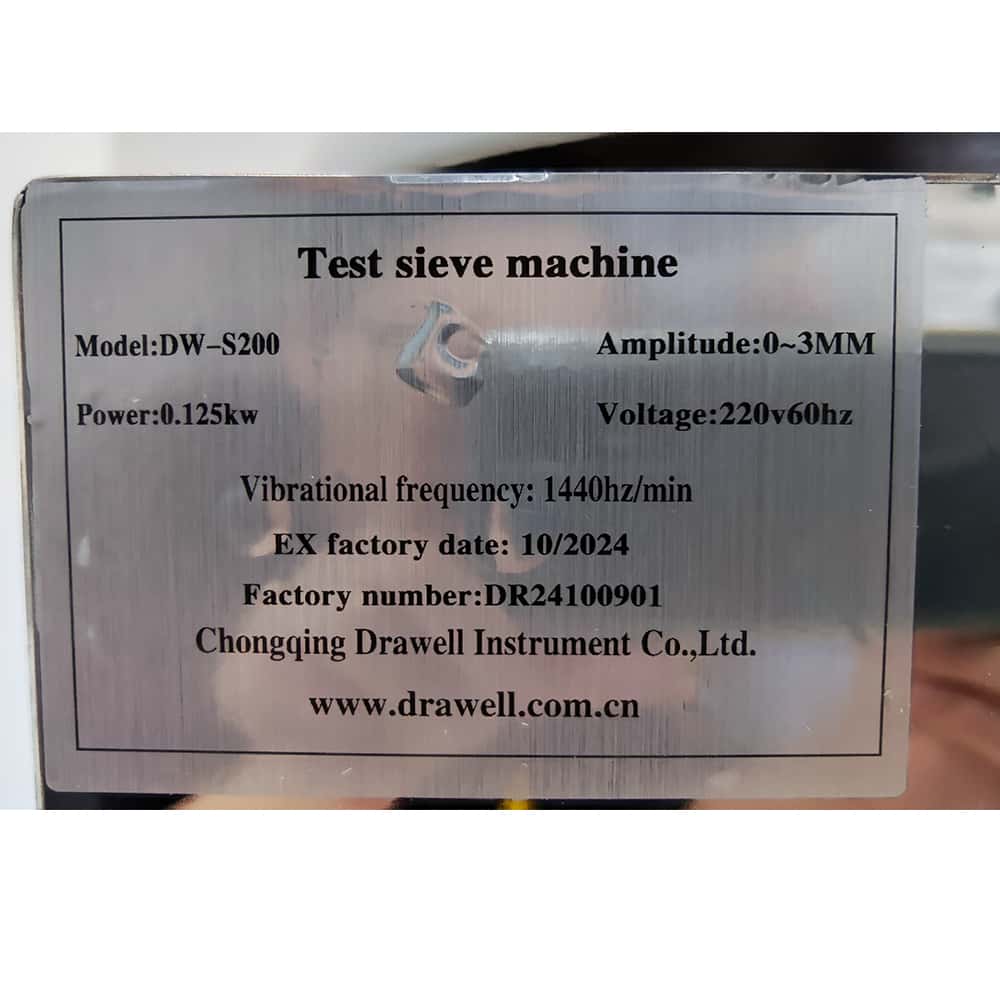

Parameters
| Model | DW-S200 | DW-S300 | DW-S400 |
| Adjustable sieve diameter | Ø200、 Ø100、 Ø75 | Ø300、 Ø200 | Ø400、 Ø300、 Ø200 |
| Sieve size | 0.025~160mesh | 0.025~200mesh | 0.025~280mesh |
| Motor power | 0.125kw | 0.18kw | 0.25kw |
| Noise | ＜50dB | Less than 50dB | Less than 50dB |
| Amplitude | 0~3MM | 0~3MM | 0~3MM |
| Vibrational frequency | 1440hz/min | 1440hz/min | 1440hz/min |
| Size | 400*300*300+N*50 | 470*430*370+N*50 | 590*485*360+N*60 |
| Voltage | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Weight | 30kg | 40kg | 65kg |

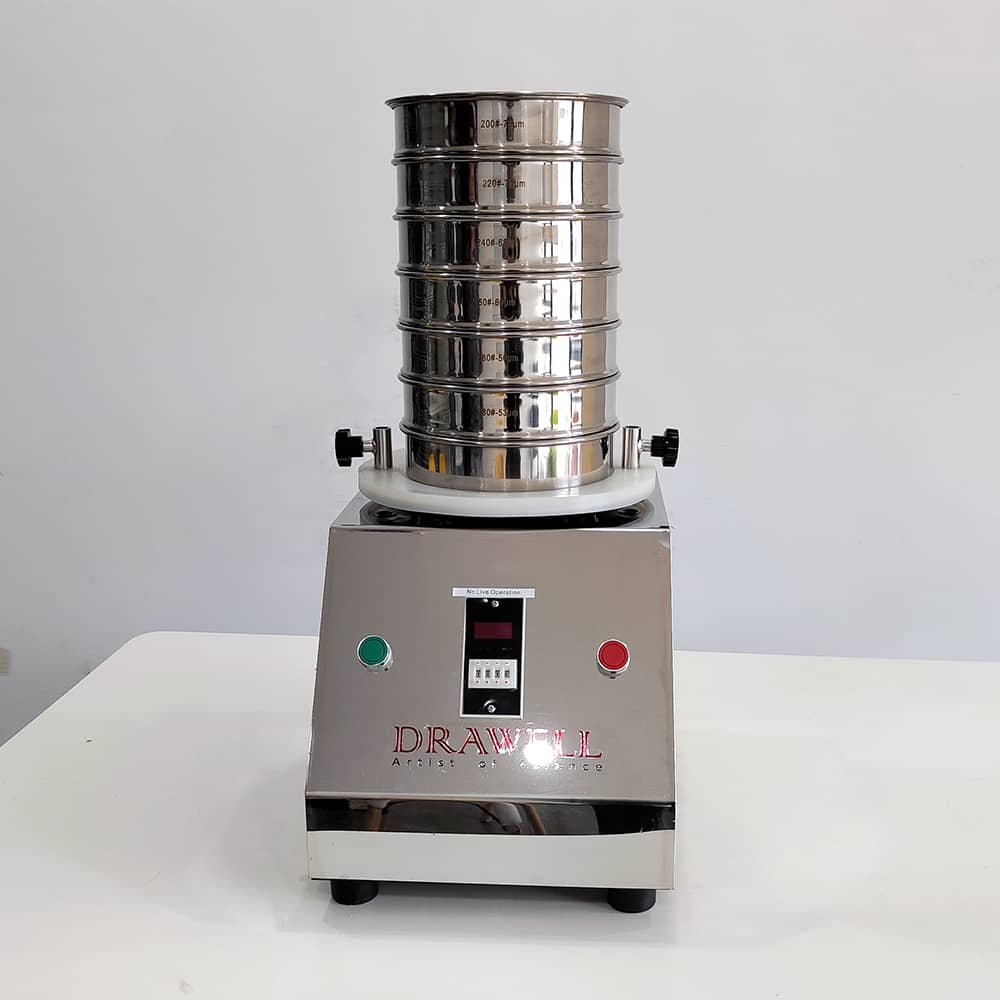

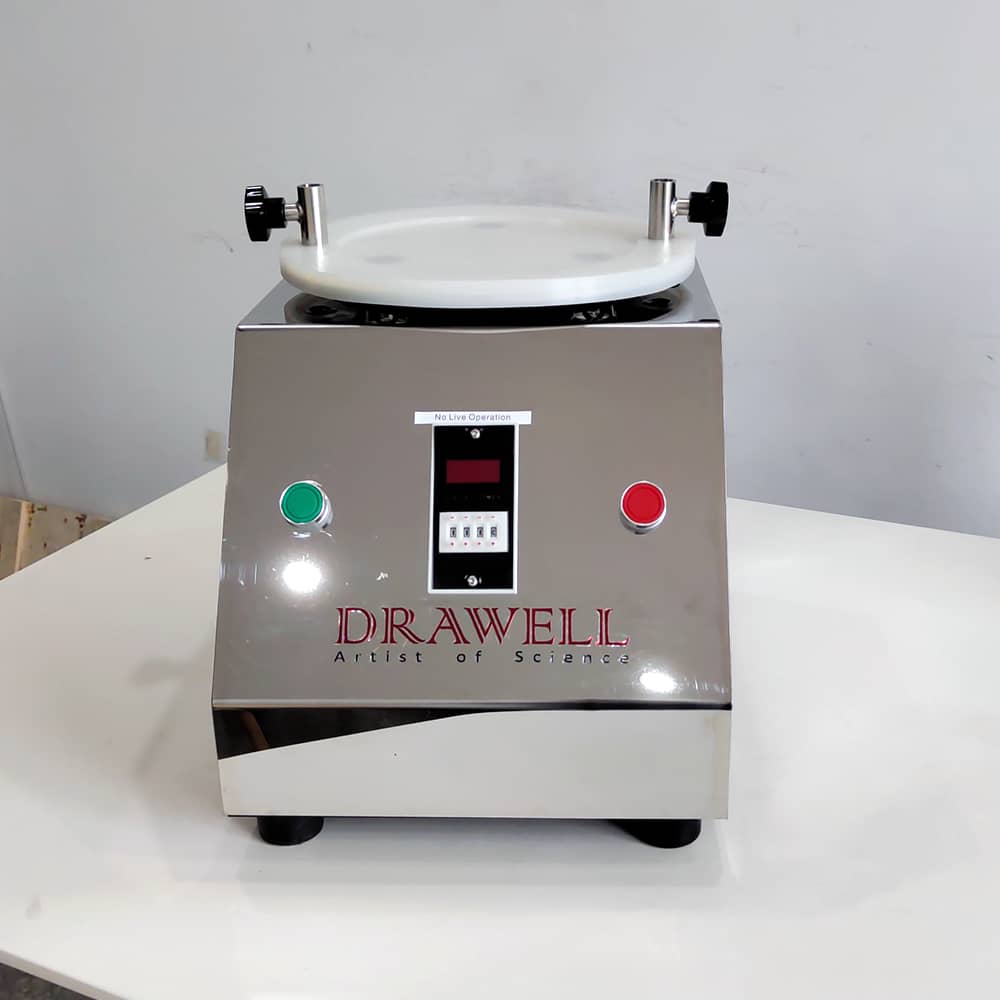

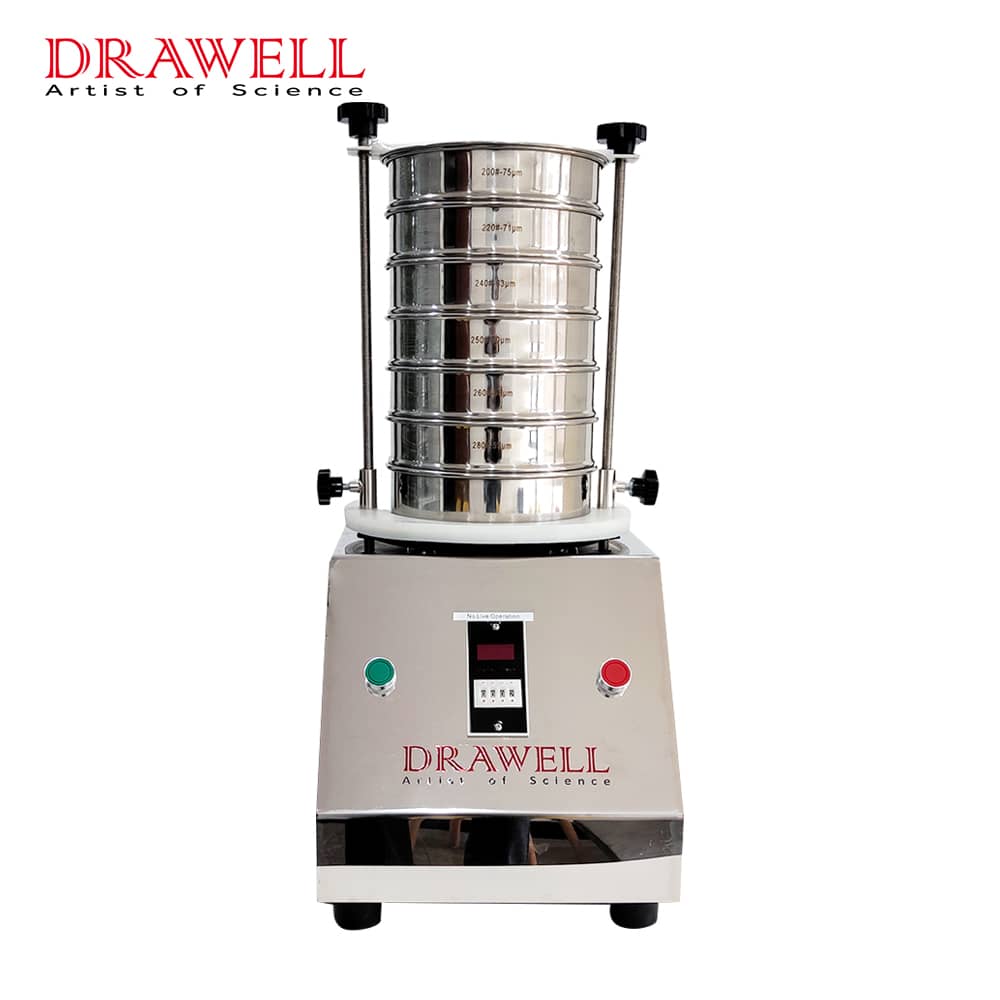

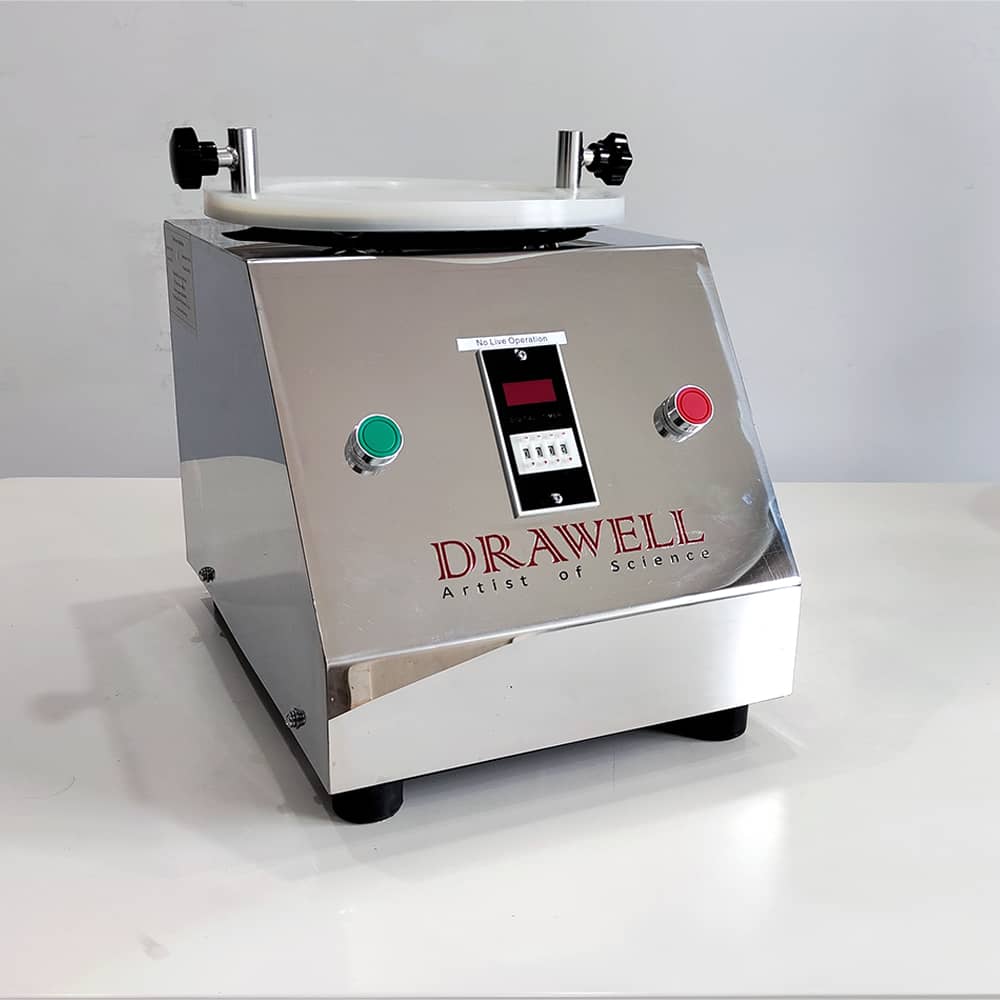

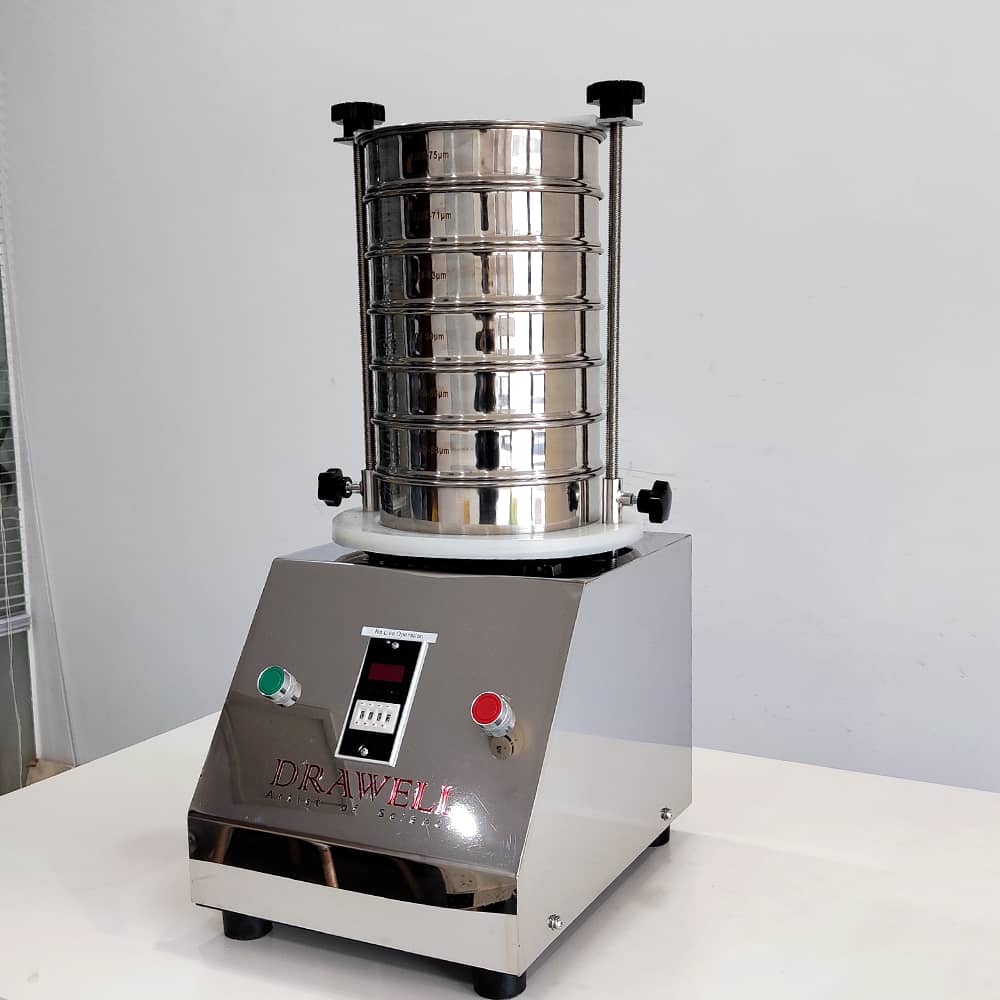

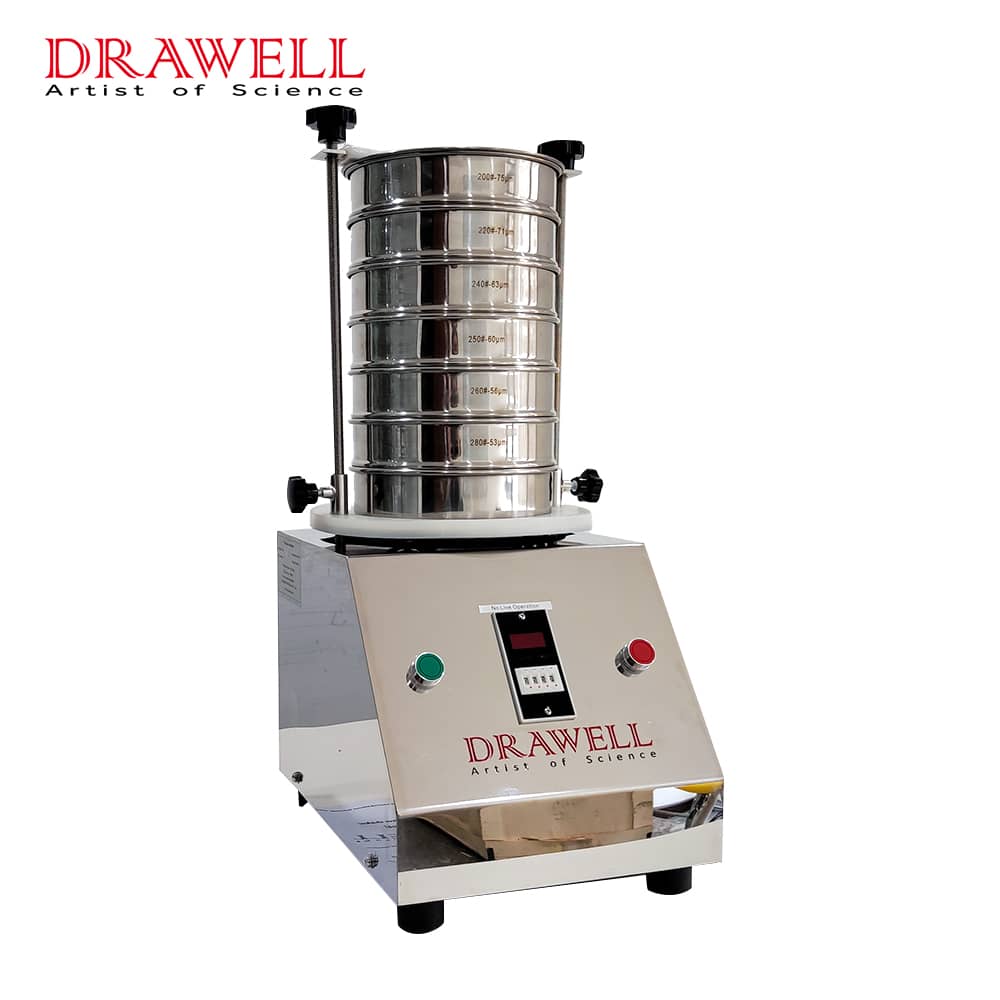

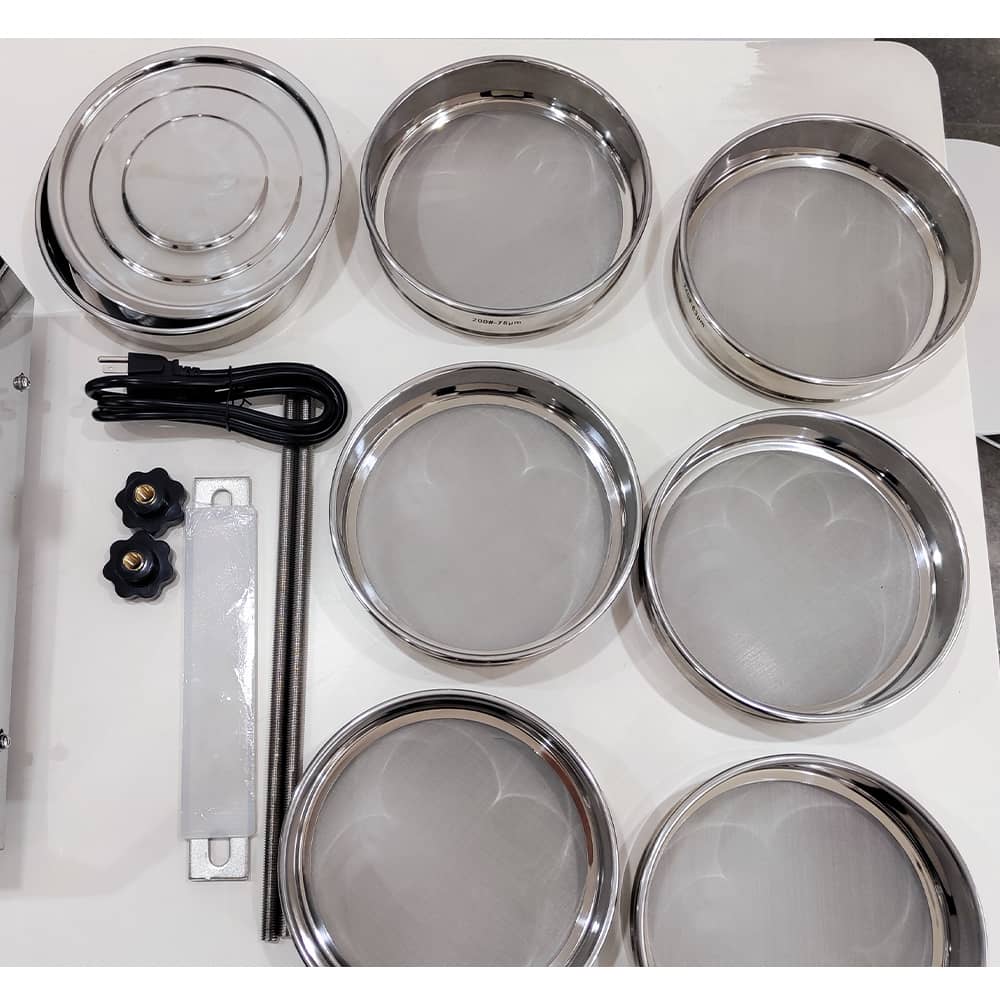

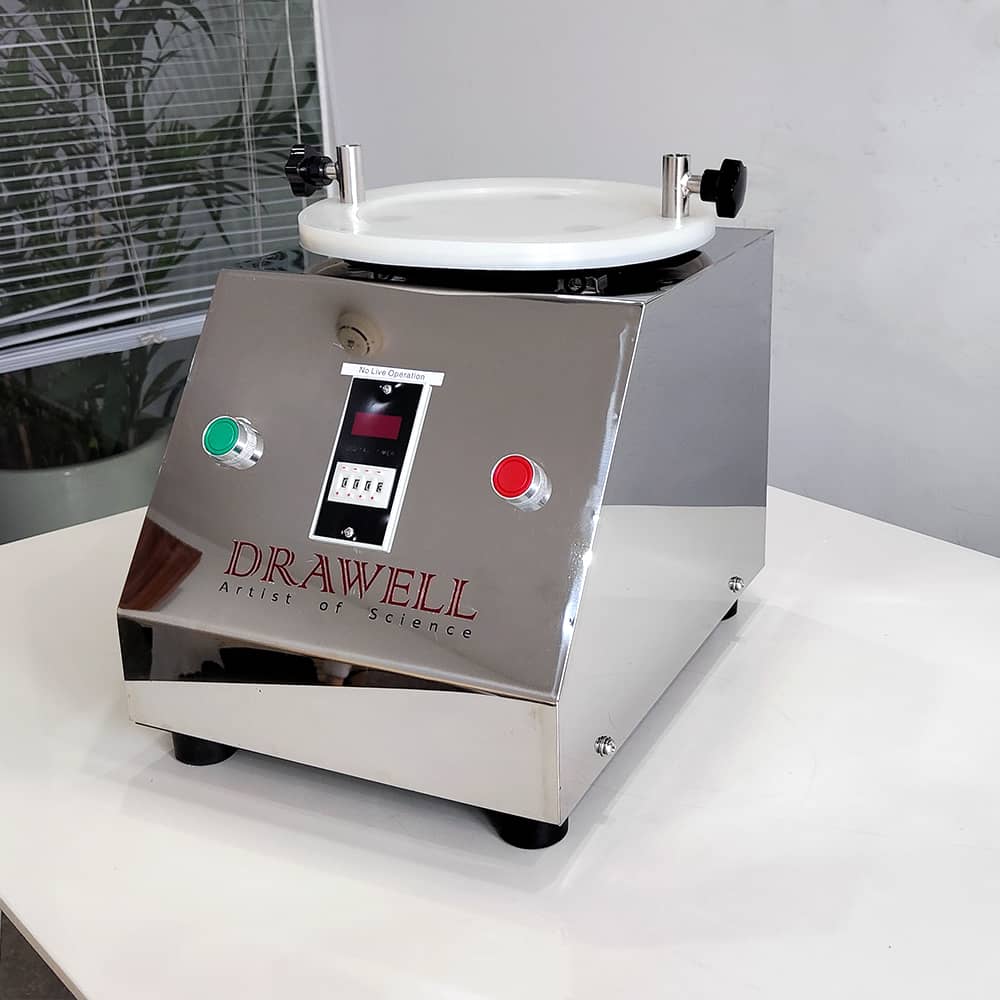

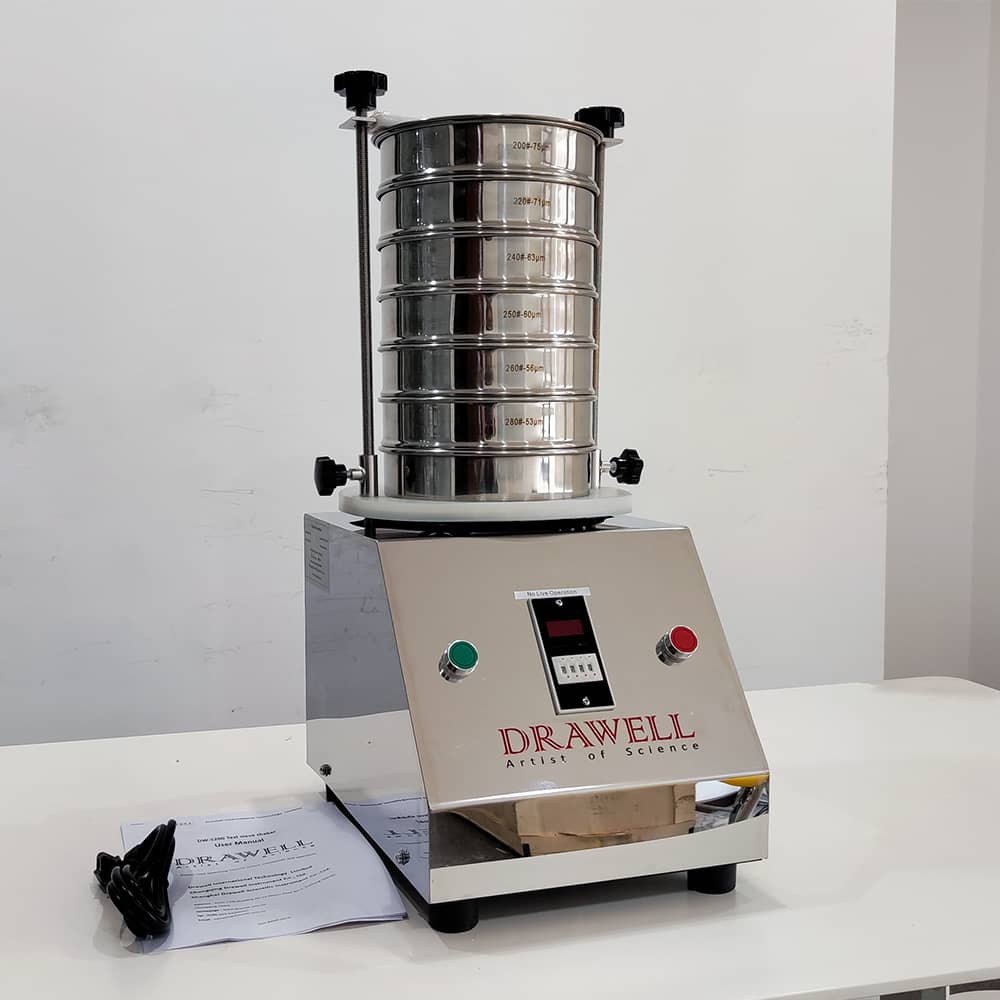

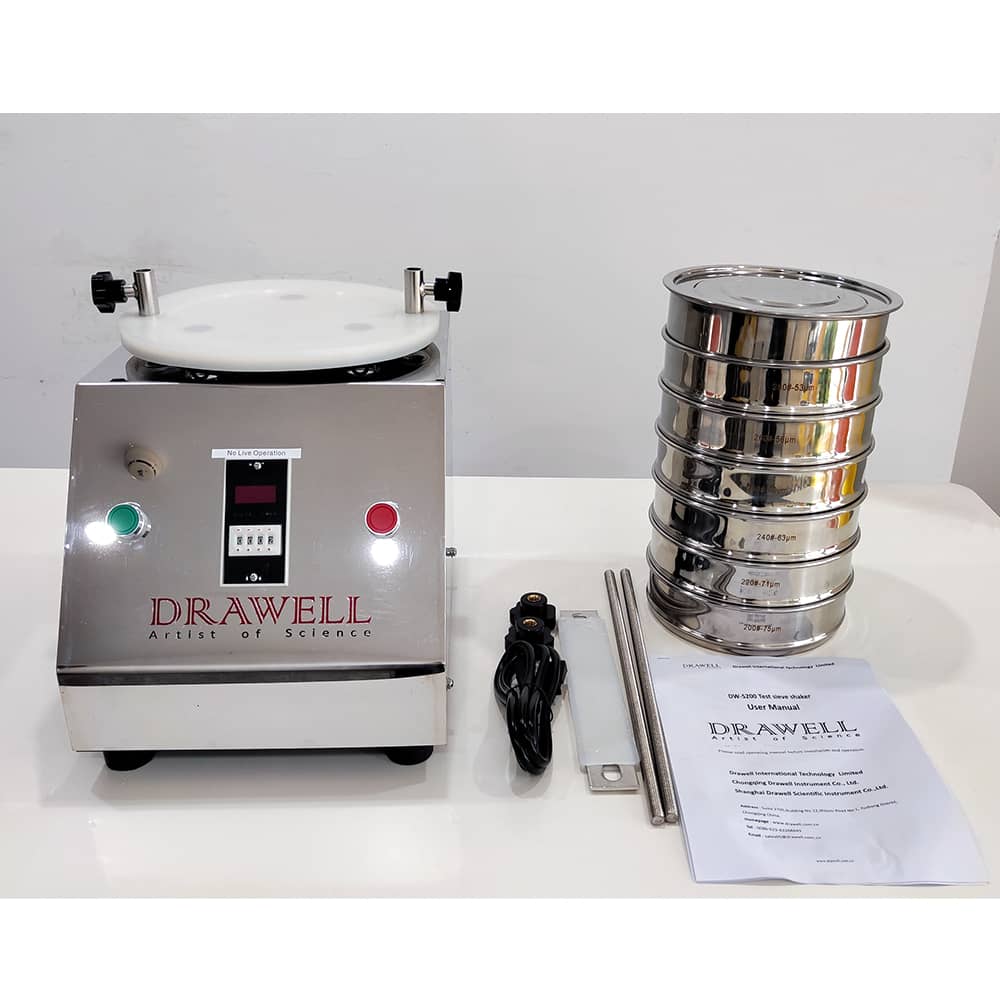

Test Sieve Shaker DW-S200 S300 S400 Pictures
Sieve Choices
8 mesh sieve
10 mesh sieve
20 mesh sieve
110 mesh sieve
200 mesh sieve- 250 mesh sieve
300 mesh sieve
Square hole sieve
Square hole sieve
Round hole sieve
