Introduction of ICP Emission Spectrometer DW-TY-9900

DW-TY-9900 Inductively Coupled Plasma Atomic Emission Spectrometer (ICP-AES)is developed based on both the tradition of inductively coupled plasma atomic emission spectroscopy technique and the absorption of the latest technological achievements of international research. The series are high-precision, high sensitivity, and high stability. The instrument consists of a scanning beam splitter, the RF generator, sample introduction systems, photovoltaic conversion, control systems, data processing systems, analysis, and operating software.

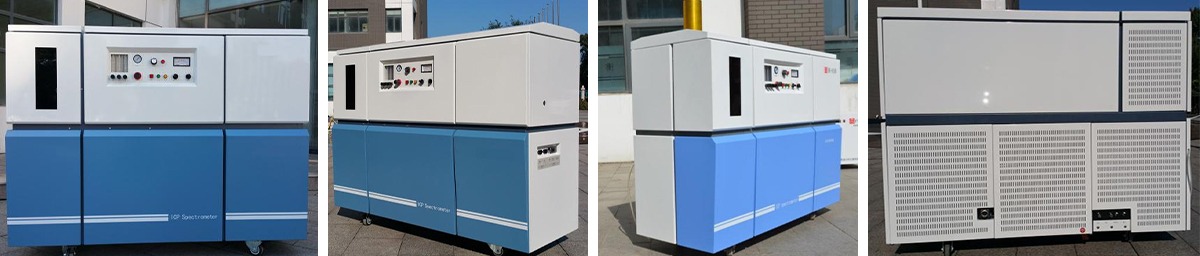

ICP Emission Spectrometer DW-TY-9900

Features of ICP Emission Spectrometer DW-TY-9900

  1. Ultra-low detection limit: PPb (parts per billion) level.
  2. The linear range of the working curve is 5-6 orders of magnitude.
  3. Multi-element analysis: 70 kinds of metal elements can be analyzed, and some non-metal elements can also be analyzed.
  4. Simultaneous analysis of multiple elements, fast analysis speed.
  5. Imported key components
  6. Minimal matrix effect 99% of samples have no matrix separation.
  7. Wide measurement range: over-range to constant analysis.
  8. Good precision: relative standard deviation RSD≤1.5%
  9. Stability: relative standard deviation RSD≤2.0%
  10. Fast analysis: scan elements continuously every minute, the fastest is more than 15 elements.
  11. Using analysis software, easy to operate and powerful. It can also realize functions such as measurement, data processing, correction and data output.

Application Areas of ICP Emission Spectrometer

ICP-AES is mainly used for qualitative and quantitative analysis of inorganic elements. ICP-AES, as a large and precise inorganic analytical instrument, is widely used in rare earth analysis, precious metal analysis, alloy materials, electronic products, medicine and health, metallurgy, geology, petroleum, and chemical industry, commodity inspection, and environmental protection departments.

application of ICP Emission Spectrometer DW-TY-9900

Specifications of ICP Emission Spectrometer DW-TY-9900

Item

Index

Analytical speed

10 elements every minute

Accuracy

Relative standard deviation RSD≤2%

Stability

Relative standard deviation RSD≤3%(measured within one hour)

Measuring linear range

(Relative coefficient)≥0.9995%

Low detection limit

As listed below for representative elements

Element Limit of Detection(Unit:ppb & ug/L)

Element

Wavelength(nm)

LOD(ppb &ug/L)

Element

Wavelength(nm)

LOD(ppb &ug/L)

Ag

328.068

0.3

Nd

401.225

1.5

Al

396.152

2

Ni

221.647

1

As

193.696

4

Na

588.995

29

Au

242.795

1

P

213.618

6

B

249.773

1

Pb

220.353

5

Ba

445.403

0.1

Pd

340.458

2

Be

313.042

0.2

Pr

390.844

2

Bi

223.061

5

Re

227.525

3

Ca

396.847

0.2

Rb

780.023

150

Cd

214.438

0.3

Sb

206.833

6

Ce

413.765

1.5

Sc

361.384

0.5

Co

228.616

1

Se

196.026

8

Cr

267.716

1

Si

251.611

5

Cu

324.754

1

Sm

359.260

1

Dy

353.170

0.3

Sn

235.484

10

Er

337.271

0.3

Sr

407.771

0.15

Eu

381.967

0.2

Ta

226.230

6

Fe

238.204

1

Tb

350.917

1

Ga

294.364

3

Ti

334.941

0.2

Gd

342.247

0.5

Tl

261.861

5

Hf

277.336

1

Tm

313.126

0.3

Ho

345.600

0.5

V

309.418

0.5

La

333.749

0.5

W

207.911

4

Lu

261.542

0.2

Y

371.030

0.2

Mg

279.553

0.2

Yb

328.937

0.2

Mn

257.610

0.2

Zn

213.856

0.5

Mo

202.030

1

Zr

343.823

0.4

Nb

309.611

1

K

766.490

60







Cs

455.531

50000

Product Display

ICP Emission Spectrometer DW-TY-9900

Why Choose Us?

Quality Control System:

  1. Every part should be put in a temperature and humidity test chamber for 72 hours before assembling.
  2. Every machine needs to do aging testing for another 72 before shipping

       3. Every machine is with a unique serial number. The engineer will be responsible for the quality of the machine he made.

The whole machine is guaranteed for 12 months; provides technical service support for life.

During the warranty period, if the product has quality problems under normal use, after verification by Party B, it will provide free maintenance services and will not charge any fees to Party A; if the quality problem is not the instrument itself, it is due to user’s human factors. Party B needs to Charge the cost of parts repair or replacement.

Response time: Within 24 hours.Any problem, our professional team can check for you remotely.
