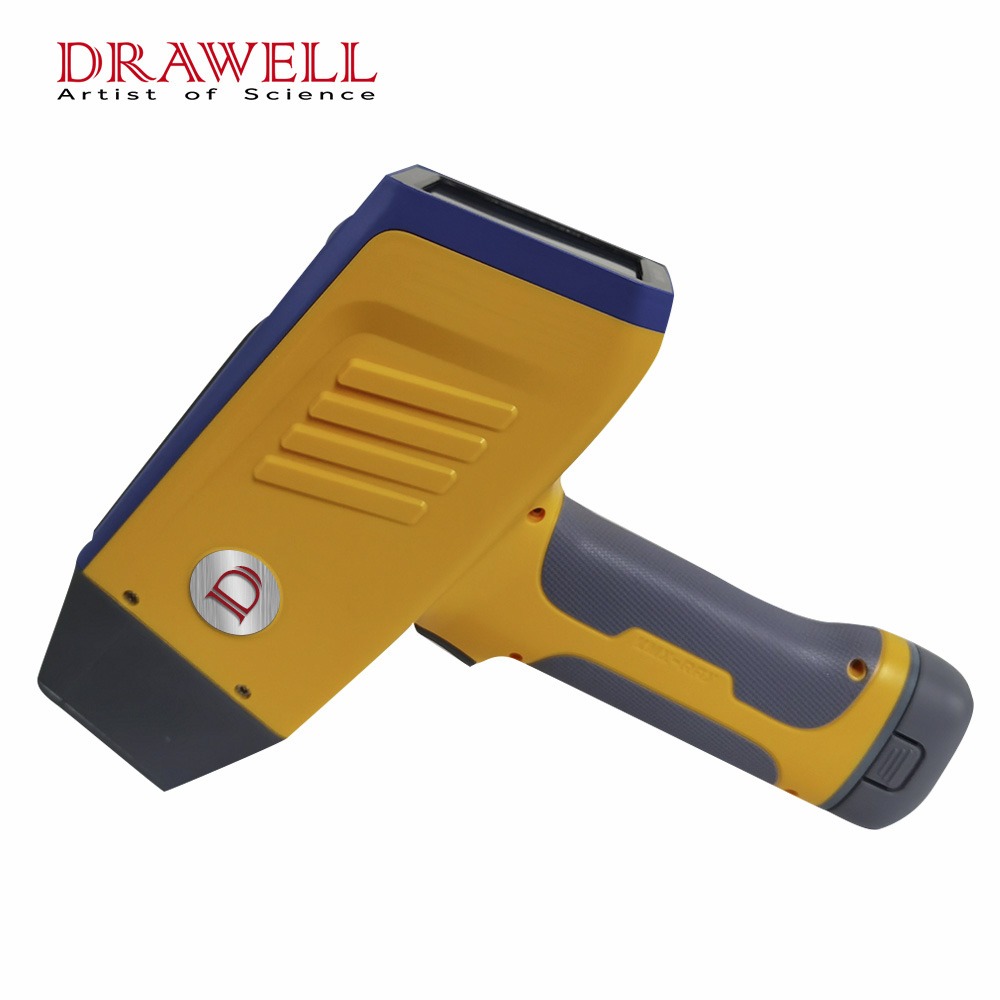

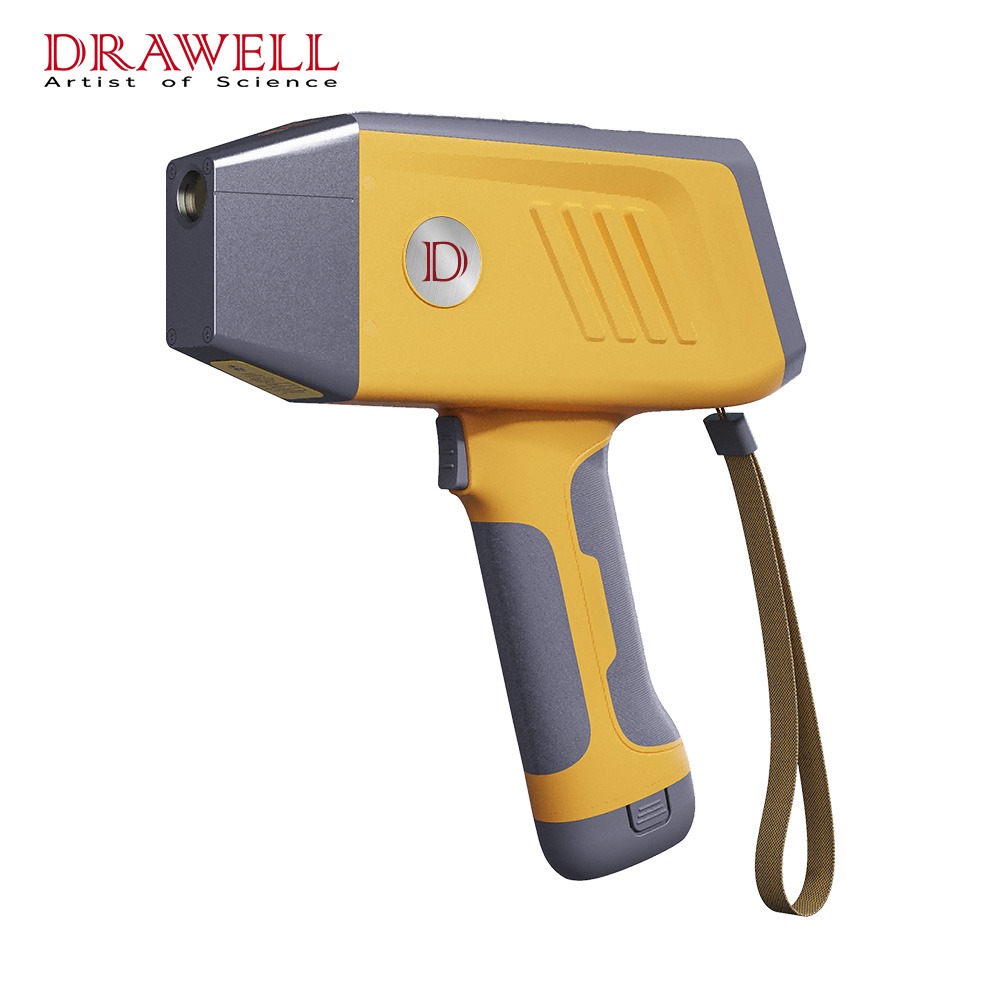

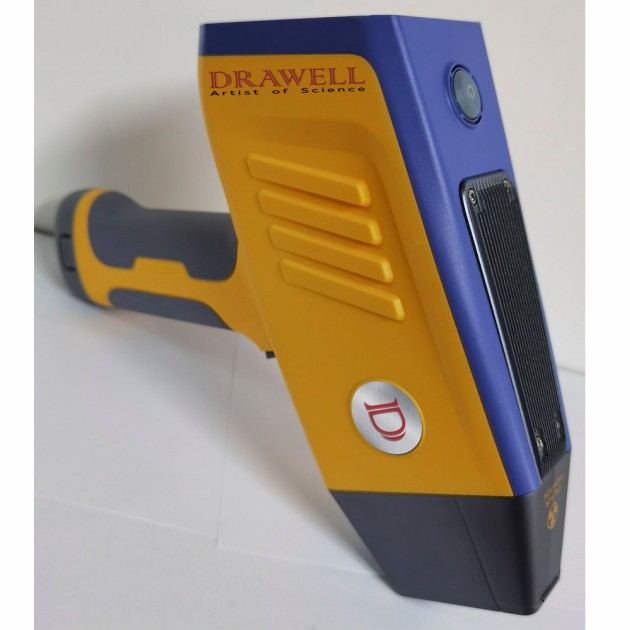

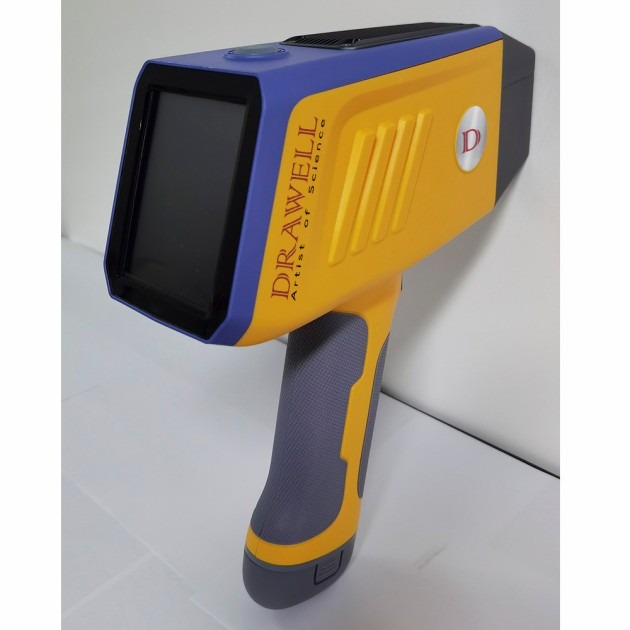

K-8000 Handheld XRF Gold Analyzer
The K-series analyzers are configured with powerful miniature X-ray tubes, Si-PIN detectors or highly advanced silicon drift detectors (SDDs), specialized filters, and multibeam optimization for the ultimate in XRF field analysis. The actual overall value of the DRAWELL analyzer is embodied in the following: it can make correct decisions in real-time without relying on laboratory tests far away from the detection environment.
Features of K-8000 Handheld XRF Gold Analyzer
Portable yet rugged design
Lightweight (as low as 1.5 kg) and compact, with an integrated industrial-grade housing that is waterproof, dustproof, shockproof, and antifreeze, enabling reliable operation in harsh field environments.
High-performance X-ray excitation and detection
Equipped with a high-power X-ray microtube supporting multiple target materials (Au, Ag, W, Ta, Pd), combined with a high-resolution Si-PIN detector and Peltier cooling system to ensure high sensitivity, low noise, and stable analytical performance.
Flexible and intelligent measurement configuration
Adjustable voltage range (35–50 kV) with automatically optimized filters allows the system to adapt to different sample types, improving accuracy and repeatability across a wide range of materials.
Powerful data processing and storage capability
Built-in high-performance ARM processor and 32 GB internal storage support fast analysis and the storage of over 80,000 datasets and spectra, suitable for continuous field testing and long-term data management.
User-friendly and reliable operation

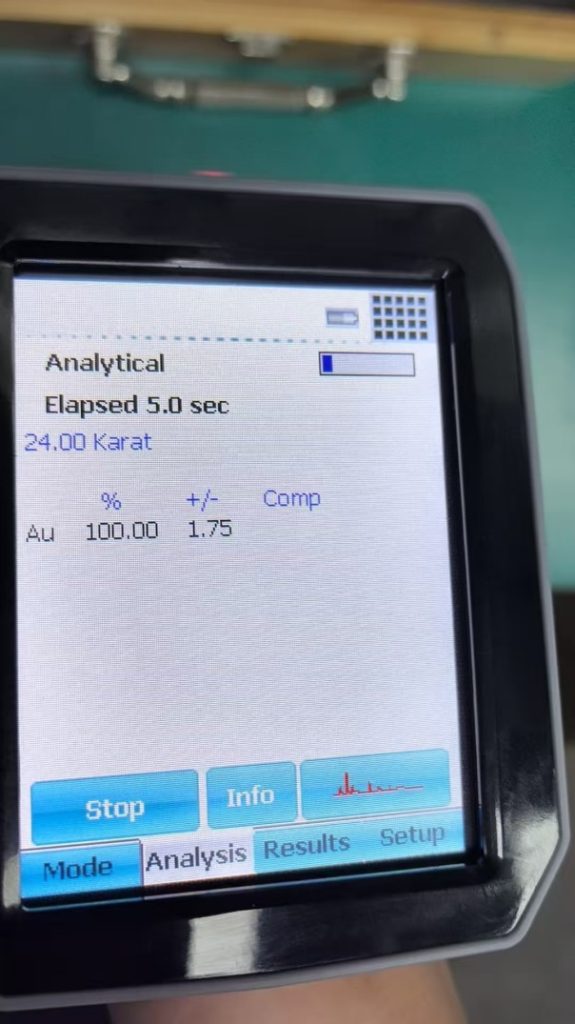

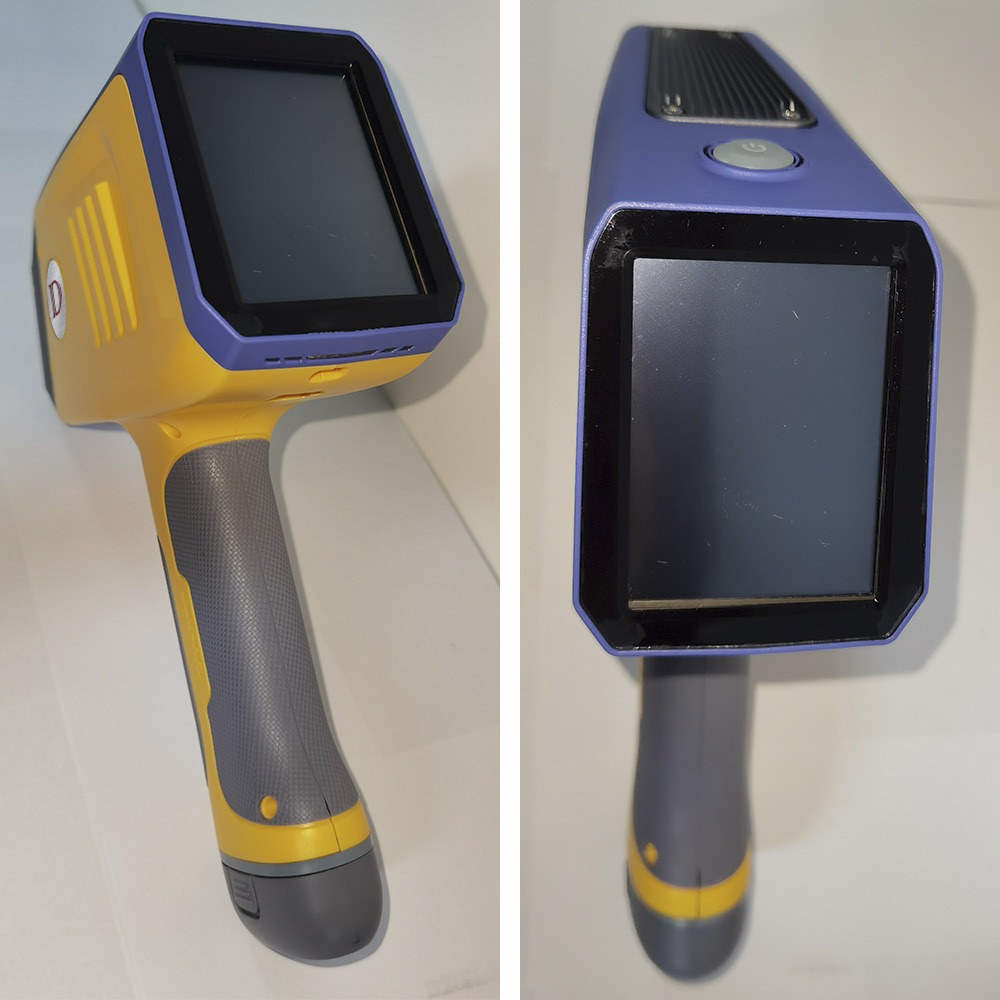

Industrial-grade high-resolution TFT touchscreen provides clear visibility under any lighting conditions, while one-key operation, automatic detection stop, and enhanced X-ray shielding ensure safe, efficient, and intuitive use.
Wide elemental coverage and customizable reporting
Capable of analyzing a broad range of elements, including precious, transition, and heavy metals, with customizable detection reports to meet different application and customer requirements.
Applications of K-8000 Handheld XRF Gold Analyzer
Specifications of K-8000 Handheld XRF Gold Analyzer
| Weight | Device: 1.50kg, 1.65kg with battery. |
| Dimension | 250mm x 75mm x 270mm (L*W*H) |
| Excitation source | High-power high-performance X-ray microtube |
| Target materials | Five target materials of X-ray tube available: gold (Au), silver (Ag), tungsten (W), tantalum (Ta) and palladium (Pd) |
| Voltage | 35kV-50kV voltage (changeable) |
| Filter | A variety of selectable filters, automatically adjusted according to different tested objects |
| Detector | High-resolution Si-Pin detector |
| Detector refrigeration temperature | Peltier effect semiconductor refrigeration system |
| Standard film | External 316 standard film/window protection cover (Optional built-in standard film, plus version) |
| Power supply | 1 lithium battery (7.2v\6600mAh) |
| Processor | High-performance ARM pulse processor |
| Data processing | 32G large-capacity data storage card: ≥80,000 sets of data and spectrograms; |
| Display screen | High-resolution TFT industrial-grade colored high-definition touch screen, it is ergonomic, sturdy, dust-proof, and waterproof, clearly visible under any light conditions |
| Outline design | The integrated designed body is sturdy, waterproof, dustproof, antifreeze, shockproof, and can be used normally in harsh environments. |
| Safe operation | “One key” detection, auto-lock, detection auto-stop functions. The X-ray will automatically be turned off if there is no sample in front of the detection window for 2 seconds. 3/2 of the shell of the device is covered with a 6061 aluminum alloy frame design, with better X-ray blockage. |
| Detection Report | Customized detection report available as per the customers’ demands |
| Element analysis | Au, Pt, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Hf, Ta, W, Pb, Bi, Zr, Nb, Mo, Cd, Sn, Sb, Re, In, Ag,Pd, Ru, Rh, Ir, etc. |
