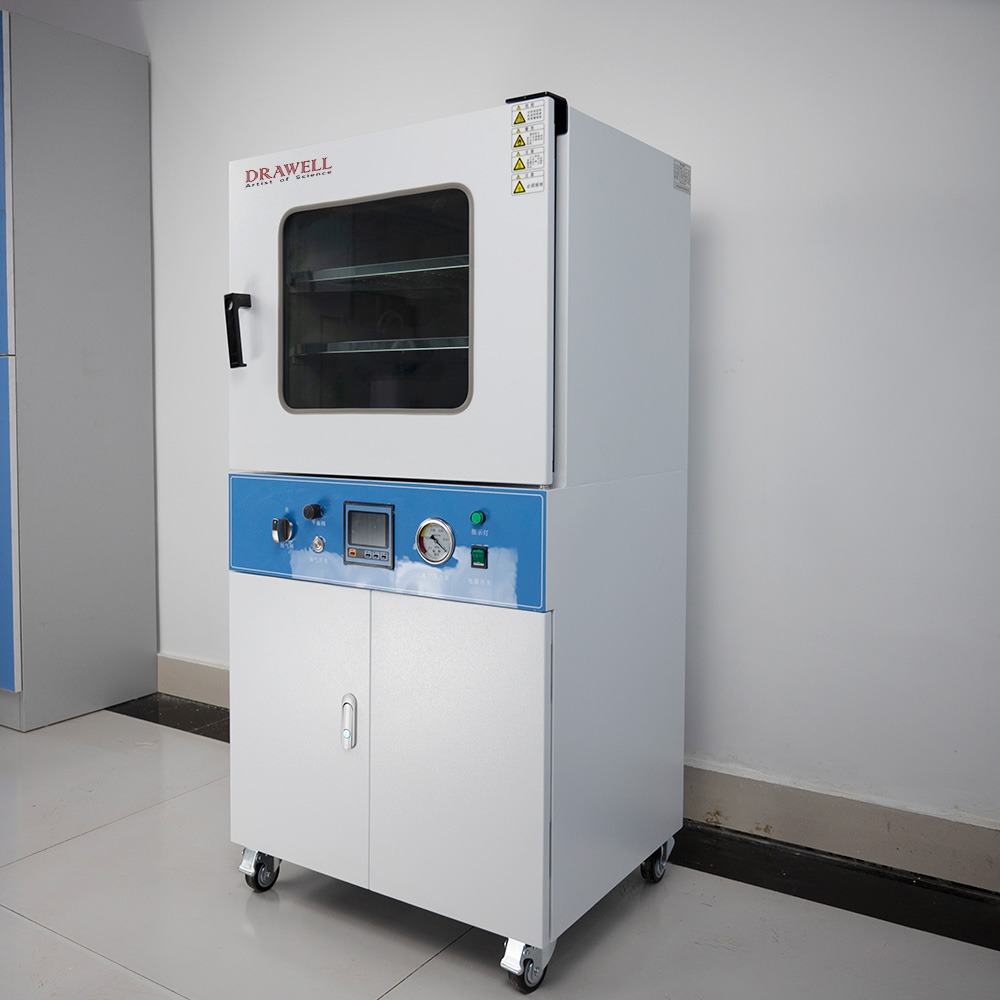

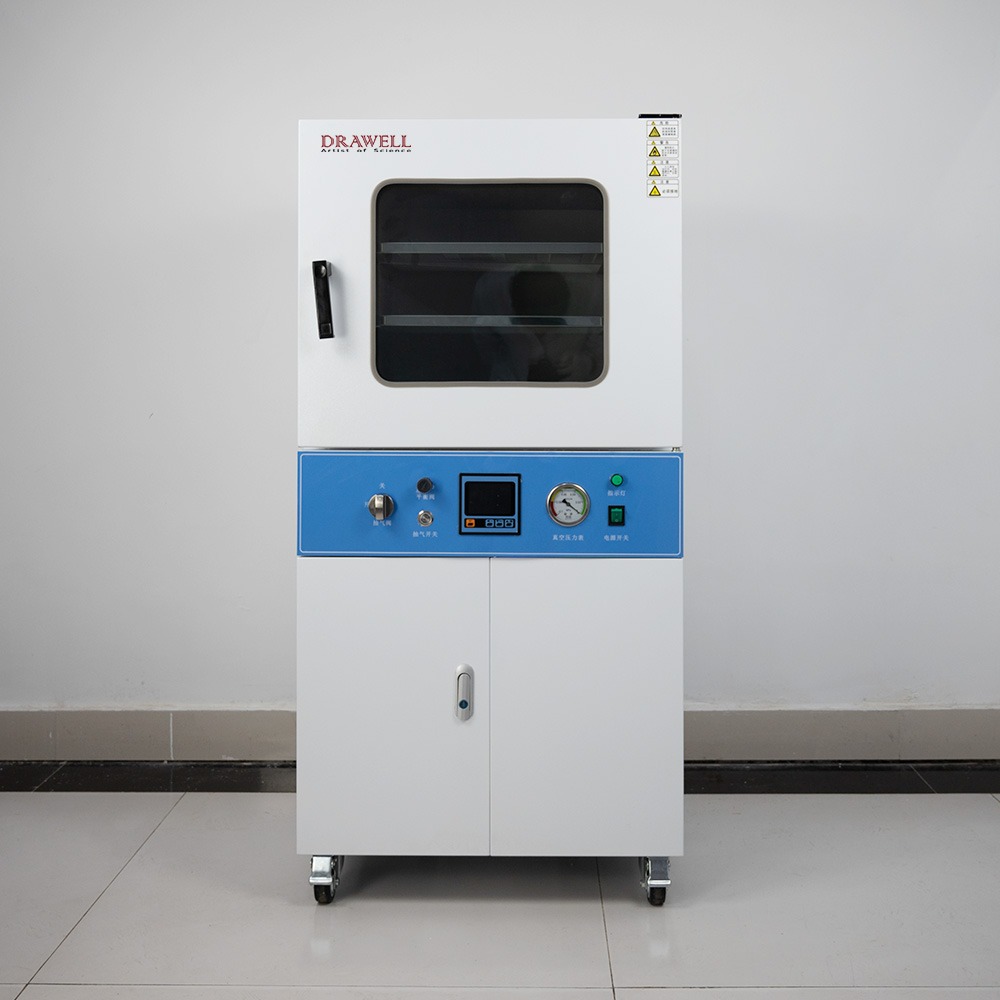

Features of DZFL-B/C Series Vertical Vacuum Drying Oven
- The shell is made of galvanized sheet, with surface electrostatic powder coating. It is made of stainless steel material. The semi-circular corners design makes cleaning more convenient.
- It adopts a microcomputer temperature control system and intelligent PID self-tuning control, featuring functions such as temperature control, timing, and over-temperature alarm.
- The door of the box can be adjusted in tightness as needed. The integrated silicone door seal and the surrounding heating system ensure a high vacuum inside the box and uniform heating.
- The laboratory is of a rectangular structure. The cabinet door is equipped with a tempered double-layer glass door to ensure the safety of the users during experiments. A large-angle viewable observation window is adopted to facilitate the observation of the experimental items in the laboratory.
- It has the function of parameter setting memory and call recovery. The device can automatically resume operation according to the original set program.
Specifications of DZFL-B/C Series Vertical Vacuum Drying Oven
| Model | DZFL-6050B/C | DZFL-6090B/C | DZFL-6210B/C |
| Capacity | 50L | 90L | 210L |
| Power supply | 220V 50Hz | ||
| Temperature control range | RT+10°C-250℃ | ||
| Temperature resolution | 0.1℃ | ||
| Vacuum degree | ＜133Pa | ||
| Inner container material | B: 201 stainless steel inner liner (sandblasted), C: 304 stainless steel inner liner (sandblasted) | ||
| Heating method | Reducing pressure, conduction through the four walls | ||
| Insulation layer | High-quality silicagelatin cotton | ||
| Vacuum gauge | Silicone oil vacuum pressure gauge | ||
| Rated power | 1400w | 2000w | 3000w |
| Timed | 0-9999min | ||
| Operating function | Customized operation, timed operation, automatic stop | ||
| Sensor | PT100 | ||
| Inner tank dimensions (mm) | 370×415×345 | 450×450×450 | 600×550×650 |
| Overall dimensions (mm) | 540×610×1240 | 700×640×1570 | 760×780×1780 |
| Packaging dimensions (mm) | 660×700×1400 | 715×750×1610 | 950× 920×2070 |
| Standard/Maximum number of partitions | 2/2 | 3/3 | 3/3 |
| Partition spacing | 116mm | 102mm | 160mm |
| Partition load-bearing capacity | 15kg | 15kg | 15kg |
| Optional functions | Automatic vacuum gauge, vacuum pump, programmable instrument | ||
