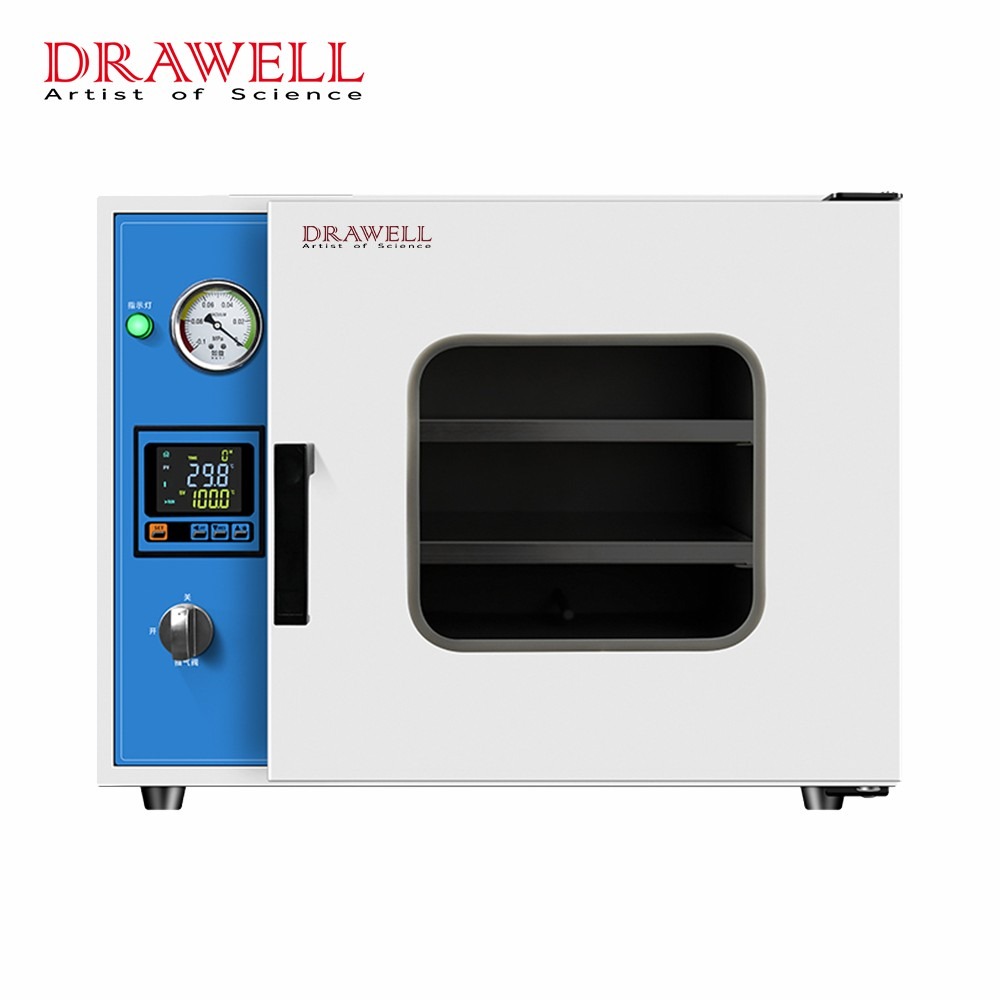

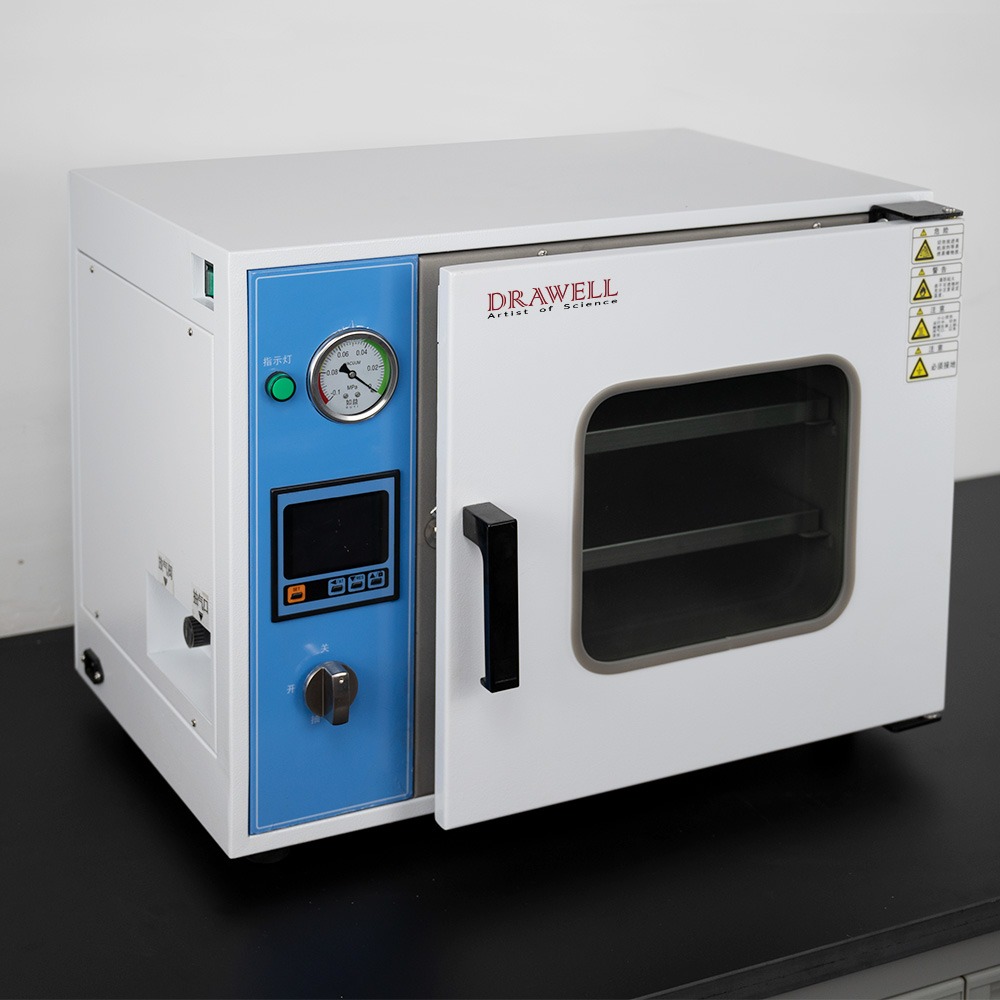

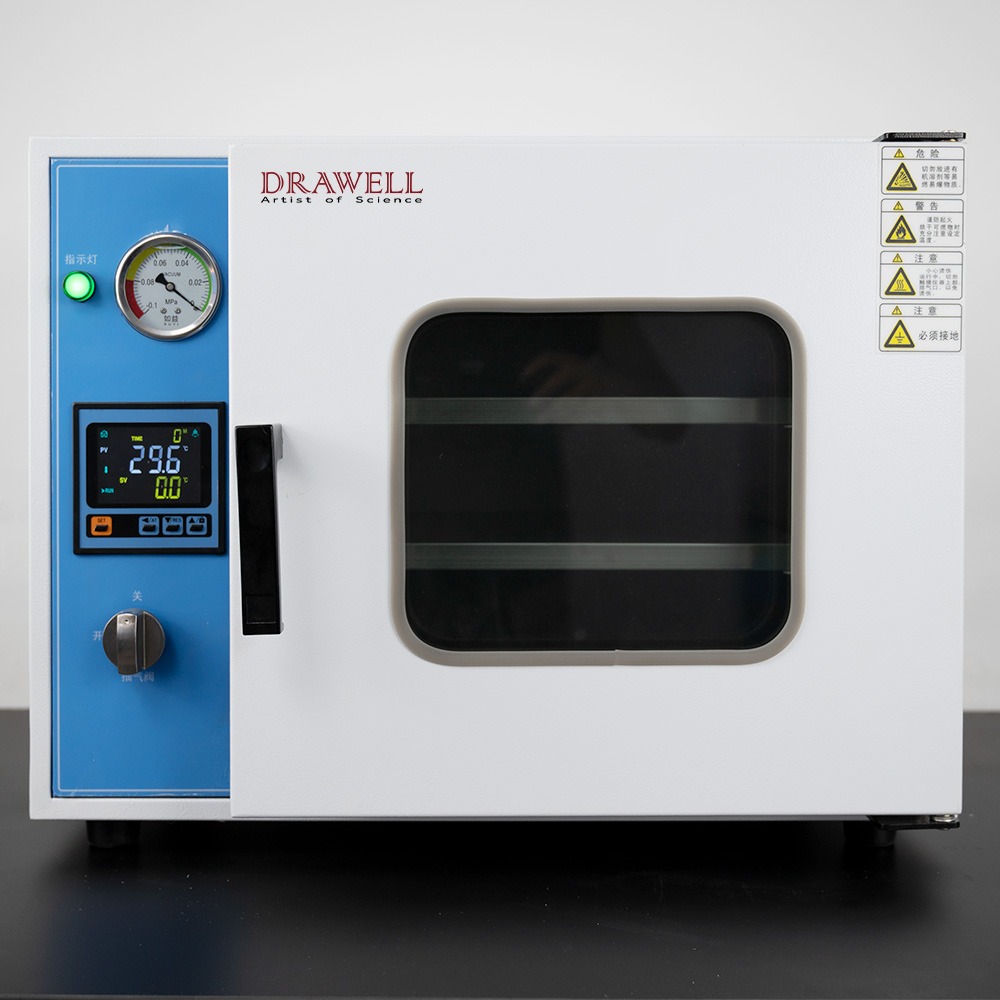

Features of DZF-A/B/C Series Horizontal Vacuum Drying Oven
- The shell is made of galvanized sheet, with surface electrostatic powder coating. The inner liner is made of cold-rolled steel powder-coated or stainless steel material. The semi-circular four-corner design makes cleaning more convenient.
- It adopts a microcomputer temperature control system and intelligent PID self-tuning control, featuring functions such as temperature control, timing, and over-temperature alarm.
- The door of the box can be adjusted in tightness as needed. The integrated silicone door seal and the surrounding heating system ensure a high vacuum inside the box and uniform heating.
- The laboratory is of a rectangular structure. The cabinet door is equipped with a tempered double-layer glass door to ensure the safety of the users during experiments. A large-angle viewable observation window is adopted to facilitate the observation of the experimental items in the laboratory.
- It has the function of parameter setting memory and call recovery. The device can automatically resume operation according to the original set program.
Specifications of DZF-A/B/C Series Horizontal Vacuum Drying Oven
| Model | DZF-6020A/B/C | DZF-6050A/B/C | DZF-6090B/C | DZF-6210B/C | ||
| Capacity | 20L | 50L | 90L | 210L | ||
| Power supply | 220V 50Hz | |||||
| Temperature control range | RT+10°C-250°℃ | |||||
| Temperature resolution | 0.1℃ | |||||
| Vacuum degree | ＜133Pa | |||||
| Inner container material | A: Cold-rolled steel powder-coated inner linerB: 201 stainless steel inner liner (sandblasted)C: 304 stainless steel inner liner (sandblasted) | B: 201 stainless steel inner liner (sandblasted)C: 304 stainless steel inner liner (sandblasted) | ||||
| Heating method | Reducing pressure, conduction through the four walls | |||||
| Insulation layer | High-quality silicagelatin cotton | |||||
| Vacuum gauge | Silicone oil vacuum pressure gauge | |||||
| Rated power | 600w | 1400w | 2000w | 3000w | ||
| Timed | 0-9999min | |||||
| Operating function | Customized operation, timed operation, automatic stop | |||||
| Sensor | PT100 | |||||
| Inner liner dimensions (mm) | 300×300×275 | 370×415×345 | 450×450×450 | 600×550×650 | ||
| Overall dimensions (mm) | 460×600×460 | 550×720×540 | 620×790×670 | 770×890×930 | ||
| Packaging dimensions (mm) | 525×670×550 | 840×685×685 | 910×910×800 | 910×1070×1165 | ||
| Standard/Maximum number of partitions | 2/2 | 2/2 | 3/3 | 3/3 | ||
| Partition load-bearing capacity | 15kg | 15kg | 15kg | 15kg | ||
| Optional functions | Automatic vacuum gauge, vacuum pump, programmable instrument | |||||
