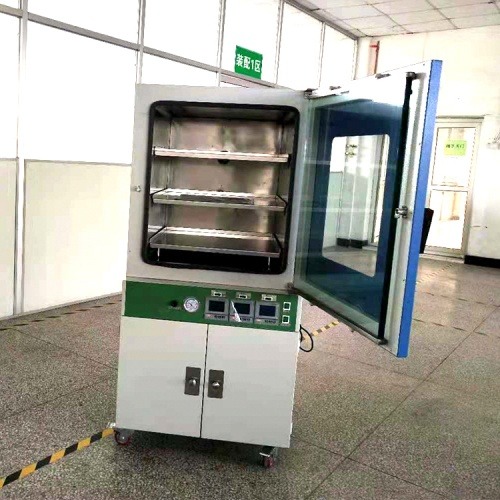

DW-LVO Vacuum Drying Oven

Features of DW-LVO Vacuum Drying Oven

• Microprocessor controller with LCD display, more accurate and reliable.
• Polished stainless steel chamber, durable and easy-to-clean.
• Tempered bulletproof double glass door to ensure the safety of operator and clear observation.
• Door tightness can be adjusted, with silicon sealing. To keep vacuum states in the chamber, fill the working chamber with inert gas (inflation pressure≦ 0.1 MPa).
• Storage, heating, testing and drying can be performed in the environment without oxygen or in an inert atmosphere. It will not cause oxidation.
• Equipped with leakage protection.

Optional Parts of DW-LVO Vacuum Drying Oven

1. Programable temperature controller
2. Built-in Printer
3. RS485 Connector
4. Inert gas inlet valve
5. Small vacuum pump (6020, 6050)
6. Large vacuum pump (6090, 6210)

Specifications of DW-LVO Vacuum Drying Oven

Model	DW-LVO-1B  (6050)	DW-LVO-0B   (6020)	DW-LVO-6090	DW-LVO-6210
Power Supplly	AC 220V, 50Hz
Power Rating	1.4KW	0.5KW	1.6KW	2.2KW
Temperature Range（℃）	RT+10～250	RT+10～200℃
Temperature Fluctuation	±1℃
Display Resolution	0.1℃
Vacuum Degree	<133 Pa
Volume	54L	25L	91L	215L
Chamber Size (W×D×H)cm	42×35×37	30×30×28	45×45×45	56×60×64
Package Size (W×D×H)cm	82×70×69	70×64×60	78×76×163	89×92×193
Net/Gross（kg）	75/106	35/50	90/145	145/195

Model	DW-LVO-6050LC	DW-LVO-6090 LC	DW-LVO-6210 LC
Power Supply	AC 220V, 50Hz
Power Rating（KW）	1.4	1.6	2.2
Temperature Range（℃）	RT+10～250	RT+10～200
Temperature Fluctuation	±1℃
Display Resolution	0.1℃
Vacuum Degree	<133 Pa
Chamber Size (W×D×H)cm	42×35×37	45×45×45	56×60×64

Volume(L)			54	91	215
	Package Size (W×D×H)cm	70×66×155		78×76×163	89×92×193
	Net/Gross（kg）	75/106		90/145	145/195

Note: DW-LVO-0B、DW-LVO-1B need to purchase a vacuum pump. Other models already include one.
