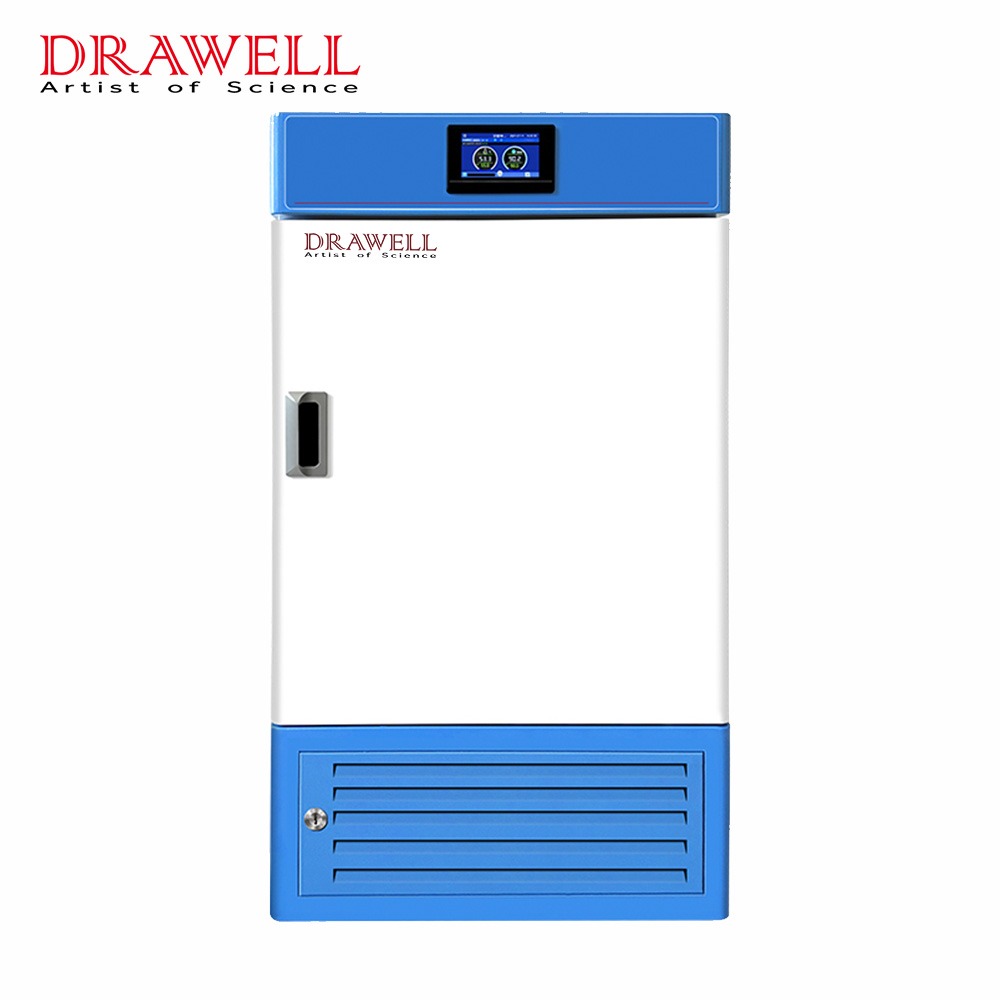

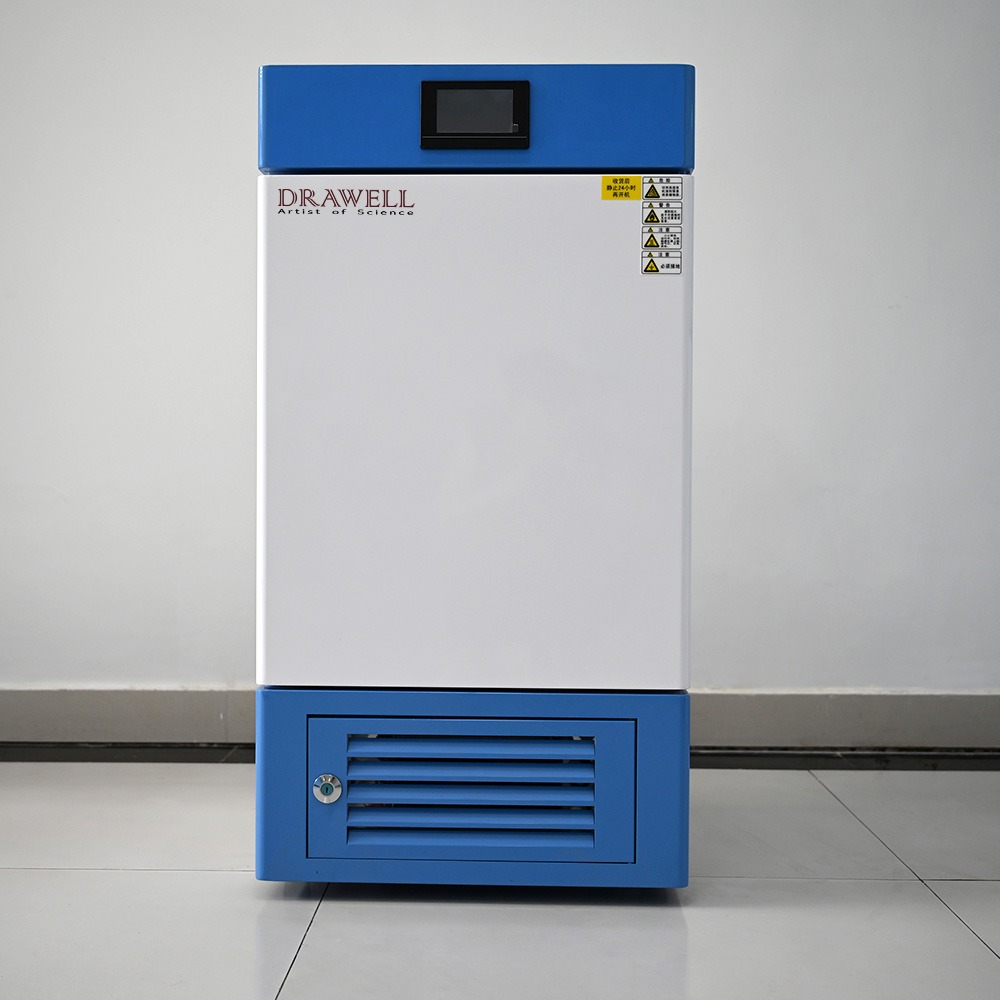

Features of DMJ-C Touch Screen Mold Culture Chamber
- The box body shell is made of high-quality galvanized sheet, and its surface is treated by electrostatic spraying technology. The design is elegant and practical, with excellent corrosion resistance and durability.
- The inner liner is made of high-quality 304 stainless steel. The four corners smoothly transition into semi-circular shapes, facilitating cleaning. The height of the shelves can be adjusted freely.

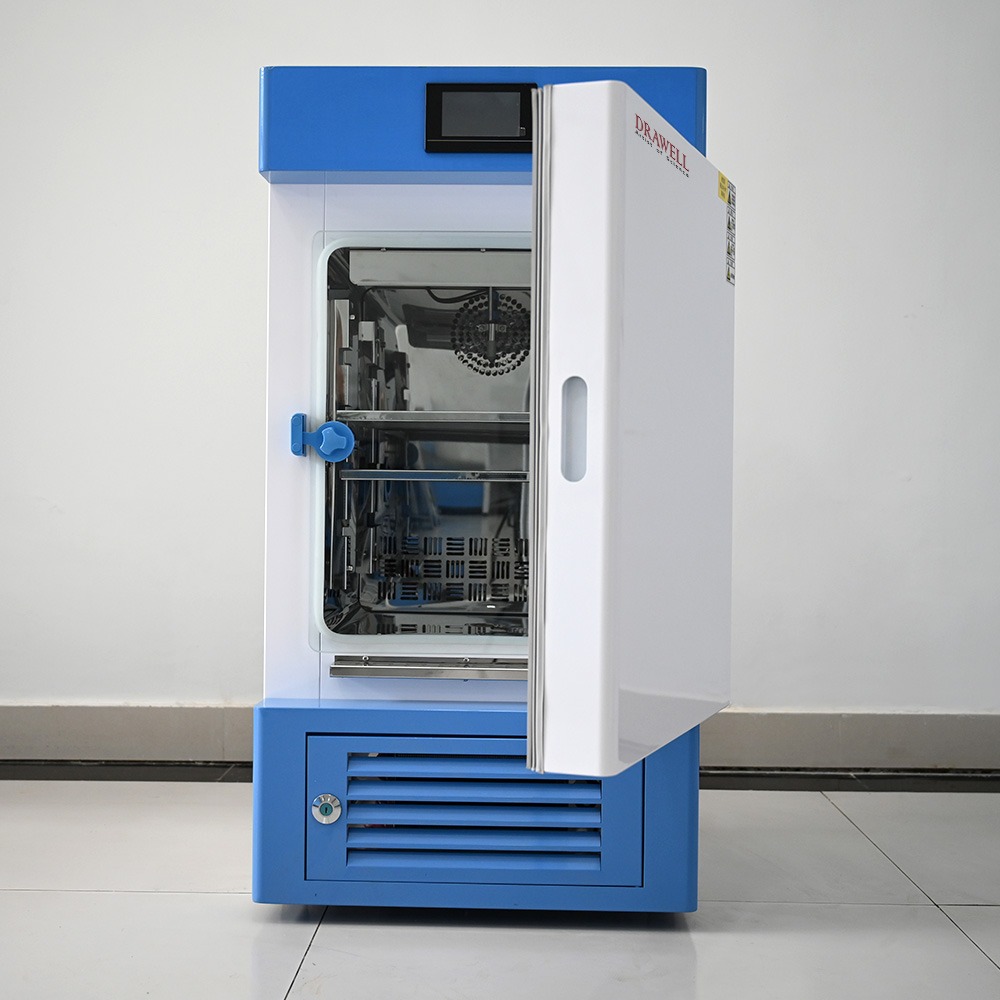

- Double-door structure design: Inner doors are equipped with tempered glass, while the outer doors are sealed with magnetic rubber strips. The working chamber is equipped with ultraviolet light sterilization lamps.
- Touch control instrument: Supports two operation modes – fixed value and program. It can set 5*100 segments of program control.
- Data recording function: Standard equipped with USB interface. It can export historical data in both CSV and PDF formats, and allows for detailed numerical historical curve query.
- It adopts a variable-frequency compressor, featuring energy-saving, low noise, and no frosting problems.
- Install a temperature alarm system with automatic temperature limit and automatic power-off function to ensure the safety of the experiment.
- The excellent insulation design ensures good sealing performance and prevents temperature loss.
Specifications of DMJ-C Touch Screen Mold Culture Chamber
| Model | DMJ-50C | DMJ-80C | DMJ-150C | DMJ-250C | DMJ-250C | DMJ-250C |
| Capacity | 50L | 80L | 150L | 250L | 250L | 250L |
| Power supply | 220V 50Hz | |||||
| Temperature control range | 5-65℃ | |||||
| Temperature distribution accuracy | ±1°℃ | |||||
| Temperature resolution | 0.1℃ | |||||
| Temperature fluctuation degree | High temperature ± 0.5℃, low temperature ± 1℃ | |||||
| Inner liner material | 304 stainless steel inner liner | |||||
| Shell material | Galvanized sheet (electrostatic spraying) | |||||
| Insulation layer | Polyurethane | |||||
| Compressor | Variable frequency compressor | |||||
| Refrigerant | R134a | |||||
| Heater | Stainless steel heating tube | |||||
| Defrost function | Intelligent control for automatic defrosting | |||||
| Temperature control | High-definition LCD touch screen | |||||
| Timer function | max: 999h59min | |||||
| Operating mode | Customized operation mode, program operation mode | |||||
| Test hole | Standard configuration – one | |||||
| Sensor | PT100 | |||||
| Power | 500w | 600w | 800w | 1000w | 1200w | 1400w |
| Inner liner dimensions (mm) | 350×350×400 | 400×400×500 | 400×500×750 | 500×550×910 | 600×600×1000 | 650×650×1100 |
| Dimensions (mm) | 580×460×900 | 610×560×1070 | 600×660×1400 | 700×720×1590 | 790×760×1640 | 850×805×1630 |
| Packaging dimensions (mm) | 615×510×980 | 690× 620×1150 | 770×735×1520 | 820×800×1660 | 870×860×1800 | 990×1040×1970 |
| Standard/Maximum Spacer | / | 2/4 | 2/7 | 2/9 | 2/10 | 2/11 |
| Separator spacing | / | 75mm | 80mm | 80mm | 82mm | 80mm |
| Separator load-bearing capacity | / | 20kg | 20kg | 20kg | 20kg | 20kg |
| Additional functions | Ultraviolet lamp | |||||
| Optional functions | Waterproof socket, SMS alarm, temperature monitoring, printer | |||||
