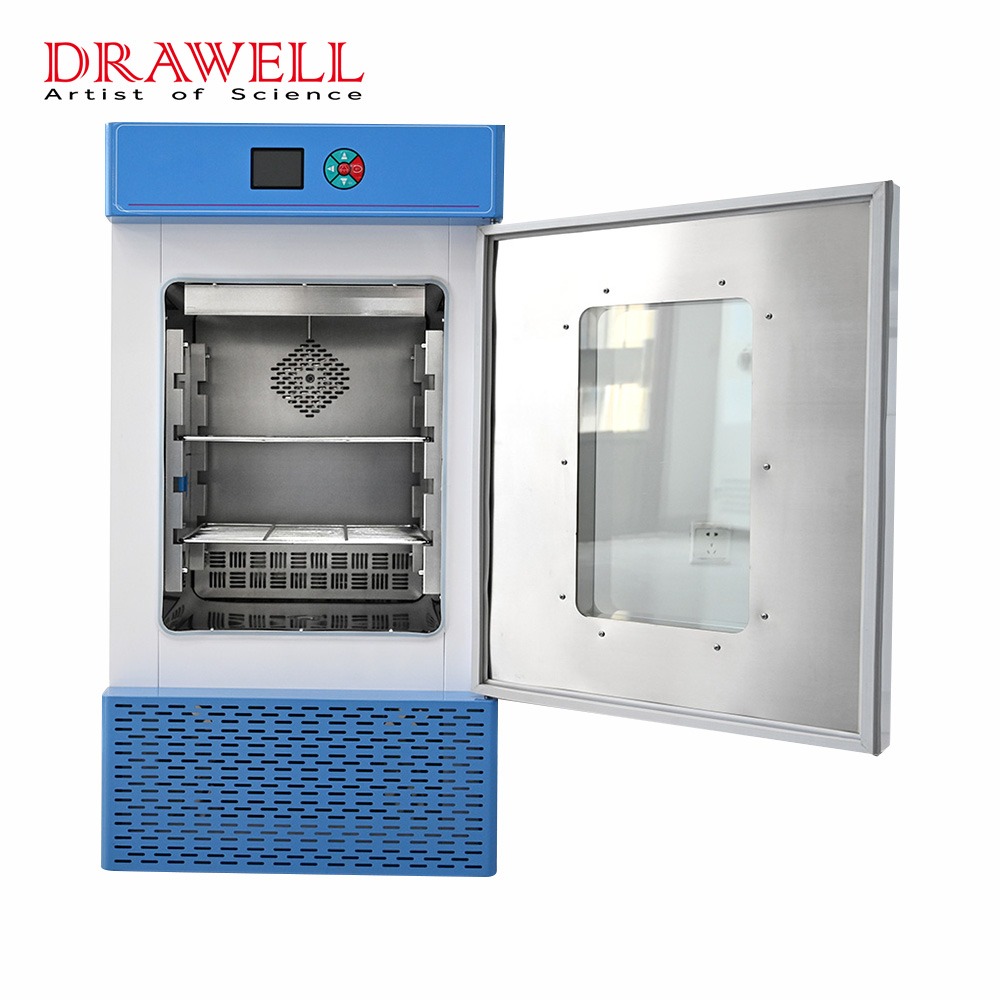

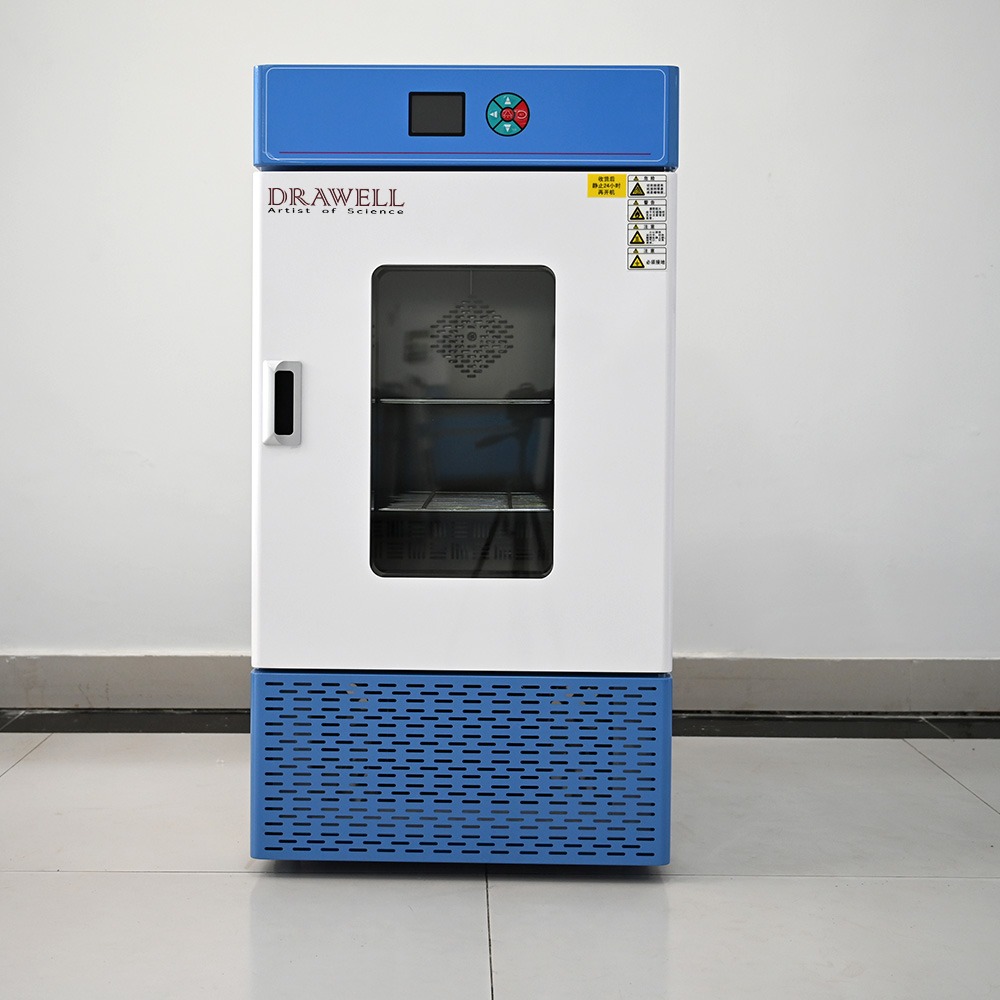

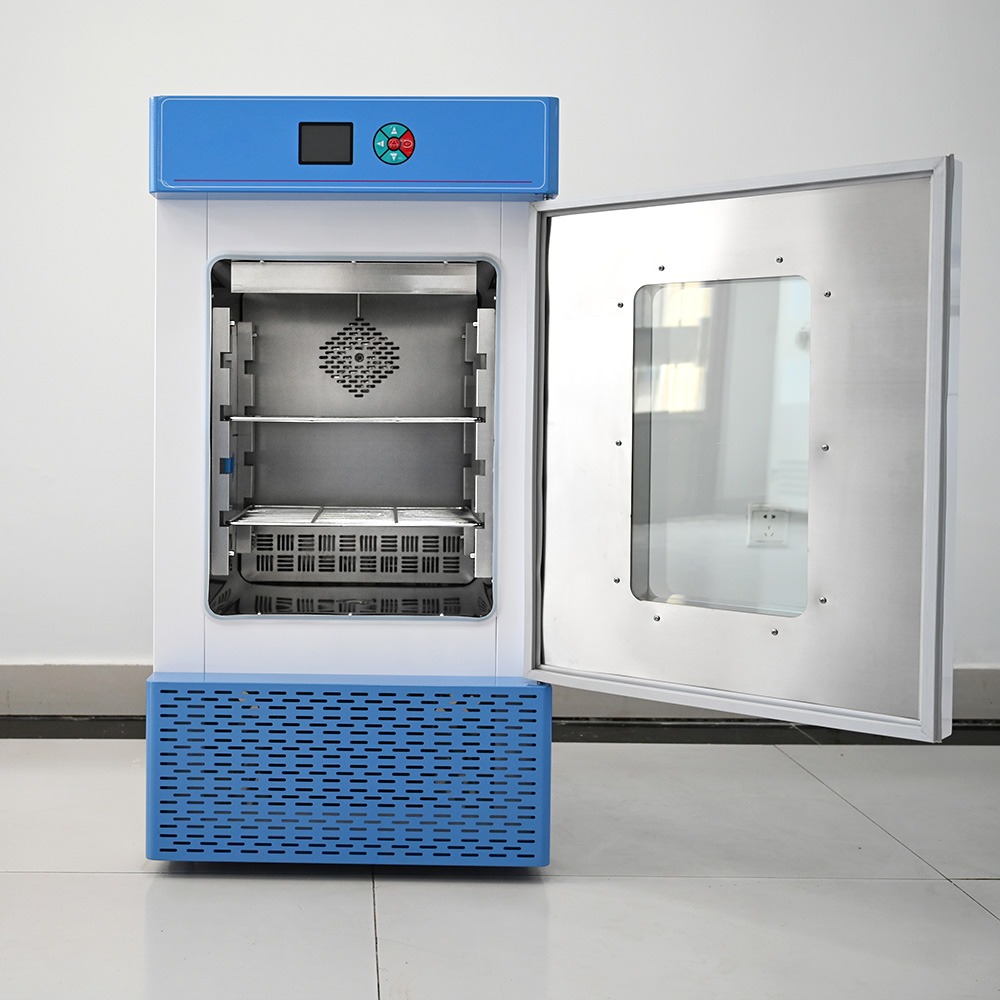

Features of DMJ-BF Precision Mold Culture Chamber
- The box body shell is made of high-quality galvanized sheet, and its surface is treated by electrostatic spraying technology. The design is elegant and practical, with excellent corrosion resistance and durability.
- The inner liner is made of high-quality stainless steel. The four corners smoothly transition into semi-circular shapes, facilitating cleaning. The height of the shelves can be adjusted freely.
- Single-door structure design: Tempered glass observation window, sealed with magnetic rubber strips, and an ultraviolet sterilization lamp is installed in the working chamber.
- Microcomputer control system, large-screen LCD display, touch-type operation buttons, easy to operate;
- Using high-end compressors and circulating fans, it achieves low energy consumption and energy savings.
- A temperature alarm system is provided, with automatic temperature limit and automatic power cut-off to ensure the safety of the experiment. Excellent insulation design is adopted to ensure good sealing performance and prevent temperature loss.
Upgrade content: (9-point test temperature)
- Inner liner thickness upgrade: The original thickness was 0.8mm, and the upgraded thickness is 1.0mm.
- Increased automatic defrosting capability, improving the operational efficiency of the equipment, reducing energy consumption and extending the service life.
- Fan upgrade, from capacitor fan to axial brushless fan, ensuring uniform temperature distribution in the box.
Specifications of DMJ-BF Precision Mold Culture Chamber
| Model | DMJ-80BF | DMJ-150BF | DMJ-250BF | DMJ-350BF | DMJ-460BF |
| Capacity | 80L | 150L | 250L | 350L | 460L |
| Power supply | 220V 50Hz | ||||
| Temperature control range | 5℃-65℃ | ||||
| Temperature distribution accuracy | ±1.5℃ (set temperature 37℃, ambient temperature 25℃) | ||||
| Temperature resolution | 0.1℃ | ||||
| Temperature fluctuation degree | High temperature ±0.5℃, low temperature ±1℃ | ||||
| Inner liner material | 201 stainless steel inner liner | ||||
| Shell material | Galvanized sheet (electrostatic spraying) | ||||
| Insulation layer | Polyurethane | ||||
| Compressor | Air-cooled hermetic compressor | ||||
| Refrigerant | R134a | ||||
| Heater | Stainless steel heating tube | ||||
| Defrosting function | Intelligent control for automatic defrosting | ||||
| Temperature control | Single-stage liquid crystal intelligent PID controller | ||||
| Timer function | 0-9999min | ||||
| Operation mode | Fixed-value operation, timed operation, automatic stop | ||||
| Test hole | Standard configuration – one | ||||
| Sensor | PT100 | ||||
| Power | 600w | 800w | 1000w | 1200w | 1400w |
| Inner liner dimensions (mm) (Depth x Width x Height) | 400×400×500 | 400×500×750 | 500×550×910 | 600×600×1000 | 650×650×1100 |
| Overall dimensions (mm) (Depth x Width x Height) | 610×560×1070 | 600×660×1400 | 700×720×1590 | 790×760×1640 | 850 ×805×1630 |
| Packaging dimensions (mm) (Depth x Width x Height) | 690×620×1150 | 770×735×1520 | 820×800×1660 | 870×860×1800 | 990× 1040×1970 |
| Standard/Maximum number of partitions | 2/4 | 2/7 | 2/9 | 2/10 | 2/11 |
| Partition spacing | 75mm | 80mm | 80mm | 83mm | 80mm |
| Partition load-bearing capacity | 20kg | ||||
| Additional functions | Ultraviolet lamp | ||||
| Optional functions | Waterproof socket | ||||
