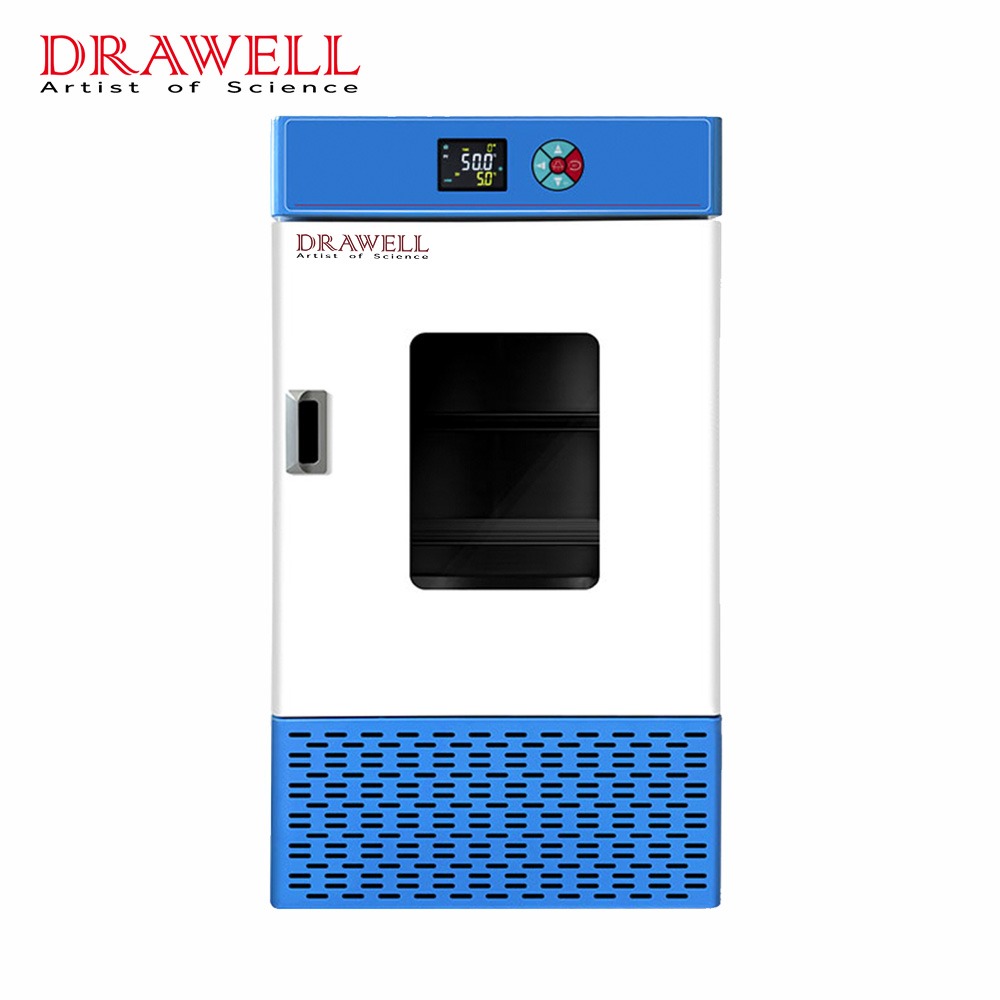

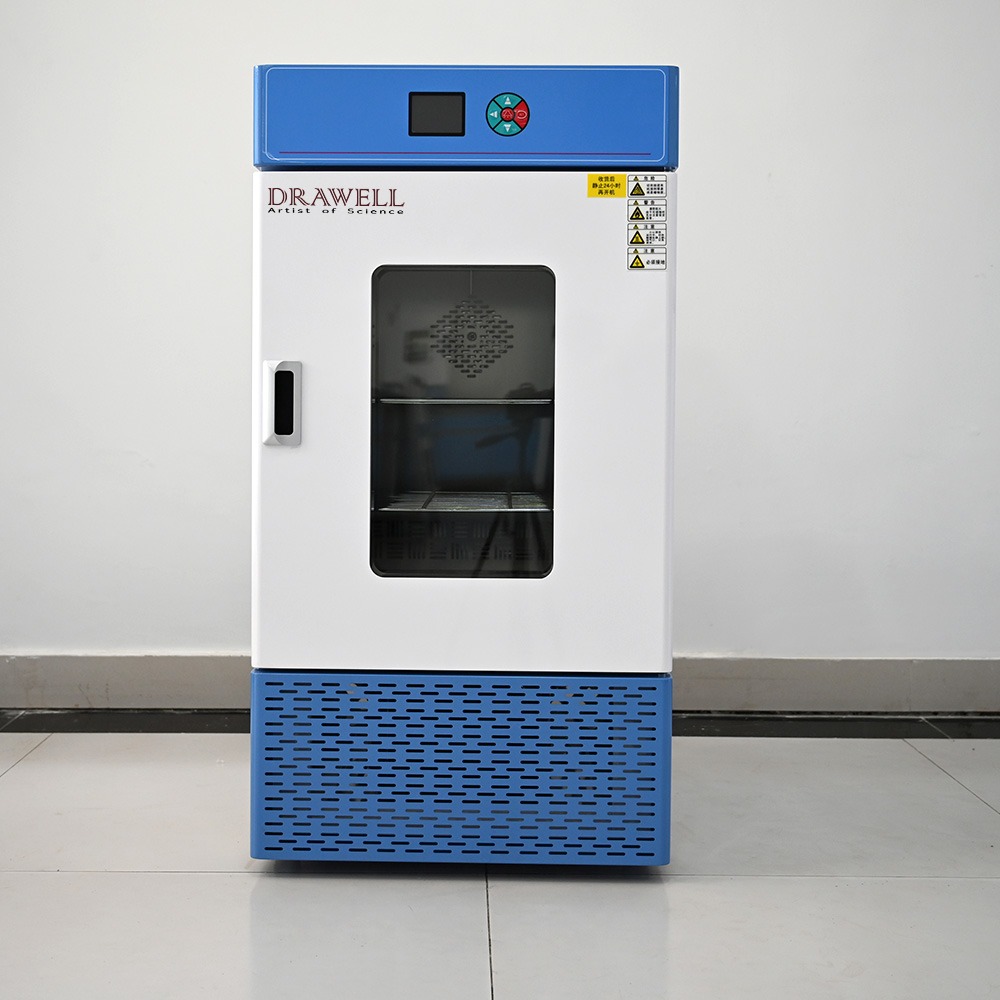

DMJ-B Basic Mold Culture Chamber

Features of DMJ-B Basic Mold Culture Chamber

• The box body shell is made of high-quality galvanized sheet, and its surface is treated by electrostatic spraying technology. The design is elegant and practical, with excellent corrosion resistance and durability.

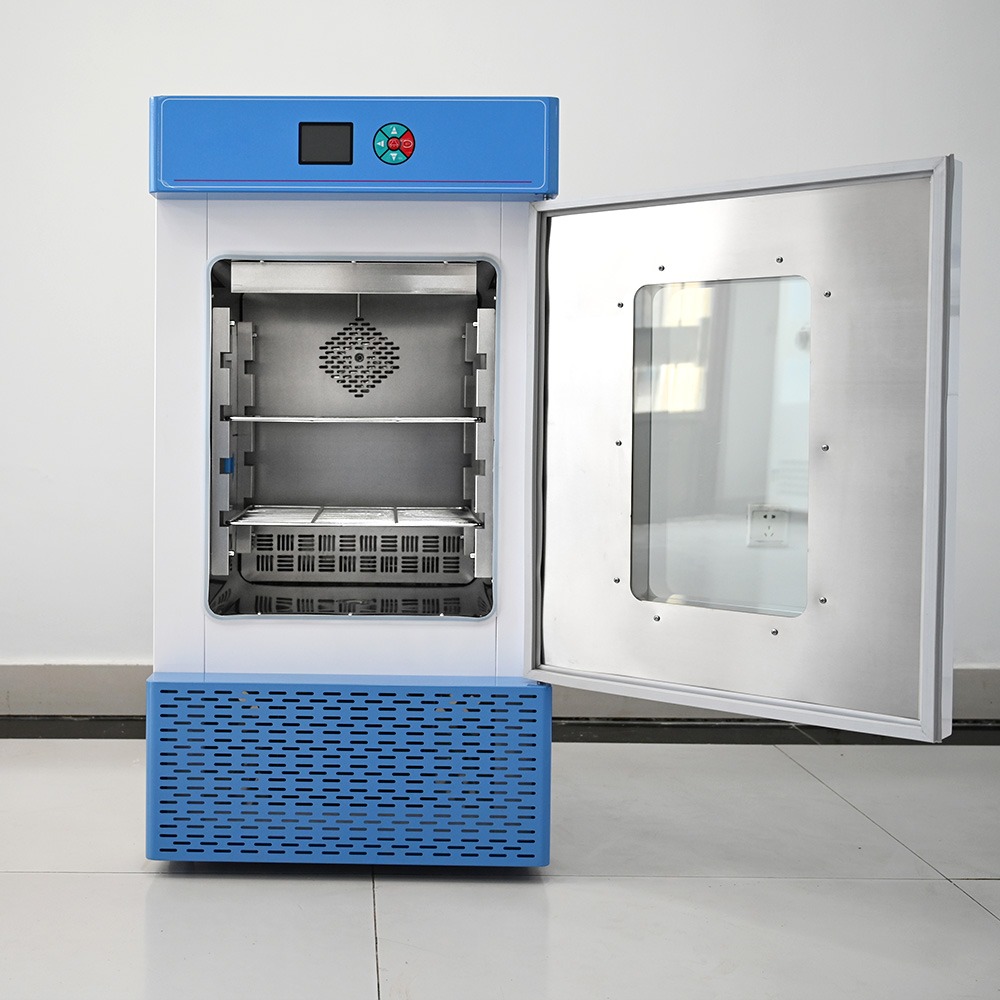

• The inner liner is made of high-quality stainless steel. The four corners smoothly transition into semi-circular shapes, facilitating cleaning. The height of the shelves can be adjusted freely.
• Single-door structure design: Tempered glass observation window, sealed with magnetic rubber strips, and an ultraviolet sterilization lamp is installed in the working chamber.
• Microcomputer control system, large-screen liquid crystal display, touch-type operation buttons, easy to operate;
• Using high-quality compressors and circulating fans, it achieves low energy consumption and energy conservation.
• Install a temperature alarm system with automatic temperature limit and automatic power-off function to ensure the safety of the experiment.
• The excellent insulation design ensures good sealing performance and prevents temperature loss.

Specifications of DMJ-B Basic Mold Culture Chamber

Model	DMJ-50B	DMJ-80B		DMJ-150B		DMJ-250B		DMJ-350B		DMJ-460B
Capacity	50L	80L		150L		250L		350L		460L
Power supply	220V 50Hz
Temperature control range	5℃-65℃
Temperature distribution accuracy	±1℃
Temperature resolution	0.1℃
Temperature fluctuation degree	High temperature ± 0.5℃, low temperature ± 1℃
Inner liner material	201 stainless steel inner liner
Shell material	Galvanized sheet (electrostatic spraying)
Insulation layer	Polyurethane
Compressor	Air-cooled sealed compressor
Refrigerant	R134a
Heater	Stainless steel heating tube
Defrost function	Intelligent control for automatic defrosting
Temperature control	Single-stage liquid crystal intelligent PID controller
Timer function	0-9999min
Operating mode	Fixed-value operation, timed operation, automatic stop
Test hole	Standard configuration – one
Sensor	PT100
Power	500w		600w		800w		1000w		1200w		1400w
Inner liner dimensions (mm)	350×350×400		400×400×500		400×500×750		500×550×910		600×600×1000		650×650×1100
Dimensions (mm)	580×460×900		610×560×1070		600×660×1400		700×720×1590		790×760×1640		850×805×1630
Packaging dimensions (mm)	615×510×980		690×620×1150		770×735×1520		820×800×1660		870×860×1800		990×1040×1970
Standard/Maximum Spacer	2/3		2/4		2/7		2/9		2/10		2/11
Separator spacing	75mm		75mm		80mm		80mm		83mm		80mm
Separator load-bearing capacity	20kg
Additional functions	Ultraviolet lamp
Optional functions	Waterproof socket
