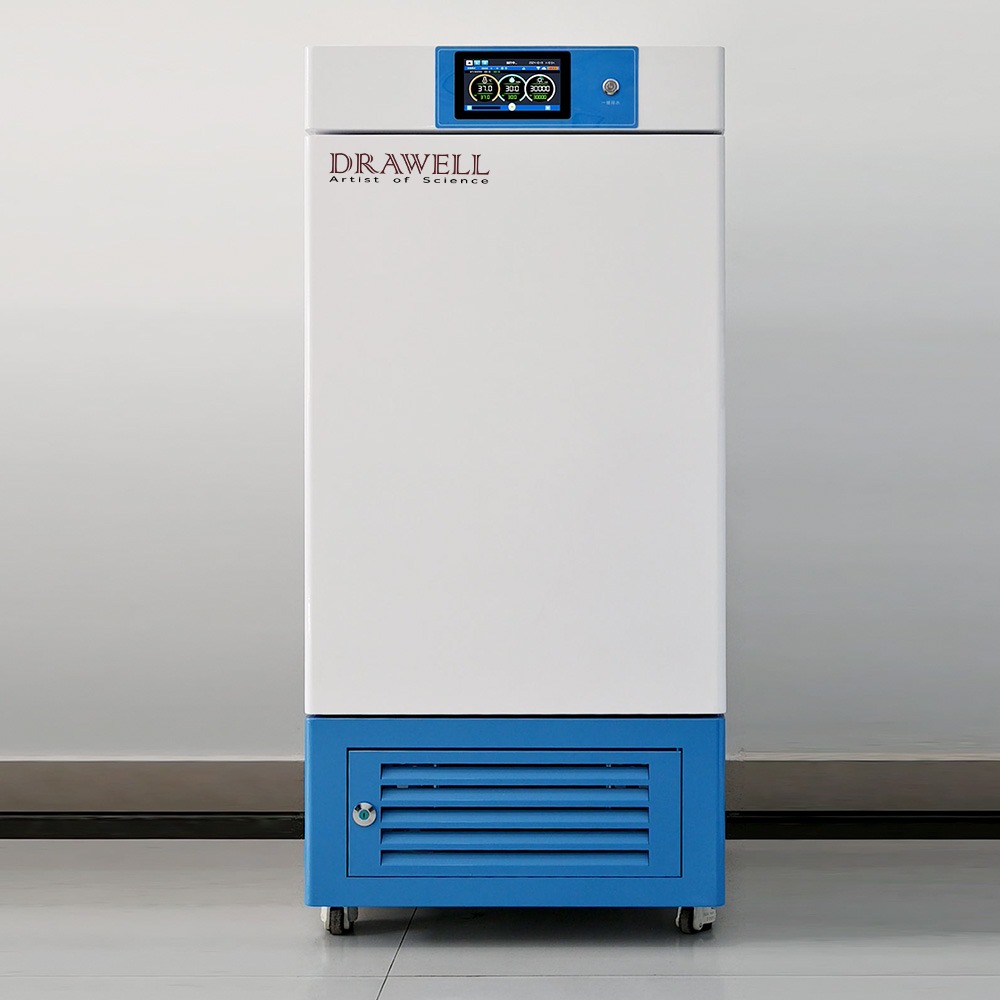

Features of DLCD-C Series Partition Lighting Illumination Incubator
- The product casing is made of high-quality galvanized sheet, with surface electrostatic spraying. The design is elegant. The working chamber is processed from high-quality stainless steel, which is corrosion-resistant and resistant to aging. The inner liner has a rounded edge transition around the periphery.
- The LED full-spectrum lighting is more similar to natural light. The light intensity can be adjusted, and the light is stronger and more uniform.
- Large screen touch screen, multiple sets of data displayed on one screen, two operation modes (fixed value and program), with temperature curve and data storage function;
- It adopts a variable-frequency compressor, featuring energy-saving, low noise, and no frosting problems.

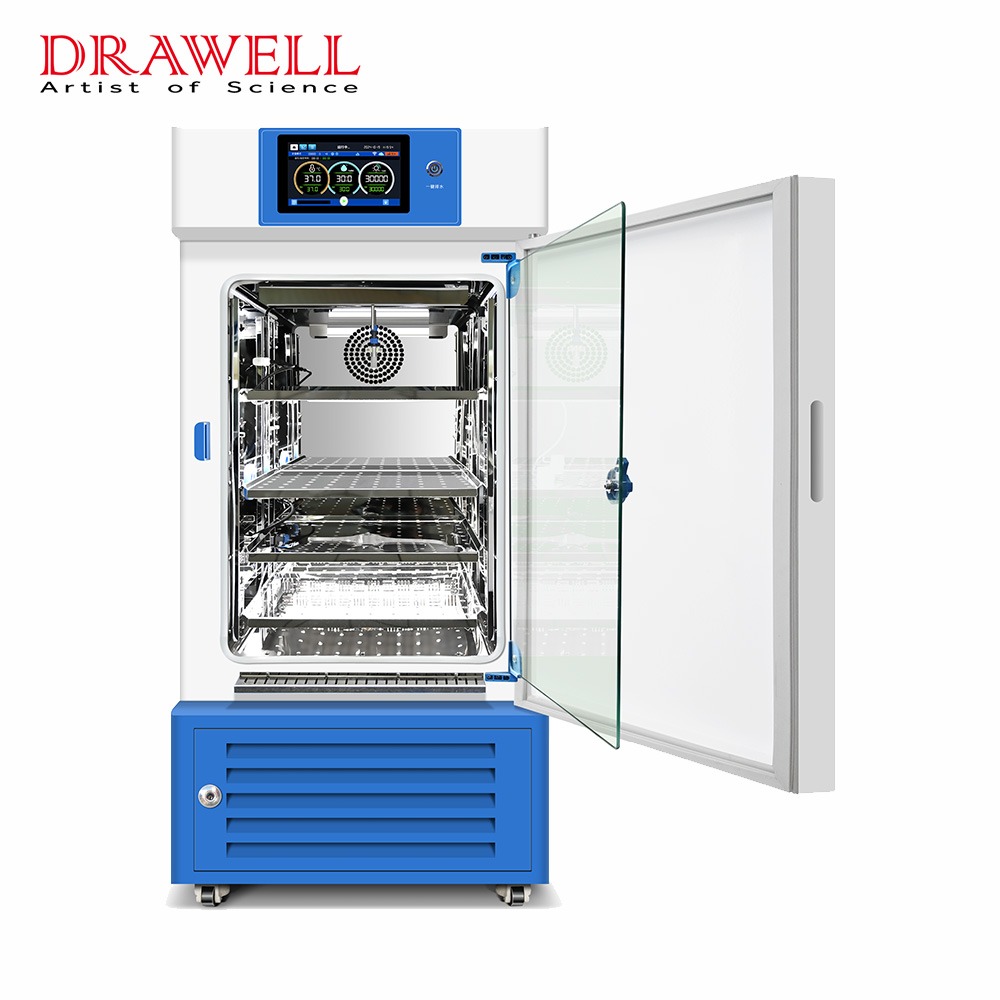

- Double-layer door structure. The inner door is made of high-quality tempered glass for easy observation of the samples, while the outer door is equipped with magnetic rubber strips, which are easy to open and close and have good sealing performance.
- The intelligent defrosting function ensures that the equipment can run without ice accumulation for a long time. It is equipped with a standard mechanical independent temperature controller for dual protection, ensuring safe operation.
- It is equipped with multiple safety measures such as compressor overheating protection and instrument failure protection to ensure the safety of the experiment.
- Additional functions such as printer installation, 485 interface, and SMS alarm can be added.
Specifications of DLCD-C Series Partition Lighting Illumination Incubator
| Model | DLCD-150C | DLCD-250C | DLCD-350C | DLCD-460C | |||
| Cyclic mode | Mandatory convection | ||||||
| Operating temperature range | With light: 10℃ – 65℃; Without light: 0℃ – 65℃ | ||||||
| Temperature resolution | 0.1℃ | ||||||
| Temperature fluctuation degree | ±1℃ | ||||||
| Temperature distribution accuracy | ±1.5℃（37℃） | ||||||
| Illuminance (LX) | 0 – 45000 LX (Supports input illuminance) | ||||||
| Studio | 304 mirror-finish stainless steel | ||||||
| Shell | Galvanized sheet electrostatic painting | ||||||
| Light-blocking panel | Standard equipped with 2-layer full-spectrum LED lamp panel | ||||||
| Heater | Stainless steel heating tube | ||||||
| Compressor | Use variable-frequency compressor | ||||||
| Rated power | 800W | 1000W | 1200W | 1400W | |||
| Refrigerant | R134A | ||||||
| Defrosting mechanism | Automatically | ||||||
| Temperature control method | Program control | ||||||
| Temperature setting method | Touchscreen settings | ||||||
| Temperature representation method | 7.0-inch touch screen display | ||||||
| Operating function | Fixed-value operation, timed operation, automatic start/stop / appointment start, program control | ||||||
| Program mode | 100 * 5 program control | ||||||
| Sensor | PT100 temperature sensor | ||||||
| Safety device | Overheating will automatically cut off the heating, and if the temperature is consistently too low, the refrigeration system will be shut down to protect the samples; the circuit has self-diagnostic function. | ||||||
| Inner liner dimensions (mm) | 400×500×750 | 500×550×910 | 600×600×1000 | 650×650×1100 | |||
| Dimensions (mm) | 600×650×1330 | 700×705×1550 | 780×750×1605 | 845×805×1710 | |||
| Packaging dimensions (mm) | 770×735×1520 | 820×800×1660 | 870×860×1800 | 990×1040×1970 | |||
| Volume of content | 150L | 250L | 350L | 460L | |||
| Supporting plate | 15kg | 15kg | 15kg | 15kg | |||
| Power supply | 220V50HZ | ||||||
| Partition board | 2 floors | ||||||
| Can be equipped with accessories | Lighting partition, USB communication interface and upper computer software, printer, wireless SMS alarm system | ||||||
| Additional functions | Appointment for power on/off, historical temperature data curve query, USB data storage export, menu key lock for deviation correction, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting | ||||||
