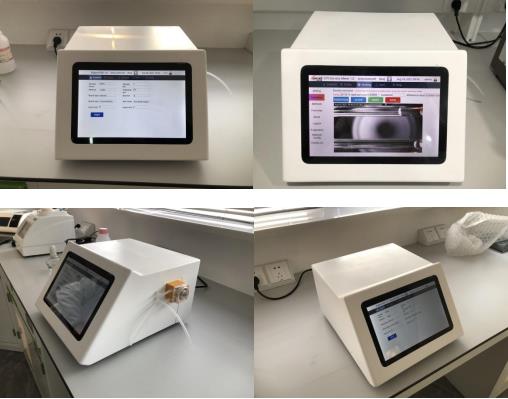

DigiPol-D Density Meter
The Digipol-D series automatic densitometer is based on the principle of U-tube oscillation method, which perfectly combines Peltier’s precise temperature control technology with high-definition video camera technology to not only provide accurate, stable and reliable test results, but also provide users with efficient and convenient test experience. High-definition video can see whether there is bubble influence in the sample, using pulse excitation, high-precision detection technology, convenient for users to accurately and quickly measure the sample density
Features of DigiPol-D Density Meter
1. Automatic integration to realize the function of one-key measurement.
2. Built-in Parpaste temperature control, improve accuracy and stability.
3. Avoid bubbles in HD video.
4. Data can be printed directly through the printer.
5. Compliance with 21CFR Part 11, audit trail, pharmacopoeia and electronic signature.
Specifications of DigiPol-D Density Meter
|Model||DigiPol -D50||DigiPol -D70|
|Test mode||–||Density, alcohol concentration and custom formula|
|Measuring range||0 g/cm3 to 3 g/cm3||0 g/cm3 to 3 g/cm3|
|Resolution||±0.0001 g/cm3||±0.00001 g/cm3|
|Repeatability||±0.0001 g/cm3||±0.00008 g/cm3|
|Accuracy||±0.0003 g/cm3||±0.00005 g/cm3|
|Injection method||Automatic (compatible with manual)||Automatic (compatible with manual)|
|Temperature control method||Peltier||Peltier|
|Temperature control range||5℃-45℃||5℃-65℃|
|Temperature control stability||±0.02℃||±0.02℃|
|Display method||10.4 inch FTF color touch screen||10.4 inch FTF color touch screen|
|output method||USB, RS232, RJ45, SD card, U disk||USB, RS232, RJ45, SD card, U disk|
|User Management||Yes / four-level authority management||Yes / four-level authority management|
|Custom method library||YES||YES|
|Export file to verify high-level protection MD5||YES||YES|
|Export in multiple file formats||PDF & Excel||PDF & Excel|
|Power supply||110V -230V 50Hz / 60Hz||110V -230V 50Hz / 60Hz|
