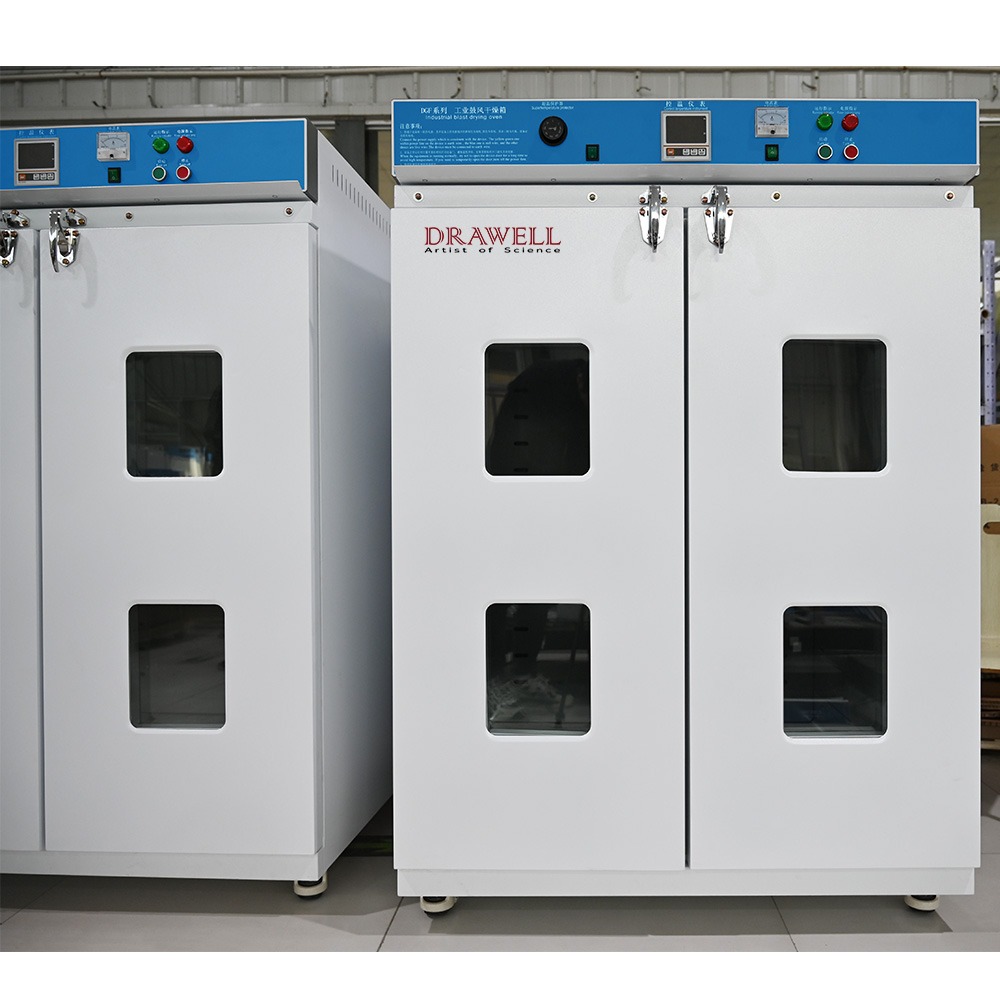

Features of DGF-9640A/B/C Industrial Forced-Air Drying Oven
- The shell is made of high-quality galvanized sheet, and its surface is treated by electrostatic spraying technology. The design is elegant and practical, with excellent corrosion resistance and durability.
- The workshop uses galvanized sheet or high-quality stainless steel to process and shape the wells. These wells have undergone anti-corrosion treatment. The height of the plates can be adjusted, and the four corners are in semi-circular arcs, which is convenient for cleaning.
- The back heating system is safe and reliable, occupies a small space, and is an ideal choice for processing and manufacturing as well as experiments in factory workshops.
- The all-round three-dimensional forced air supply technology ensures uniform and consistent temperature throughout the working area.
- Double-layer tempered glass observation window, with adjustable height of the built-in shelf, providing clear observation and convenient use.
- Microcomputer intelligent digital temperature control instrument, equipped with an over-temperature protector, ensuring no overshoot in temperature. It also has functions such as timing and over-temperature alarm.
- One-click start/stop function, equipped with power indicator light, operation status indicator light and current output indicator, ensuring the safe and reliable operation of the equipment.
- Excellent heat insulation design enables long-term operation at high temperatures, with a long service life. It is green, energy-saving and environmentally friendly.
- The product is equipped with high-temperature-resistant silicone sealing strips, combined with a lock-type adjustable door lock, ensuring excellent sealing performance and preventing heat loss.
Specifications of DGF-9640A/B/C Industrial Forced-Air Drying Oven
| Model | DGF-9640A | DGF-9640B | RGF-9640C |
| Volume | 640L | ||
| Rated power supply | 220V 50HZ | ||
| Temperature control range | RT+10℃-300℃ | ||
| Humidity resolution | 0.1 | ||
| Humidity fluctuation degree | ±1℃(100℃时) | ||
| Temperature distribution accuracy | ±3% | ||
| Inner liner material | Galvanized inner liner | 201 stainless steel inner liner | 304 stainless steel inner liner |
| Shell material | Galvanized sheet (surface electrostatically sprayed) | ||
| Insulation layer | Ceramic fibers | ||
| Heater | Stainless steel heating tube | ||
| Rated power | 6000W | ||
| Number of fans | Two (back) | ||
| Exhaust hole (test hole) | φ35mm (top) 2 pieces | ||
| Control Panel | LCD | ||
| Humidity sensor | PT100 | ||
| Timer function | 0-9999min | ||
| Operating mode | Fixed-value operation, timed operation, automatic stop | ||
| Inner liner dimensions (mm) | 800×800×1000 | ||
| Dimensions (mm) | 1035×980×1400 | ||
| Standard/Maximum Spacer | 2/10 | ||
| Separator spacing | 80mm | ||
| Supporting plate | 30kg | ||
| Gross weight | 245kg | ||
