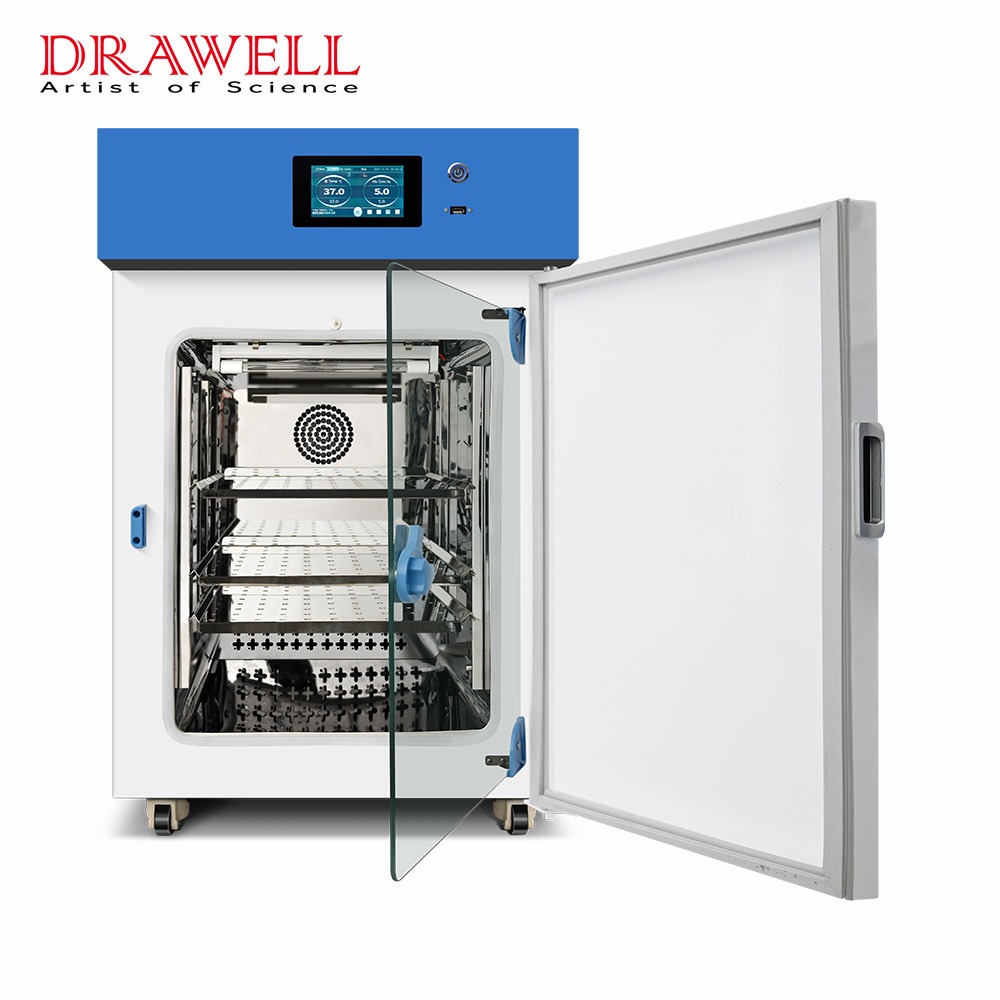

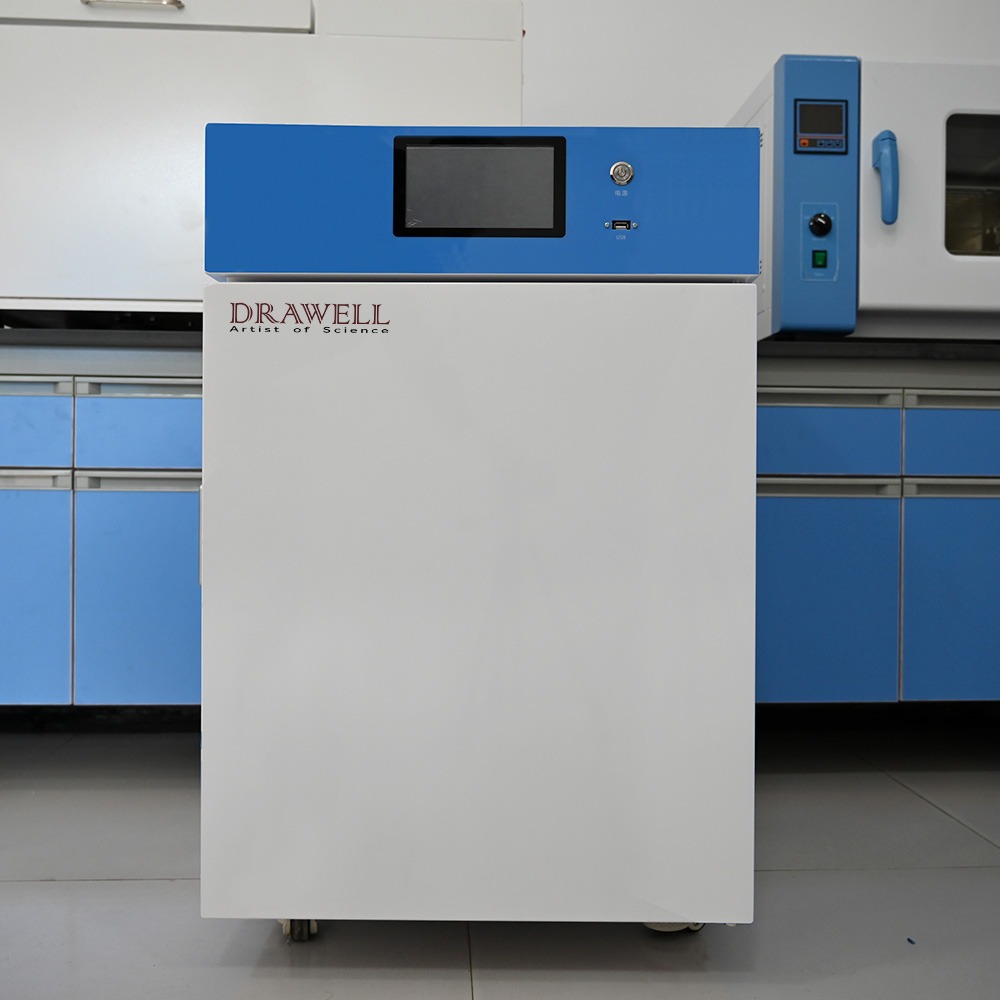

DCP-85E CO2 Incubator

Features of DCP-85E CO2 Incubator

1. It has the functions of viewing real-time curves such as temperature and CO2 concentration, as well as historical data curves.
2. It has the functions of data recording, downloading and exporting (USB flash drive export, in two formats： CVS and PDF).
3. It has the functions of fault alarm and fault information viewing.
4. UV sterilization function: It can regularly sterilize the inside of the box, effectively preventing contamination during cell culture.
5. Microbial filter: The CO2 inlet is equipped with a microbial filter, which has a filtration efficiency of up to 99.99% for particles with a diameter greater than 0.3μm.
6. 4.3-inch touch screen control display, with real-time monitoring and control of parameters such as temperature and CO2 concentration;
7. The controller has a locking function to prevent accidental operation.
8. PT100 temperature sensor, ensuring precise control of the temperature inside the box;
9. Six-sided heating: The outer box door is equipped with a heating function, which can effectively prevent the formation of condensation water and facilitate the observation of the experimental process.
10. Set temperature alarm, over-temperature alarm, CO2 concentration alarm, and disinfection and sterilization status indication. Support both text and sound alarm functions.
11. It can effectively control the intake efficiency of CO2, preventing the influence on intake stability caused by excessive or insufficient pressure.
12. Using an infrared IRCO2 concentration sensor, the control is stable and the service life is long.
13. The product is equipped with a three-level permission management function, which enables different personnel to operate at different levels.

Specifications of DCP-85E CO2 Incubator

Model	DCP-85E
Volume (L)	80L
Power supply voltage	220V50Hz
Heating method	Air sleeve type microcomputer PID control
Temperature control range	RT+3℃-60℃
Working environment temperature	5℃-30℃
Temperature fluctuation degree	±0.1℃(At 37 degrees Celsius)
Temperature uniformity	±0.3℃(At 37 degrees Celsius)
CO2 control range	0%-20%
CO2 control accuracy	0.1%
CO2 recovery time	The temperature returns to 5% in 30 seconds after opening the door.
Temperature recovery time	The temperature returns to 37℃ in 30 seconds after opening the door.
Relative humidity	Natural evaporation is ≥ 90%.
Inner liner dimensions (mm)	400*415*515
Overall dimensions (mm)	590*600*920
Loading compartment (standard/maximum)	3/7
Sterilization method	Ultraviolet sterilization
