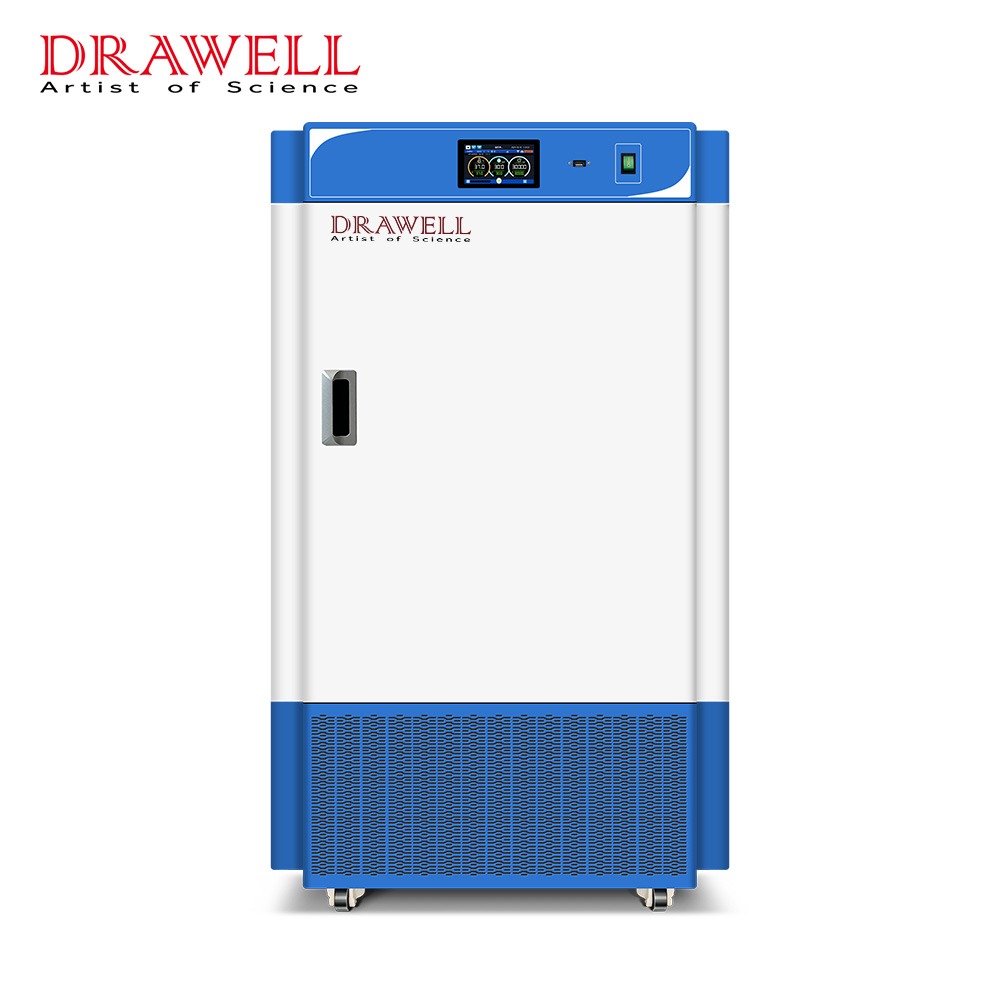

DACS-C Series Three-sided Lighting Climate Chamber

Model: DACS-80C DACS-150C DACS-250C DACS-350C DACS-460C

DACS-C Brochure

Features of DACS-C Series Three-sided Lighting Climate Chamber

  1. The product casing is made of high-quality steel plates and is electrostatically sprayed on the surface. It has a beautiful design.
  2. The studio is made of high-quality stainless steel, which is corrosion-resistant and resistant to aging. The inner container has a rounded edge transition and is equipped with a tempered glass door.
  3. Using LED full-spectrum lighting is closer to natural light. The illumination intensity can be adjusted and the illumination is more uniform.
  4. It adopts a variable-frequency compressor, featuring energy-saving, low noise, and no frosting problems.
  5. It is equipped with multiple safety measures such as compressor overheating protection and instrument failure protection to ensure the safety of the experiment.
  6. Liquid crystal touch screen, with 100 levels of illumination and temperature settings, and automatic adjustment and conversion; it can automatically simulate changes such as day and night, different temperatures, and different illumination levels.
  7. It can be equipped with a printer, 485 interface, SMS alarm and other functions.

Specifications of DACS-C Series Three-sided Lighting Climate Chamber

ModelDACS-80CDACS-150CDACS-250CDACS-350CDACS-460C
Volume80L150L250L350L460L
Rated power supply220V 50HZ
Temperature control rangeWith light: 10℃ – 65℃; Without light: 5℃ – 65℃
Temperature resolution0.1℃
Temperature fluctuation degree±2℃
Humidity range30% – 95% RH (ultrasonic humidification is optional for plant cultivation)
Light intensity0-18000LX
Inner container material304 stainless steel inner liner
Insulation layer Polyurethane
HeaterStainless steel heating tube
Rated power600W800W1000W1200W1400W
Control PanelTouchscreen
Temperature sensorPT100
Timer functionmax:999h59min
Inner container dimensions (mm) 400×400×500405×500×755505×545×915585×600×1050650×650×1100
