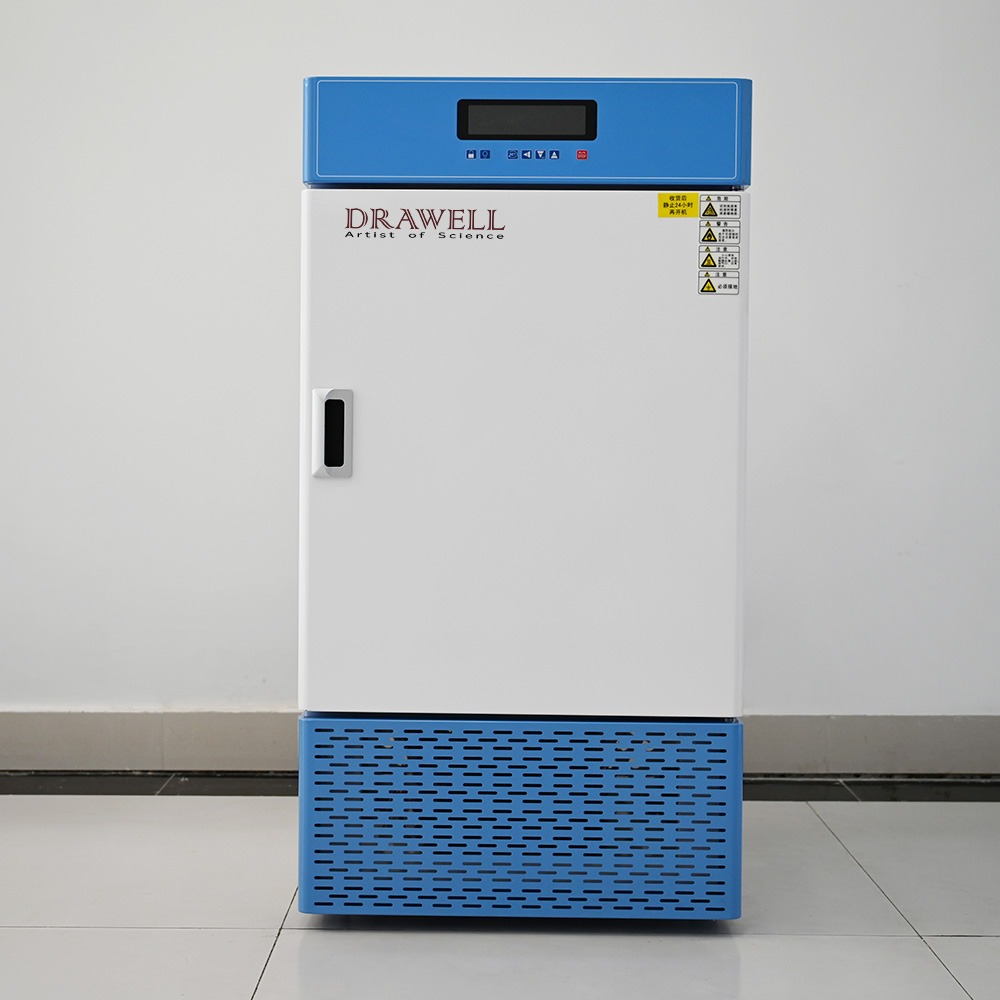

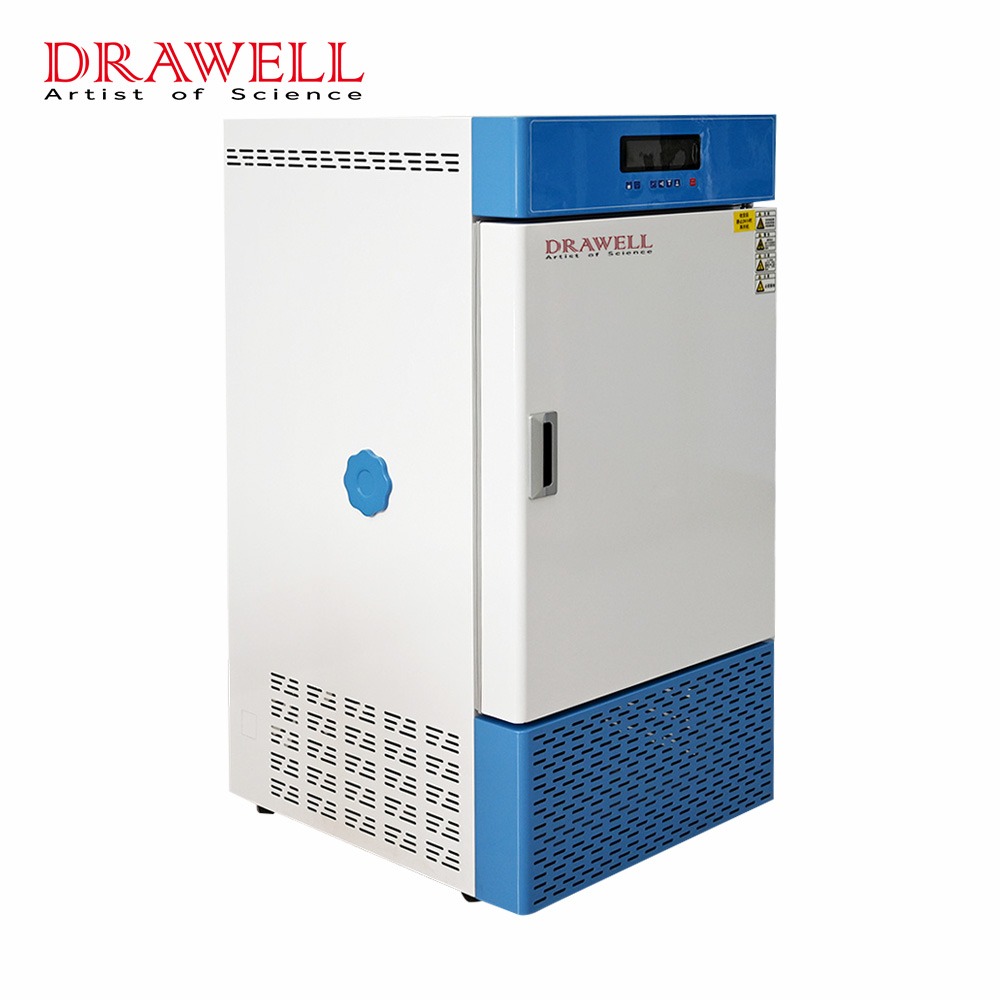

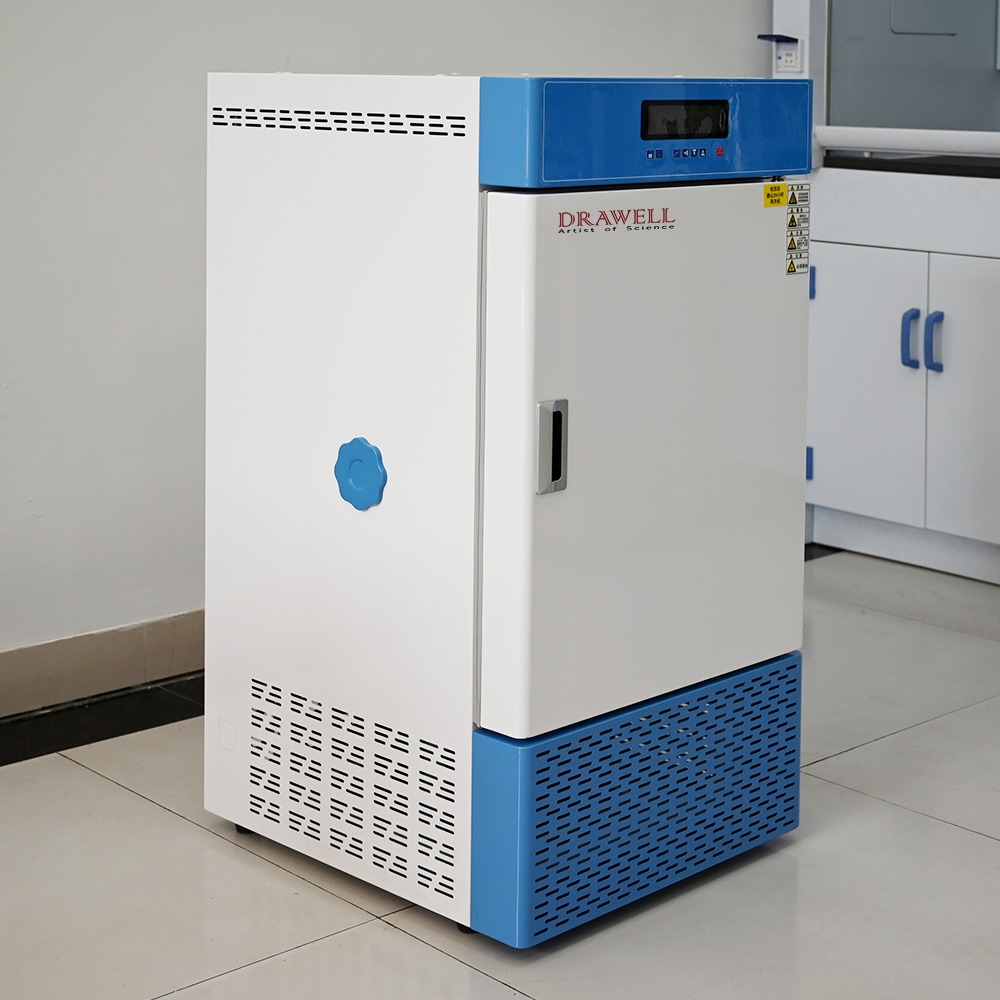

Features of DACM-B Series Single-sided Lighting Climate Chamber
- The product casing is made of high-quality steel plates and is electrostatically sprayed on the surface, presenting a beautiful appearance.

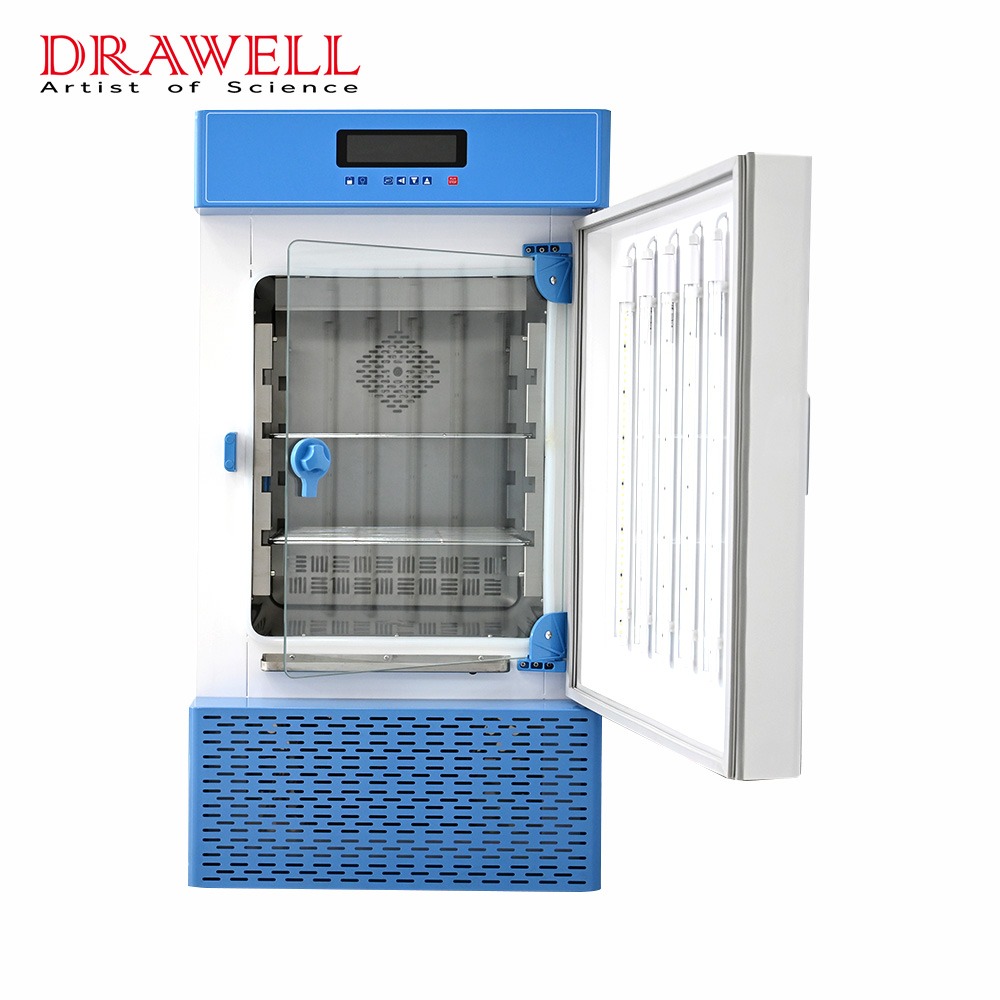

- The studio is made of high-quality stainless steel, which is corrosion-resistant and resistant to aging. The inner container has a rounded edge transition and is equipped with a tempered glass door.
- Using LED full-spectrum lighting is closer to natural light, with adjustable illumination intensity and more uniform lighting.
- Intelligent microcomputer control system, with precise and reliable temperature control;
- Brand compressor uses non-chlorofluorocarbon environmentally friendly refrigeration technology. The gentle air circulation ensures uniform temperature inside the box.
- It is equipped with multiple safety measures such as compressor overheating protection and instrument failure protection to ensure the safety of the experiment.
- Humidification method: External humidification. An external ultrasonic humidifier is used, ensuring uniform humidity and featuring a water shortage and power-off protection function.
- Programmable control mode, with 30 levels of illumination and temperature settings, and automatic adjustment and conversion; it can automatically simulate changes such as day and night, different temperatures, and different illumination levels.
- It can be equipped with functions such as printer, 485 interface, USB storage, and SMS alarm.
Specifications of DACM-B Series Single-sided Lighting Climate Chamber
| Model | DACM-80B | DACM-150B | DACM-250B | DACM-350B | DACM-460B |
| Volume | 80L | 150L | 250L | 350L | 460L |
| Rated power supply | 220V 50HZ | ||||
| Temperature control range | With light: 10℃ – 65℃; Without light: 5℃ – 65℃ | ||||
| Temperature resolution | 0.1℃ | ||||
| Temperature fluctuation degree | ±3℃ | ||||
| Humidity range | 40%-90%RH | ||||
| Light intensity | 0-0-1010-10000LXLX0LX | ||||
| Light source | Single-sided lighting, door panel light source, LED full-spectrum cold light source | ||||
| Inner liner material | 210 stainless steel inner liner | ||||
| Insulation layer | Polyurethane | ||||
| Heater | Stainless steel heating tube | ||||
| Compressor | Air-cooled fully enclosed compressor | ||||
| Refrigerant | R134a | ||||
| Defrosting function | Intelligent control for automatic defrosting | ||||
| Temperature control | Programmable instrument | ||||
| Timer function | 0-9999min | ||||
| Operation mode | Fixed-value operation mode, program-controlled operation mode | ||||
| Test hole | Come with a standard one | ||||
| Sensor | PT100 | ||||
| Power | 600W | 800W | 1000W | 1200W | 1400W |
| Inner liner dimensions (mm) | 400×400×500 | 400×500×750 | 500×550×910 | 600×600×1000 | 650×650×1100 |
| Overall dimensions (mm) | 605×555×1060 | 600×650×1360 | 700×705×1550 | 780×750×1610 | 845×805×1715 |
| Packaging dimensions (mm) | 690×620×1150 | 770×735×1520 | 820×800×1660 | 870×860×1800 | 990×1040×1970 |
| Standard/Maximum number of partitions | 2/4 | 2/7 | 2/9 | 2/10 | 2/11 |
| Partition spacing | 75mm | 80mm | 80mm | 83mm | 80mm |
| Partition load-bearing capacity | 20kg | ||||
| Optional functions | Printer, USB interface, 485 interface, SMS alarm module | ||||
