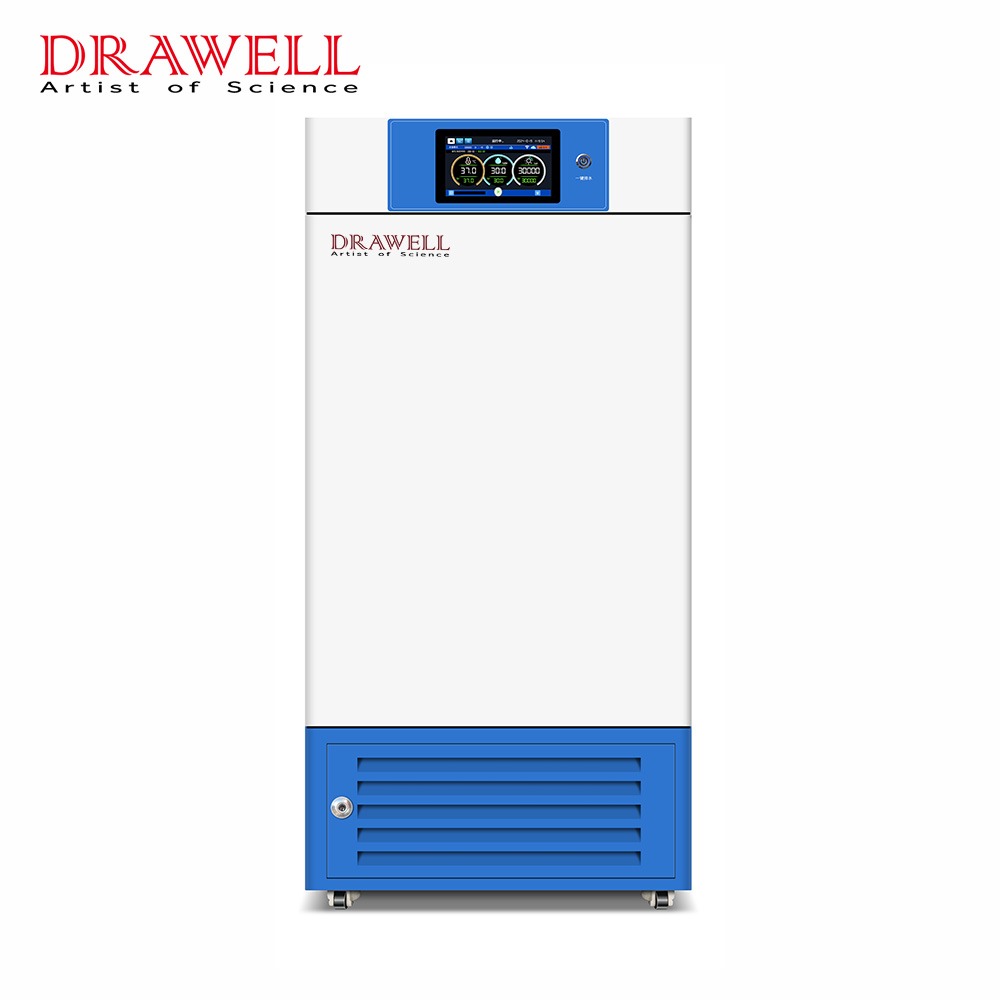

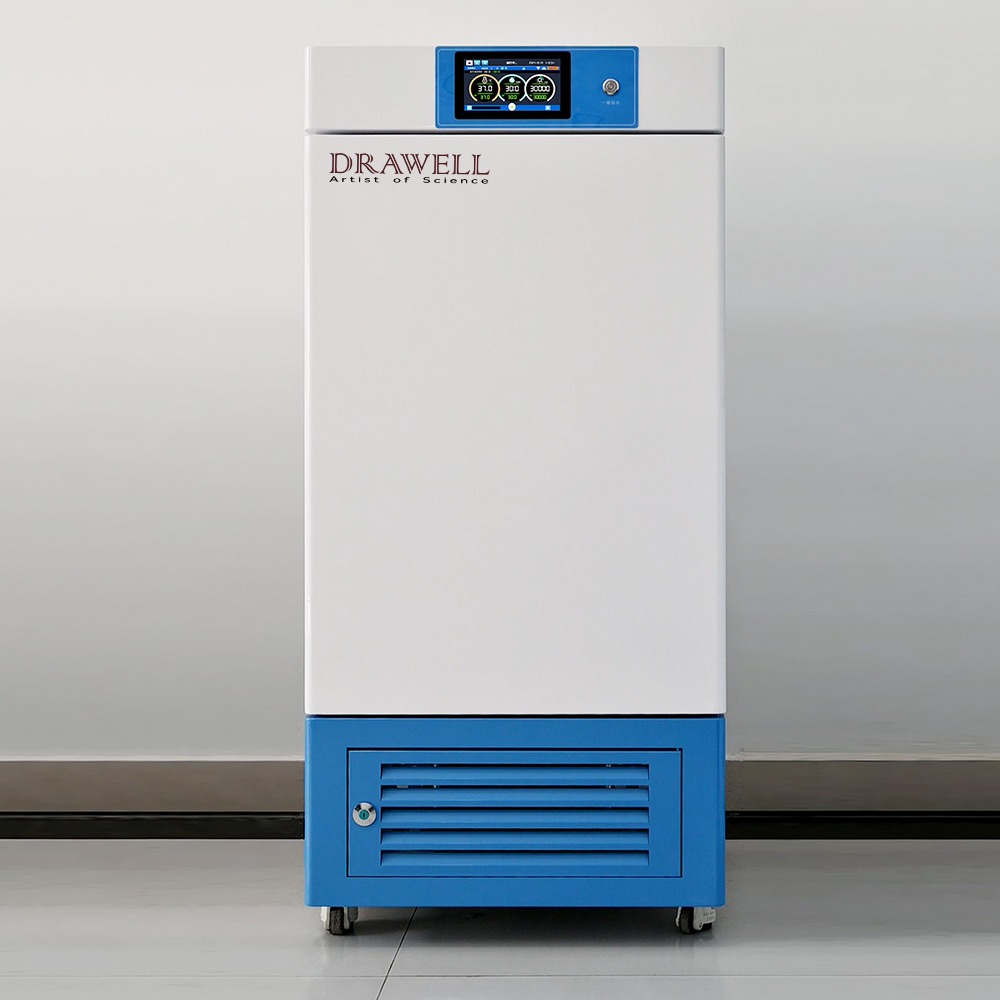

DACD-C Series Partition Lighting Climate Chamber

Model: DACD-150C DACD-250C DACD-350C DACD-460C

DACD-C Brochure

Features of DACD-C Series Partition Lighting Climate Chamber

  1. The product casing is made of high-quality galvanized sheet, with surface electrostatic spraying, presenting a beautiful appearance.
  2. The studio is made of high-quality stainless steel, which is corrosion-resistant and resistant to aging. The inner container has a rounded edge transition and is equipped with a tempered glass door.
  3. Using LED full-spectrum lighting is closer to natural light. The illumination intensity can be adjusted and the light uniformity is excellent.
  4. The intelligent microcomputer control system is equipped with multiple safety measures such as compressor overheating protection and instrument failure protection, ensuring the safety of the experiment.
  5. It adopts a variable-frequency compressor, featuring energy-saving, low noise, and no frosting problems.
  6. Programmable control mode, with 100 levels of illumination and temperature settings, and automatic adjustment and conversion; it can automatically simulate changes such as day and night, different temperatures and humidities, and different illumination levels.
  7. Using steam humidification, the humidification and moisture control are stable, with a humidity fluctuation range of ±5%RH. It also has the functions of automatic water replenishment and power-off when water is insufficient.
  8. Additional functions such as printer installation, 485 interface, USB storage, and SMS alarm can be added. Changes in degree;
  9. It can be equipped with a printer, 485 interface, SMS alarm and other functions.

Specifications of DACD-C Series Partition Lighting Climate Chamber

ModelDACD-150CDACD-250CDACD-350CDACD-460C
Circulation modeMandatory convection
Operating temperature rangeWith light: 10℃ – 65℃; Without light: 0℃ – 65℃
Temperature resolution 0.1℃
Temperature fluctuation degree±1℃
Temperature distribution accuracy±1.5℃（37℃）
Humidity range 45% – 95% RH (ultrasonic humidification is optional for plant cultivation)
Temperature fluctuation degree±3%RH
Illuminance (LX)0-18000L0 – 45000 LX (Supports input illuminance)
Studio304 mirror-finish stainless steel
Lighting partition panelStandard equipped with 2-layer full-spectrum LED lamp panel
HeaterStainless steel heating tube
CompressorUse variable-frequency compressor
Rated power800W1000W1200W1400W
RefrigerantR134A
Defrosting mechanismAutomatically
Temperature control methodProgram control
Temperature setting methodTouchscreen settings
Temperature display method7.0-inch touchscreen display
Operating functionConstant value operation, timed operation, automatic start/stop/预约 start, program control
Program mode100 program controls
Sensor PT100 temperature sensor
Additional functionsAppointment for power on/off, query of historical temperature data curves, USB data storage and export, key lock of deviation correction menu, power outage compensation, power outage memory, loop self-diagnosis, intelligent defrosting
Safety deviceOverheating will automatically cut off the heating, and if the temperature is consistently too low, the refrigeration system will be shut down to protect the samples; the circuit has self-diagnostic function.
Inner container dimensions (mm) 400×500×750500×550×910600×600×1000650×650×1100
Overall dimensions (mm) 600×650×1330700×705×1550780×750×1605845×805×1710
Packaging dimensions (mm) 770×735×1520820×800×1660870×860×1800990×1040×1970
Content volume150L250L350L460L
Weight capacity of the partition board 15kg15kg15kg15kg
Power supply220V50HZ
Partition2 floors
Can be equipped with accessoriesLighting partition, USB communication interface and upper computer software, printer, wireless SMS alarm system
