Automatic Polarimeter Series

The instrument of rotation is the material spiral. Through the rotation of the sample measurement, can be analyzed to determine the concentration of the substance, content, purity, and so on.

Good navigation rotation built-in parr (Peltier) precise temperature control system, automatic photoelectric detection technology, and humanized human-computer interface, with precise measurement process, the advantages of reliable and convenient operation, widely used in sugar, pharmacy, drug testing, food, spices, monosodium glutamate and chemical, oil and other industrial production, scientific research, teaching department, for laboratory analysis or process quality control.

Improve innovative efficiency with Automatic Polarimeter

  1. built in Parr(Peltier) precise temperature control system;
  2. Optical rotation, rotation, concentration, and sugar concentration of four kinds of optional test modes;
  3. the scope of the measurement is upgraded to+89 degrees;
  4. control using a systematic, highly integrated, fully automated, easy to operate.

Model

JH-P100

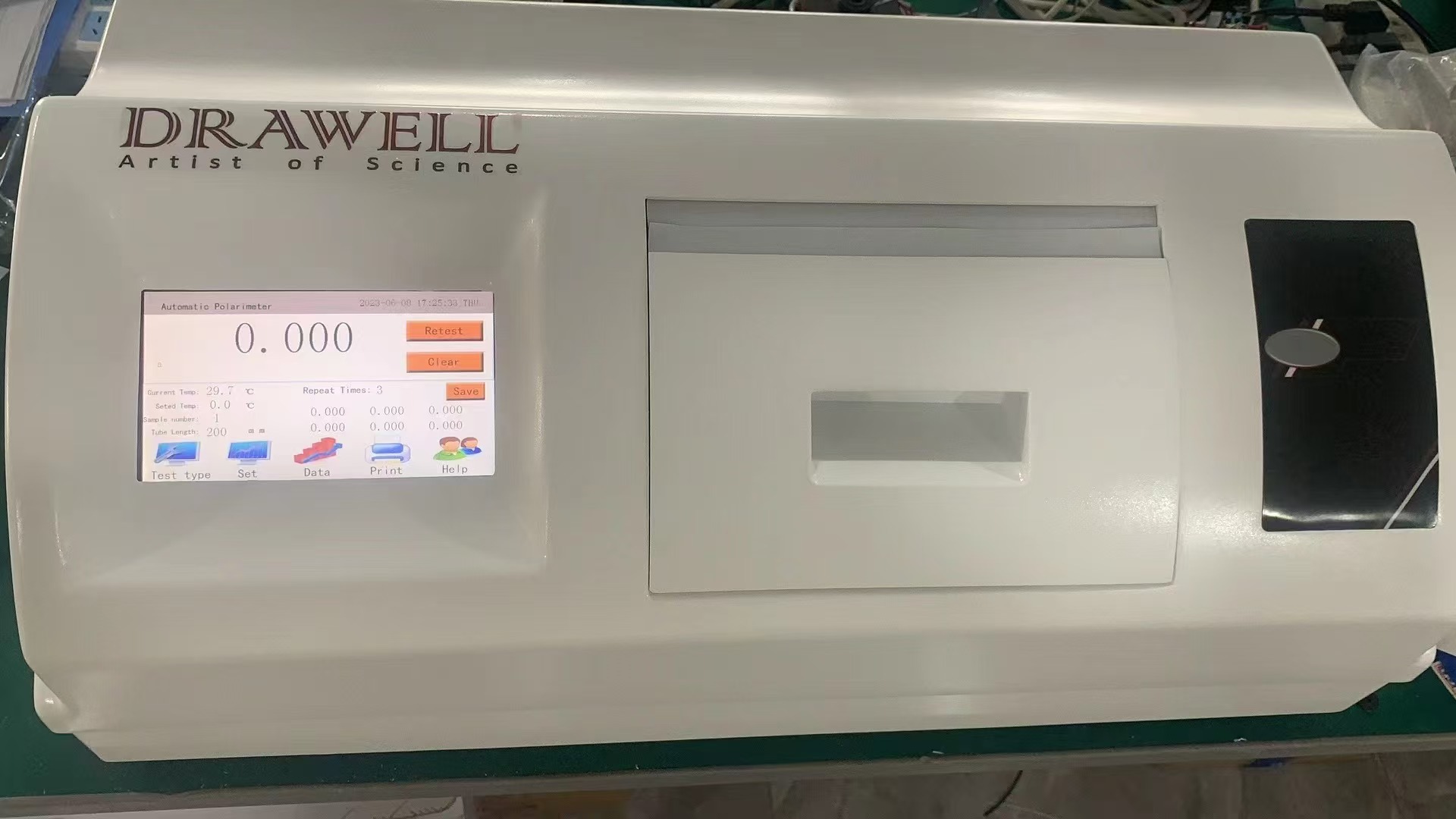

JH-P200

Measurement model

Optical rotation

Optical rotation, rotation, concentration and sugar

Calibration mode

Measuring range

±45.0°

±89.99°

Accuracy

±0.01°(-45°≤optical rotation≤+45°)

±0.01°(-45°≤optical rotation≤+45°)

Min. reading

0.01°(optical rotation)

0.001°(optical rotation)

Repeatability(standard deviations)

0.02°(optical rotation)

0.002°(optical rotation)

Measurable sample min. transmittance

1%

1%

Light source

LED

LED

Working wavelength

589.3mm

589.3mm

Interface

USB,RS232

USB,RS232

Data storage capacity

3 groups

1000 groups

Display mode

LCD

TFT Touch screen

Power

220V AC±10%50HZ

220V AC±10%50HZ

Rated power

220w

250w

Net weight

20kg

24kg

The main technical parameters

Model

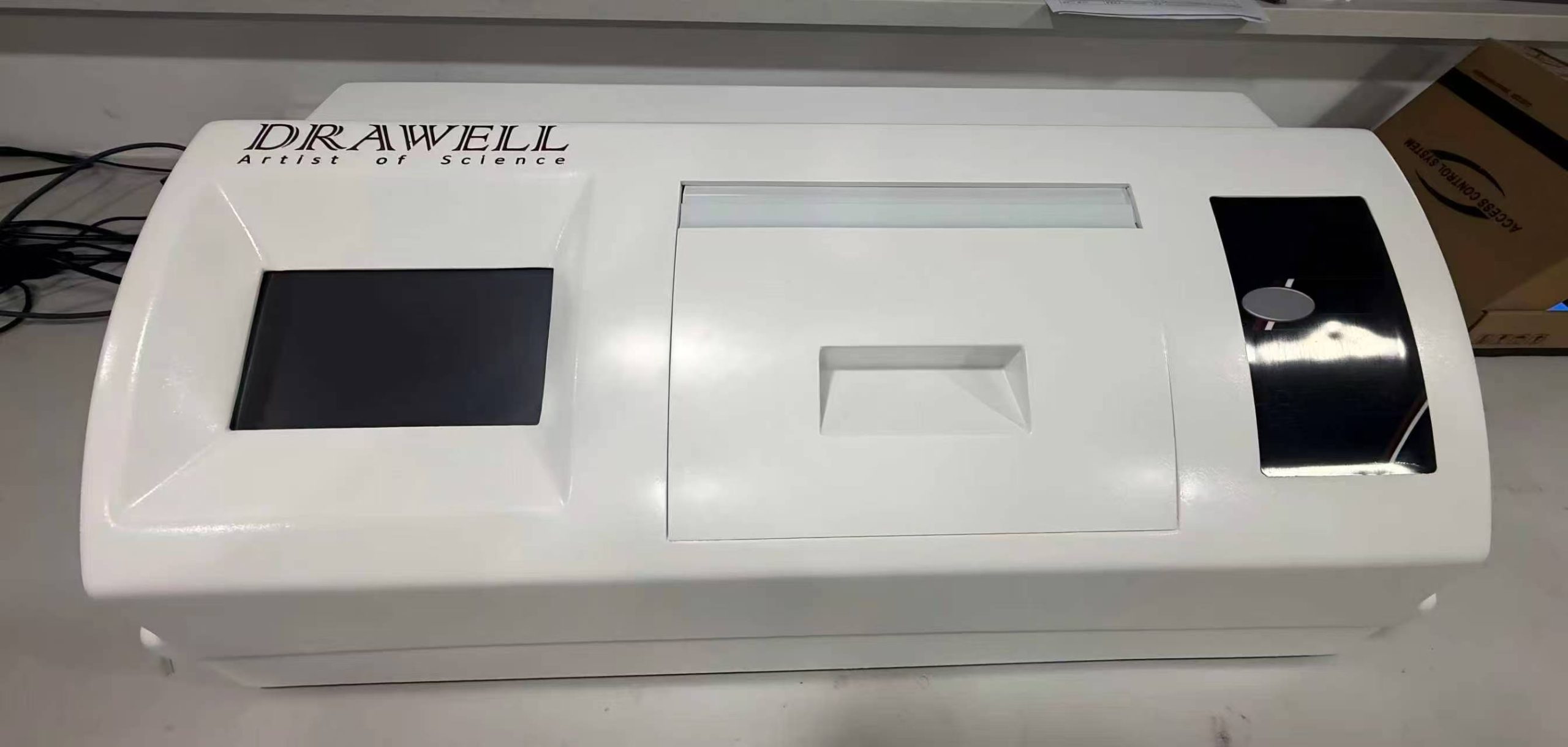

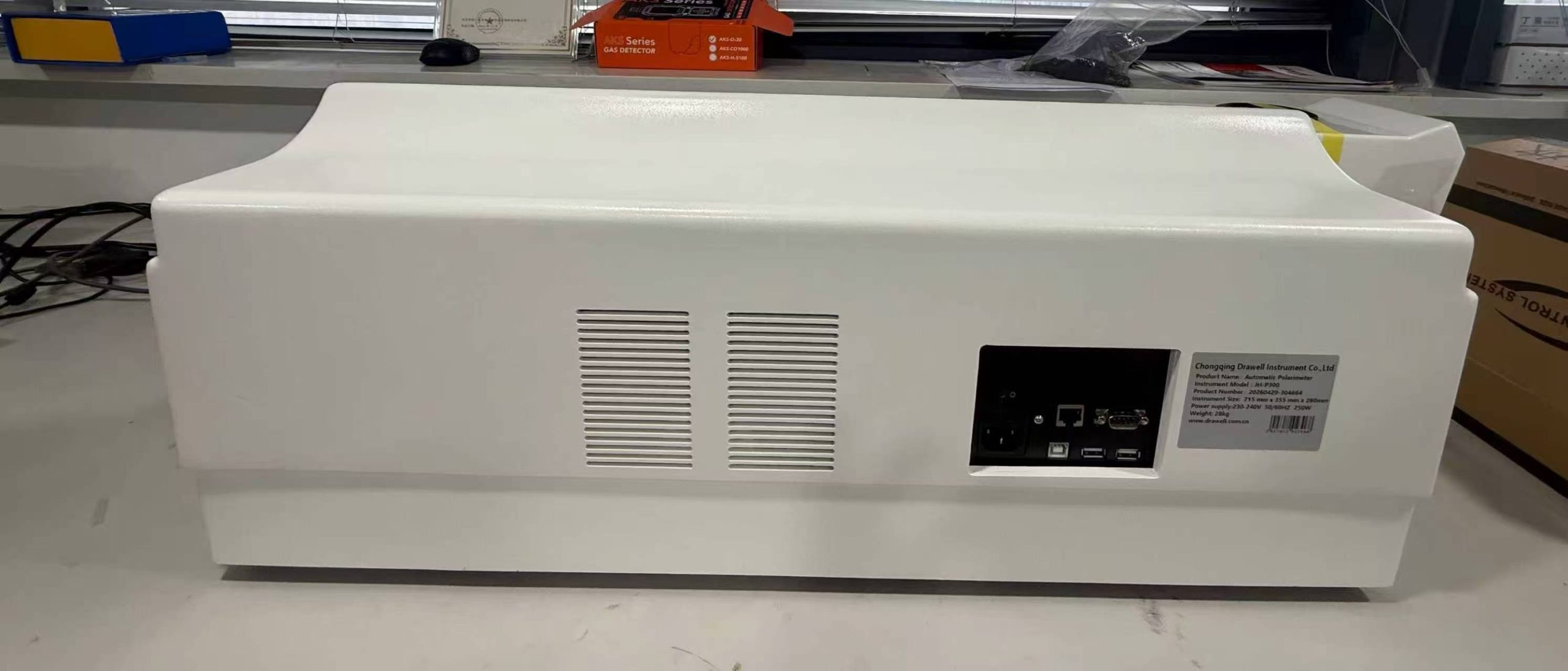

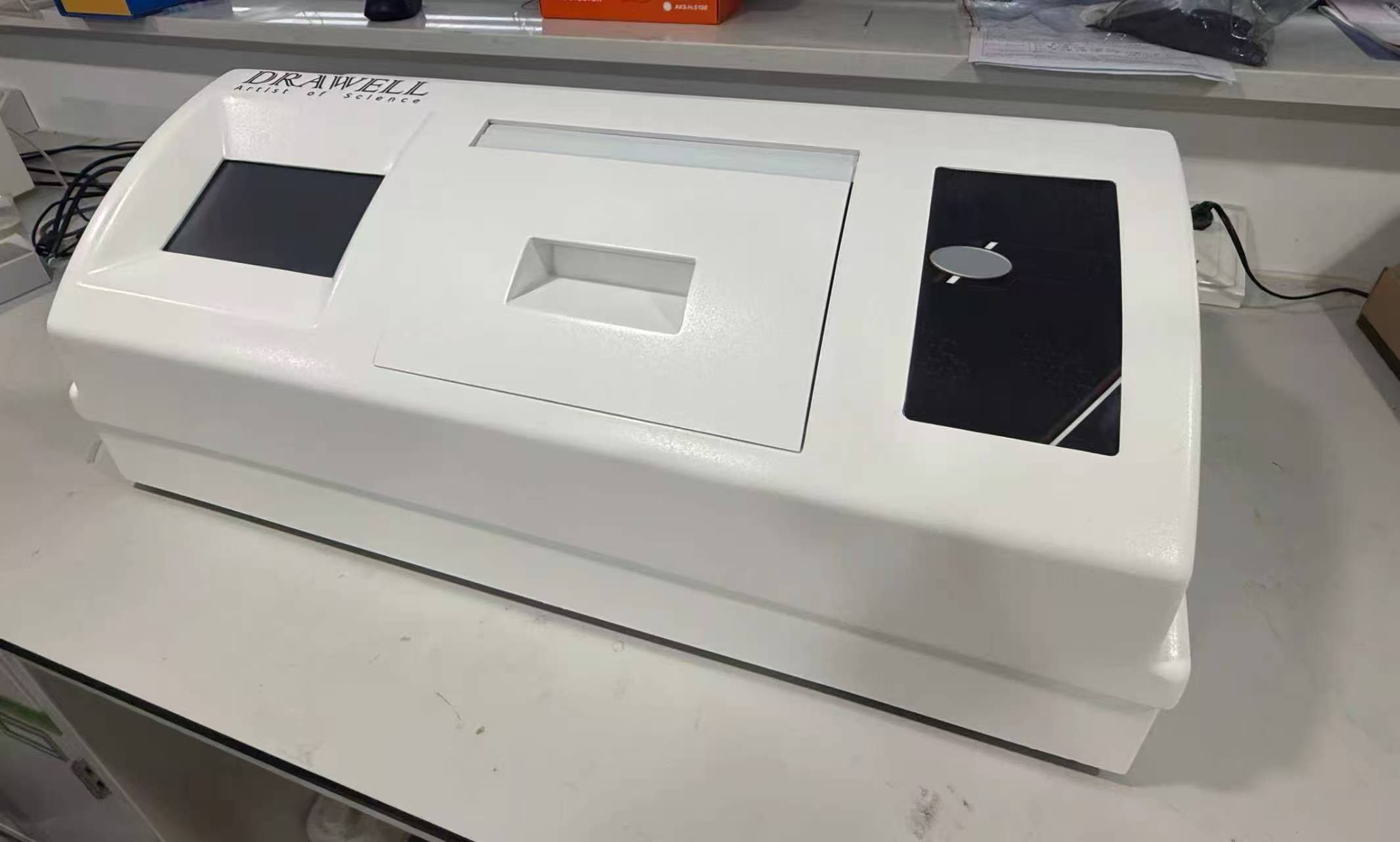

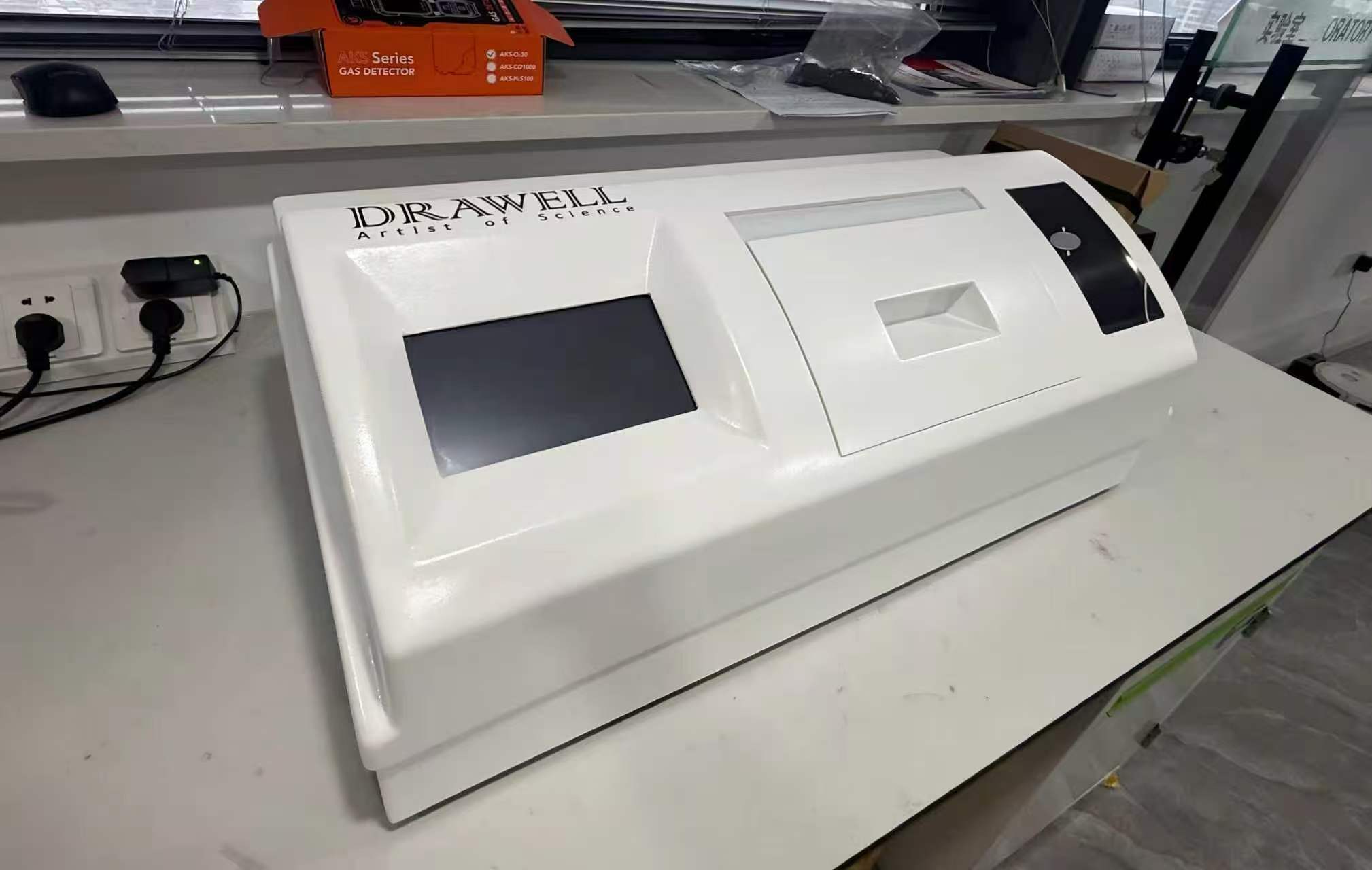

JH-P300

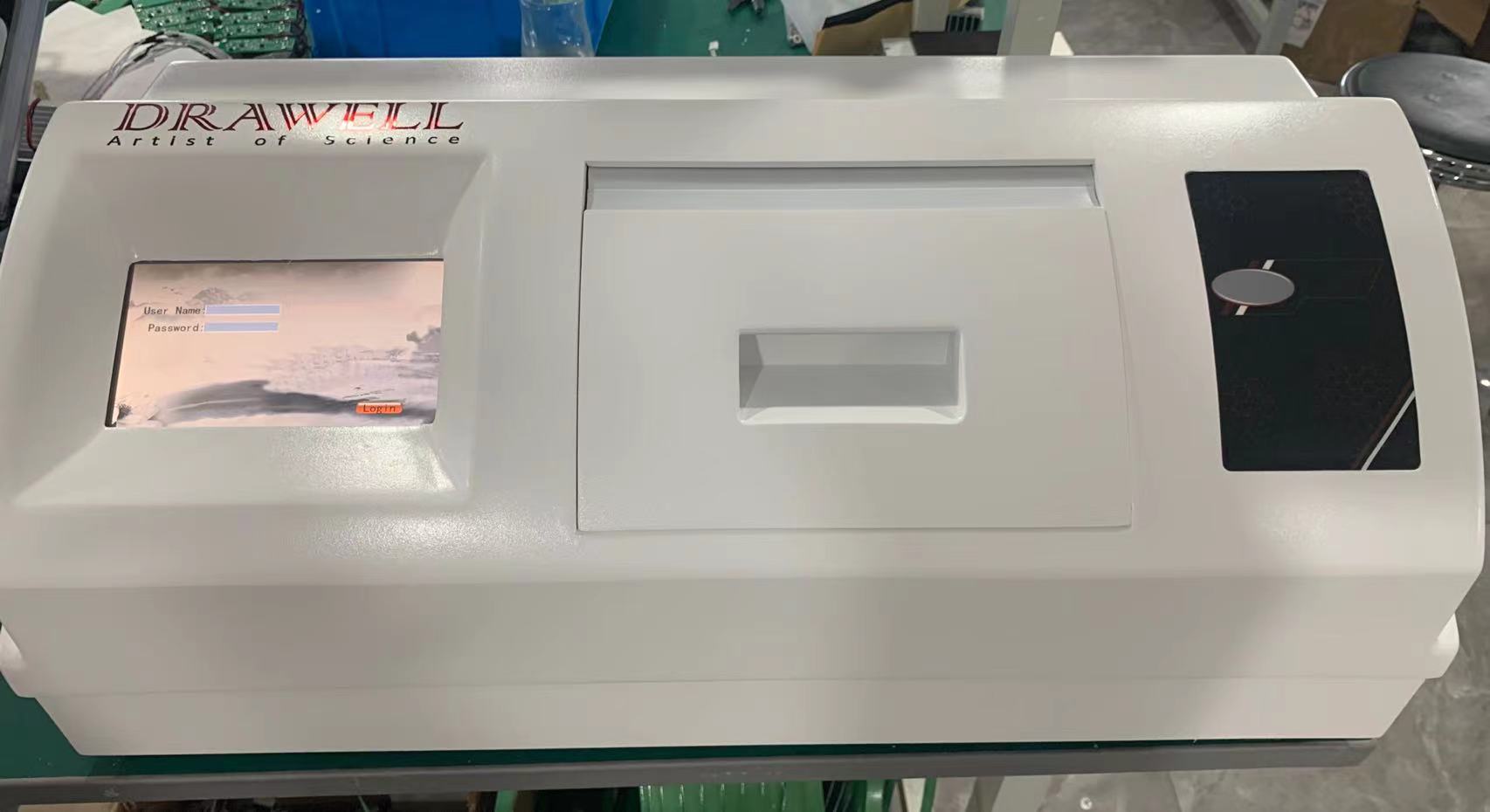

JH-P400

Measurement model

Optical rotation, concentration and sugar

Optical rotation, concentration and sugar

Calibration made

Automatic calibration

Measuring range

±89.99°

±89.99°

±259°Z

±259°Z

Accuracy

±0.01°(-45°≤optical rotation≤+45°)

±0.01°(-45°≤(optical rotation)≤+45°)

Min. reading

0.001°(optical rotation)

0.001°(optical rotation)

Repeatability(standard deviations)

0.002°(optical rotation)

0.002°(optical rotation)

Measurable sample min. transmittance

1%

1%

Light source

LED

LED

Working wavelength

589.3mm

589.3mm

Temperature control mode

Built-in semiconductor

Built-in semiconductor

Temperature control range

15℃-35℃

10℃-45℃

Temperature control accuracy

±0.2℃

±0.2℃

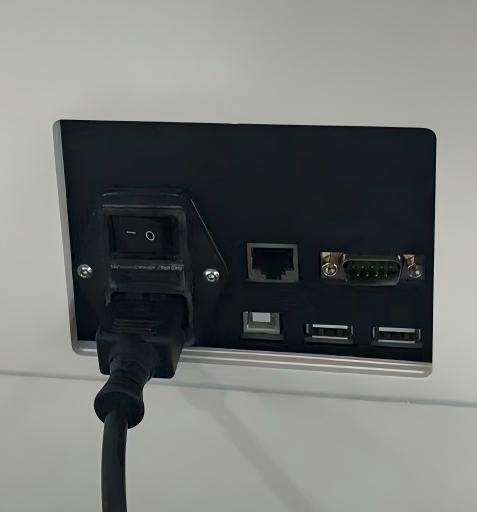

Interface

USB,RS232

USB,RS232

Data storage capacity

1000 groups

1000 groups

Display mode

TFT Touch screen

TFT Touch screen

Power

220V AC±10%50HZ

220V AC±10%50HZ

Rated power

250w

250w

Net weight

24kg

24kg
