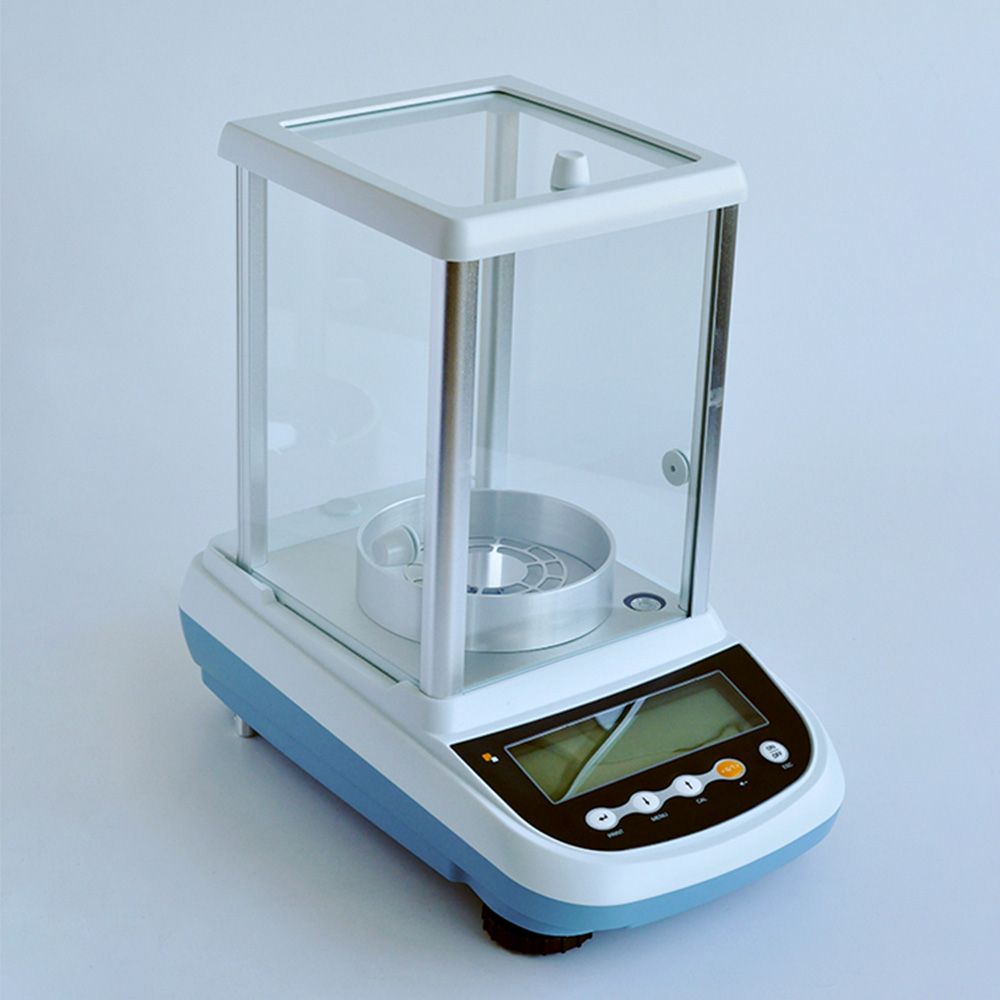

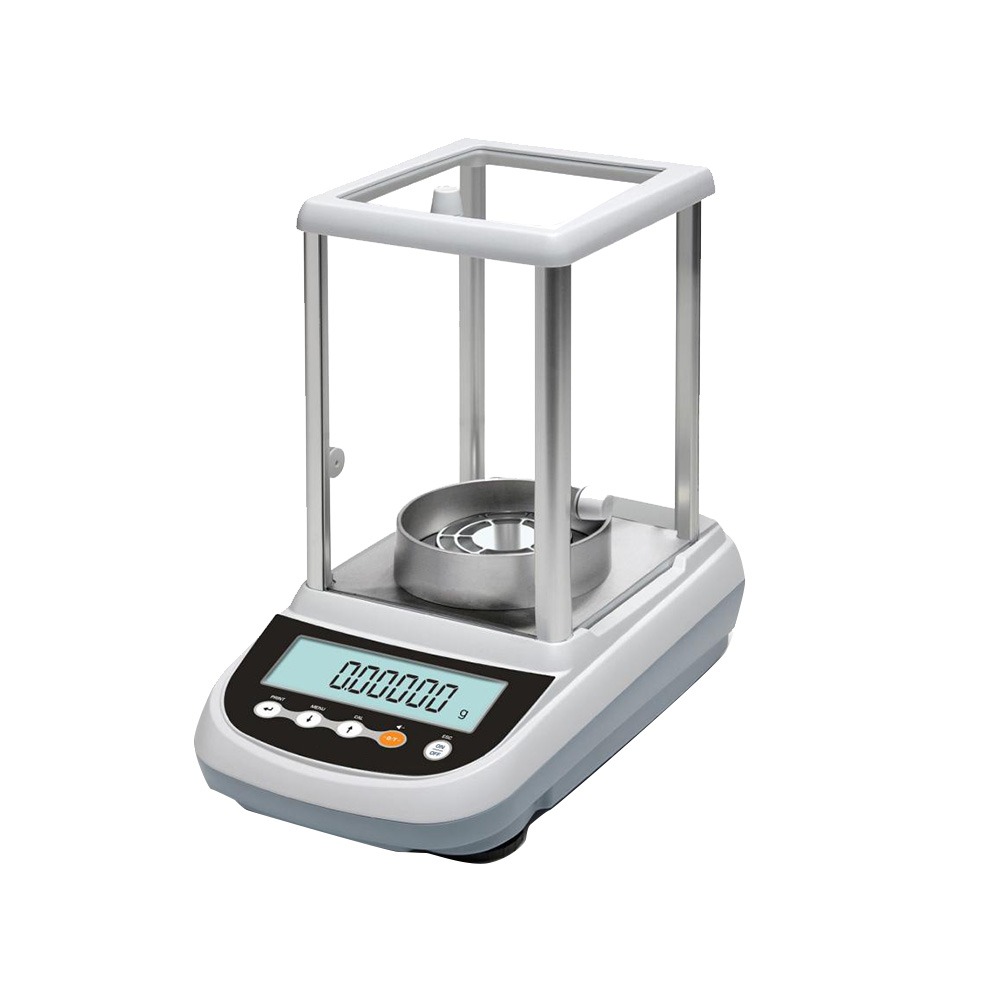

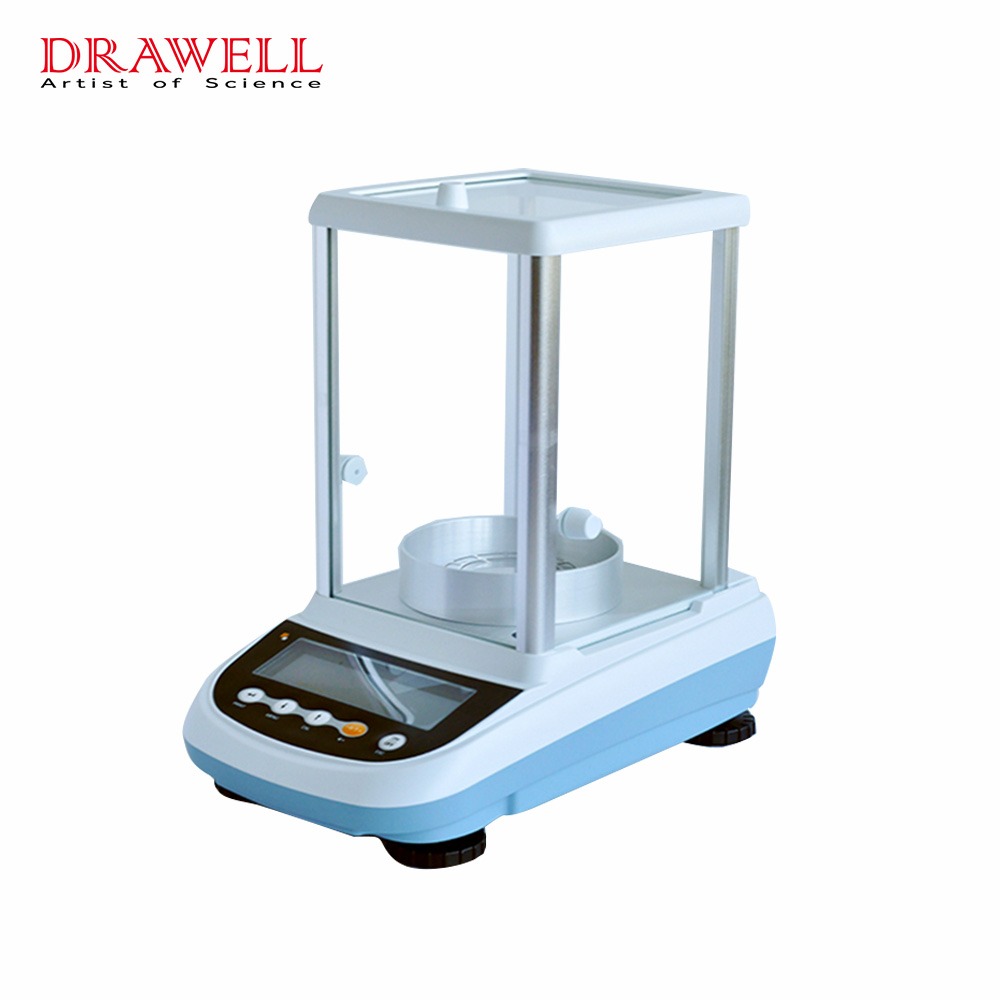

FA (SEM) Series 0.01mg/0.1mg Analytical Balance
The semi-micro balance has an accuracy of 0.01 mg and 0.1mg. This series is equipped with a new type of highly integrated electromagnetic sensor, all of its models can be automatically internally calibrated, with high precision and Features of high repeatability. All HPBG-type balances are equipped with a large graphic display screen for user convenience. The new semiMicro balance has a consistent Excellent price/performance ratio.
Features of FA (SEM) Series 0.01mg/0.1mg Analytical Balance
- Electromagnetic force recovery weighing system
- Automatic internal calibration
- Highly integrated load cell
- Recipe database: 99 recipes can be stored, and each recipe contains up to 20 ingredients
- LCD with backlight with adjustable contrast.

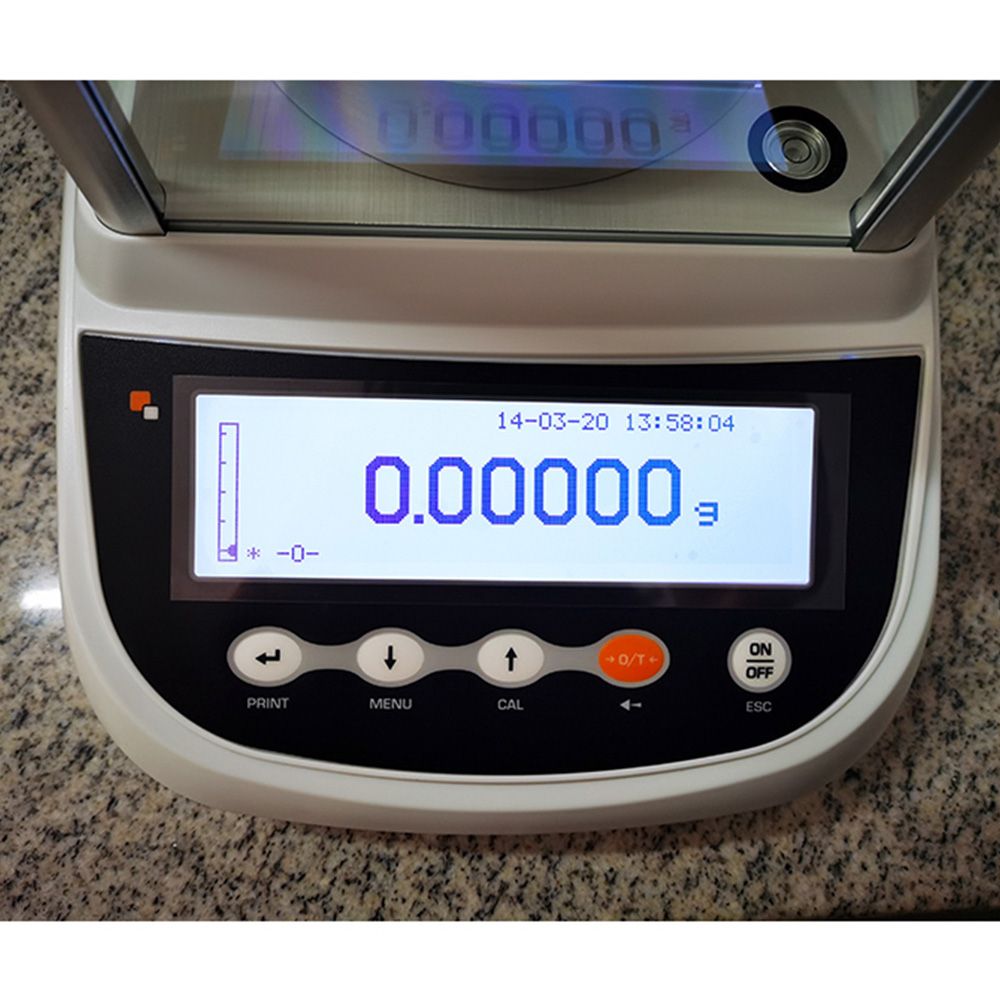

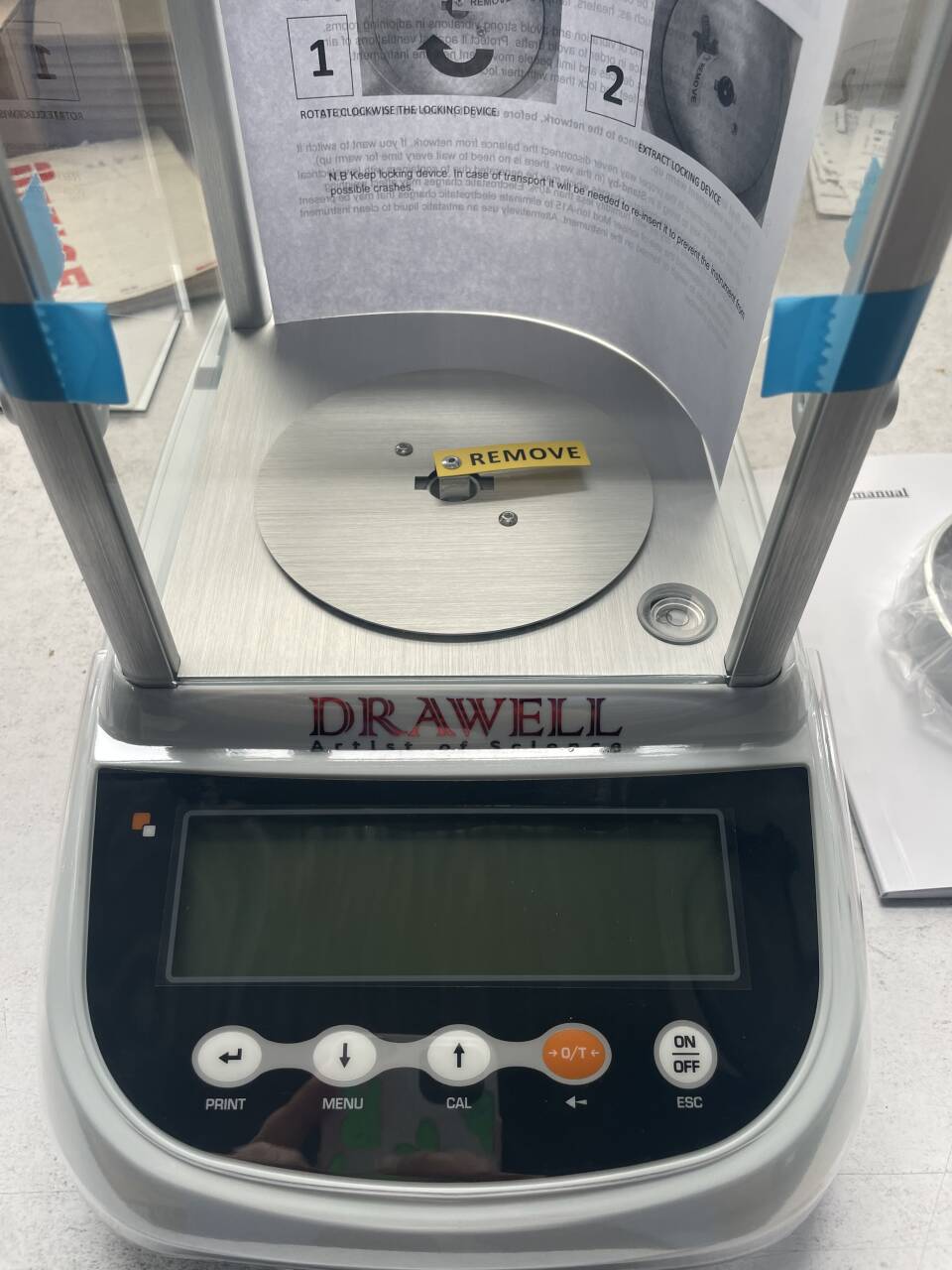

- Large-screen graphic display for easy and efficient operation
- Multi-language support: English, German, French, Italian, Spanish, Portuguese, record and save weight values in GLP/ISO format, including date, time and serial number

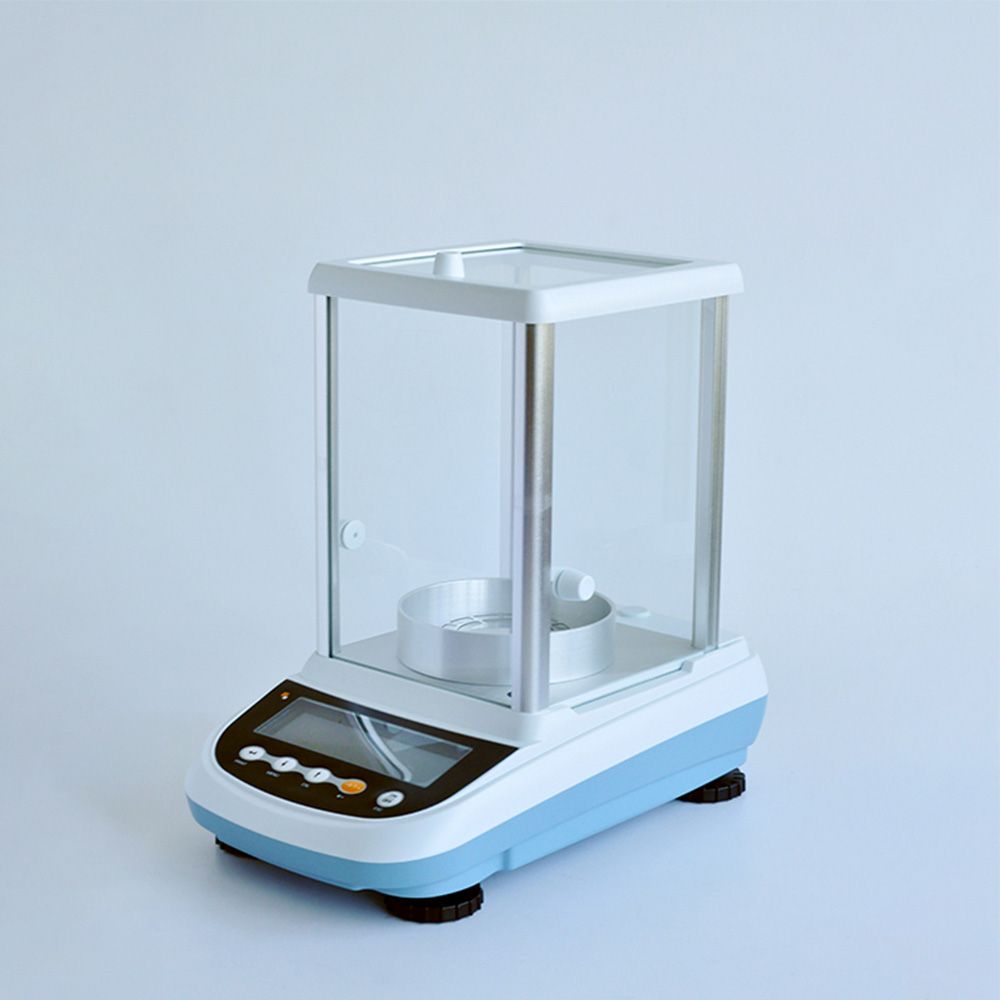

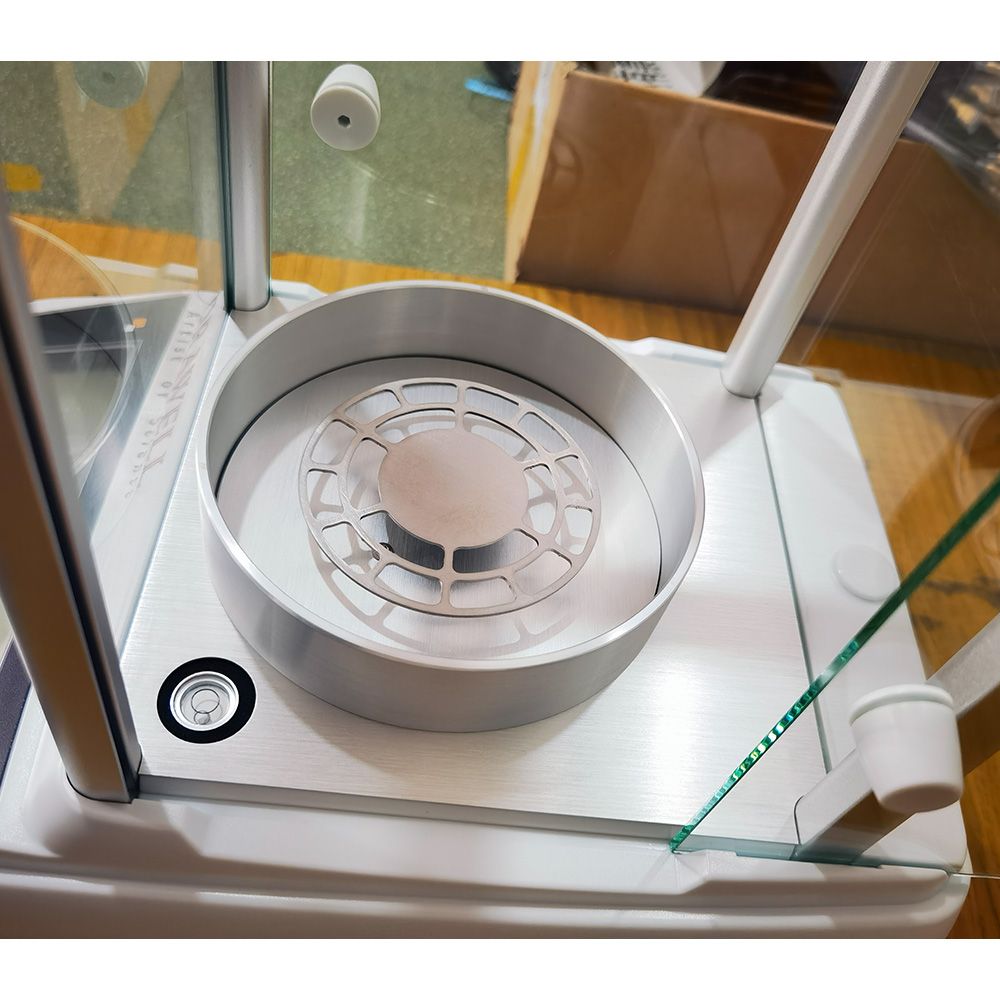

- Large windshield glass cover with 3 sliding doors for easy operation
- Keyboard plastic protection
Technical Data of FA (SEM) Series 0.01mg/0.1mg Analytical Balance
| FA（SEM） Series | |||
| Model | FA1265SEM | FA2285SEM | |
| Capacity(g) | 62/120 | 82/220 | |
| Resolution(g) | 0.01mg/0.1mg | ||
| Min weighing(g) | 0.06mg/0.6mg | ||
| Stable Time | ≤6s | ||
| Display | LCD（green back light with black font） | ||

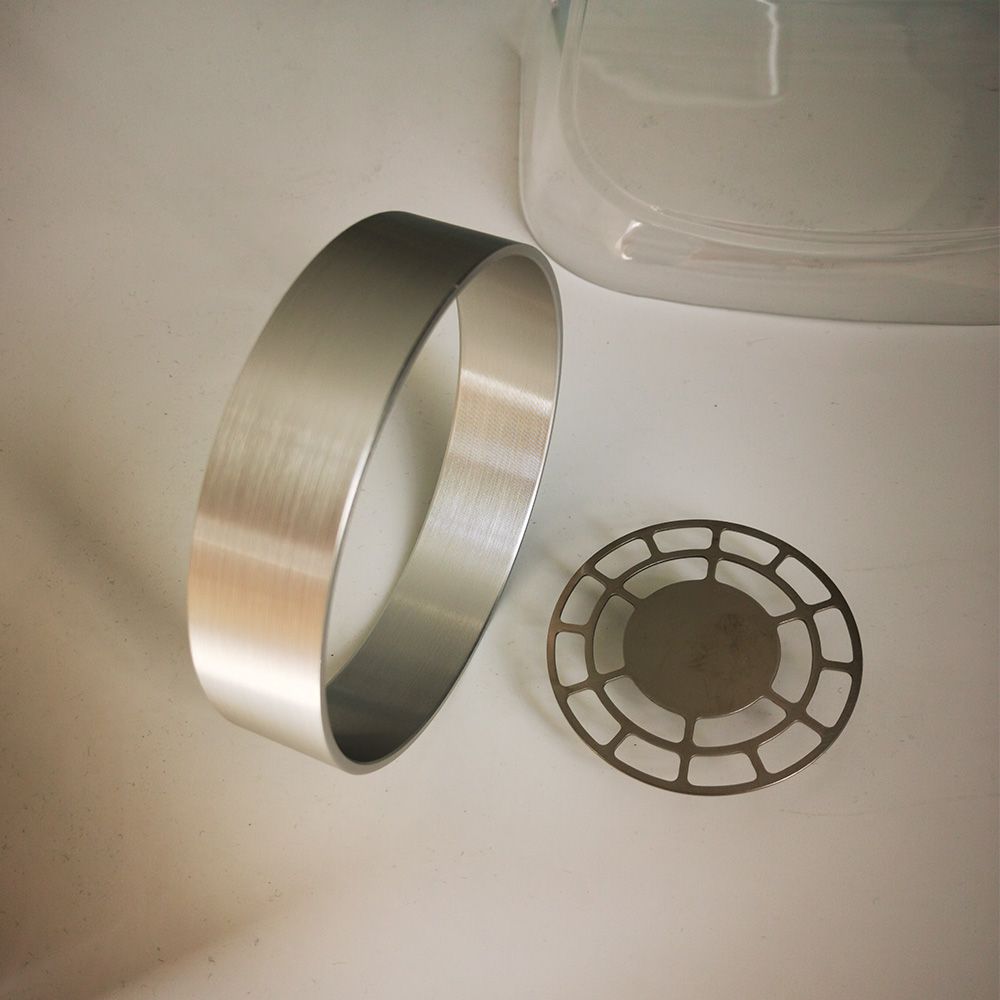

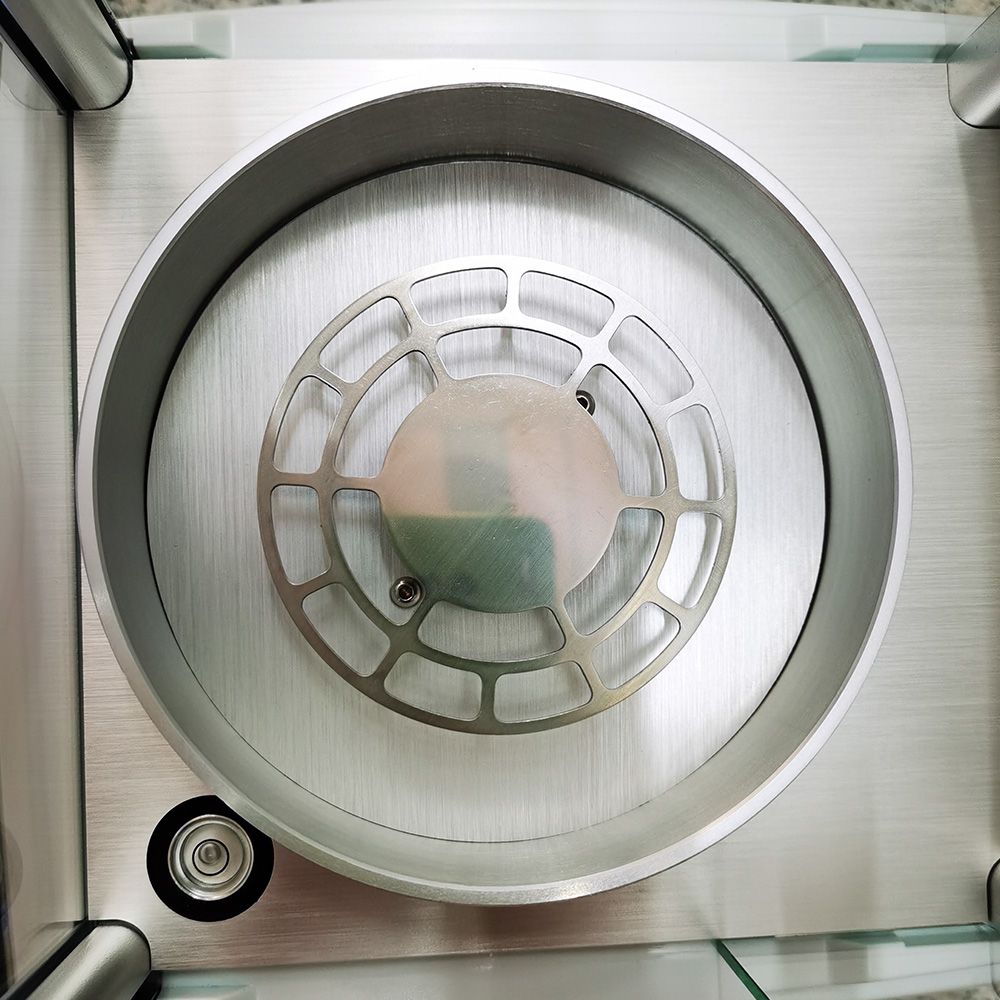

| Pan size | Φ80mm | ||
| Operation temp | 5-25℃ | ||
| Range drift (+10… +30°C) | +/– 2ppm/°C | ||
| Repeat ability | 0,03 / 0,1mg | 0,05 / 0,1mg | |
| Liner | ± 0,08 / ± 0,2mg | ± 0,1/ ± 0,2mg | |
| Draft shield size | 162mm×171mm×225mm | ||
| Cal.weight | External（Internal） Calibration | ||
| Option | RS232C & RS486、Printer | ||
| Dimension | 345×215×345mm | ||
| N . weight | 7 kg | ||
| Weighing room size (mm) | L × W × H 162 × 171 × 225 | ||

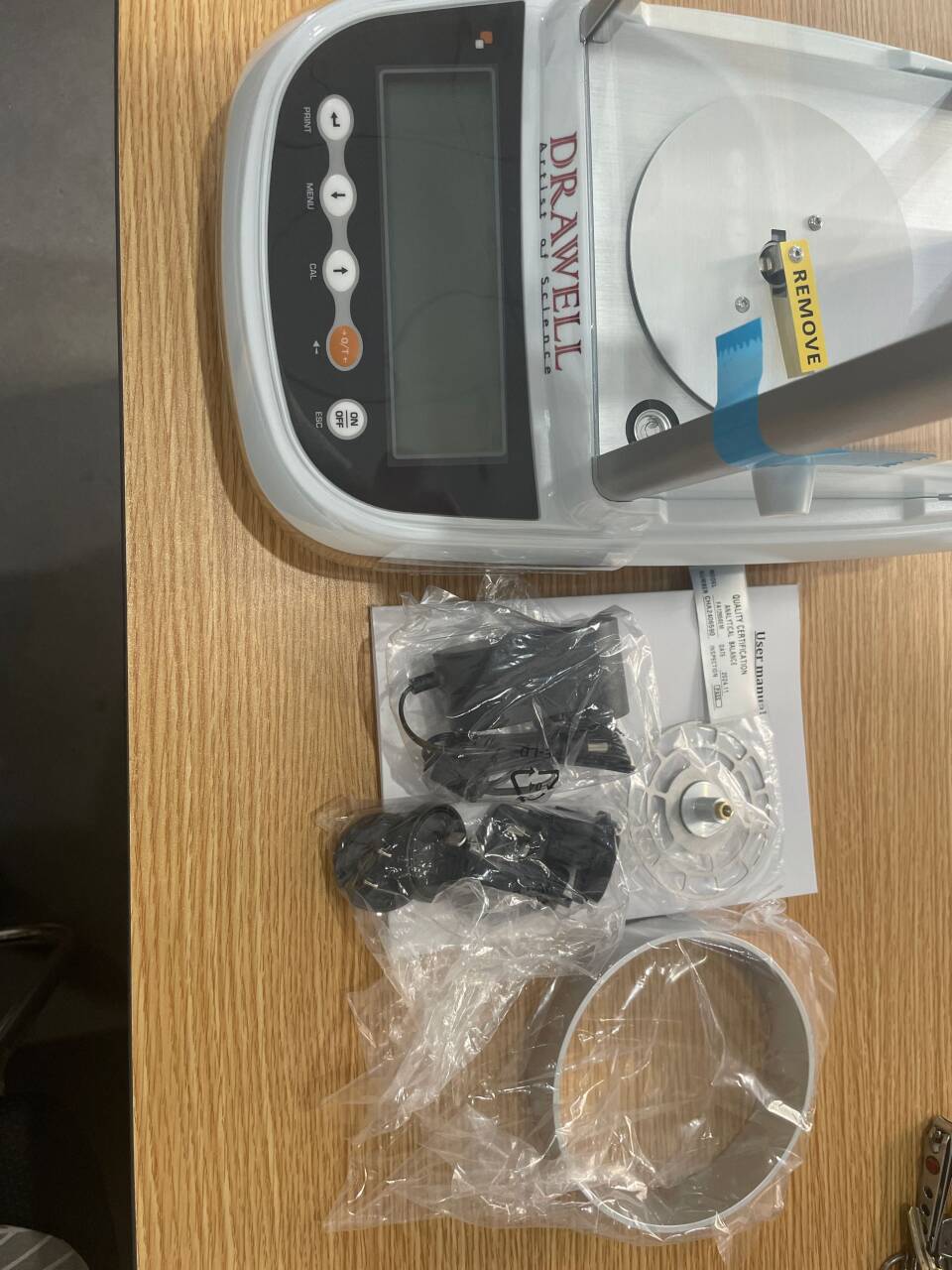

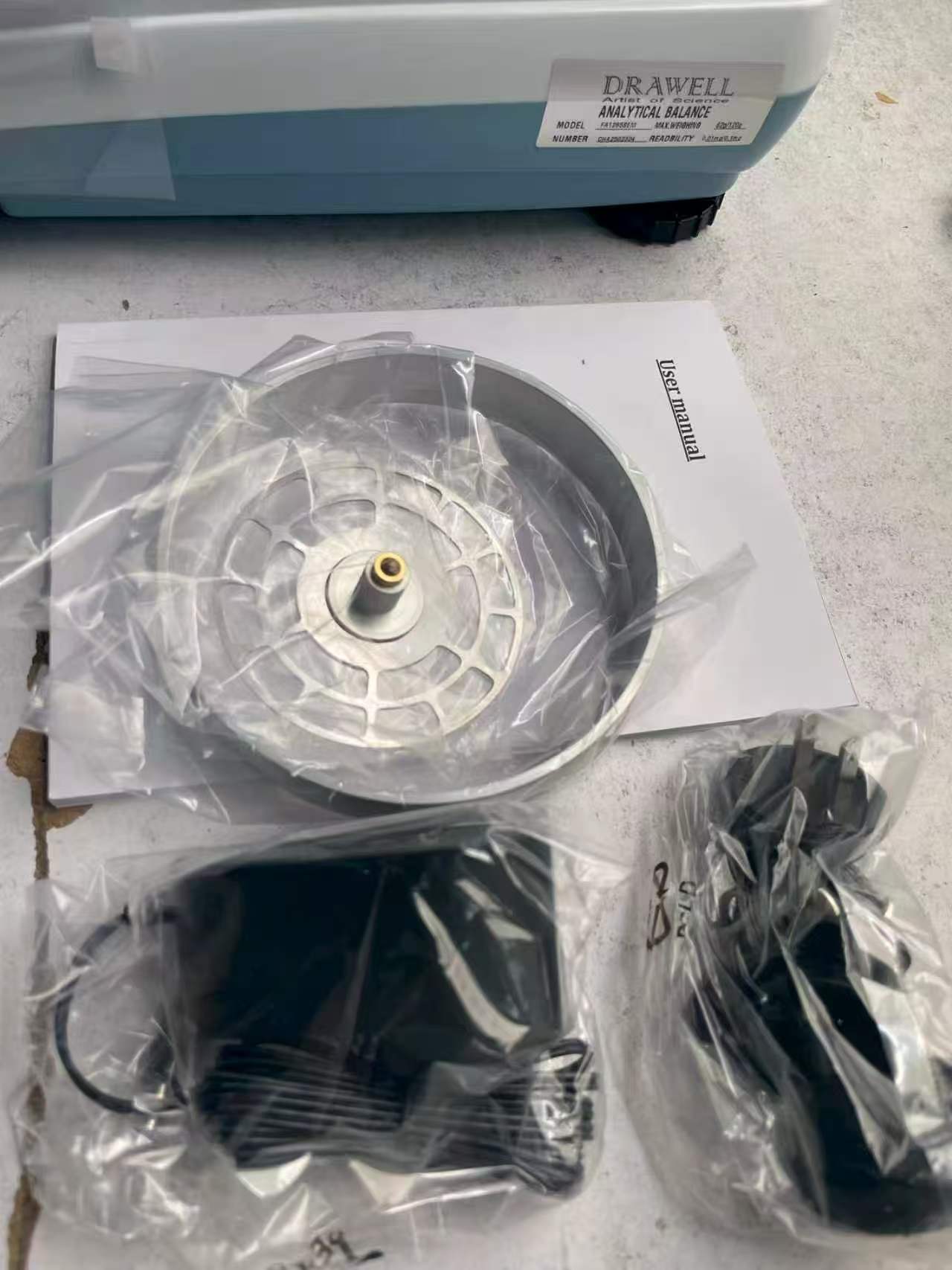

Accessories of the Analytical Balance

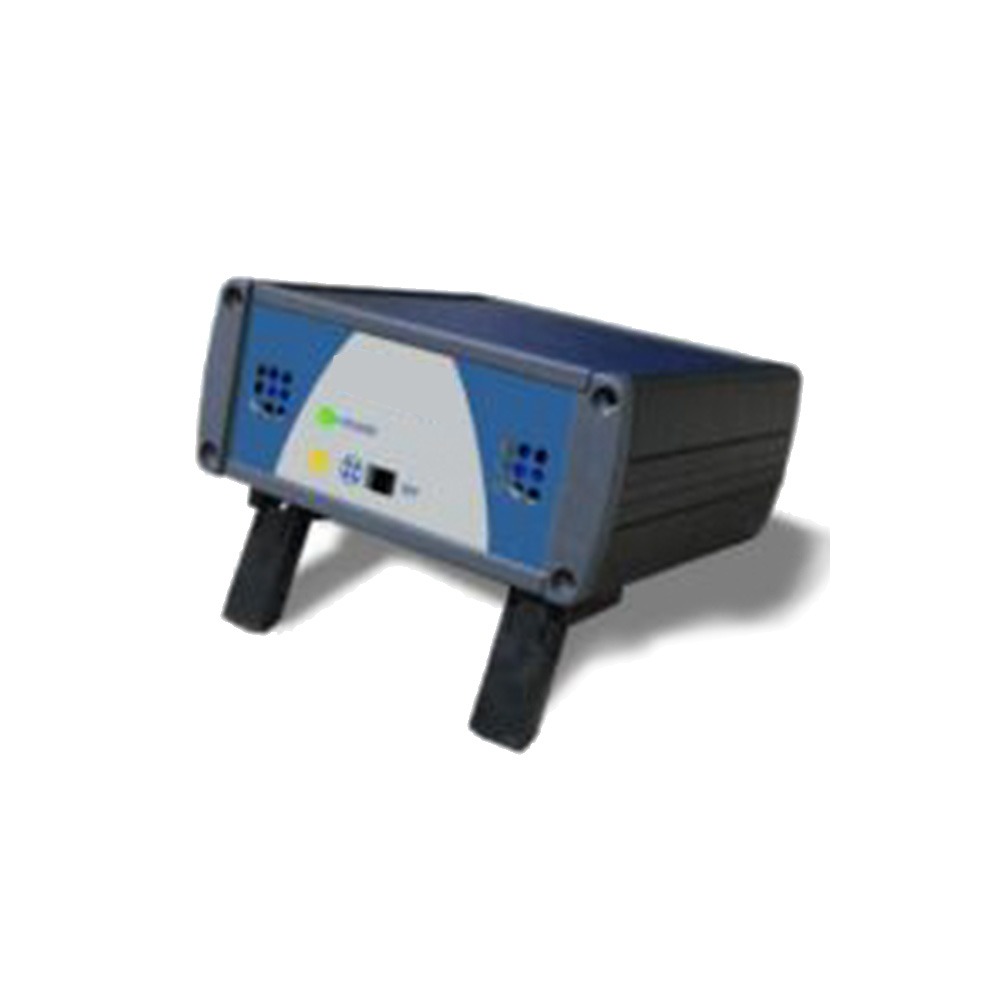

- ION-A15 Static Eliminator
- Balance plate system. USB version (BL0329) or Bluetooth version (BL0330)
- DPP-250-BT Bluetooth printer for BEL flat panel system (AC013)
- TLP-50 serial printer with date/time (C054)
- DPP-250 serial printer (AC007)
- STAT serial printer with statistics function (AC022)
- Alphanumeric external keyboard (AC005)
- Serial to USB converter (E1002)
- Serial cable for serial output to printer or computer (E743)
- Factory calibration certificate (BL0333)
FA (SEM) Series Other Models
| Model | FA22105SEM | FA165SEM-ION | FA205SEM-ION | |
| Capacity(g) | 102/220 | 162 | 202 | |
| Resolution(g) | 0.01mg/0.1mg | 0.01mg | 0.01mg | |
| Min weighing(g) | 100mg | 100mg | 100mg | |
| Stable Time | ≤6s | |||
| Display | LCD（white back light with black font） | |||
| Pan size | Φ80mm | |||
| Operation temp | 5-35℃ 20-80%Humidity | |||
| Repeat ability | 0.05mg | 0.05mg | 0.05mg | |
| Liner | ± 0.1mg | ± 0.1mg | ± 0.1mg | |
| Draft shield size | 152mm×160mm×225mm | |||
| Cal.weight | Internal Calibration | |||
| Option | Printe | |||
| Dimension | 345×215×345mm | |||
| G.N . weight | 8.25/5.8 kg | 8.3/5.85 kg | ||
| IONISER | Option | Standard | ||
| Language | Italian，English，Portugues，Deutsch，France，Espanol | |||
| Packing Size | 510x400x620mm | |||
| Power Supply | 110-230V 50/60Hz Out DC 12V 1A | |||
