DW-FTIR-530A FT-IR Spectrometer

Drawell DW-FTIR-530A FTIR Spectrometer offers 7800–350 cm⁻¹ spectral range, 0.85 cm⁻¹ resolution, real-time status monitoring, Ethernet/Wi-Fi communication, and flexible accessories for solids, liquids, powders, polymers, oils, gases, and quality control labs.

  • Better than 20,000:1 S/N and ±0.01 cm⁻¹ wavenumber accuracy
  • Supports transmission holder, ATR, liquid cell, gas cell,diffuse/specular reflection and more
  • Real-time instrument status diagnosis and MainFTOS software workstation
  • Ethernet interface and Wi-Fi wireless communication
  • Cube-corner Michelson interferometer and moisture-proofsealed design
  • Optional FDA 21 CFR Part 11 software, IQ/OQ/PQdocumentation
DW-FTIR-530A Manual DW-FTIR-530A Brochure
【Product Show】DW-FTIR-530A FT-IR Spectrometer New Design

Innovations of DW-FTIR-530A FT-IR Spectrometer

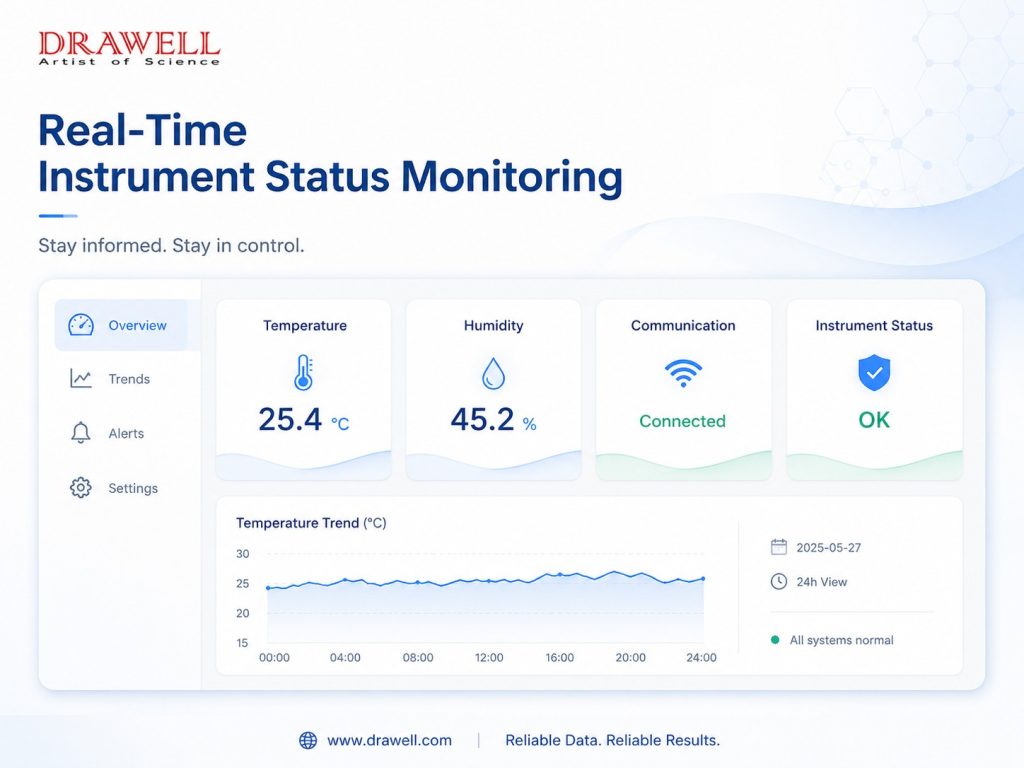

  • Real-time diagnosis of instrument status: real-time monitoring of instrument working status, performance and communication status.
  • Multiple detector options. Besides conventional normal temperature pyroelectric detectors, temperature-stabilized pyroelectric detectors and semiconductor refrigeration MCT detectors can also be selected to meet the needs of different customers.
  • “Wire + Wireless” multi-communication mode. Adopting Ethernet and WIFI dual-mode communication to adapt the development trend of “Internet + testing” instruments. Building a basic platform for users to conduct interconnection testing, remote operation, and maintenance, data cloud computing, etc.
  • Large sample room. With the large sample chamber design, besides the conventional liquid pool, ATR, and other commercially available conventional accessories, it can also be equipped with special accessories such as thermal red combination, microscope, etc. At the same time, it also reserves space for users to choose new accessories
  • Innovations of FTIR 530A
  • multi communication mode of FTIR

Brand-new Powerful Main FTOS Suite Software Workstation

software workstation of FTIR
software workstation of FTIR-2
software workstation of FTIR-3

Features of DW-FTIR-530A FT-IR Spectrometer

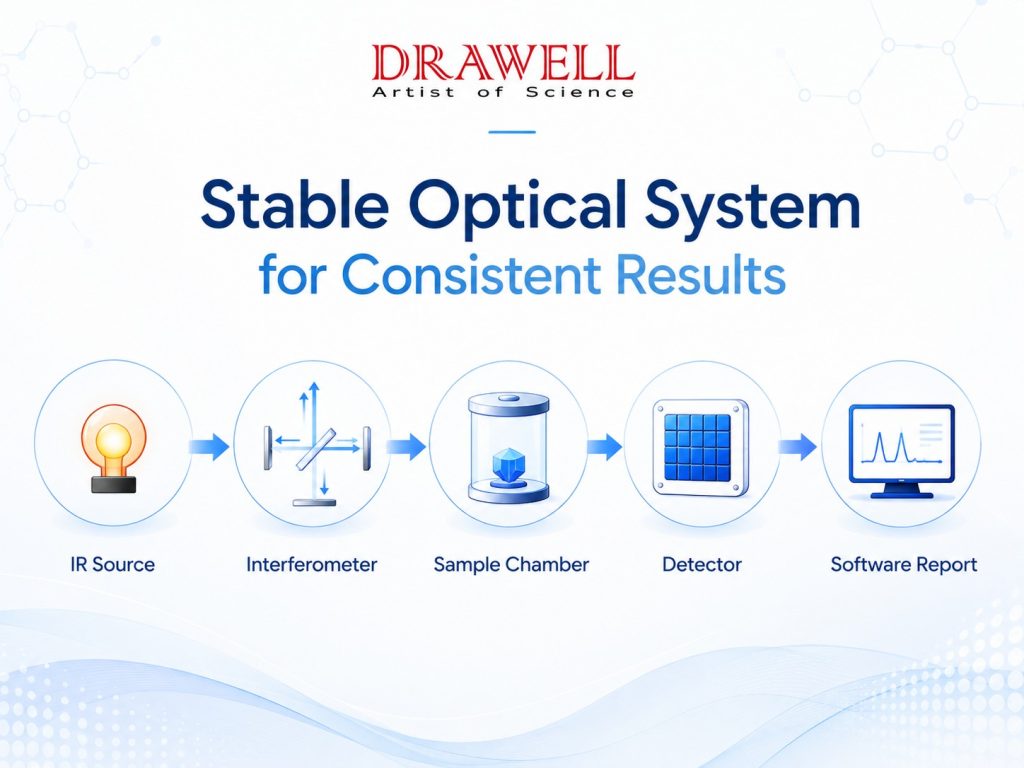

1. Stable Optical System

Cube-corner Michelson interferometer with patented fixed mirror alignment technology ensures long-term optical stability without complex dynamic alignment. Gold-coated mirrors improve light throughput and detection sensitivity.

2. Robust Modular Structure

Compact modular design on a cast aluminum base improves mechanical strength, heat dissipation, vibration resistance, and long-term working stability.

3. Moisture-Proof Optical Protection

Multi-sealed interferometer design, large-capacity desiccant cartridge, visible desiccant window, and real-time temperature/humidity monitoring help protect the optical system from humidity and chemical corrosion.

4. High-Performance Electronic System

Integrated electronics with pyroelectric detector pre-amplifier, dynamic gain amplification, 24-bit A/D conversion, digital filtering, and network communication ensure stable real-time data collection and fast transmission.

5. Strong Anti-Interference Design

The electronic system is designed to meet CE and electromagnetic compatibility requirements, reducing electromagnetic interference and improving data reliability.

6. High-Intensity IR Source

Long-lifetime air-cooled IR source with strong energy distribution in the fingerprint region provides stable infrared radiation and better thermal stability for repeatable FTIR analysis.

Why Choose DW-FTIR-530A Spectrophotometer?

  • DW FTIR 530A 1 1
  • DW FTIR 530A 2 1
  • DW FTIR 530A 3 2

Operation and Maintenance Tips

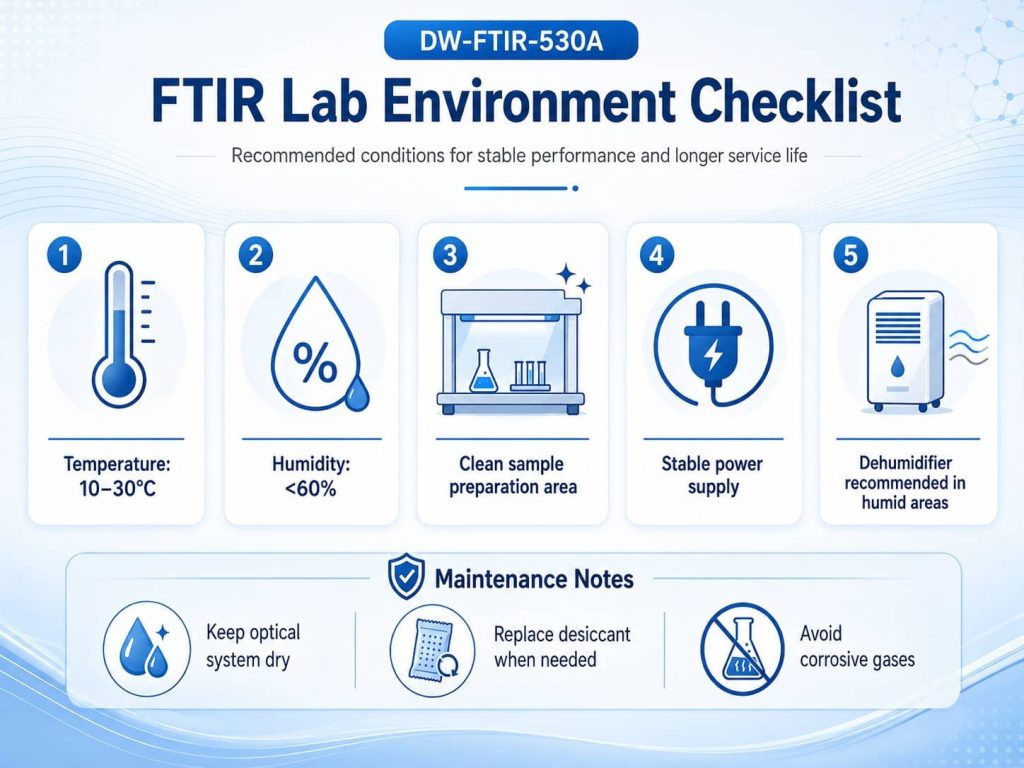

For stable performance, install the DW-FTIR-530A in a clean, temperature-controlled laboratory. Recommended working conditions are 10–30°C with humidity below 60%. For longer service life, keep the optical system dry, replace desiccant when needed, avoid corrosive gases near the instrument, and use a moisture-proof box and dehumidifier in humid environments.

FTIR Maintenance Tips1

Specifications of DW-FTIR-530A FT-IR Spectrometer

InterferometerCube-corner Michelson interferometer
Beam splitterMultilayer Ge coated KBr
DetectorHigh sensitivity pyroelectric module(standard)Temperature stabilized module, MCT detector (optional)
IR SourceHigh intensity, long lifetime, air-cooled IR source
Wave number Range7800cm-1~350cm-1
Resolution0.85 cm-1
Signal to noise ratioBetter than 20,000:1 (RMS value, at 2100cm-1 ~ 2000cm-1 or 2100cm-1 ~ 2200cm-1, resolution: 4cm-1, detector: pyroelectric, 1 minute data collection)
Wavenumber Accuracy±0.01 cm-1
Scanning SpeedMicroprocessor control, different scanning speed selectable.
SoftwareMainFTOS Suite software workstation, compatible to all version Windows OSVarious specialized functional software modules (optional)
CommunicationEthernet interface & WIFI wireless communication
Data OutputStandard data format, report generation and output
Status DiagnosisPower on self-check, real-time temperature and humidity monitoring and reminders
CertificationFDA 21 CFR Part11 compliance, IQ/OQ/PQ（Optional）
Environment ConditionsTemperature: 10℃～30℃,
humidity: less than 60%
Power SupplyAC220V±22V，50Hz±1HzAC110V（optional）
Dimensions & Weight490×420×240 mm, 23.2kg
AccessoriesTransmission sample holder (Standard)Optional accessories such as gas cell, liquid cell, Defused/Specular Reflection, single/multi reflection ATR, etc.

DW-FTIR-530A FTIR Configuration Reference

Main unit and software
Item No.TypeDescription
1Main UnitDW-FTIR-530A Spectrometer
2SoftwareMainFTOS Suite operating software
Options: Suitable accessories are selected according to the sample characteristics
3Powder SampleKBr hydraulic press (including die set)
4Mortar and pestle
5Potassium bromide powder (customer’s own)
6Film SampleSingle Reflection ATR
7Liquid SampleQualitative analysis according to the customer budget selection.if the customer has enough budget, he can choose the single reflection ATR, if the customer has limited budget, he can choose a detachable liquidcell; Quantitative analysis generally has a corresponding standard, according to the standard requirements for configuration.
8Viscous LiquidQualitative analysis according to the customer budget selection. if the customer has enough budget, he can choose the single reflection ATR, if the customer has limited budget, he can choosepotassium bromide or zinc selenide window plate; Quantitative analysis generally has a corresponding standard, according to the standard requirements for configuration.
9Gas SampleConventional gas analysis with theGas cell (withKBr window plates,100mm pathlength)

Note:

(1) The above is the general configuration, customers have other needs can be added according to the actual situation.

(2) There are two commonly single reflection ATR, zinc selenide crystal disk and diamond crystal disk. the price of single reflection ATR (ZnSe crystal disk) is low, but not wear-resistant; the price of single reflection ATR (Diamond crystal disk) is expensive, but it is durable. They can be selected according to the customer’s actual budget situation.

DW-FTIR-530A FTIR spectrometer can also be used in combination with Thermal Gravimetric Analyzer, FT-IR Microspectroscopy accessory, etc., to achieve the infrared spectrum analysis of compound decomposition gas products and small samples.

Main unit and software
TypeDescription
Main unitDW-FTIR-530A FT-IR Spectrometer
softwareMainFTOS Suite operating software
Options: Suitable accessories are selected according to the sample characteristics
DescriptionDetection objectBasic parametersNote
Accessories for TGA and FTIR spectrometerAnalysis of organic matter or inorganic matter in the process of heating, decomposition and weight loss of escaping gas components.Gas pool heating temperature: Room temperature ~230℃
Temperature control accuracy: ±1℃		The customer laboratory is required to be equipped with a Thermal Gravimetric Analyzer (TGA) and inform the modelto us.
FT-IR Microspectroscopy accessoryQualitative analysis according to the customer budget selection.if the customer budget is high, can choose the single reflection ATR, if the customer budget is limited, choose a detachable liquid cell; Quantitative analysis generally has a liquid cell; Quantitative analysis generally has a corresponding standard, according to the standard requirements for configuration.(1) Three modes :transmission, reflection and ATR;
(2) 5 mega pixel CMOS colour video camera, 2592 x 1944 maximum resolution.		The FTIR main unit needs to replace the MCT detector and increase the quotation.

DW-FTIR-530A FTIR Spectrometer Picture

  • DW-FTIR-530A FTIR Spectrometer Picture
  • DW-FTIR-530A FTIR Spectrometer Picture
  • DW-FTIR-530A FTIR Spectrometer Picture
  • DW-FTIR-530A FTIR Spectrometer Picture
  • DW-FTIR-530A FTIR Spectrometer Picture
  • DW-FTIR-530A FTIR Spectrometer Picture
  • DW-FTIR-530A FTIR Spectrometer Picture
  • DW-FTIR-530A FTIR Spectrometer Picture

FAQ

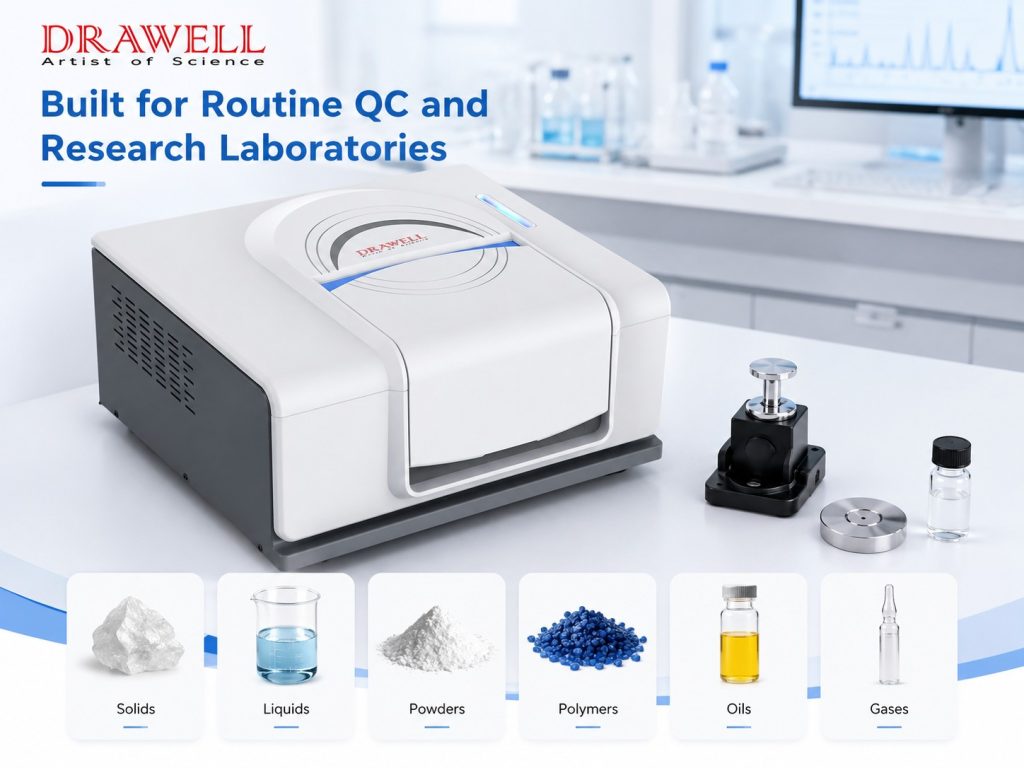

DW-FTIR-530A can analyze solids, powders, liquids, polymers, films, coatings, rubbers, oils, and gases when matched with suitable accessories such as ATR, liquid cell, gas cell, diffuse reflection accessory, or KBr pellet accessories.

Yes. With better than 20,000:1 signal-to-noise ratio, ±0.01 cm⁻¹ wavenumber accuracy, stable optical design, and real-time status diagnosis, it is suitable for routine QC, material verification, and production testing laboratories.

Yes. Single reflection ATR, horizontal ATR, diamond ATR, ZnSe ATR, and other ATR options can be selected according to sample hardness, shape, and testing purpose.

Transmission FTIR allows infrared light to pass through the sample and is often used with KBr pellets, liquid cells, or gas cells. ATR-FTIR measures the sample surface through contact with an ATR crystal, making it faster and more convenient for polymers, rubbers, coatings, oils, and flexible samples.

It depends on the testing method. KBr pellet transmission analysis requires grinding and pressing the sample. ATR testing usually requires less sample preparation and is more convenient for fast QC testing.

Yes. It can be used for raw material identification, excipient testing, formulation comparison, and quality control. For regulated laboratories, optional FDA 21 CFR Part 11 software and IQ/OQ/PQ documentation are recommended.

Yes. DW-FTIR-530A supports Ethernet interface and Wi-Fi wireless communication, which is convenient for connected laboratory operation and data transfer.

The laboratory humidity should be kept below 60%. In humid areas, a dehumidifier and regular desiccant maintenance are recommended to protect the KBr beam splitter and optical system.

For polymers, rubbers, paints, coatings, fibers, and lubricants, ATR accessories are commonly recommended. Diamond ATR is suitable for harder samples, while ZnSe ATR can be used for softer or lower-hardness samples.

A complete quote should include the main unit, standard detector, software, standard sample holder, required accessories based on sample type, optional spectral libraries, compliance software if needed, installation/training details, warranty, packing size, and shipping method.
