DW-HM-5000
advantage of DW-HM-5000
  • DW-HM-5000
  • advantage of DW-HM-5000

    • Multifunctional Portable Heavy Metal Analyzer DW-HM-5000

    DW-HM-5000 (multifunctional) portable heavy metal analyzer integrates the high sensitivity, authority- recognized “Anodic stripping method” and the fast, good anti-interference, national standard “Colorimetric method”.

    DW-HM-5000 Manual
    DW-HM-5000 Brochure

    Performance of Multifunctional Portable Heavy Metal Analyzer

    DW-HM-5000

    • Rapid detection

    less than 5 minutes with the fastest detection of less than 30 seconds

    • Wide detection range

    typical heavy metal ions for detection include Cu, Cd, Pb, Zn, Hg, As, Cr, Ni, Mn, and Tl, etc.; the measuring type of metal is expandable using a personal computer(PC)

    • High precision

    up to 1ppb with a detected Ion limit of less than 0.5ppb

    • Electrode uniques

    reference electrode with a special wintering technique for stable performance, easy maintenance, and replacement

    • Smart

    smart programs for easy operation

    • Diversity

    the records of standard samples are optional to reuse; user-defined time priority or accuracy priority

    • Low cost

    inexpensive consumables and low consumption

    Safe use; nontoxic ancillary reagents ensure personal safety

    Applications of Multifunctional Portable Heavy Metal Analyzer

    • Portable, applicable for on-site emergency detection, e.g. water environmental water environment monitoring;
    • Laboratory heavy metal detection and analysis
    • Surface- water, groundwater. seawater. Industrial wastewater, drinking water, and other environmental water monitoring
    • Widely used in the detection of the heavy metal content in the soil solid waste and other solid substances (by extracting)

    Technical Parameters of Multifunctional Portable Heavy Metal Analyzer

    Item Technical Parameters
    Detection Range anodic stripping voltammetry) Cu:0. 1ppb~60ppm Cd:0. 1ppb~60ppm Pb:0. 1ppb~30ppm
    Zn:0.5ppb~60ppm Hg:0.1ppb~25ppm As:0. 1ppb~30ppm
    Tl :0. 1ppb~30ppm Mn:0. 1ppb~10ppm Cr:0. 5ppb~20ppm
    Ni :0. 5ppb~30ppm Fe:0. 1ppb~30ppm Co:0. 1ppb~30ppm
    Detection Precision RSD ≤2%(calculated by Cd @50ug/L)
    Resolution 0.01ppb
    Measuring Parameters of Colorimetric Module Available for the measurement of Cr* , Cu, Zn,Mn, Pb, etc , Accuracy≤±5%
    Measuring Range≤±5%
    Cr:0.025ppm~2.5ppm Cr*:0.025ppm〜2.5ppm
    Ni:0.1ppm〜1.5ppm Zn:0.1ppm〜1.5ppm
    Cu:0.05ppm〜5ppm Pb:0.05ppm〜1.2ppm
    DW-HM-5000P-A

    Accessories

    Reagent Electrode Cleaner Cuvettes
    Pipette & Pipette Head Portable Reactor (optional) Emergency Test Suitcase
    Data Management Software Portable Suitcase Portable Bluetooth Printer and Accessories (optional}
    Power Adapter (charger) and Cigarette Lighter Adapter

    Emergency Advantages

    • Portable and easy to carry;
    • Equipped with a specialized field emergency reagent bag as a direct option to save time;
    • IP67 dust&waterproof design makes it work properly under severe environments;
    • The half-transflective technology applied in LCD makes it properly work even in the open field, while the spectral lines display feature enables the on-site analysis of water sample components;
    • Equipped with a high-capacity lithium battery ensuring that the users can conduct over 100 times continuous measurements for at least 10 hours, and has the function of indicating remaining charge with the use of the power adapter or car cigarette lighter as a charger;
    • Can store 2000 groups of historical data;
    • Support wireless printing, on-site print the history measurement results- (Bluetooth printer as an option);
    • Successful solution for the problem of serious deviation measurement results caused by the copper, zinc coexistence and mutual-interference during the measurement for (tie actual water by the anodic stripping method;
    • Perfect integration with the Colorimetric, which effectively applies in the case of the high concentration of organics or complexes in the wastewater to avoid interference.
    advantage of DW-HM-5000

    PC Communication

    The instrument can be connected to a PC through a USB port, supported by the corresponding PC-side software to achieve the following functions;

    1. Configurate15 programmable analysis menus in the instrument to enable the users to easy configuration of the measurement parameters and methods
    2. Operate the instrument, such as hardware detection, electrode maintenance, measurement upload history, spectrum analysis, and algorithm application analysis, etc.
    DW-HM-5000-ad

    Software advantages

    • Bilingual interface, friendly smart design, easy operation;
    • The optimized patent algorithm integration can further improve the measurement accuracy to the sub-ppb level;
    • Users can take advantage of the PC software to develop more the heavy metal detection method and electrolyte reagents,to adapt for the detection of a wider variety of metals and various water bodies in varied circumstances;
    • The spectra with the integral io n of the patent algorithm can be directly displayed on an LCD to guarantee the same accuracy as that analyzed with a PC;

    Detection case

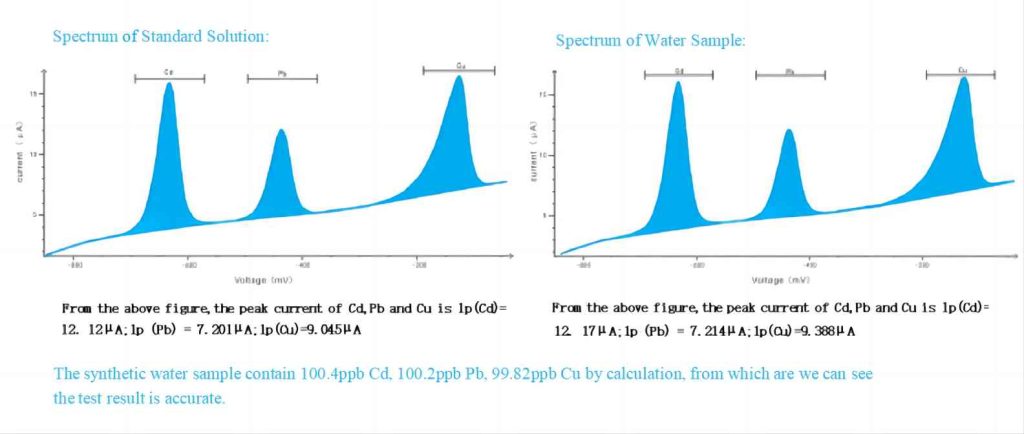

    Simultaneous detection of the concentration Cd, Pb, and Cu in the synthetic water sample

    In this case, the synthesized mixed water sample contains Cd. Pb and Cu with a concentration of 100ppb respectively.

    Firstly, scan the blank solution (no peak smoothing)

    Secondly, scan the standard solution (Cd, Pb, and Cu with the concentration of 100ppb respectively to get the stripping peak current of Cd, Pb, and Cu

    Thirdly, scan the synthetic water sample to get the stripping peak current of Cd, Pb, and Cu

    Finally, calculate the concentration which is proportional to the peak current.

    DW-HM-5000 case
