    • Master Ultra High Throughput Closed Microwave Digestion/Extraction Workstation

    MASTER serial ultrahigh throughput microwave digestion/extraction workstation was launched in 2012. MASTER cavity is versatile for 16-vessel independent frame-type high pressure digestion rotor, 18-vessel carousel integrated ultrahigh pressure digestion rotor, 40/100-vessel ultrahigh throughput carousel rotor and 14-200ml-vessel carousel large capacity rotor etc., meets different experiment application requirements. Other core technologies including airplane Xtra Fiber digestion outer vessel, quantitative Safety Bolt patented design, UTH-Caro design of high throughput carousel, unique piezoelectric crystal pressure measuring technology and Uni-Turn technology of one direction continuous rotation of digestion rotor in chamber, etc.

    Features

    1. Explosion-proof outer vessel made of composite Xtra Fiber.
    2. Advanced and reliable pressure measuring technology by piezoelectric crystal.
    3. The temperature inside the digestion vessel can be controlled by the combination of precise measure of temperature inside master vessel and IR temperature scanning
    4. High throughput rotor with optional strong magnetic stirring function specially for extraction or synthesis
    5. 200ml vessels for large volume sampling.
    6. Wireless remote visual monitoring system make reaction be clear at a glance.
    7. 100-vessel ultrahigh throughput closed microwave digestion vessel and carousel breakthrough products for the industry .
    8. This MASTER series product, may suit different digestion vessel sets and satisfy the requirements of users in different industries and application areas.
    9. Industrial chamber structure, safer operation.

    Application

    1. Biological science
    2. Chemical science
    3. Pharmaceutical engineering
    4. Plastic analysis
    5. Agriculture and food safety
    6. Metallurgical
    7. Environmental science

    Specification

    Power 220-240 VAC, 50/60Hz, 16A
    Installed power 3600W
    Maximum output power 2200W, non-pulse continuous automatic variable frequency control.
    Microwave source 2450MHz
    Cavity 65L stainless steal industrial grade professional chamber, multi-layer chemical resistant PFA coating.
    Door Design 6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock.
    Video monitoring system (Optional) Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction.
    Pressure measurement and control system Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi), accuracy ± 0.01MPa.
    Temperature measurement and control system High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1℃.
    Outer vessel material Explosion-proof outer vessel made of aerospace composite fiber. High temperature and pressure resistance reach 600℃and 66 Mpa(10000psi).
    Inner vessel material Modified TFM material.
    Chamber exhaust system High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C) .
    Working environment 0-40 °C, 15-80%RH
    Whole physical size/weight 550*670*700 mm, 70 KG
    Passive pressure protection system Adopt Safety Bolt design, quantitative and vertical pressure release when over pressure.

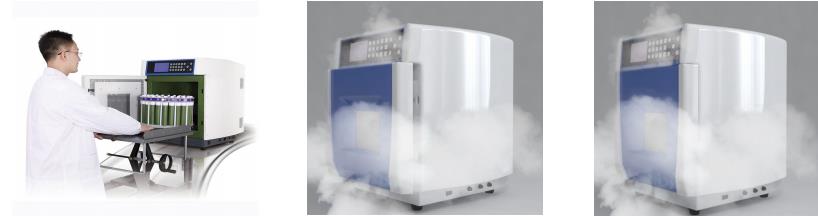

    Master Ultra-A
