Laboratory High-Pressure Homogenizer JG-1A

It is used for dairy, food & beverage, fruit juice, pharmaceutical, biotechnology, and other industries. The laboratory high-pressure homogenizer has a built-in circulatory cooling system. A secondary homogeneous module and a homogeneous valve for your different applications.


● Maximum working pressure: 1200bar/120 Mpa/17400 psi

● Maximum design pressure: 1500bar/150Mpa/21750 psi

● Maximum capacity: 12 L/h

● Minimum capacity: 30ml

● Cooling: Built-in cooler

● Motor Power: 1.5KW/380 VAC/50 Hz

● Dimensions: L800×W460×H450mm

● Weight: 120Kg

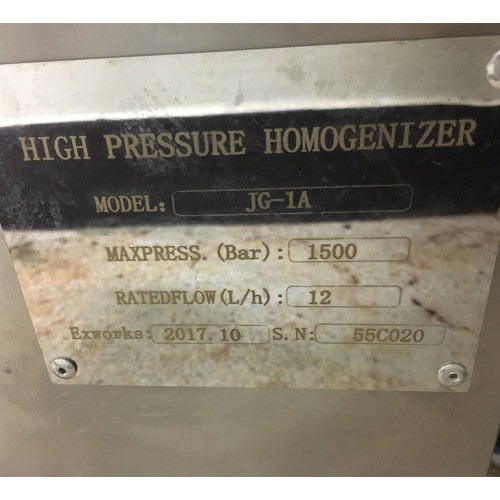

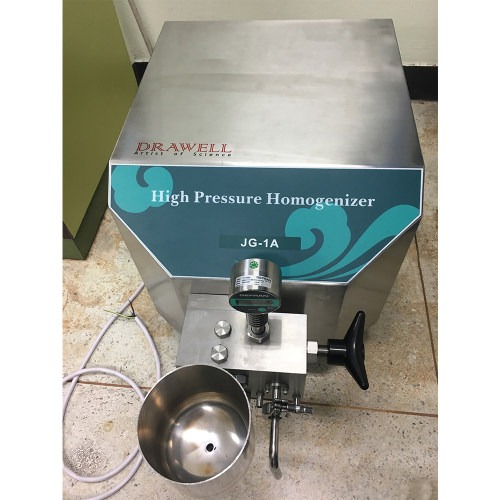

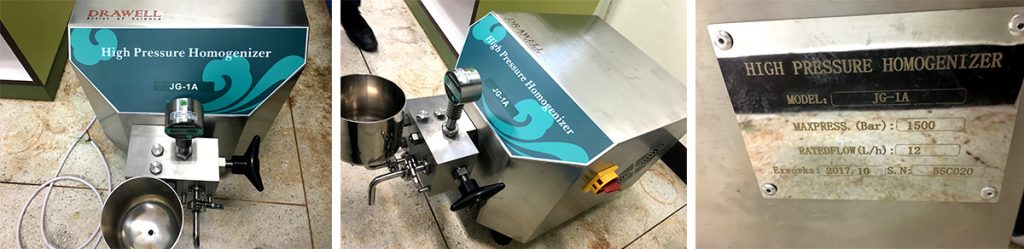

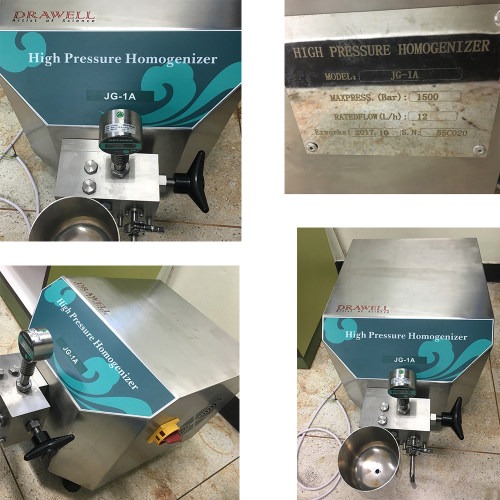

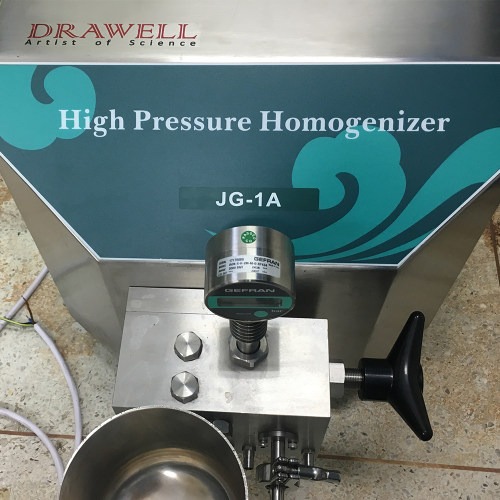

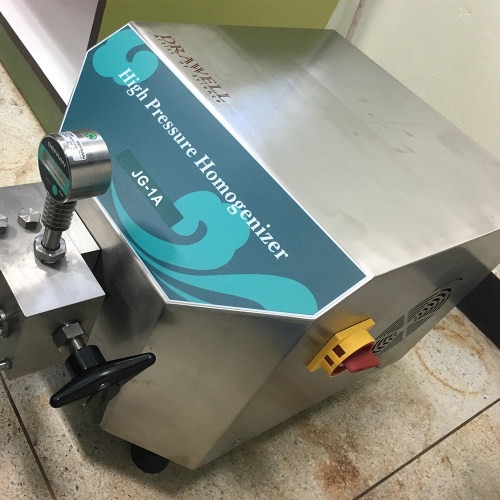

Product Display

Laboratory High-Pressure Homogenizer JG-1A
