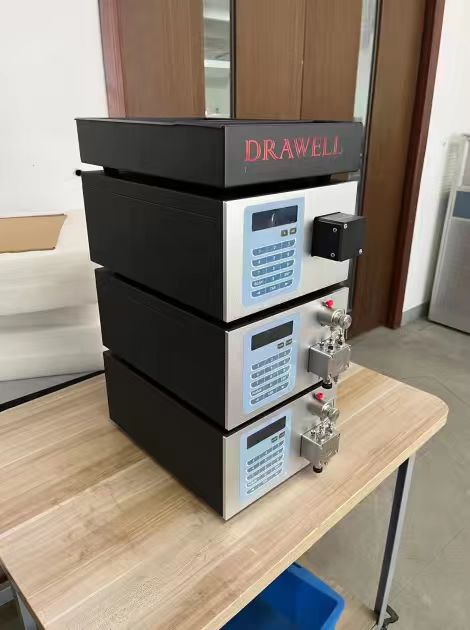

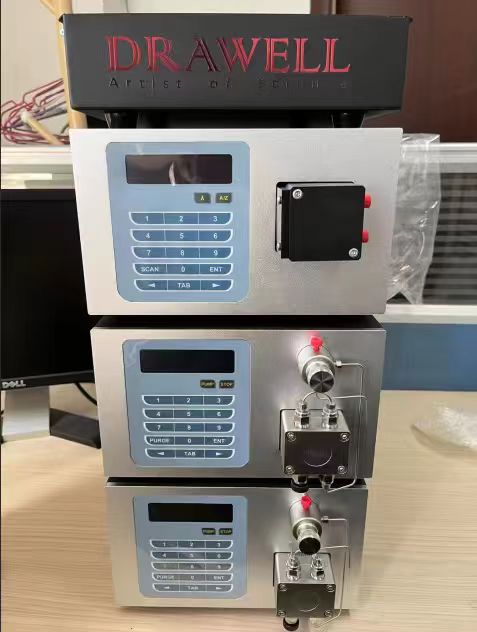

DW-LC1620A Liquid Chromatography
The DW-LC1620A Liquid Chromatography provides stable solvent delivery and sensitive UV detection for routine separation, identification and quantitative analysis. Available in isocratic and gradient configurations, it is suitable for pharmaceutical quality control, food testing, environmental analysis, chemical laboratories and scientific research.
- Maximum Pressure: ≤42 MPa
- Flow Precision: RSD ≤0.08%
- UV Wavelength Range: 190-700 nm
- Flow Range: 0.001-9.999 mL/min
Features of DW-LC1620A Liquid Chromatography
- A superior high-pressure pump achieves accurate solvent delivery with high precision and low fluctuation.
- Advanced and innovative design modules provide high reliability and accuracy for long time operation.
- The pump works in parallel and ensures accuracy and duration.
- Different kinds of detectors, including UV/VIS detectors and refractive index detectors, etc., provide stronger detection capability and more options.
- Pumping system: Isocratic system and gradient system.
- UV Detector for routine analysis/ RID for universal detection in isocratic analysis, especially necessary in the GPC system.
- All maintenance parts are accessible from the front panel for quick replacement without disassembling the instrument
- The monitoring system will stop the pump if pre-limit pressure is exceeded
- All components are controlled intelligently through a workstation
- Multiple data analysis functions, flexible peak identification, and data management, etc.
Applications of DW-LC1620A Liquid Chromatography
The DW-LC1620A Liquid Chromatography can use for clinical diagnosis, scientific research and development, pharmaceutical laboratories for drug analysis, quality control, standard control in the food and beverage industry, etc.
Life Science
Drug Analysis
Environmental Research
Petrochemical Products analysis
Food Analysis

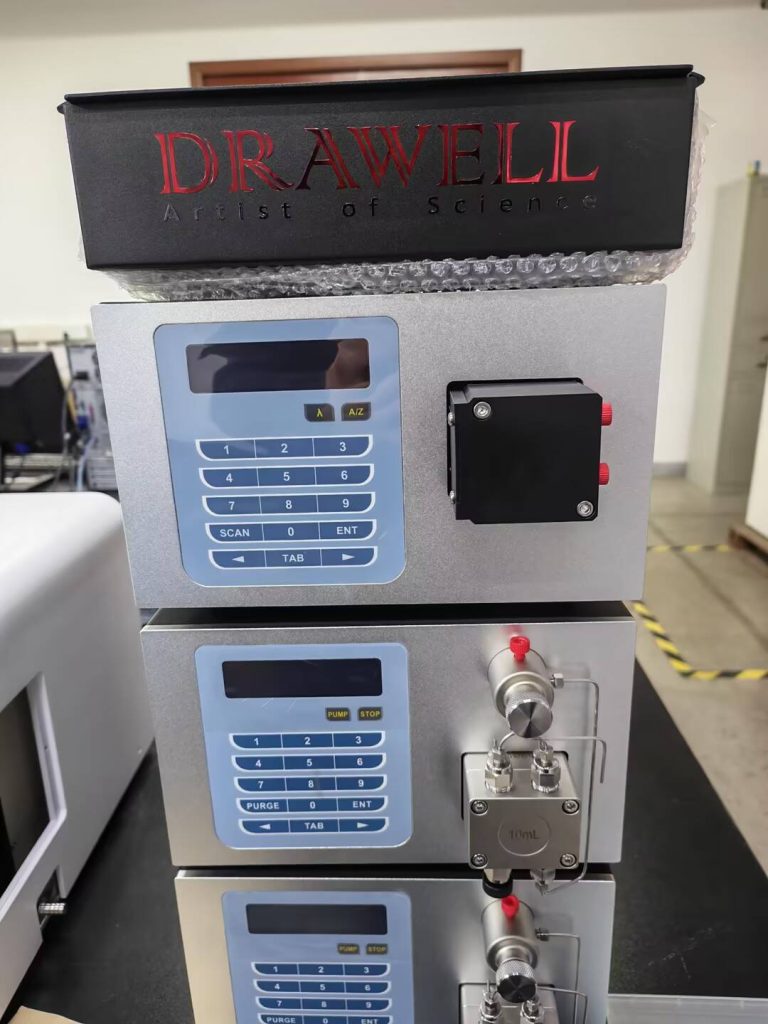

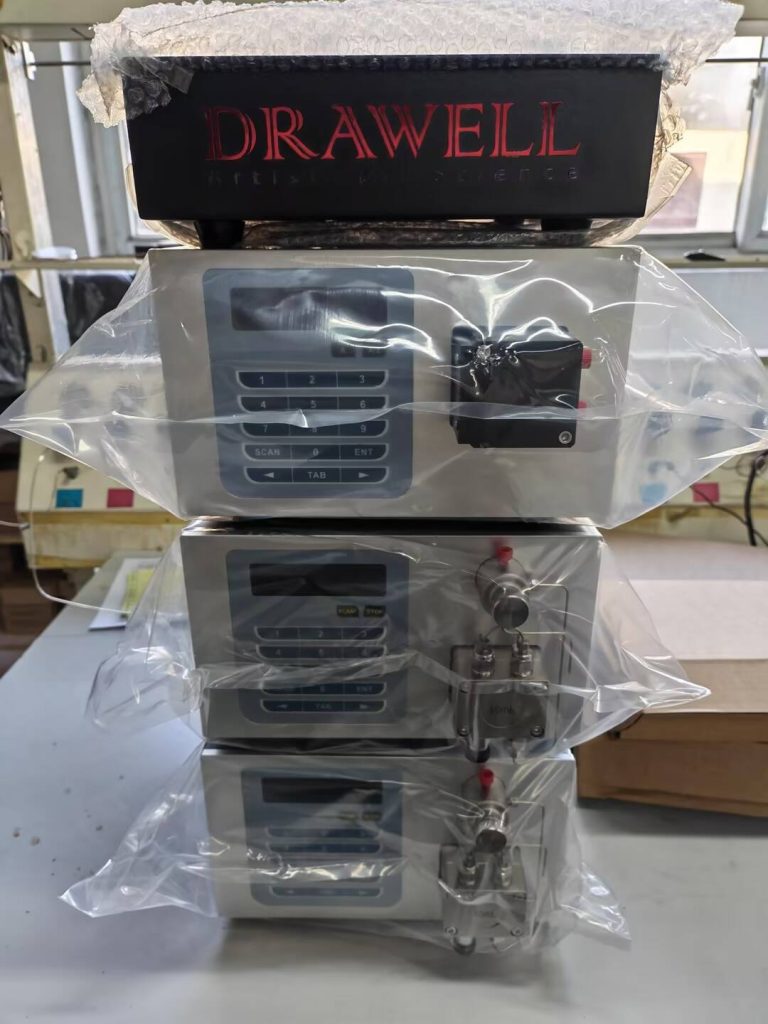

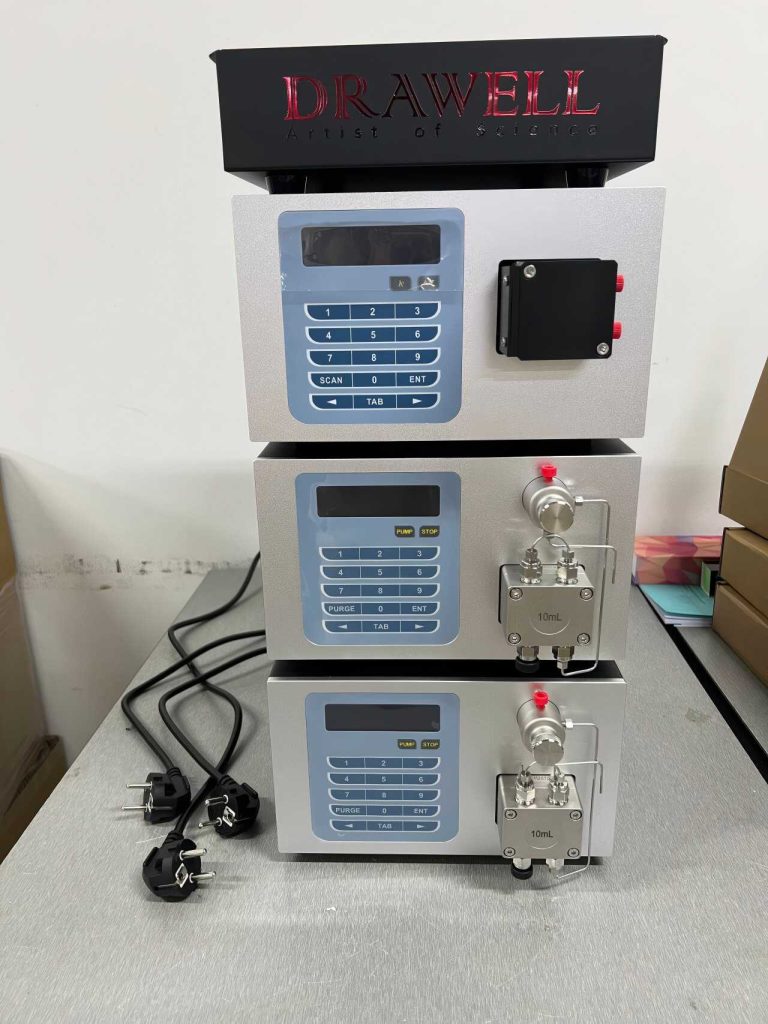

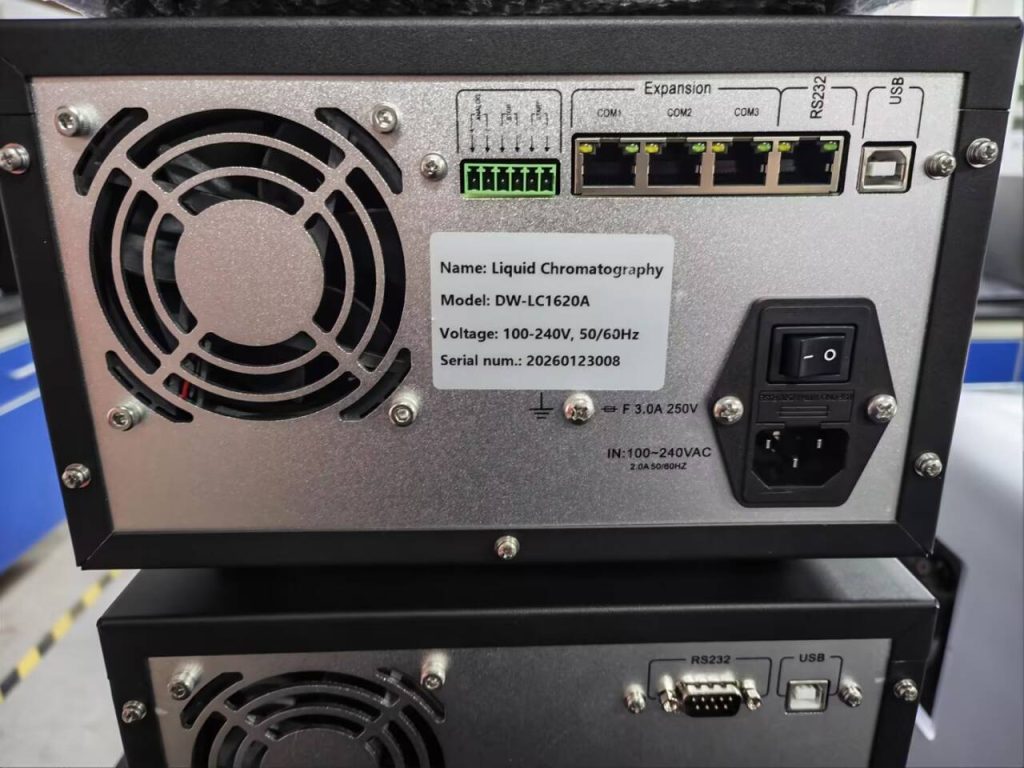

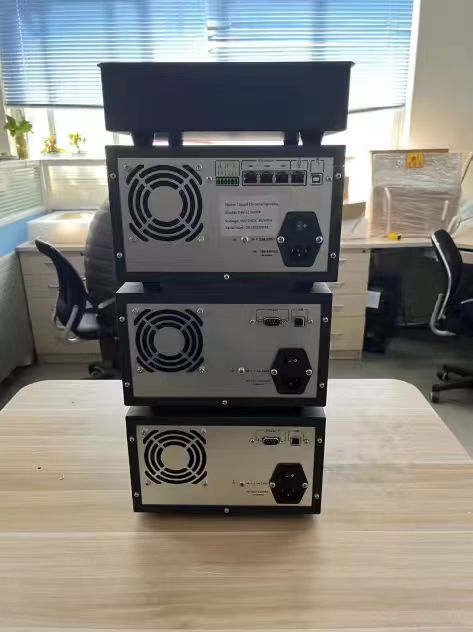

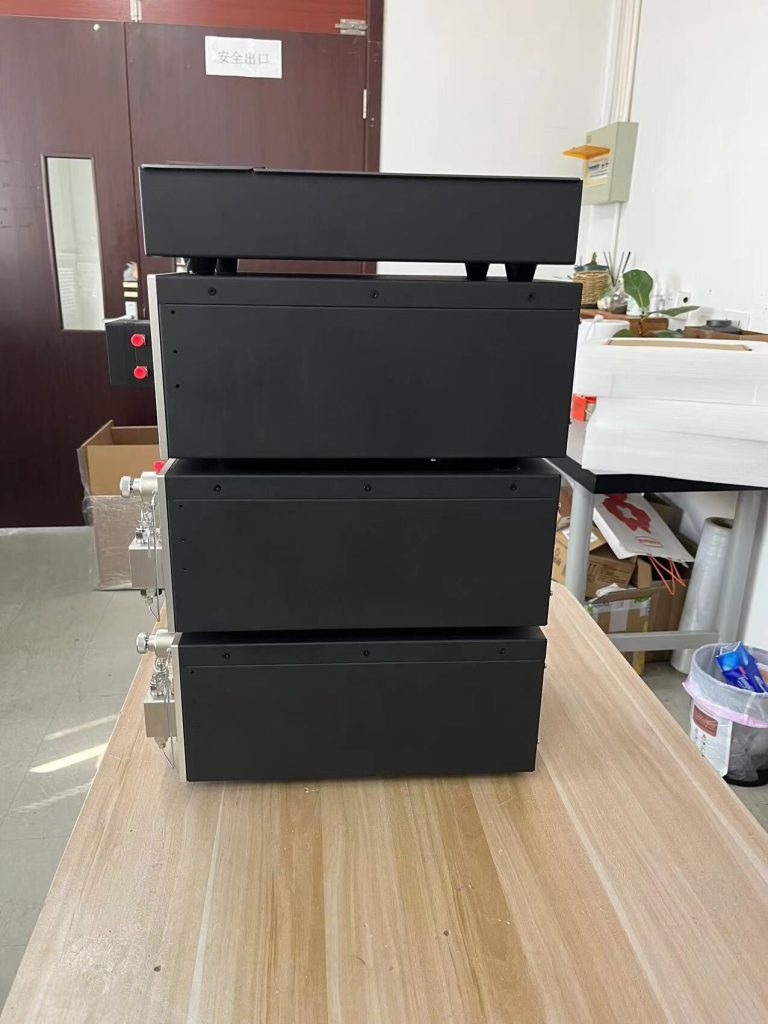

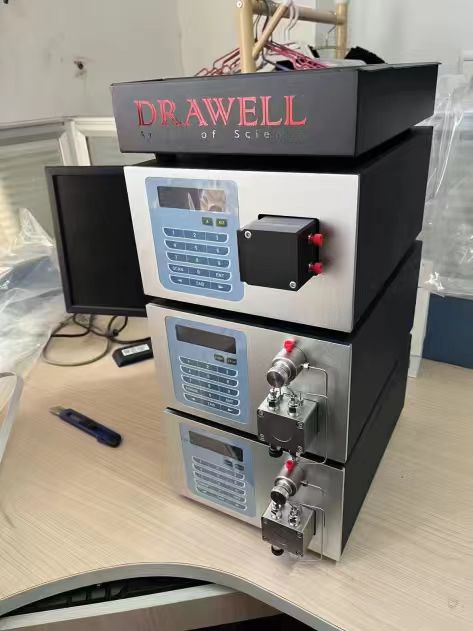

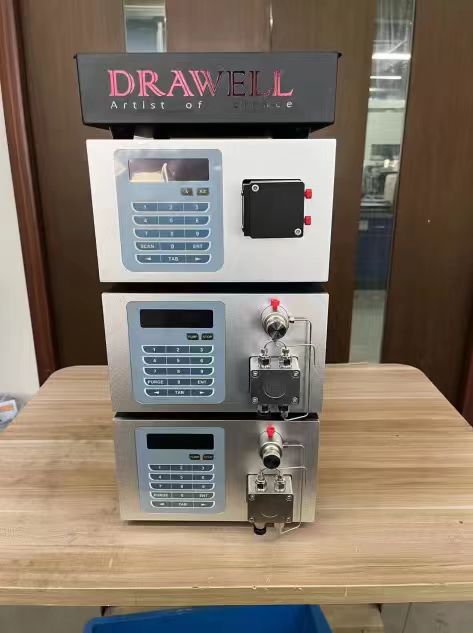

DW-LC1620A Liquid Chromatography Display
FAQ
Specifications of DW-LC1620A Liquid Chromatography
| Model | DW-LC1620A | |
| Isocratic system | Gradient system | |
| Specifications | ||
| DW-LC1620A Pump | Flow rate range | 0.001-9.999mL/min |
| Flow rate accuracy | ≤±0.5%(1mL/min, water, room temperature) | |
| Flow rate precision | SD≤0.08%(1mL/min, water, room temperature | |
| Pressure range | ≤42MPa | |
| Specifications | ||
| Lamp | deuterium lamp | |
| DW-LC1620A | Wavelength range | 190-700nm |
| UV Detector | Baseline noise | ≤8×10-6AU |
| Baseline drift | ≤1×10-4AU/h | |
| Detection Limit | 4×10 g/ml(Naphthalene/methyl alcohol | |
| Wavelength accuracy | ±1nm | |

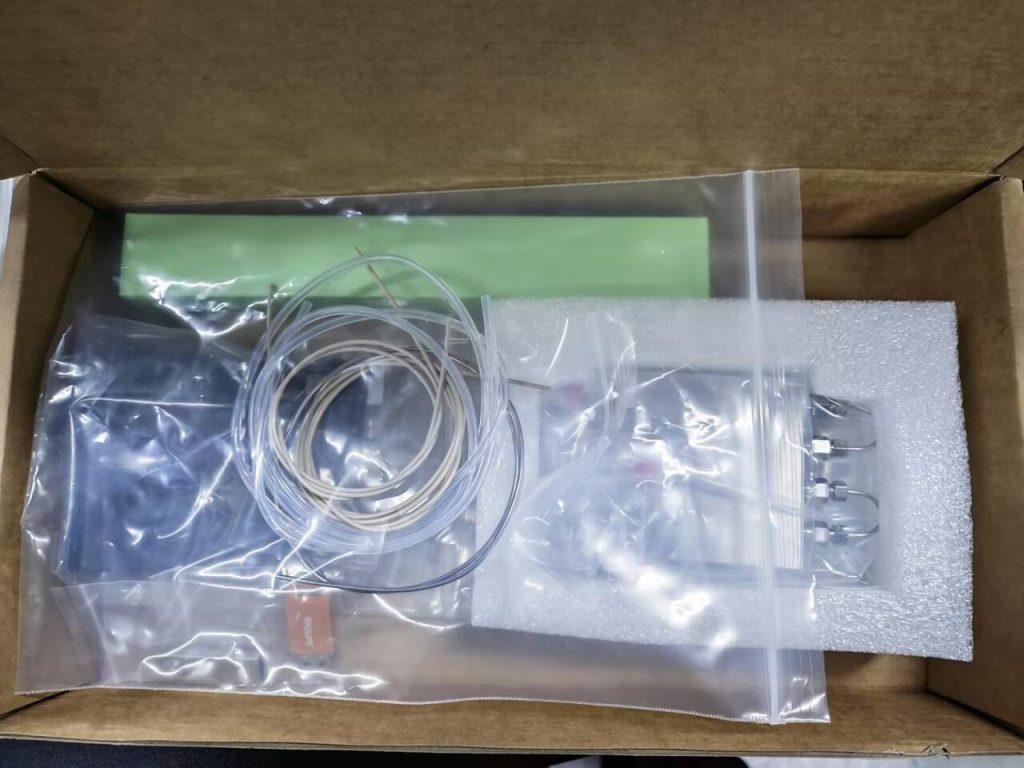

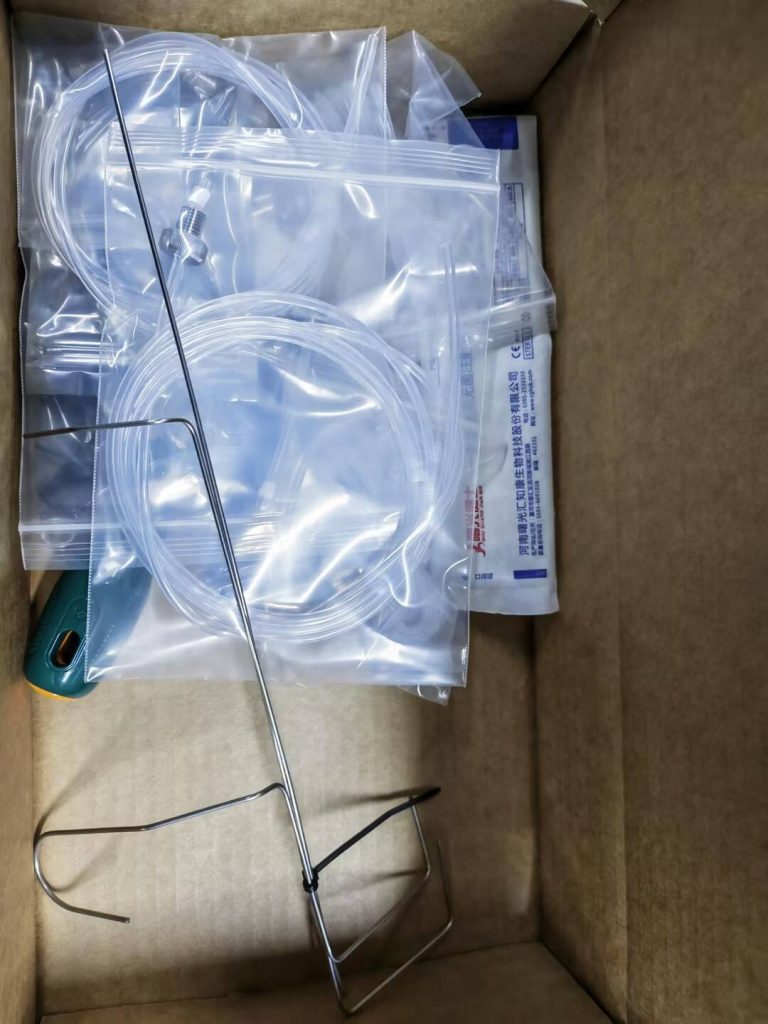

DW-LC1620A Accessories

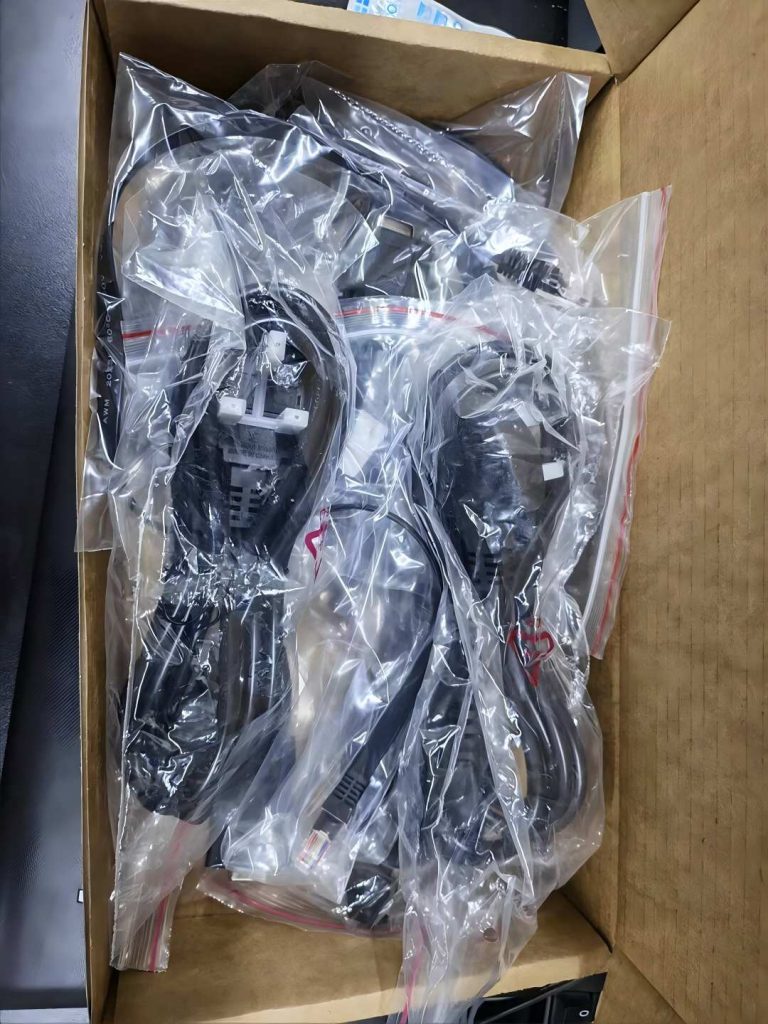

DW-LC1620A Accessories
DW-LC1620A Accessories

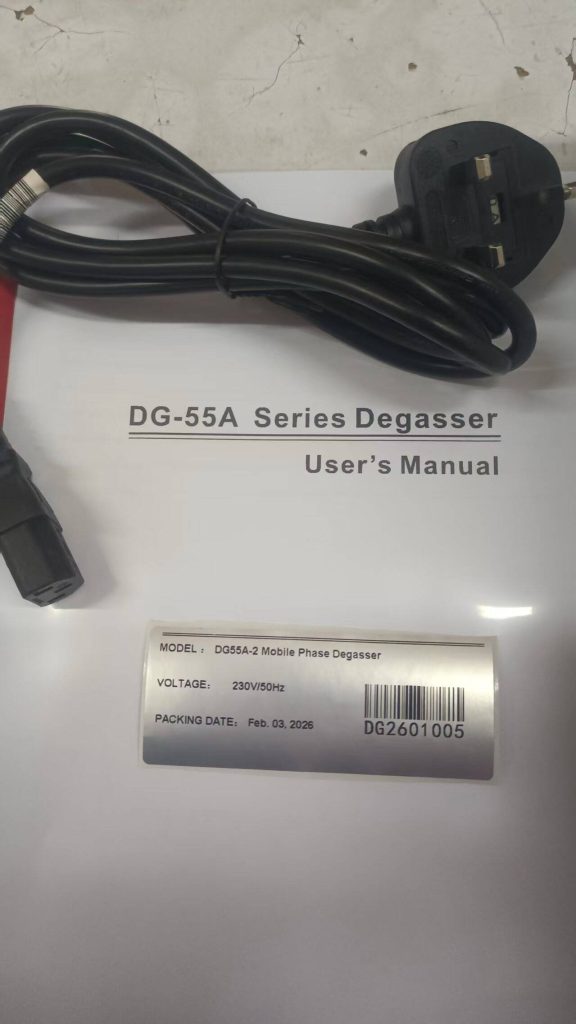

2 channel degasser

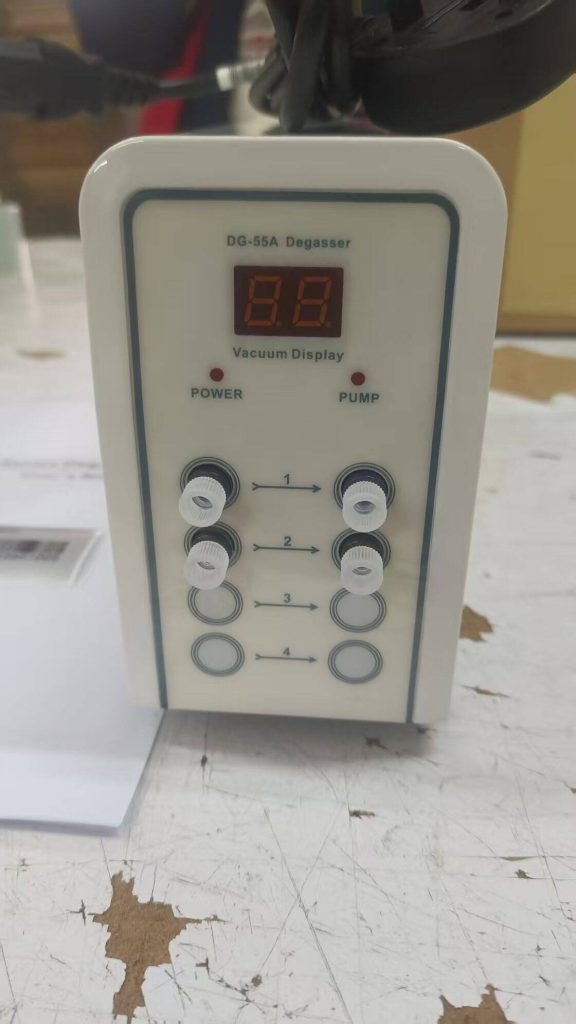

Degasser

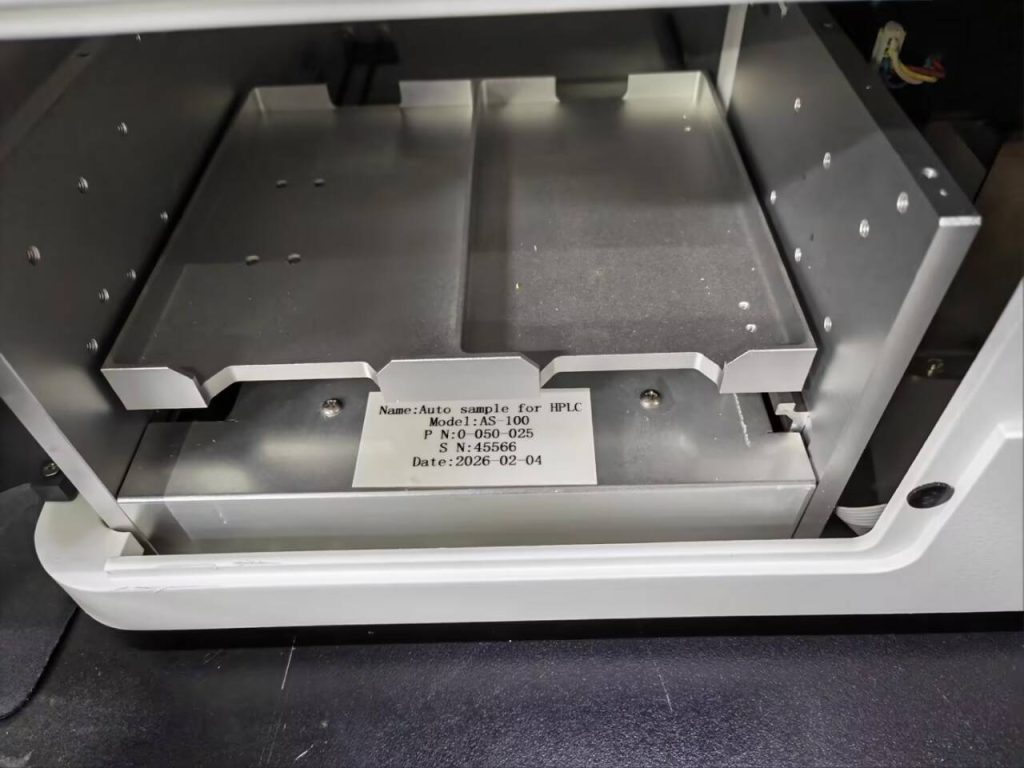

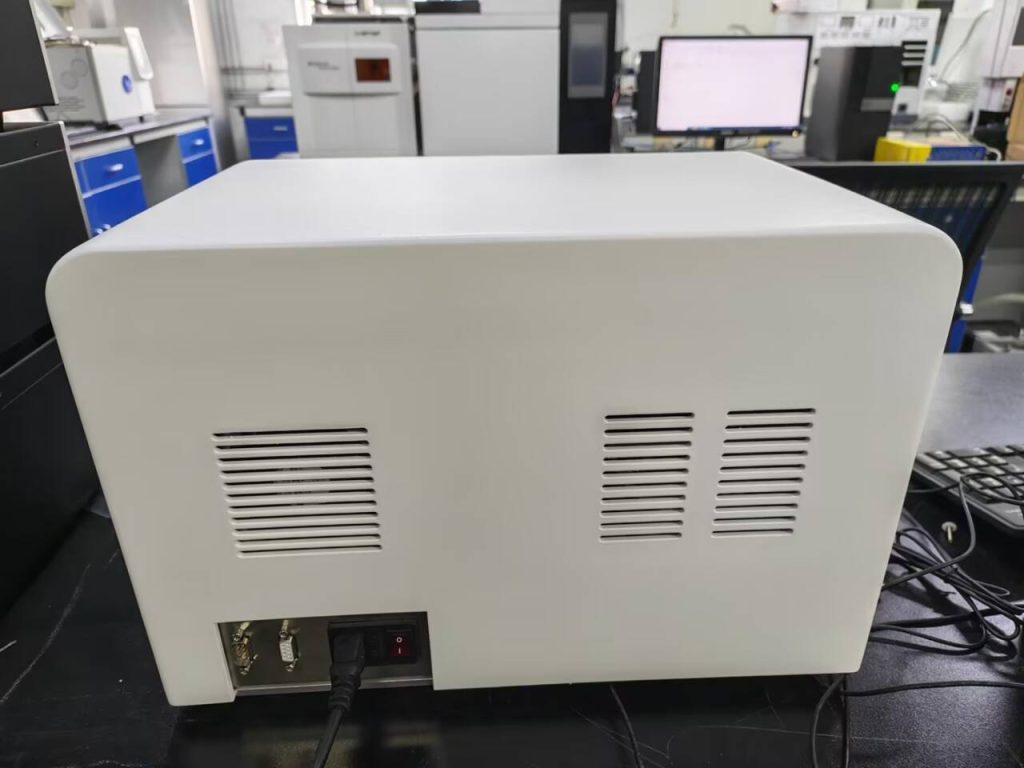

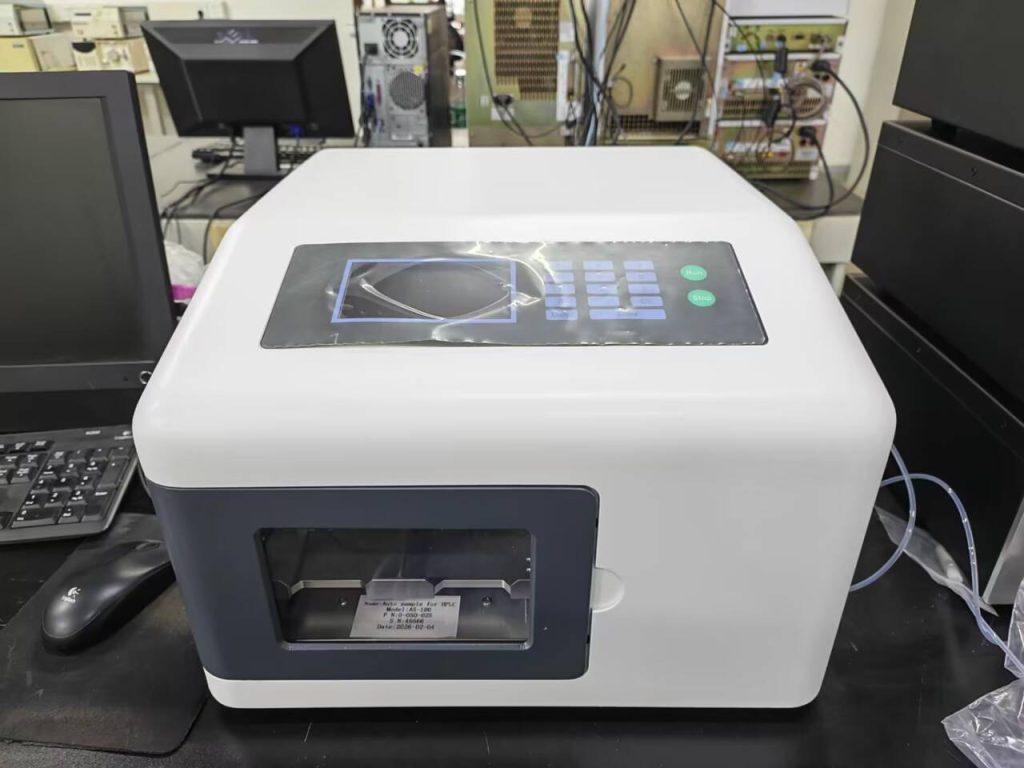

Automatic sampler
Automatic sampler
Automatic sampler

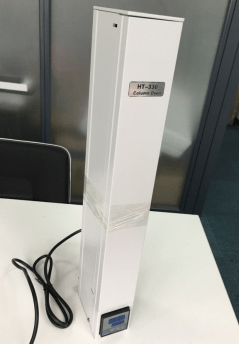

Column Oven
Accessories
- High-pressure pump
- UV detector
- C18 column
