Benchtop High Speed Refrigerated Centrifuge TGL-18M/MC
TGL-18M/MC is useful for routine application in biotechnology, PCR, life science and clinical labs, etc. This is suitable for routine sample analysis in Medical, Hospital, and Institutional laboratories. With a wide choice of rotor heads and adapters, this unit is truly versatile.
Features of Benchtop High Speed Refrigerated centrifuge TGL-18M/MC
- Advanced CPU control system: the micro-controller can more accurately control the speed, time, and relative centrifugal force.
- Reliable drive system: Brand CFC-free compressor, two-cycle refrigeration, no pollution, high accuracy of temperature. The temperature can be controlled within －20℃~﹢40℃. Rotors can be pre-cooling in a stopped state.
- Equipped with digital/Touch LCD screen, microprocessor control, brush-less AC frequency conversion motor, Stainless Chamber.
- Equipped with door protection, Overspeed, and an advanced electronic imbalance detection system, which can monitor the centrifuge process in real-time to ensure the safe operation of the instrument.
- Emergency lid lock, in case of power off
- Safety Interlock system that prevents opening the centrifuge lid during running.
- 10 programs can be stored, and quickly recall the last used program.
Technical parameters of TGL-18M/MC Centrifuge
|
Model |
TGL-18M |
TGL-18MC |
|
Max Speed |
18000r/min |
|
|
Max RCF |
23200xg |
|
|
Display |
Digital display |
LCD Display |
|
Max Capacity |
4 x100ml |
|
|
Speed Accuracy |
±10rpm |
|
|
Timer Range |
0~99min |
|
|
Temp Range |
－20℃~﹢40℃ |
|
|
Noise |
≤60dB(A) |
|
|
Power Supply |
AC220v&110V 50Hz 18A |
|
|
Dimension |
610x622x360mm(L*W*H) |
|
|
Weight |
65kg |
|

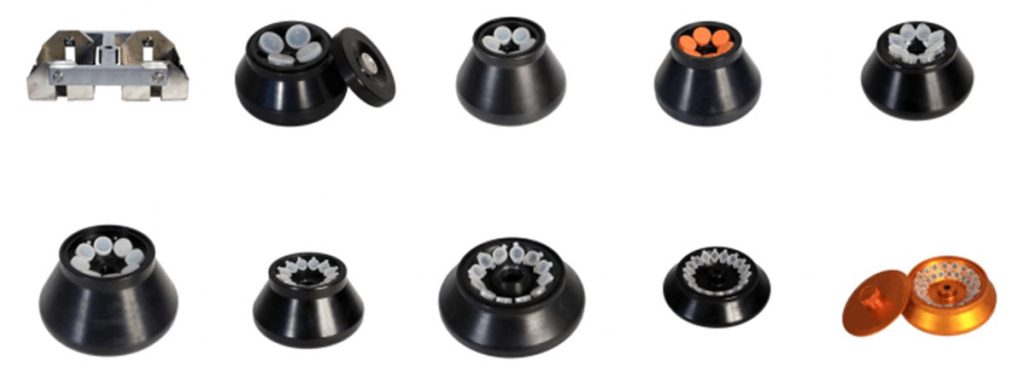

Rotor
|
|
Max Speed:16000r/min Capacity:12×1.5/2.2ml AR Max RCF:17800xg |
|
Max Speed:13000r/min Capacity:8×5ml AR Max RCF:11400xg |
|
|
Max Speed:12000r/min Capacity:6/8×10/15ml AR Max RCF:14800xg |
|
Max Speed:15000r/min Capacity:24×1.5/2.2ml AR Max RCF:21800xg |
|
|
Max Speed:13500r/min Capacity:48×0.5/1.5ml AR Max RCF:14800xg |
|
Max Speed:13500r/min Capacity:48×1.5/2.2ml AR Max RCF:17600xg |
|
|
Max Speed:11000r/min Capacity:6×50/30ml AR Max RCF:12000xg |
|
Max Speed:10000r/min Capacity:4×100ml AR Max RCF:10460xg |
|
|
Max Speed:4000r/min Capacity:2×2×48 holes Max RCF:1400xg |
|
Max Speed:8000r/min Capacity:8×50ml AR Max RCF:9800xg |
No.1
No.2
No.3
No.4
No.6
No.7
No.9
No.10

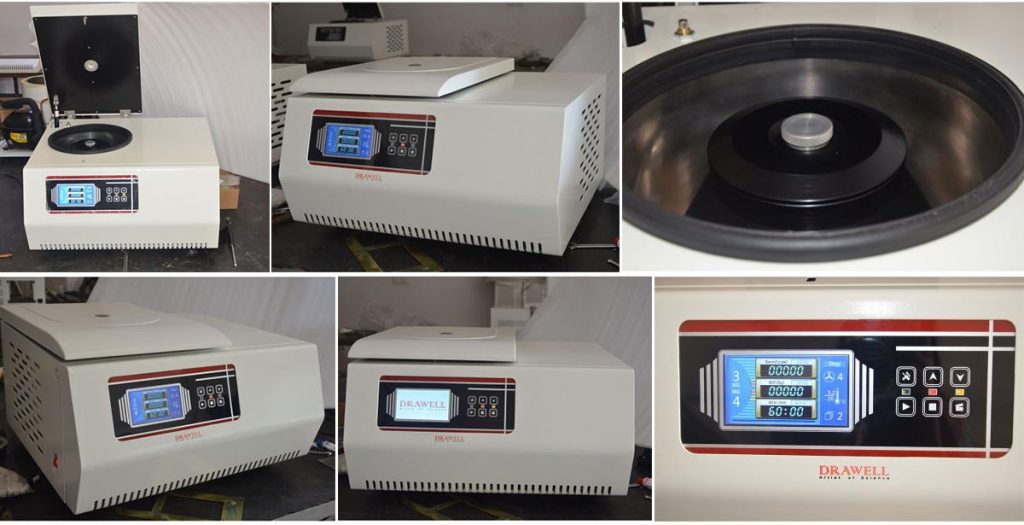

Accessories Display
Digital Display
LCD Display
