    • DW-MS Automatic Intelligent Moisture Analyzer

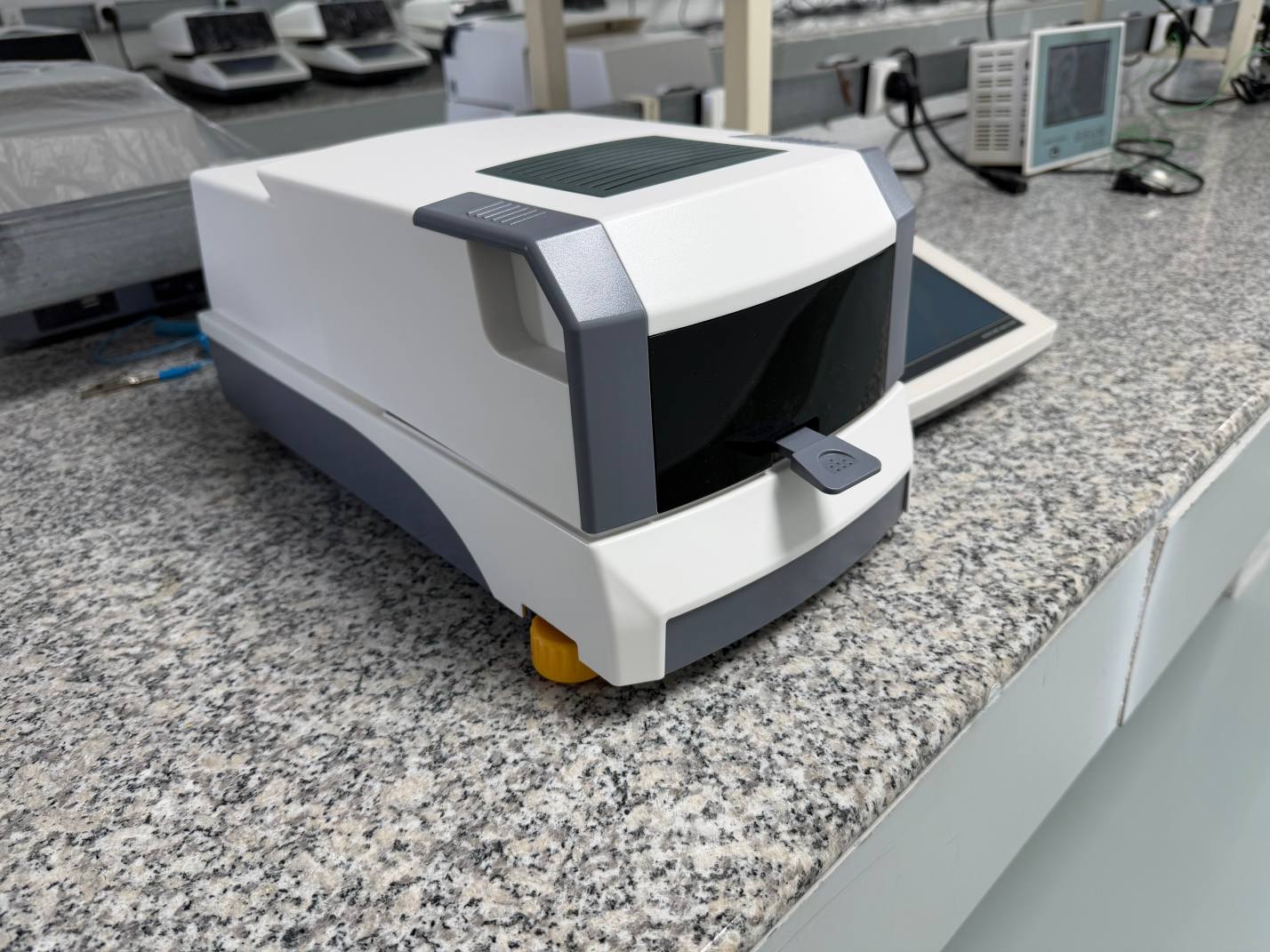

    1. Full automatic opening and closing hatch/open transparent window. It can prevent the influence of lifting the cover by humans.

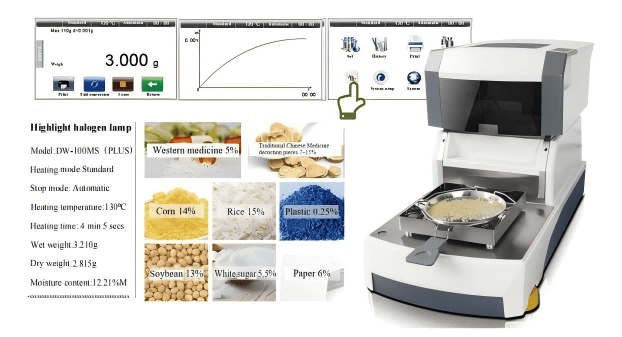

    2. 7-inch high-definition intelligent touch screen: real-time dynamic curve analysis, direct display of moisture percentage / dry weight percentage / dry weight.
    3. High bright halogen lamp. The limit heating temperature is 30 ℃.
    4. Imported polymer materials / high-temperature resistant molding.
    5. Double motor drive / double fan design.
    6. Intelligent dual temperature control/multi-layer stainless steel heating chamber.
    7. Four layers of stainless steel heated inner cabin to improve the efficiency.
    8. Removable test cover, convenient for replacement of accessories.
    9. Intelligent anti-pinch and automatic detection opening function to effectively protect the user and the mechanical system of the instrument.
    10. Fast system update and upgrade.
    DW-MS Manual
    DW-MS Brochure
    DW-MS Automatic Intelligent Moisture Analyzer(1)
    DW-MS Automatic Intelligent Moisture Analyzer-2

    Parameters of DW-MS Automatic Intelligent Moisture Analyzer

    Model DW-100MS DW-100MS DW-200MS DW-200MS
    (plus) (plus)
    Range (g) 110g 210g
    Readability(g) 0.001g 0.001g
    Operating Temp 5℃-35℃
    Pan Size Ø100mm

    Heat Source Halogen Lamp
    Temp.Sensor PT 100
    Temp. Range 40℃-230℃
    Temp.Step 1℃

    Moisture Range 0.00%-100.00%
    Moisture Readability 0.0001
    Dry Residual Range 100.00%-0.00%
    Dry Residual Readability 0.0001
    ATRO 100%-999%
    ATRO 0%-999%

    Temp Setting 40℃-230℃ By 1℃ Step
    Time Setting 1-99min by 10 s
    Number Of Storage 20
    Number Of History 20

    Heater 220V ±15%  50HZ / 110V±15%  60HZ ;  400W
    Balance Input: 220V 50HZ/110V 60HZ
      Output:9V
    Machine Input: 220V 50HZ/110V 60HZ
    (Dual-drive) Output:24V

    Host Dimension 215X195X415mm
    Indicator Dimension 200X75X135mm
    Operation Height 275mm
    The Chamber Height 35mm

    Display 7 inch touch panel
    Interface RS232/RJ45/USB…
    Communication Mode Cable Wireless   Cable   Wireless
    Rechargeable Battery No 10,000mAh   No   10,000mAh
    Calibration External Calibration
