Ion Chromatography
What is Ion Chromatography？
Ion chromatography is a kind of high-performance liquid chromatography, so it is also called high-performance ion chromatography (HPIC) or modern ion chromatography. It is a liquid chromatography method for analyzing anions and cations.
Applications: IC is mainly used for the analysis of environmental samples, including anions and cations in samples such as surface water, drinking water, rainwater, domestic sewage and industrial wastewater, acid deposits, and atmospheric particles. In addition, it has a wide range of applications in the fields of food, sanitation, petrochemicals, water, and geology.
Features of Ion Chromatography
- Fast and convenient, can complete the analysis of a sample in a few minutes.
- With high sensitivity, the concentration range of ion chromatography analysis is ug/L to mg/L.
- Simultaneous analysis of multiple ionic compounds.
- The separation column has good stability and high capacity.
Specifications of Ion Chromatography
| Model | Specification | DW-CIC-D100 | DW-CIC-D120 | DW-CIC-D160 | DW-CIC-300 |
| Picture | Specification |  |  |  |  |
| Pump | Pressure range | 0~42 MPa | 0~35MPa | 0~42 MPa | |
| Flow range | 0.001～9.999 mL/min | ||||
| Flow accuracy | RSD≤0.1% | ||||
| Flow repeatability | Structure | Five electrodes conductance detector | Five-polar ring passively and 316 stainless steel conductance detector | Bipolar conductivity detector | Temperature–controlled bipolar conductivity detector |
| Cell volume | ≤0.8 μL | ||||
| Resolution | ≤0.0020 nS/cm | ≤0.025 ns | |||
| Measure range | 0～35000 μS/cm | 0~100000 μS/cm | 0~30000 μS/cm | ||
| Output voltage | -6000～6000 mv | -5000~5000 mV | |||
| Baseline noise | ≤0.05% FS | ≤0.1% FS | ≤0.6%FS | ||
| Baseline drift | ≤0.3%FS | ≤2.0%FS | |||
| Range of temperature | RT +5 ℃ ~ 60 ℃ | RT +5 ℃ ~ 50 ℃ | |||
| Constant temperature accuracy | ±0.01 ℃ | ||||
Application Areas of Ion Chromatography
- Environment: atmospheric composition (dust, particulate matter, fog, acid gas), acid rain, water quality analysis
- Food: Contaminated ingredients, additives, inherent ingredients, adulteration, production process monitoring
- Agriculture: Pesticide, fertilizer, soil, feed, food, plant analysis
- Medicine: blood, urine, infusion composition, clinical examination, human trace element analysis
- Biology: Protein separation and purification
- Pharmaceuticals: analysis of plant medicinal materials, mineral medicinal ingredients, and preparation ingredients
- Materials: metal materials, semiconductor materials, surface treatment, ultrapure water analysis
- Industry: Raw material analysis, product quality control, electrolytic plating solution analysis, papermaking
- Daily chemicals: analysis of cosmetics, detergents, cleaning agents, raw materials, and product components
Ion Chromatography Display

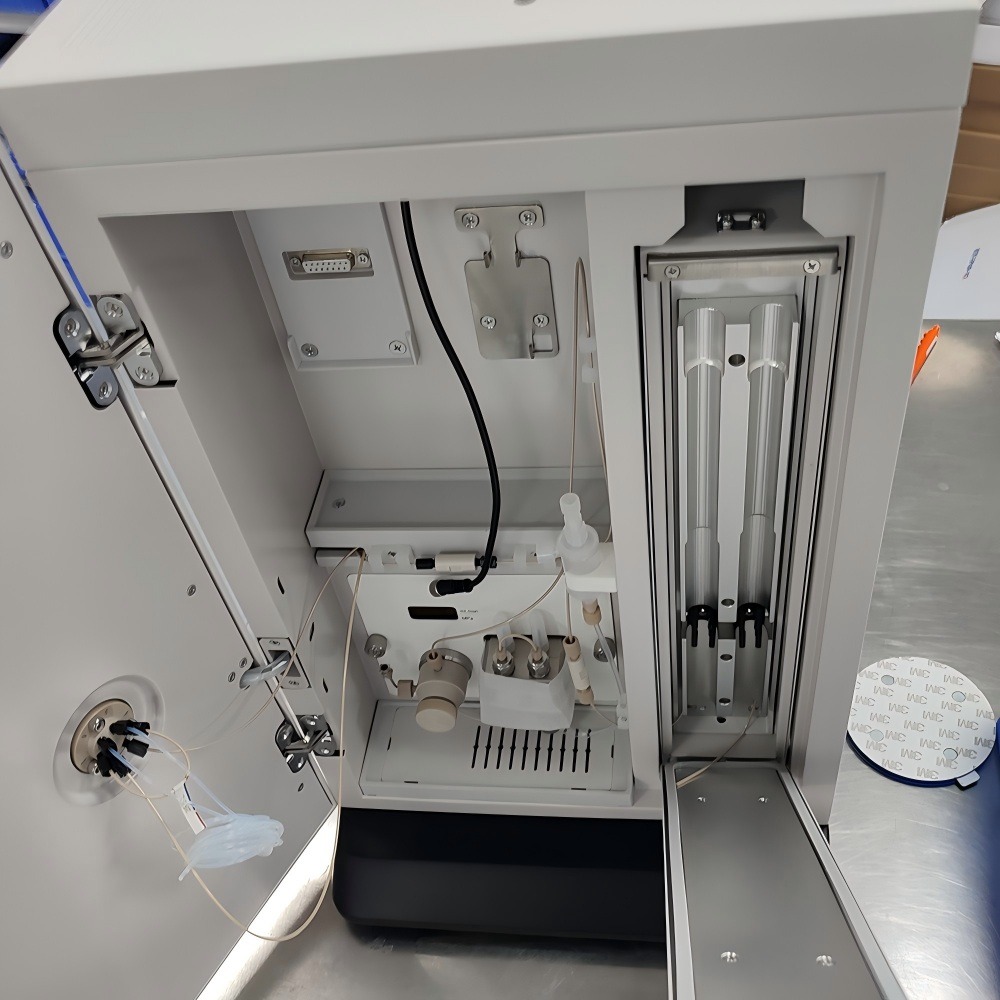

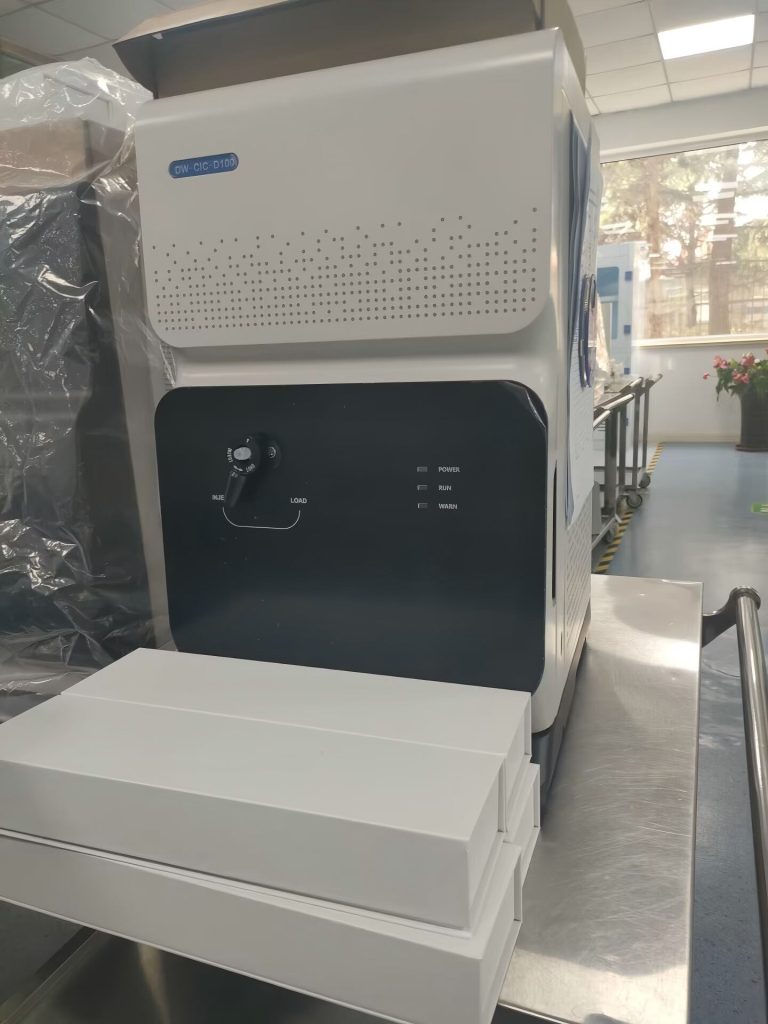

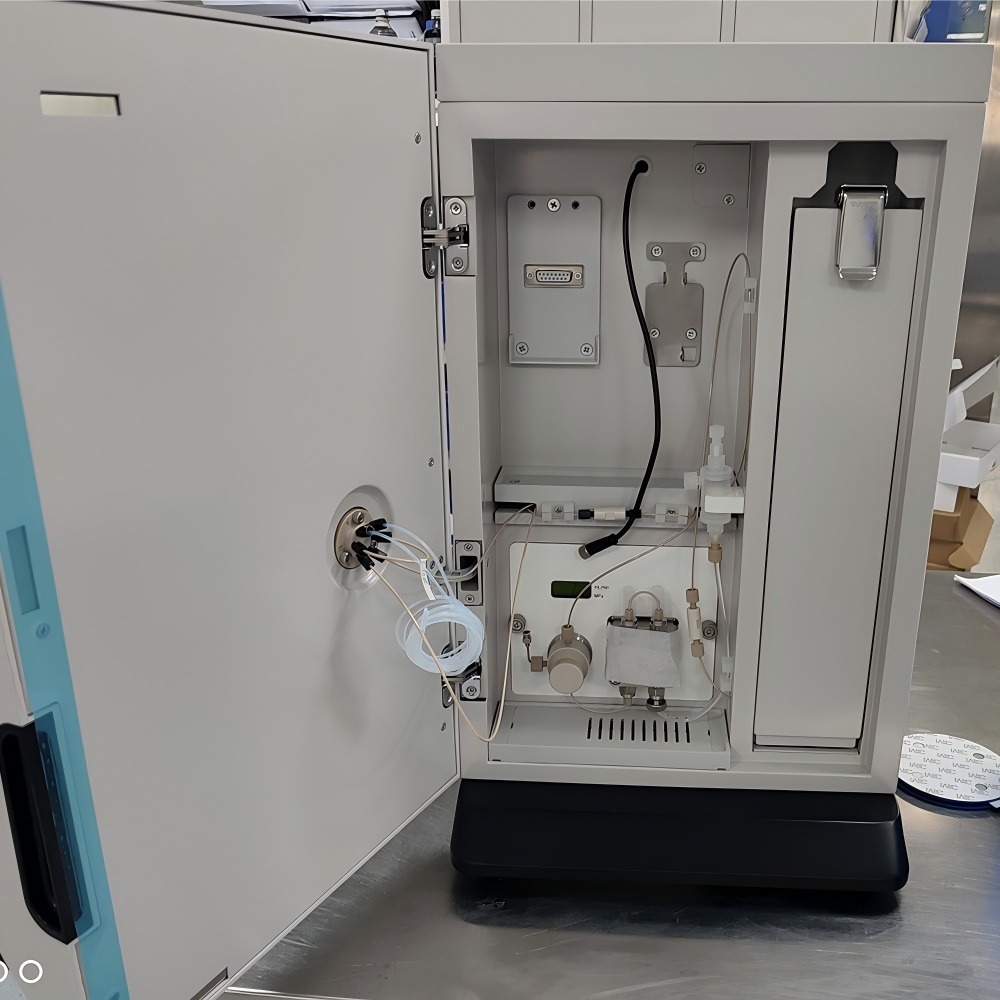

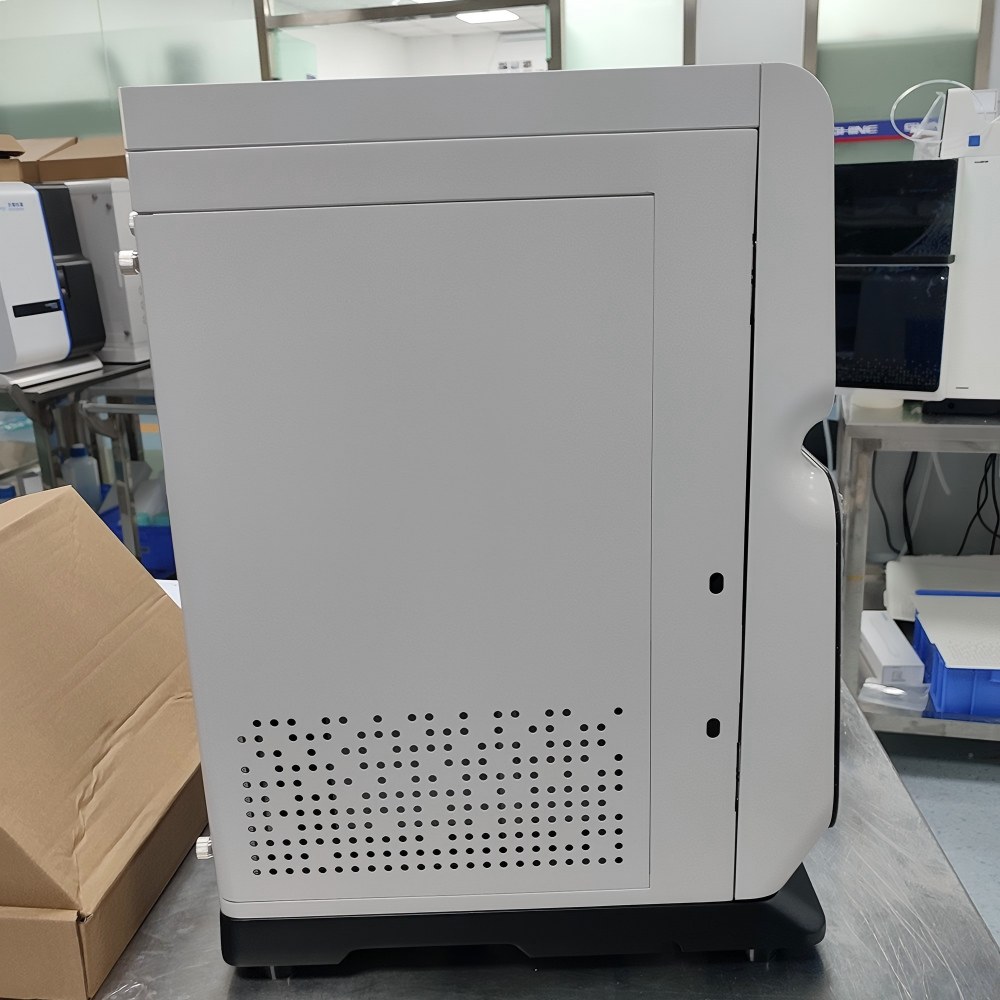

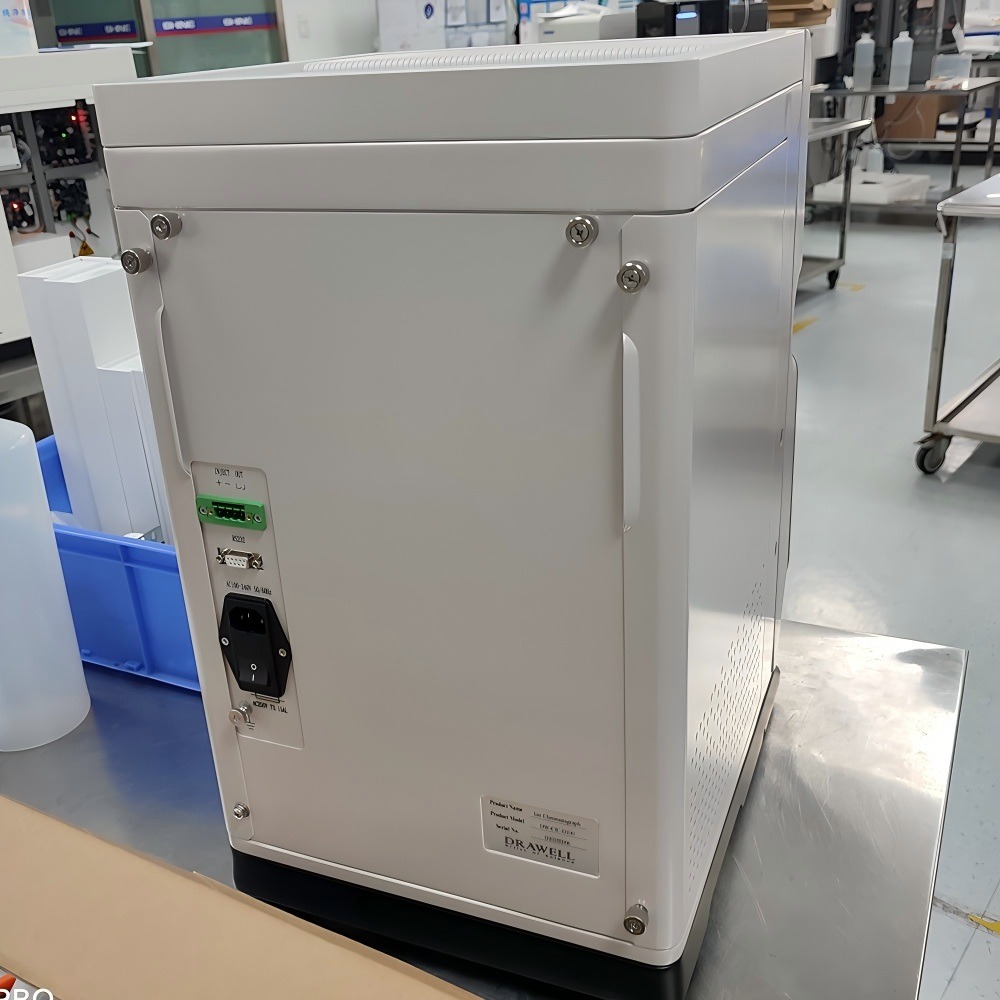

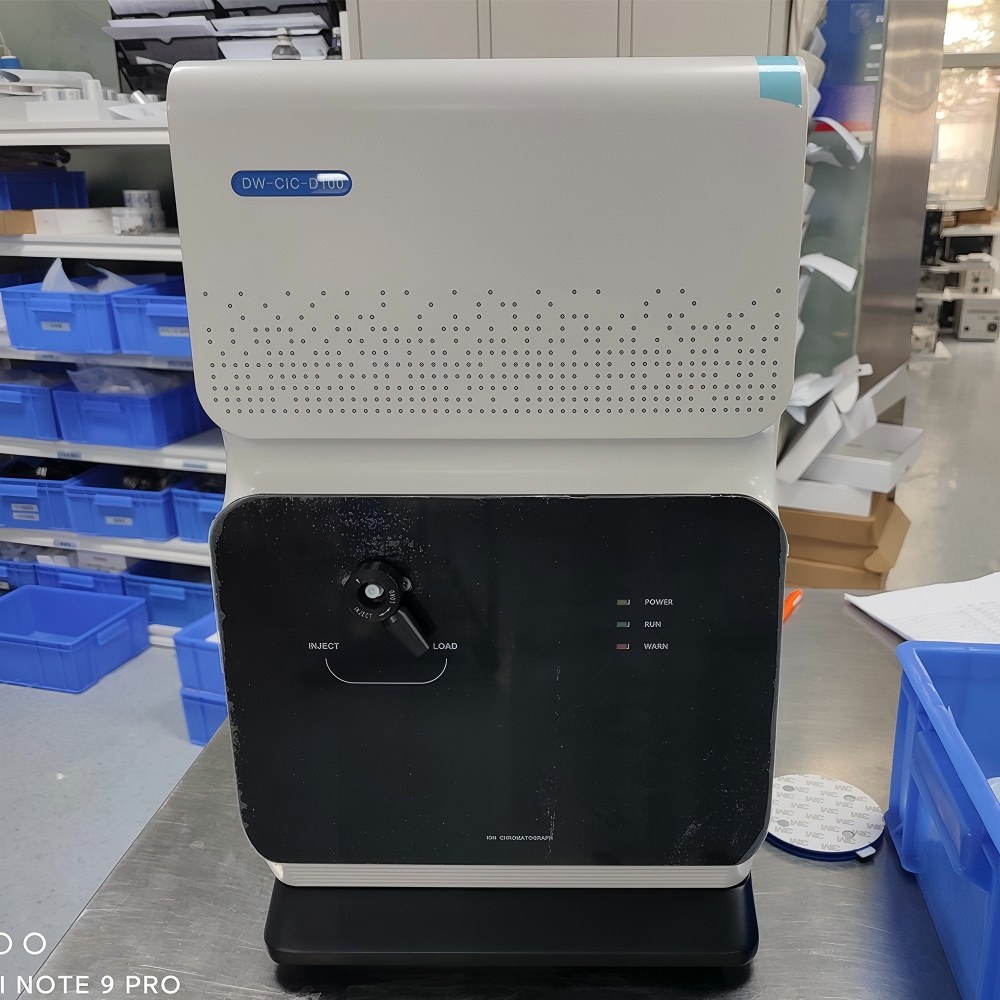

DW-CIC-D100 Ion Chromatography Display

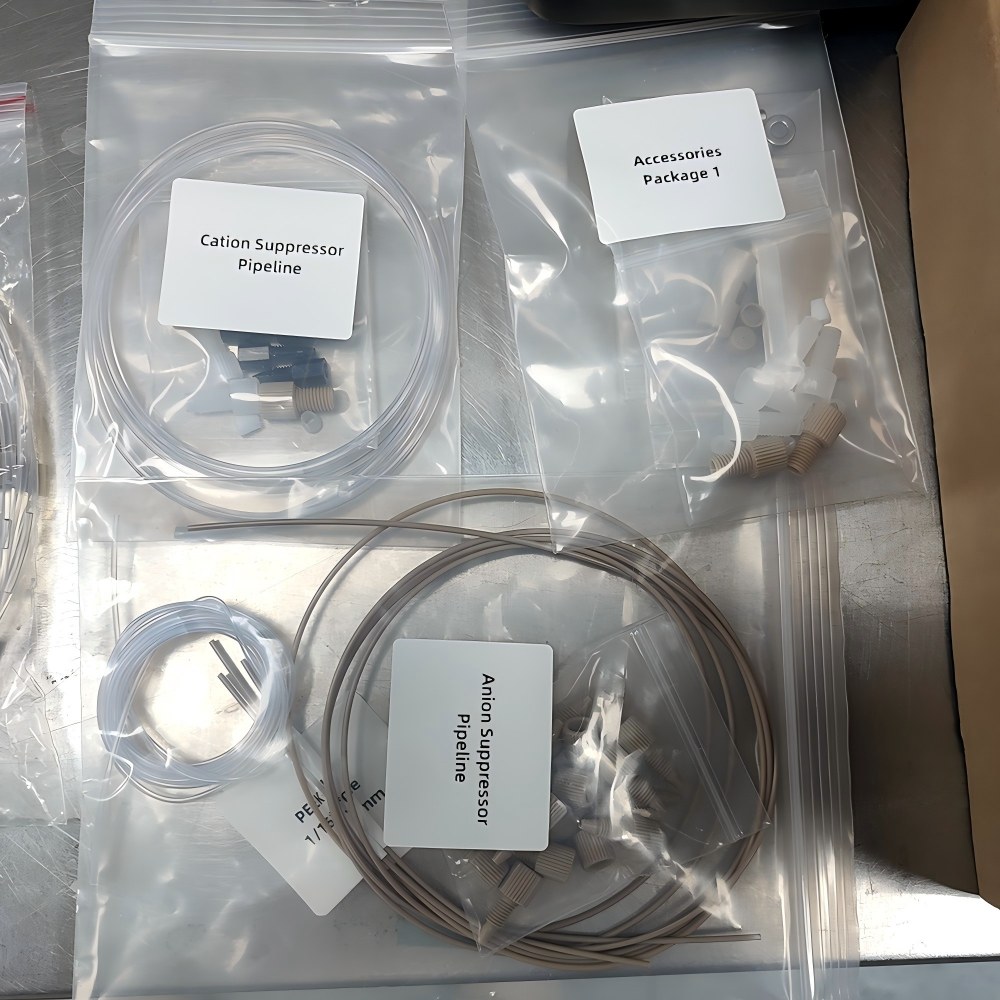

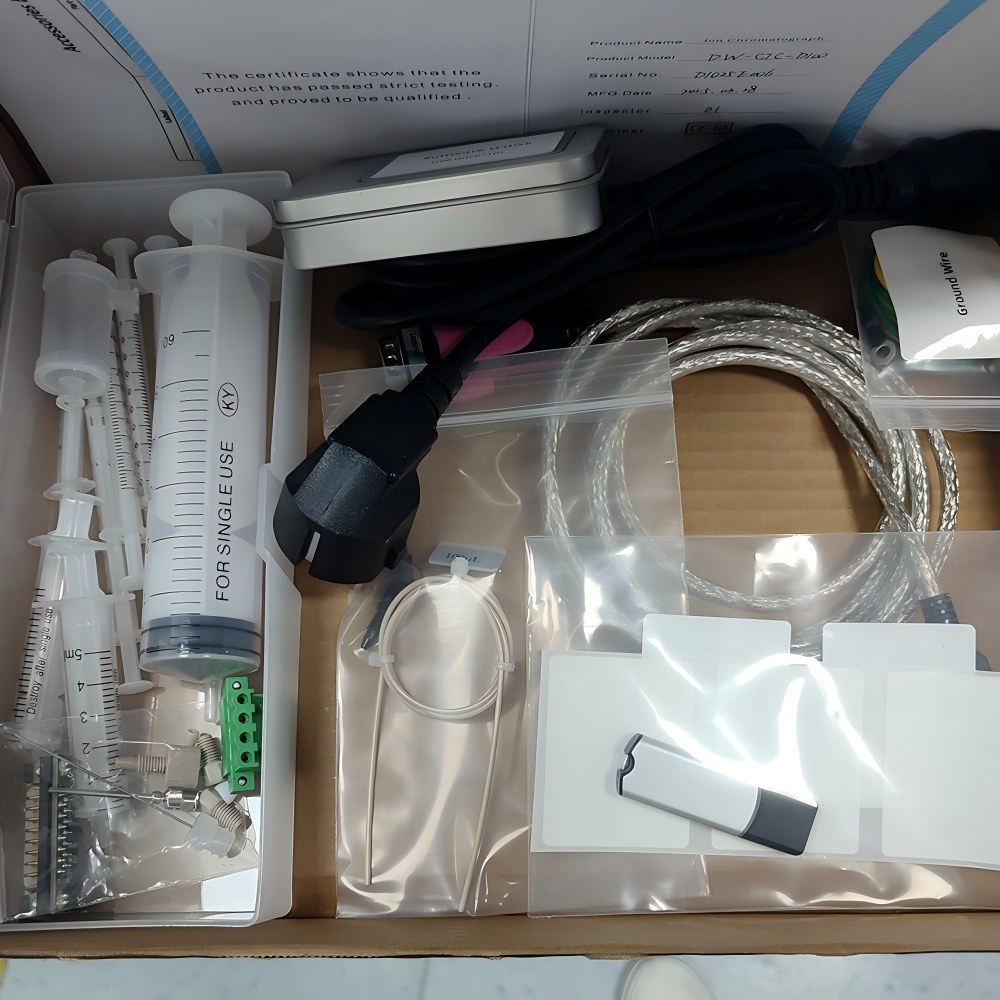

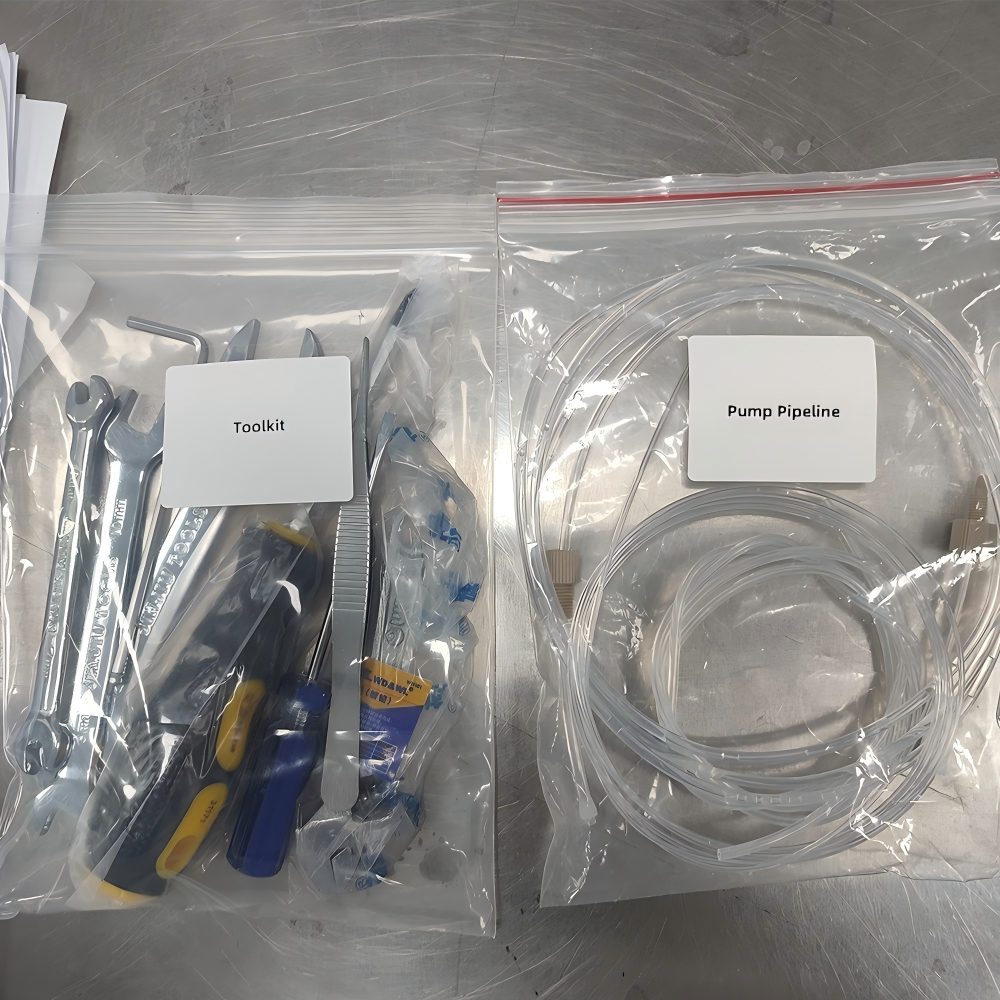

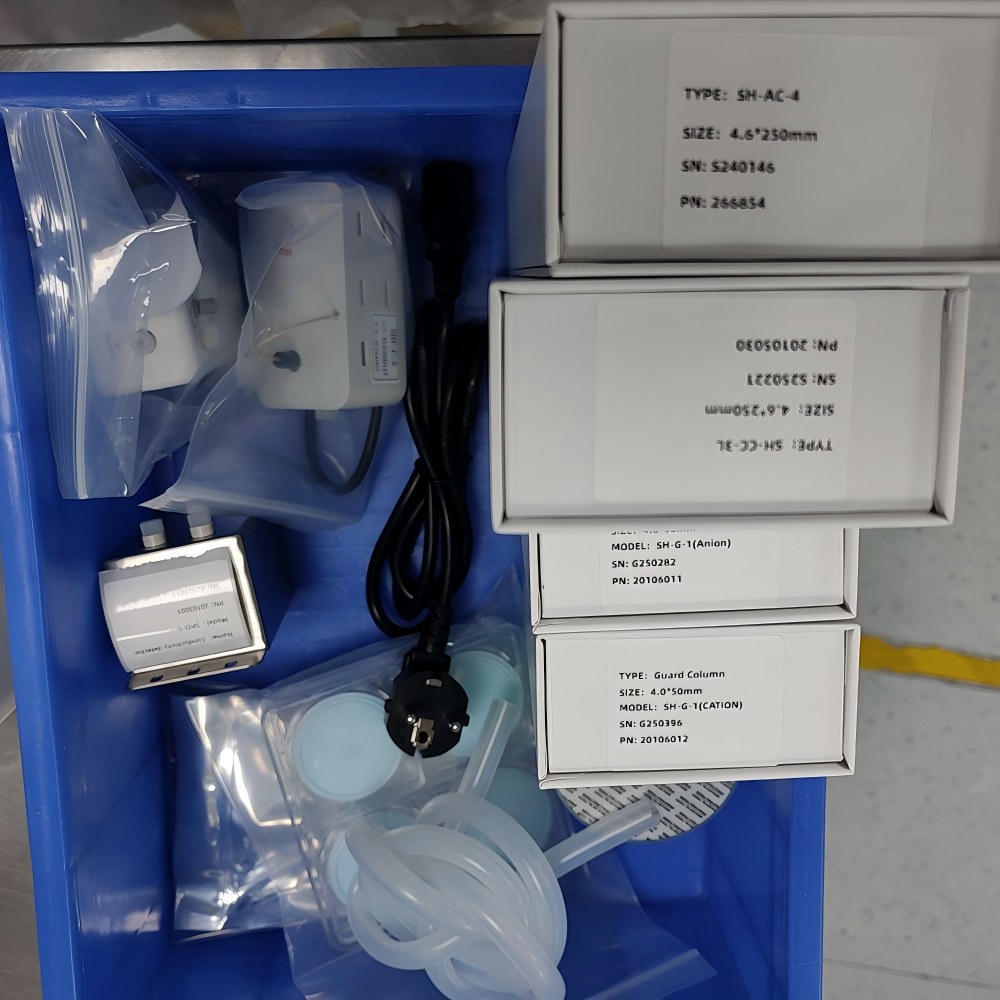

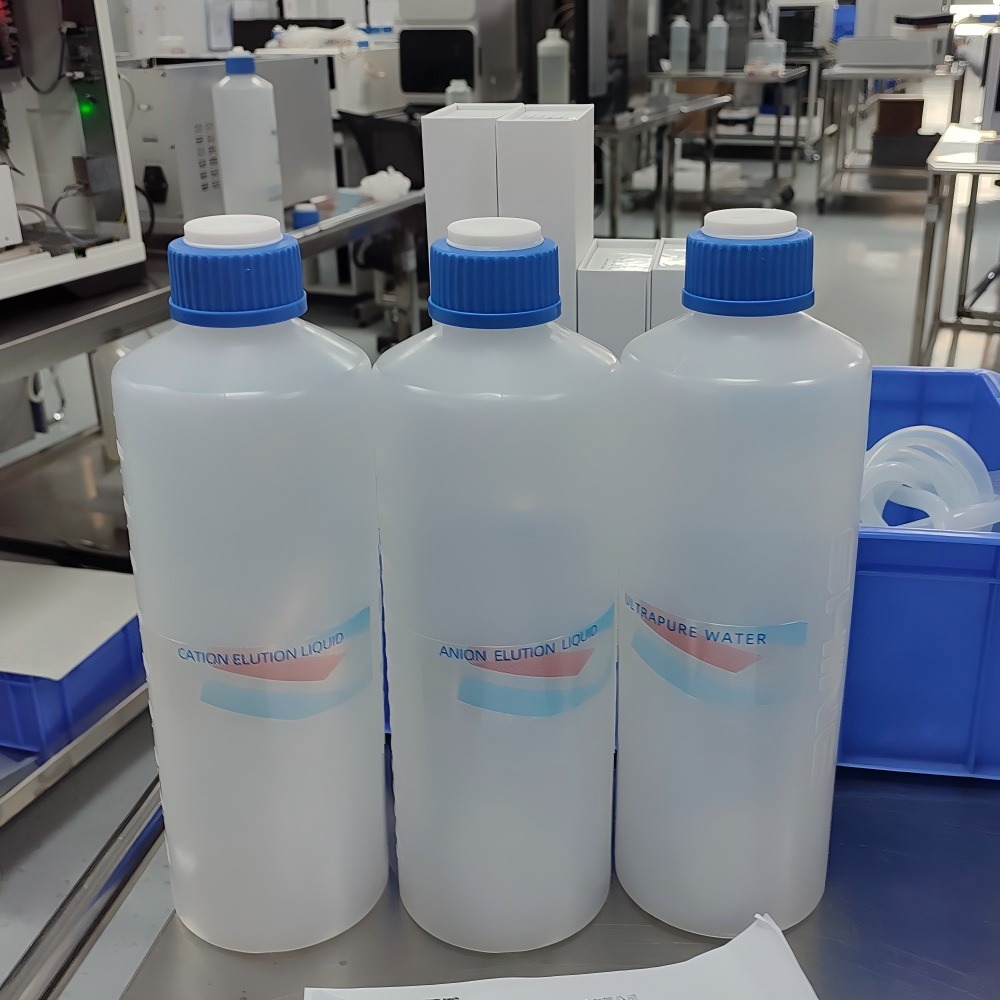

DW-CIC-D100 Accessories

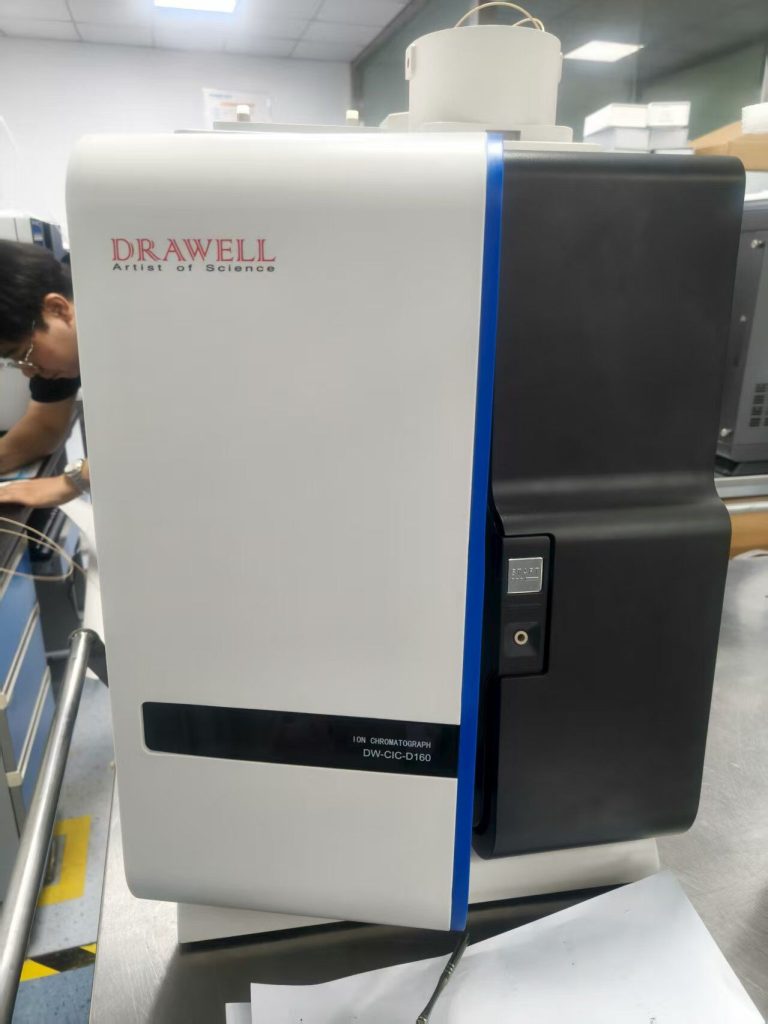

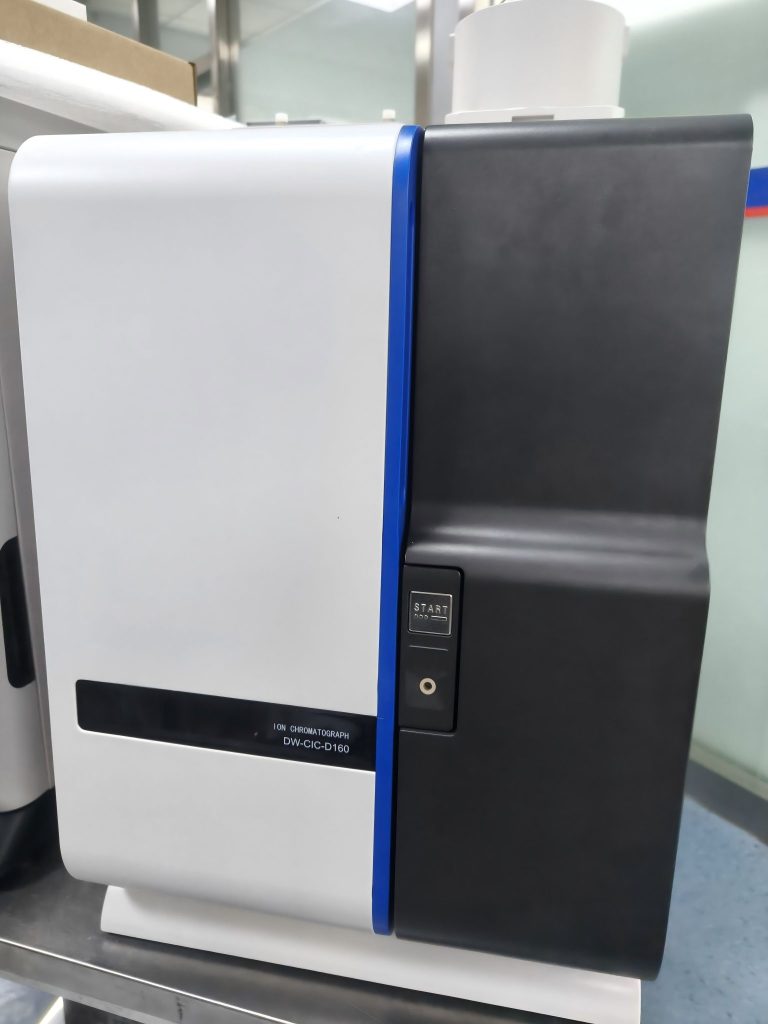

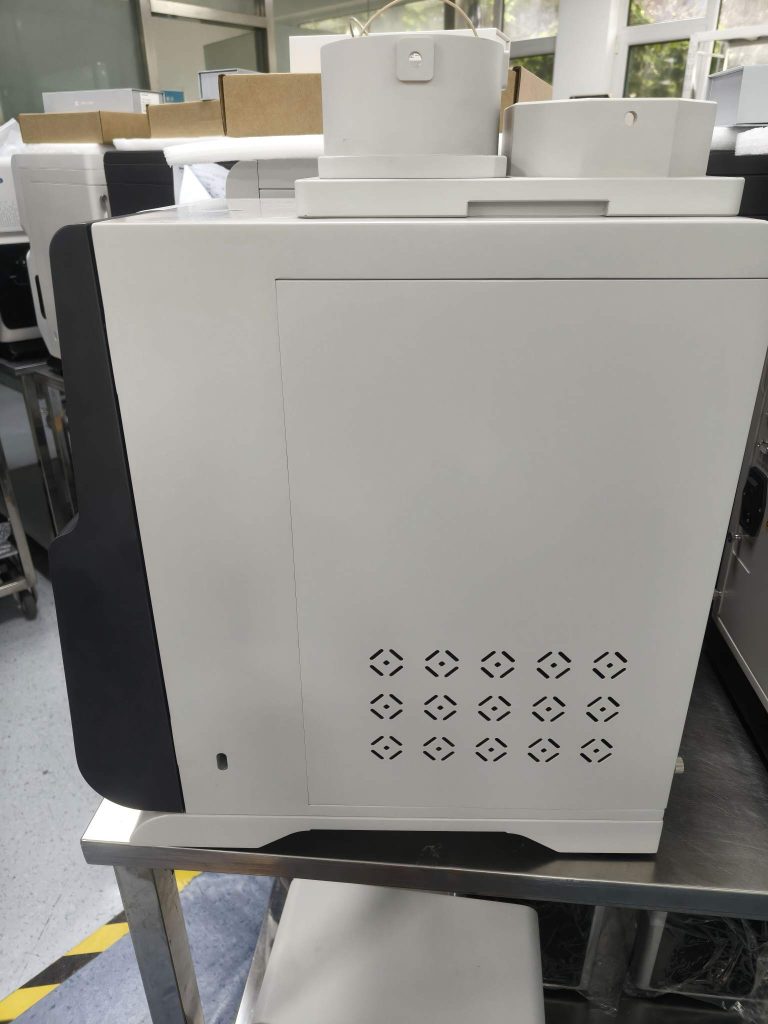

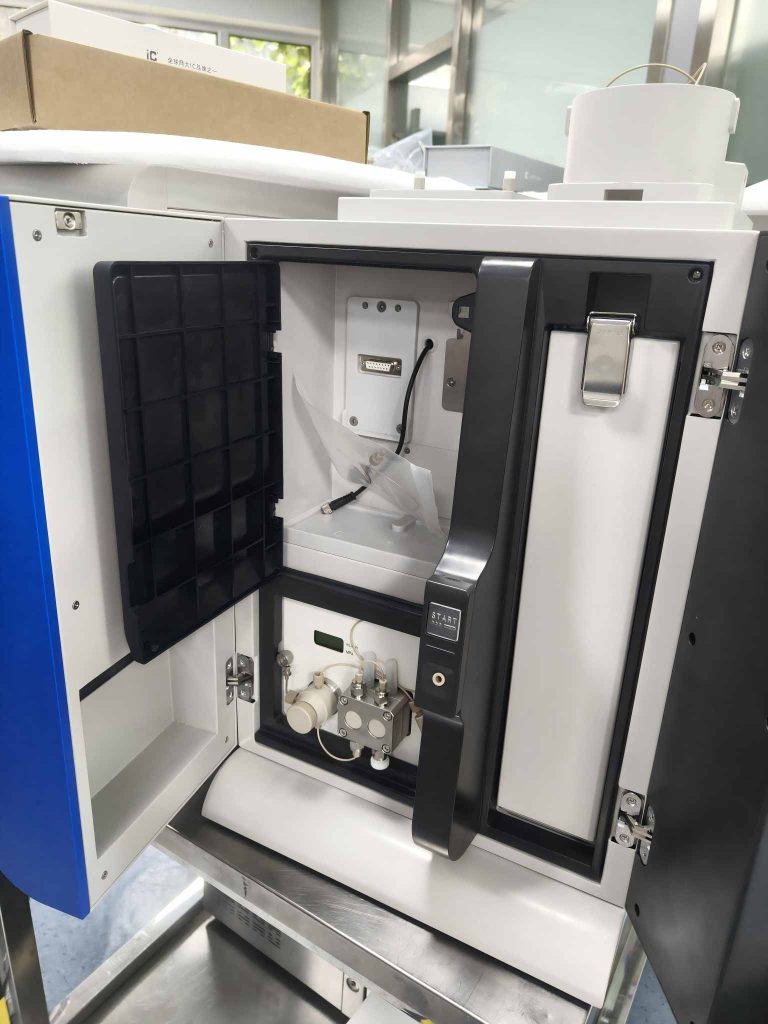

DW-CIC-D160 Ion Chromatography Display

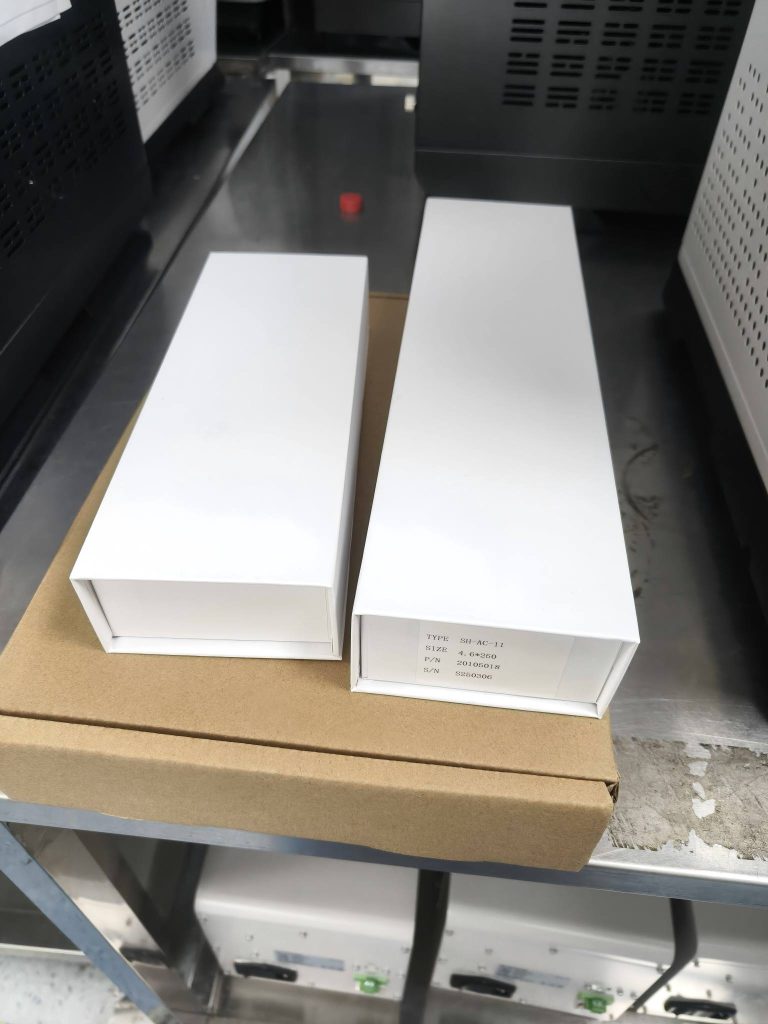

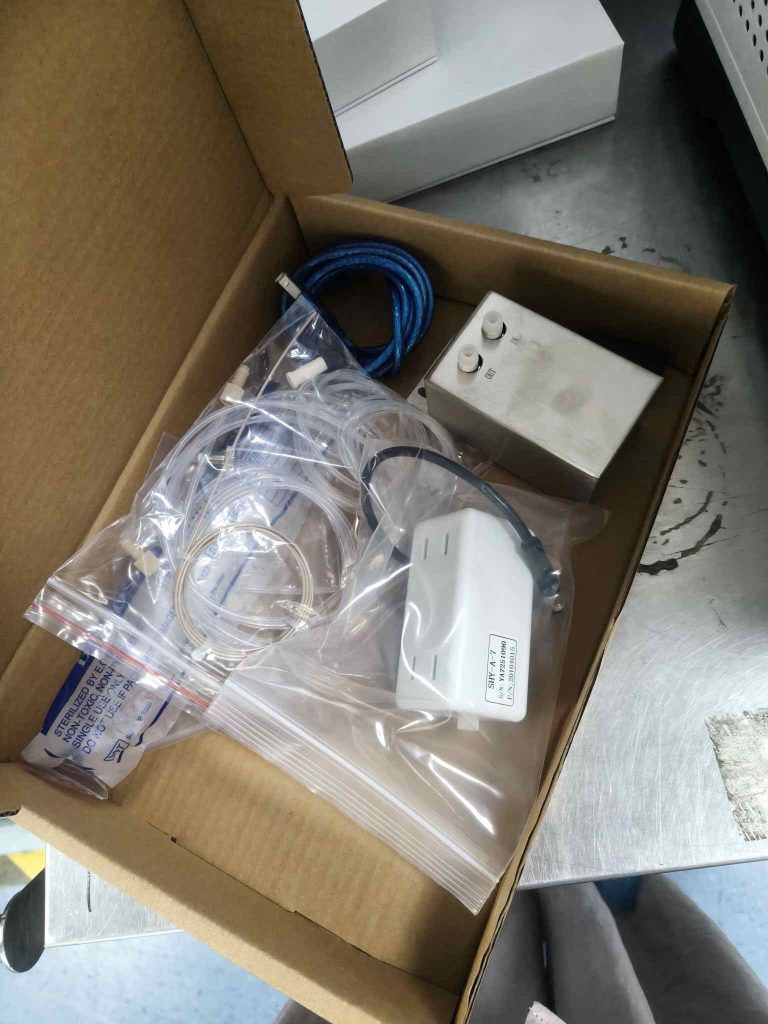

DW-CIC-D160 Accessories
Accessories- Accessories

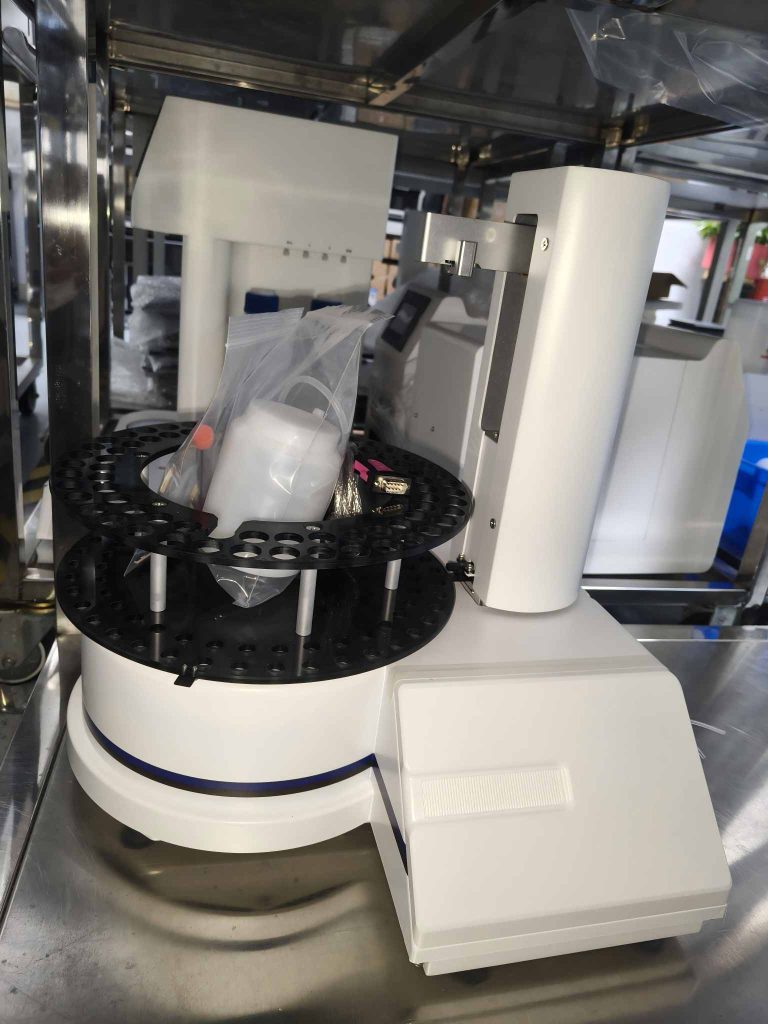

- Automatic sampler
