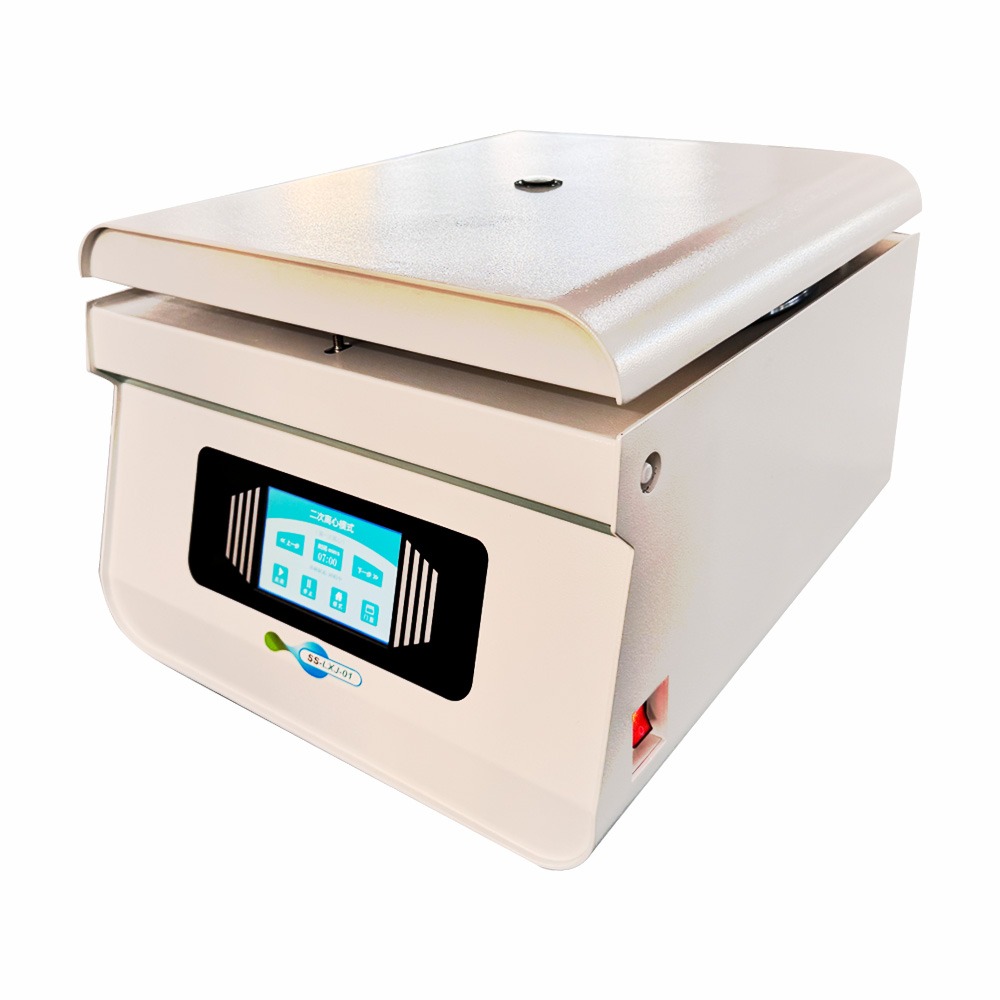

Benchtop Low-Speed Centrifuge TDZ5-SX/iTDZ5-SX

TDZ5-SX is a very popular high performance tabletop low speed centrifuge. With microprocessor control, brush-less motor, and less noise, it’s widely used in Hospitals, clinics, biochemistry, bio-science research laboratories, etc.

TDZ5-SX iTDZ5-SX Brochure

Features of Benchtop Low-Speed Centrifuge TDZ5-SX/iTDZ5-SX

  1. Stainless steel material, simple-compact, low-noise. and microprocessor control, maintenance-free frequency conversion motor.
  2. Both electronic lock and mechanical lock for safe operation.
  3. 10 grades of Acc/Dec rate, which can be set or save parameters freely.
  4. Parameters can be modified at any time when running without stopping the machine, and enable to show both the set and the actual value when running.
  5. It’s widely used in qualitative analysis of blood serum, plasma and urea in hospital, blood center and biochemistry.
  6. Automatic rotor indentification function to avoid over speed running.(iTDZ5-SX)
Benchtop Automatic Balance Low-Speed Centrifuge TDZ5-WS
LCD Display
Benchtop Automatic Balance Low-Speed Centrifuge iTDZ5-WS
Intelligent Type

Parameters of Benchtop Low-Speed Centrifuge TDZ5-SX/iTDZ5-SX

ModelTDZ5-SXiTDZ5-SX
DisplayLCD DisplayTouch Color Display
Max Speed/RCF5000r/min   3500×g
Speed Accurancy±10rpm
NO.1 Angle Rotor12×10/15ml5000r/minRCF 3500×g
NO.2 Swing Rotor16×10/15ml4000r/minRCF 2810×g
NO.3 Swing Rotor24×10/15ml4000r/minRCF 2810×g
NO.4 Swing Rotor4×50ml4000r/minRCF 2810×g
Timer Range0~99min59s
Motor Microprocessor & Brushless DC motor
Noise≤60dB(A)
Power SupplyAC220V & 110V 50Hz 5A
Dimension470×395×320mm(L×W×H)
Weight29kg

Note: Rotors can be customized

TDZ5-SX Centrifuge Display
