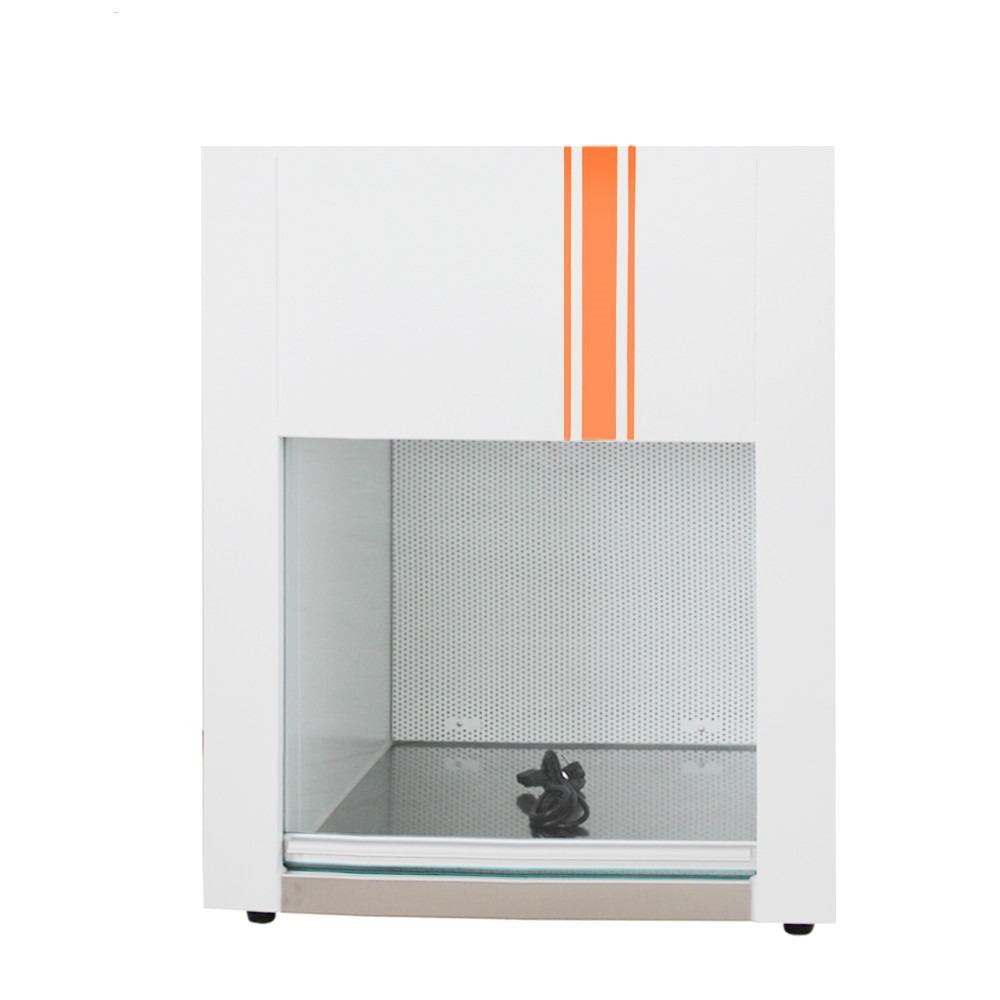

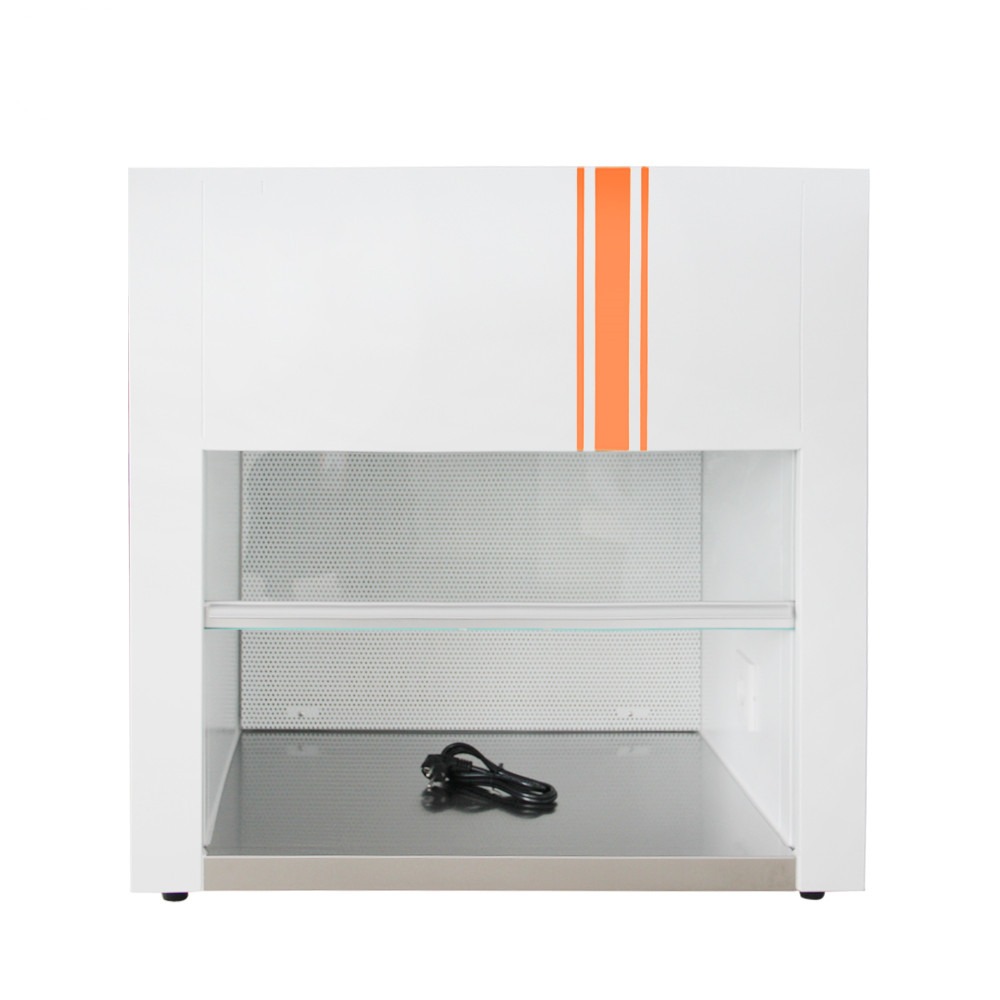

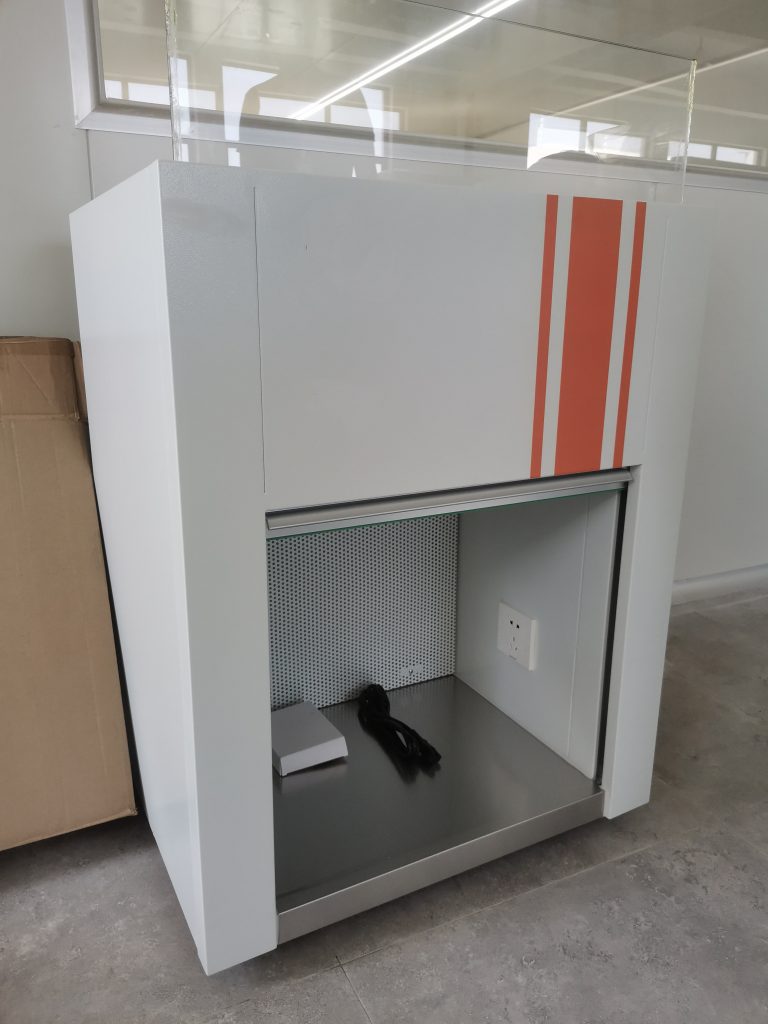

Desktop Laminar Flow Cabinet – Horizontal Air Flow HD-650 / HD-850
Horizontal flow work bench noise is reletively small, so it is usually used in electronic industry, which has little effect to health. It is widely used in electronics, national defense, precision instruments, meters, pharmaceutical industries, biological & chemical experiment, etc.
Working Principle

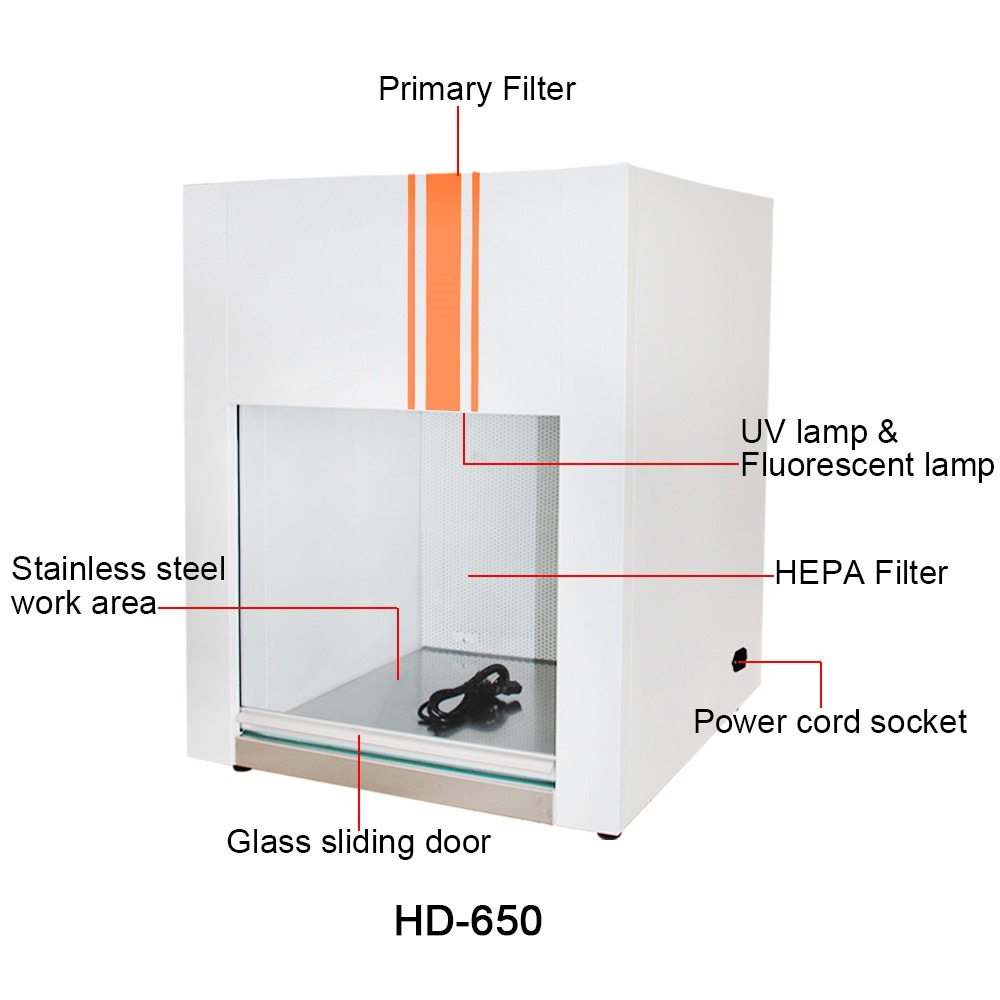

First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that the filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.
Characteristics
- Horizontal air flow
- Using remote to control the wind speed (two-stage wind speeds)
- Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA filter
Technical Parameters
| Model | HD-650 | HD-850 |
| Clean grade | Grade 100(209E US Federal) | |
| Number of bacteria | <0.5per utensil.hour(90mm utensil) | |
| Noise | <62dB | |
| Power supply | AQ220V/50HZ | |
| Equiblast Speed | 025O.45m/s | |
| Dimension of working area(Wl xDl xHl) | 485x385x455(mm) | 685x385x455(mm) |
| Overall dimension (W*D*H) | 640 x530x845(mm) | 840x530x845(mm) |
| Light from frefly/ ultraviolet light | 8Wx1pc/ 10Wx1pc | 8Wx1pc / 10Wx1pc |
| High effeclive filter size and quantity | 480x480x38x1pc | 680x480x38x1pc |
