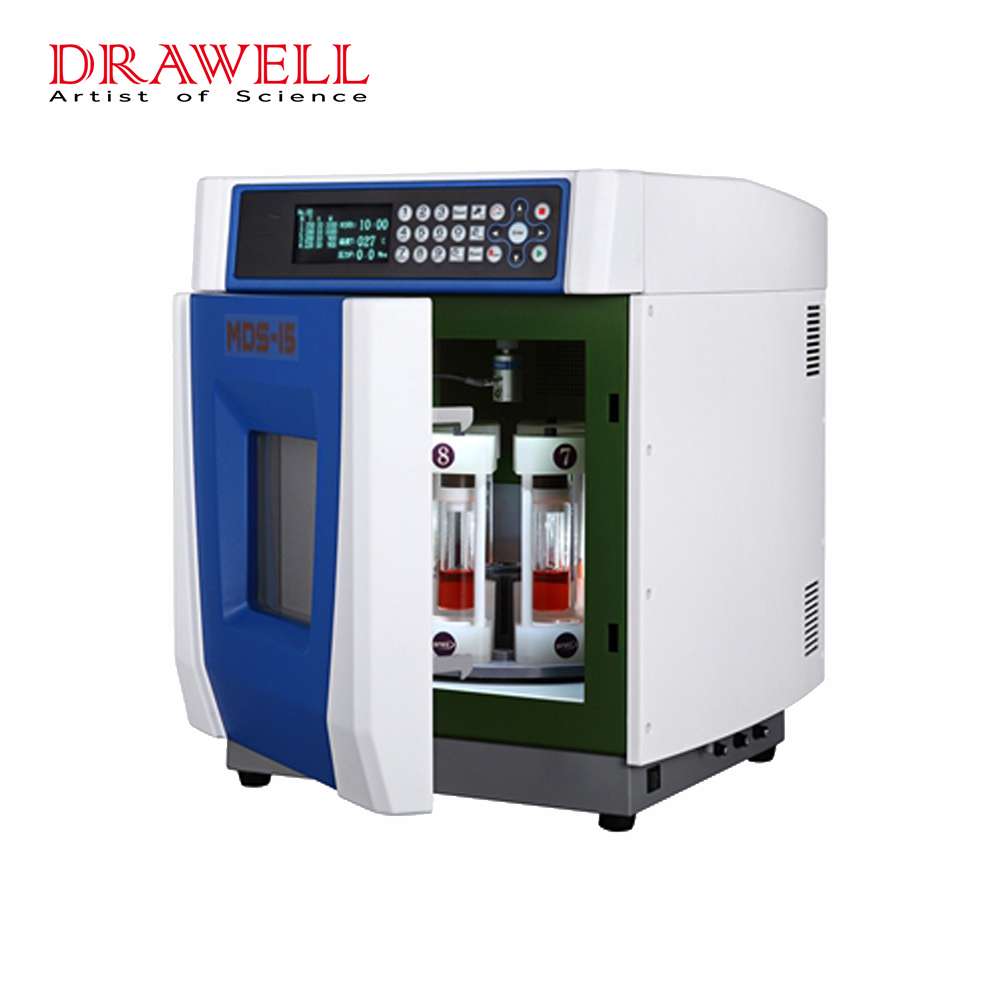

    • MDS-15 High-throughput Microwave Sample Preparation Workstation

    MDS-15 is the culmination of over 20 years of refinement. It is a high-throughput, multi-functional closed microwave sample preparation workstation with the latest technology and a lifetime warranty on the core component.

    • Versatility: MDS-15 is a versatile workstation which can handle the routine work, and more complicated and demanding samples in your prep rack with a wide variety of vessels to choose from.
    • Safety: we put safety at the top priority, which is why we have painstakingly designed every aspect of our microwave system with the highest level of security measures, such as the use of aerospace composite fiber vessel sleeves, and our patented safety bolt.
    • Efficient by design: MDS-15 applies high-energy uniform microwave field, it delivers a rapid digestion with a quick 20 minute cool down time. We has incorporated the latest technology of material design while engineering a very safe, durable and easy to use microwave.

    Features

    1. The quartz digestion vessel enables the digestion process to be visible.
    2. Wireless remote video monitoring system, together with quartz vessels, makes the reaction be seen clearly at a glance. Pictures and videos can be taken during the entire process.
    3. 500 ml ultra-large digestion vessel meets the special requirements for the digestion of samples of up to 10 grams.
    4. The drying rotor aides in the drying process of samples.
    5. The Aerospace composite fiber outer vessel ensures the highest level of vessel security.
    6. Large 65 L stainless steal chamber and dual magnetron structure, is designed for high energy and uniform microwave field.
    7. Microwave extraction, microwave Kjeldahl Nitrogen Determination, etc.

    Application

    1. Biological science
    2. Chemical science
    3. Pharmaceutical engineering
    4. Plastic analysis
    5. Agriculture and food safety
    6. Metallurgical
    7. Environmental science

    Specification

    Power 220~240 VAC 50/60Hz 16A
    Microwave source 2450MHz, dual magnetron design
    Installed power 3600W
    Maximum output power 2200W, non-pulse continuous automatic variable frequency control
    Cavity 65L industrial grade 316L stainless steel chamber, multi-layer chemical resistant PFA coating
    Door design 6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design,electronic and mechanical dual-control door lock
    Video monitoring system (Optional) Wireless video monitoring system, mobile phones and tablets can realize the observation and monitoring of the reaction
    Pressure measurement and control system Piezoelectric crystal pressure sensor, pressure control range :0~10MPa (1500 psi), accuracy ± 0.01MPa
    Temperature measurement and control system High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1°C; IR temperature sensor as optional, temperature range :0-300°C, accuracy ±1°C
    Outer vessel material Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600°C and 66 Mpa(10000psi)
    Inner vessel material Modified TFM material
    Chamber exhaust system High-power anticorrosion axial fan,20 minutes cooling time (from 200°C to 60°C)
    Working environment 0~40°C, 15~80%RH
    Whole physical size/weight 550 × 670 × 700mm, 70 KG
